Toro OEM 140-3548 Discharge Chute Fits Late/Current Toro 34" Timecutter Models.

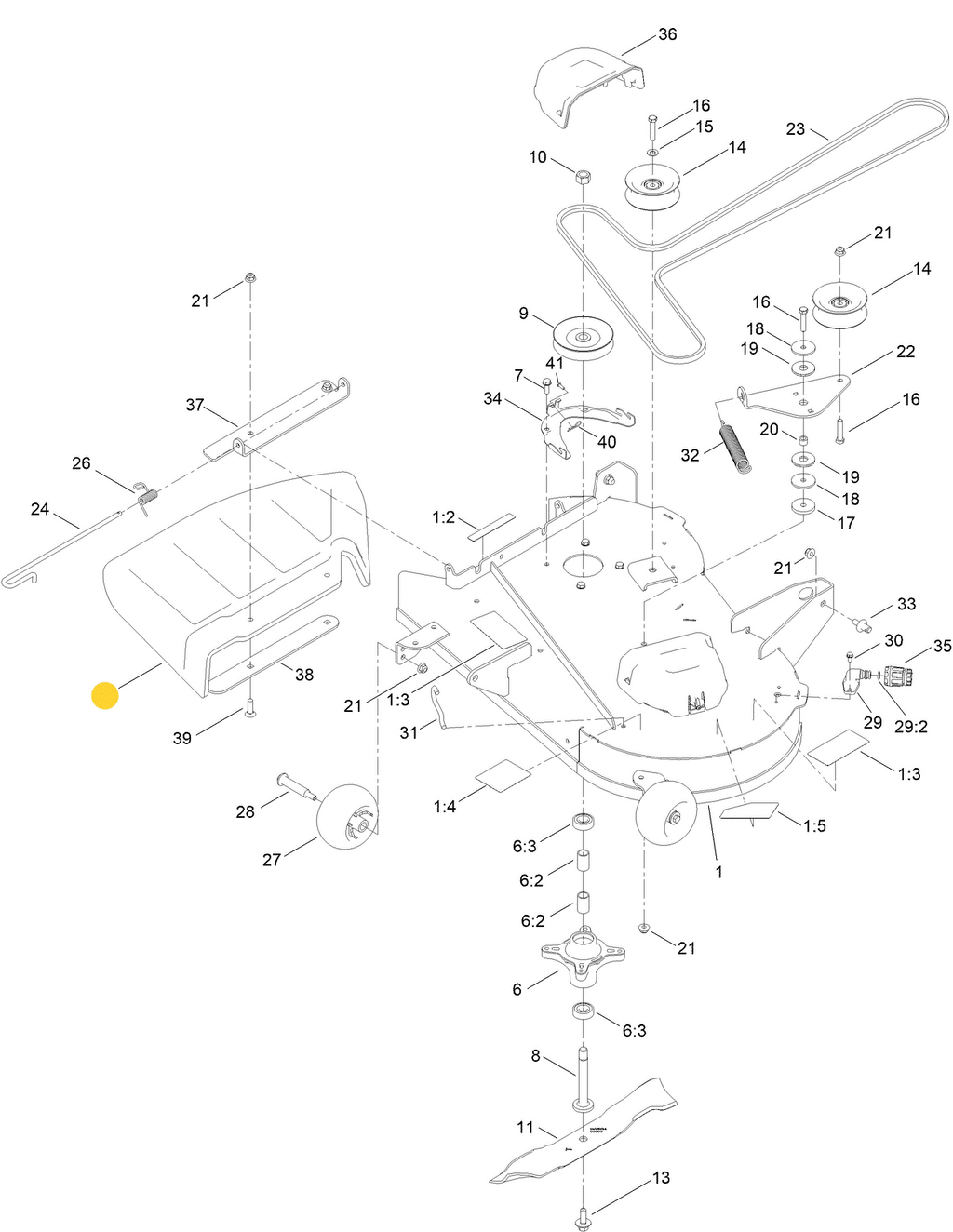

Toro OEM 140 3548 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Toro OEM 140 3548 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation. Toro OEM 140-3548 Discharge Chute is Designed to Fit Toro Late/Current 34", Timecutter Models. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-3548 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 138-7231 - PIVOT PIN (Only Model 77301, 75734 - Retains Discharge Chute Assembly)
2. 144-1956-03 - UPPER PIVOT PIN/DISCHARGE CHUTE BRACKET (Retains Discharge Chute)
3. 144-1957-03 - LOWER PIVOT PIN/DISCHARGE CHUTE BRACKET (Retains Discharge Chute)
4. 3231-28 - CARRIAGE BOLT (Retains Pivot Pin Brackets)
5. 104-8301 - LOCKING NUT (Retains Pivot Pin Brackets)
6. 138-7232 - TORSION SPRING (Attaches over Pivot Rod)

Specification

Model Fit:

75734, 77301
