Toro OEM 140-3493 Height of Cut (HOC) Decal Fits Toro Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Tube Framing).

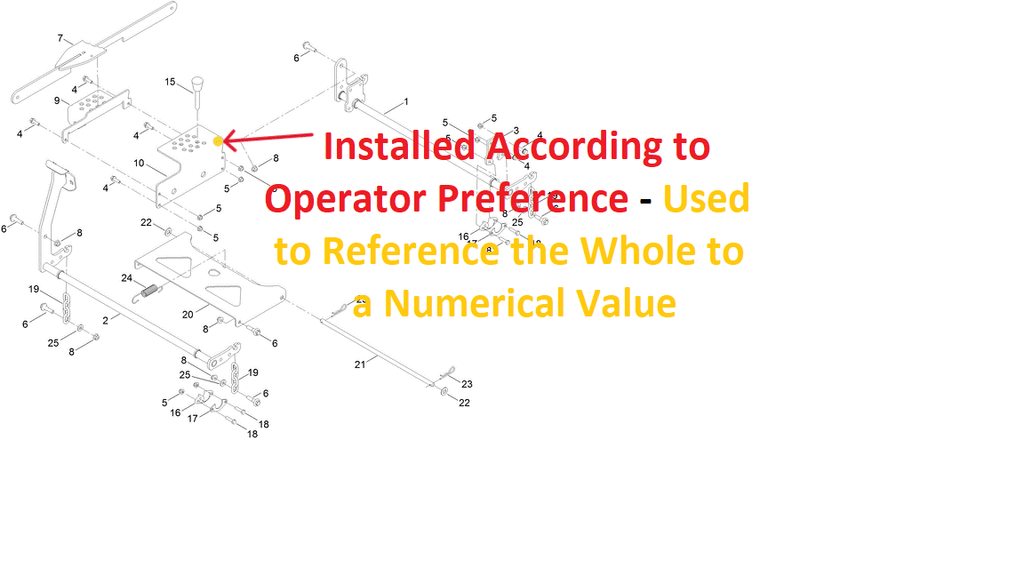

Toro OEM 140 3493 Height of Cut (HOC) Decal is a Numerical Decal and Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting. Toro OEM 140 3493 is Installed According to Operator Preference as well as Used as a Reference to Mark the Associated (HOC) Selection Wholes with Numerical Value Only and Fits Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (With Tube Style Framing).  Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-3493 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-3557-03 - UPPER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERENT LOOKING PLATES that Bolt Together Against the Mower Frame Allowing the Height of Cut (HOC) Link to Travel Between (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
2. 139-3556-03 - LOWER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERNET LOOKING PLATES that Bolt Together Against the Mower Frame (HOC) Plates Allowing the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
3. 140-3493 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
4. 140-2146 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notches to Rest Against at the operator’s chosen setting) x1 Per Unit







 Specification

Product Number:	1403493
Brand:	Toro
Length:	7.250 IN (18.415 CM)
Width:	3.875 IN (9.843 CM)
Height:	0.030 IN (0.076 CM)
Weight:	0.014 LB (0.006 KG)





Model Fit:



TITAN



48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
