Toro OEM 140-3461 Spacer is Found used in Select Timecutter and Titan Models.

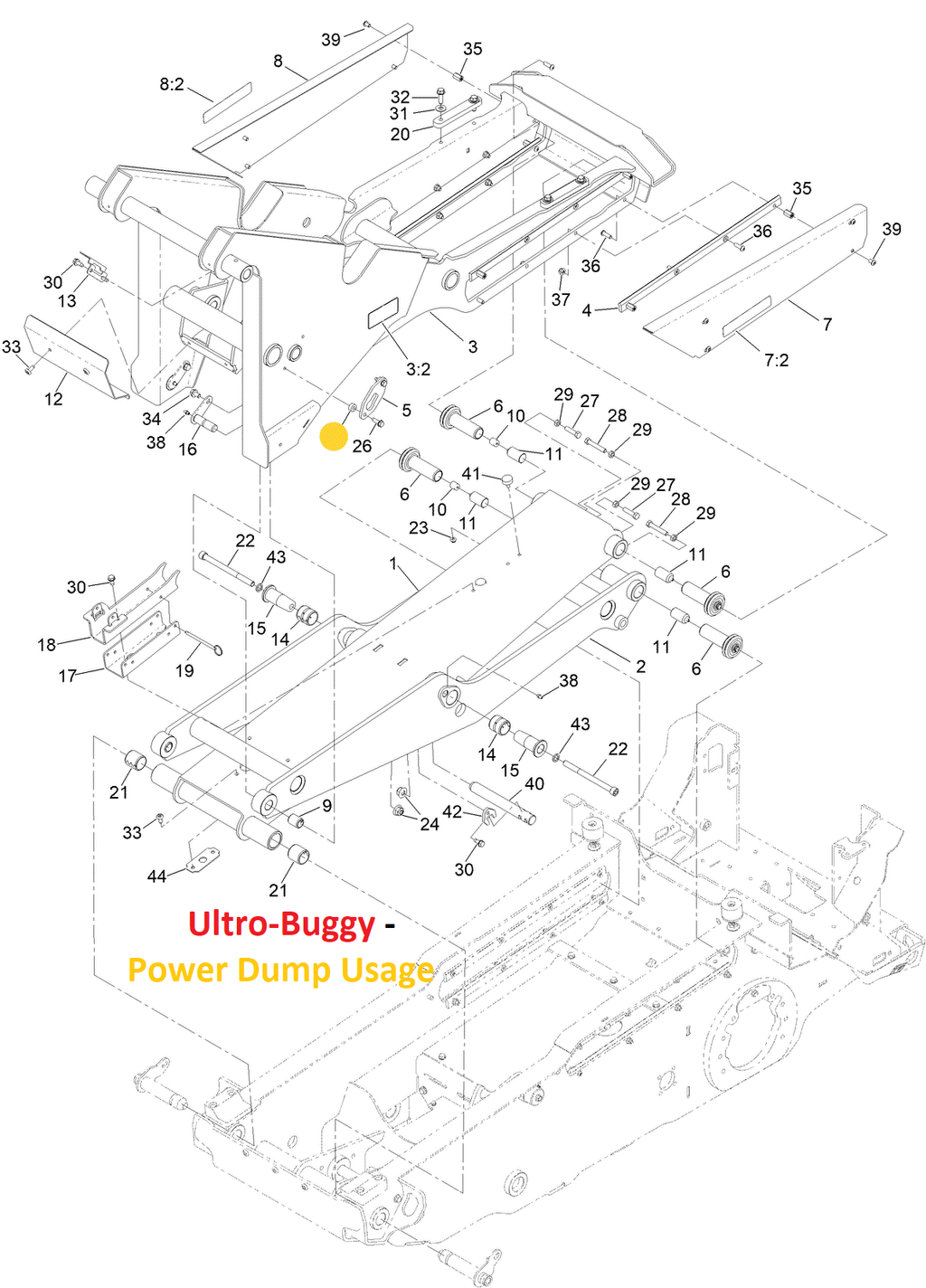

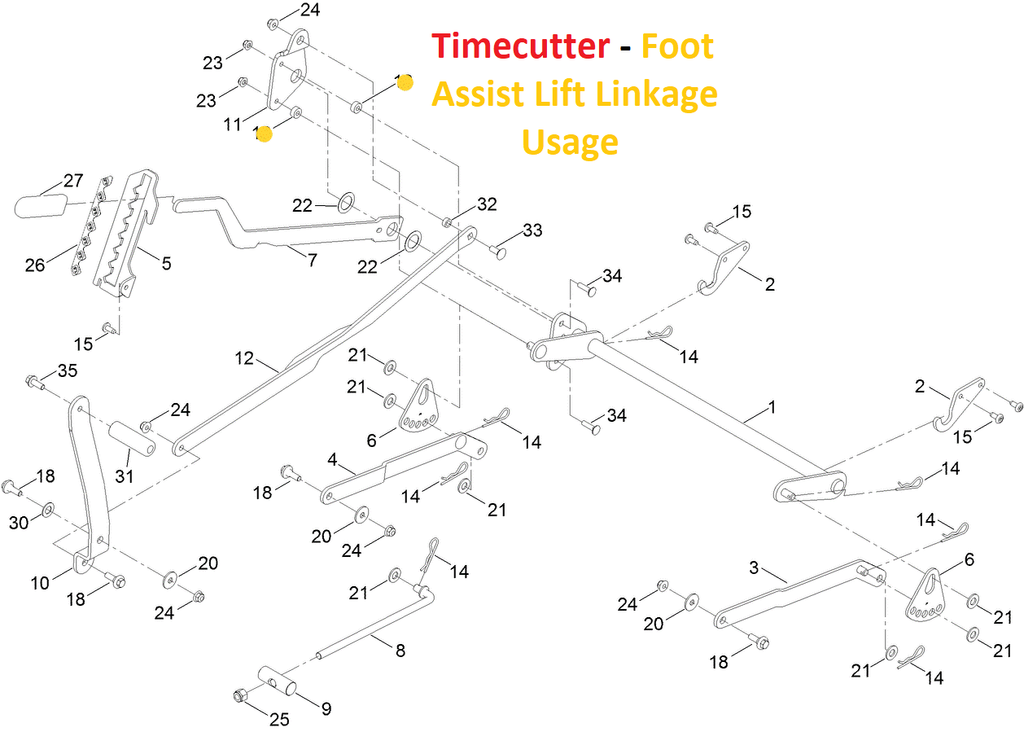

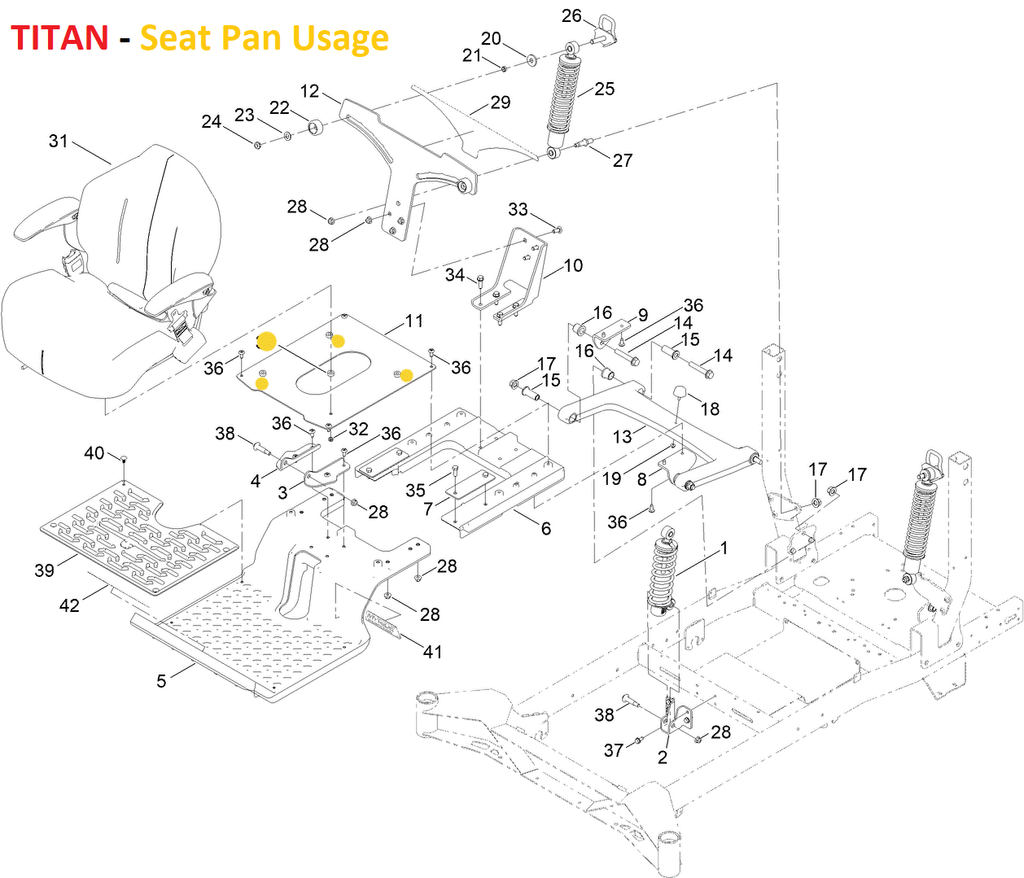

Toro OEM 140-3461 Spacer is primarily on the Timecutter Models (Lift Linkage with Models using the Mower Deck Foot Assist Lift Kit and Models only with the Replaceable Cast Aluminum Axle's), although it can be found used in the TITAN Only Models 76607, 76609 (Used in the Seat Pans) and the Ultra-Buggy Models 68142 (Dump Lift Linkage). Toro OEM 140 3461 Comes Assembled Standard on 50", 54" Timecutter Models and is Optional for 34", 42" Timecutter Models. Refer to the Model Fit Chart Below for an Accurate Break Down of Models that Part Number 140-3461 would or could be used on. Part Number 161-4527 Deck Assist Lift Kit is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Kit Contains the Individual Parts Listed Below - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-3461 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





PARTS REFERENCES FOR MODELS WITH MOWER DECK FOOT-ASSIST PEDAL KITS

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted



1. 139-7452 - FOOT PEDAL - (The Cylinder Shape Foot Pedal That Bolt to the Foot Pedal Bracket) x1 Per Unit
2. 139-2597 - FLANGE BOLT - (Threads into the Foot Pedal and Retains the Foot Pedal to the Foot Pedal Bracket) x1 Per Foot Pedal
3. 138-2549-03 - FOOT PEDAL BRACKET - (Fastens to Mower Frame and Retains the Foot Assist Pedal and connect to the Foot Lift Link) x1 Per Unit
4. 137-9847 - FLANGE SHOULDER BOLT - (Retains the Foot Pedal Bracket to the Mower Frame as well as the Foot Lift Link to the Foot Pedal Bracket) x2 Per Foot Pedal Bracket
5. 120-2273 - NYLON WASHER - (Installed Over the Flange Against the Flange Bolt Head and Reduces the Amount of Play or Slop there is in the Foot Pedal Bracket but still allows it to Rotate - Installed on the Shoulder Bolt that Retains it to the Frame) x1 Per Foot Pedal Bracket
6. 93-8806 - FLAT WASHER - (Installed Over the Flange Bolt Threads Against the Flange Bolt Flange Between the Foot Pedal Bracket and the Mower Frame and Spaces the Foot Pedal Bracket Away from the Frame) x1 Per Foot Pedal Bracket
7. 104-8301 - FLANGE LOCK NUT - (Retains Foot Pedal Bracket to Mower Frame and the Foot Lift Link to Foot Pedal Bracket) x2 Per Foot Pedal Bracket
8. 140-2746-03 - FOOTLIFT LINK - (Connects Foot Assist Pedal to Mower Deck Lift Handle and Mower Deck Pivot Arm) x1 Per Assist Foot Pedal
9. 119-4042 - FLANGE NUT - (Retains the Foot Pedal Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
10. 139-2590 - CARRIAGE BOLT - (Retains Foot Pedal Lift Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
11. 137-7086 - FOOTLIFT PLATE - (Fastens Overtop Mower Deck Lift Handle to the Pivot Lift/Leverage Arm and Enables you to Connect Mower Deck Foot Assist Lift Link) x1 Per Mower Deck Lift Handle
12. 140-3461 - SPACER - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm and Foot Lift Plate) x2 Per Mower Deck Lift Handle
13.  63-2290 - THRUST WASHER - (Installed Over Mower Deck Lift-Leverage-Pivot Rod on Each Side of the Mower Deck Handle and Reduces the Amount of Play or Slop in the Mower Deck Lift Handle) x2 Per Mower Deck Lift Handle
14. 140-2093 - SPACER (Foot-Lift Assist Linkage/Handle) - (Inserts in the Mower Deck Lift Handle Between Mower Deck Lift Plate and Mower Deck Pivot Arm Allowing them to be Fastened Together without Eliminating the Necessary Rotational Movement) x1 Per Mower Deck Lift Handle
15. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
16. 139-1702 - CARRIAGE BOLTS - (Retains Thrust Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Lift Handle, Foot Lift Plate
17. 119-4041 - FLANGE LOCK NUT - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Handle, Foot Lift Plate
18. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link) x1 Per Mower Deck or Unit





MOWER DECK FOOT-ASSIST PEDAL KIT



161-4527 - FOOT PEDAL ASSIST KIT FOR TIMECUTTER - 34" & 42" Timecutter Models (161-4527 is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Above - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Above)







Specification

Product Number:	1403461
Brand:	Toro
Length:	0.750 IN (1.905 CM)
Width:	0.750 IN (1.905 CM)
Height:	0.250 IN (0.635 CM)
Weight:	0.033 LB (0.015 KG)





Model Fit:



Model Factory Assemble Usages



Timecutter: 74694, 74695, 74696, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75851

Titan: 76607, 76609

Ultra Bugy: 68142



USAGE IN FOLLOWING KITS:



Foot Assist Mower Deck Lift Kit: 161-4527

Foot Assist Mower Deck Lift Kit: 140-2059

Foot Assist Mower Deck Lift Kit: 140-3463 (2011 and After)



TIMECUTTER STANDARD AND OPTIONAL USAGE WITH FOOT ASSIST LIFT PEDAL



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
