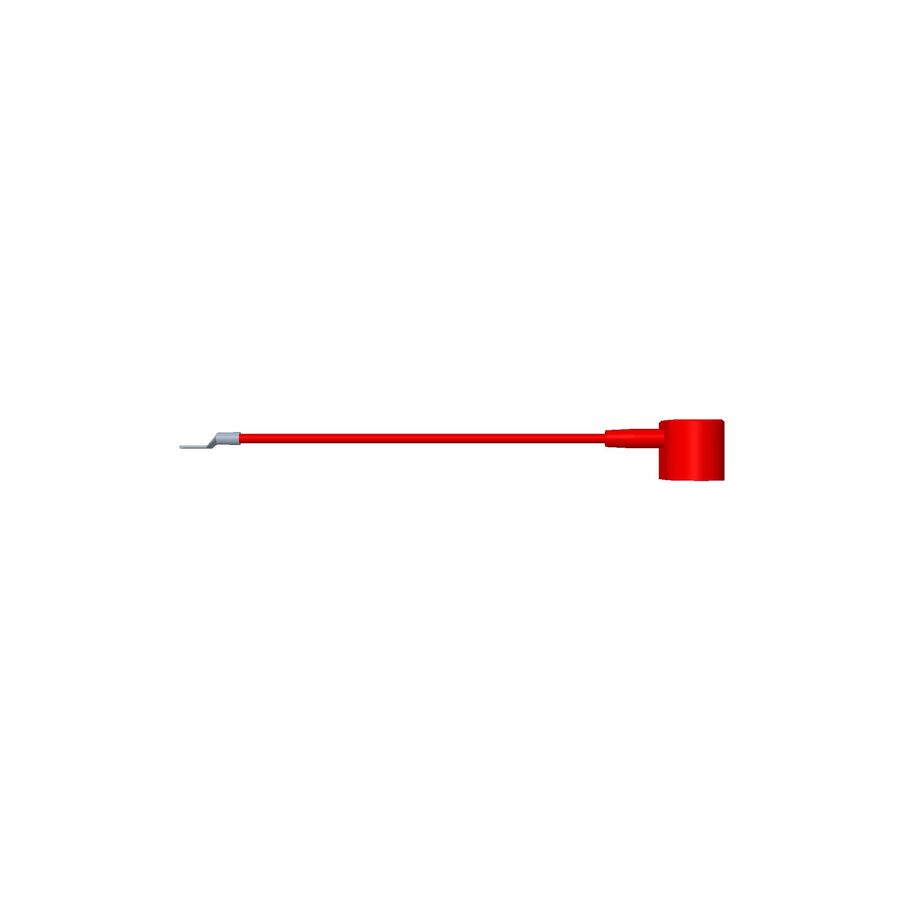

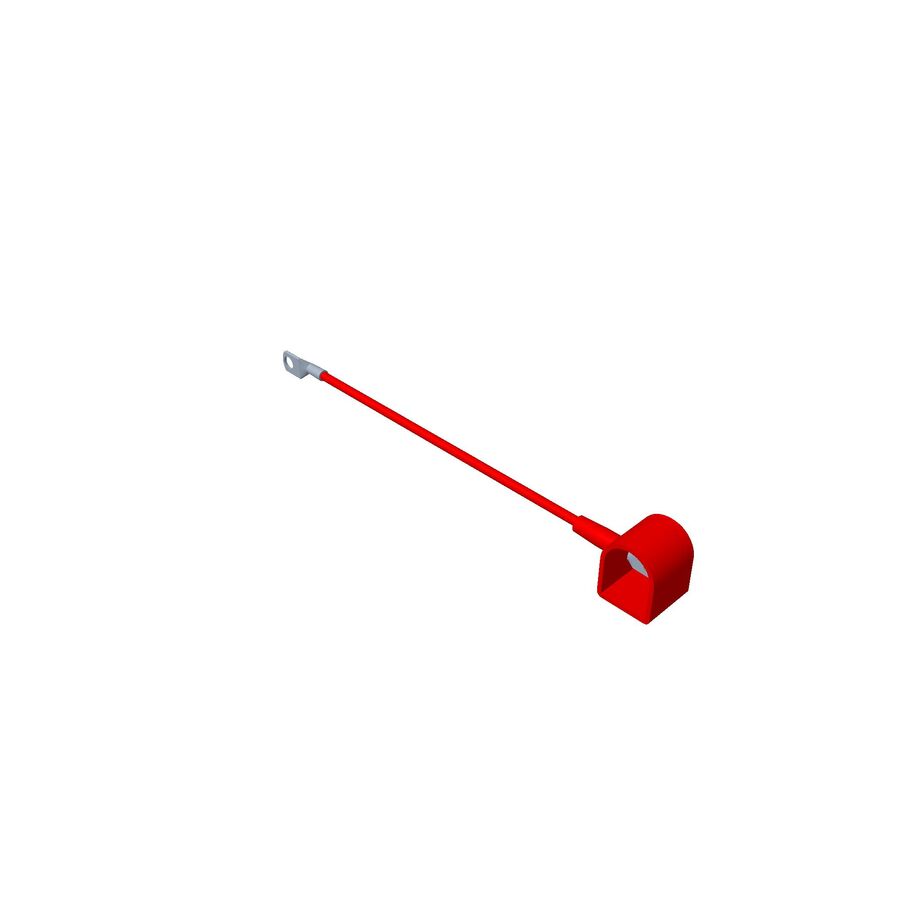

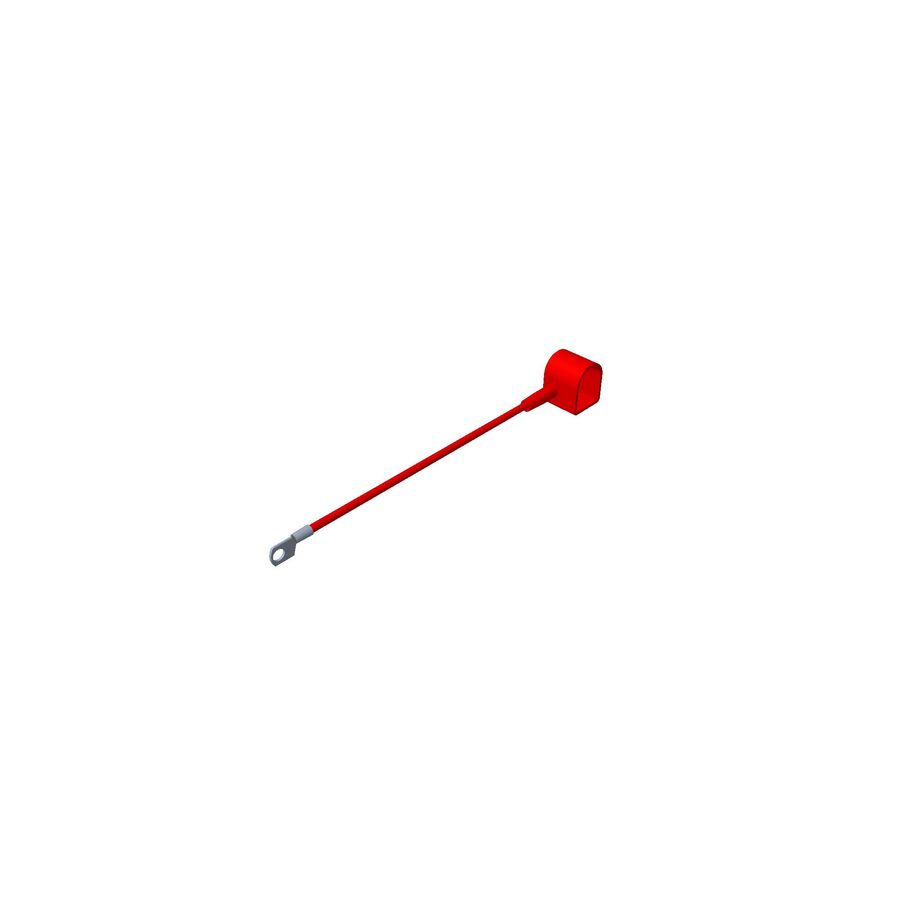

Toro OEM 140-2713 Red/Positive Battery Cable (8 Gauge Wire - 5/16" Eyelet/Bolt Whole - 1/4" Eyelet/Bolt Whole - Battery Post Cover) Fits Select Late Timecutter Models/Series with Cast Aluminum Axle's.

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.





• PRODUCT NUMBER AND VARIATIONS: 140-2713, 140 2713, 1402713
• PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 140-2713 Red Positive Battery Cable is Primarily Used Between the Battery and the Electrical Solenoid. 140 2713 Contains a Protective Boot for Positive Battery Post Eliminating the Possibilities of accidentally Creating a short Across the Battery Post which could Result in Injury, Fire & Damage as well as Protecting the Post from less Moisture Accumilation which can Encourage Corrosion Build-Up. 140 2713 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 12 in.
• COMMON SERIES APPLICATIONS: Select Late 34" Timecutter Standard Models - 42" Timecutter ZS, MX, 4200, Standard, My-Ride Models - 50" Timecutter MX, 5000 Standard, My-Ride Models - 54" Timecutter My-Ride Models - 60" Timecutter Standard, My-Ride Models (All Models with Replaceable Cast Aluminum Axle's).

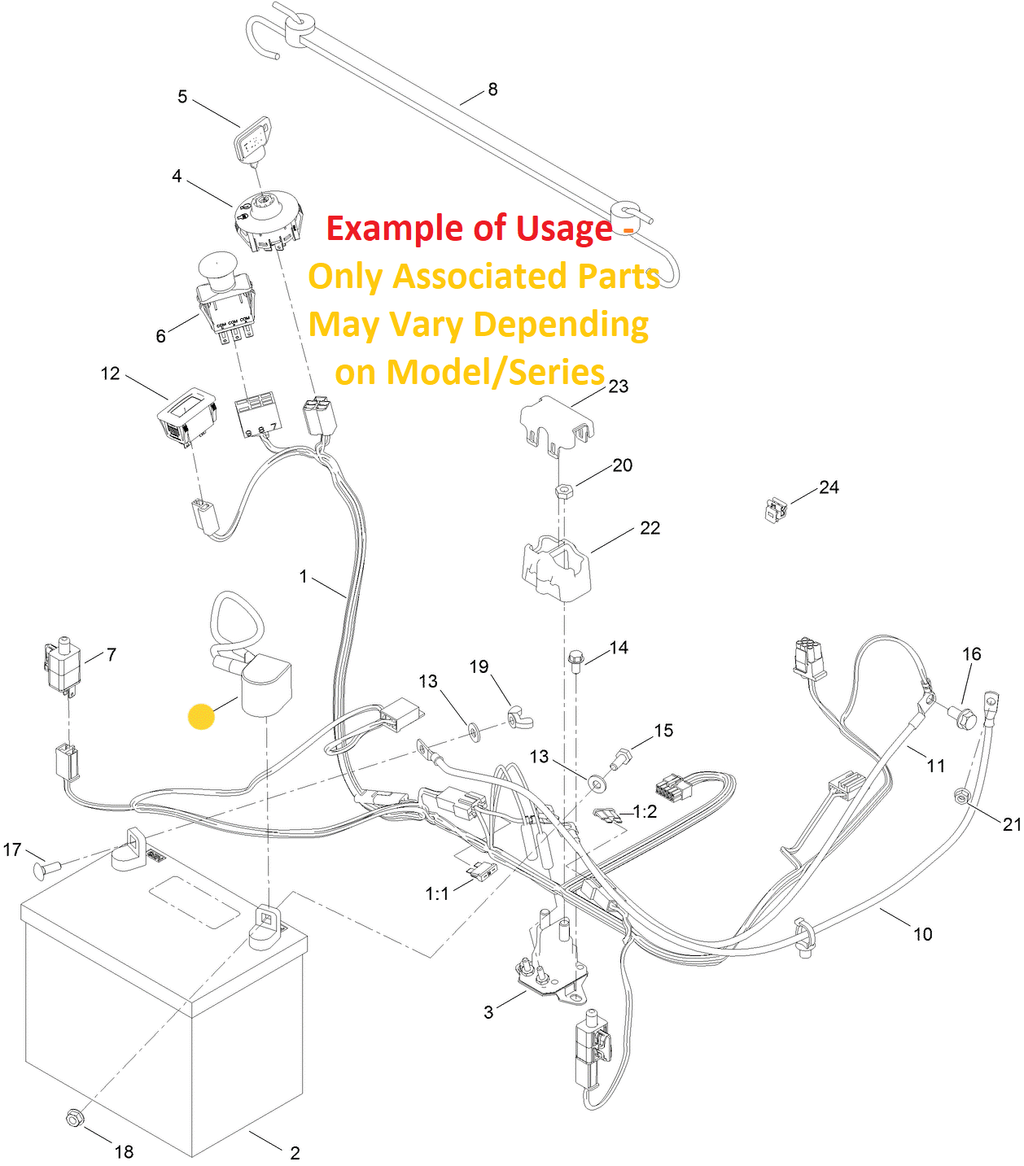

• ASSOCIATED PARTS CHART:



BATTERY



1. 321-3 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
2. 3256-22 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
3. 32128-33 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post



SOLENOID



1. 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
2. 3220-2 - NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post



• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74685, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
