Description

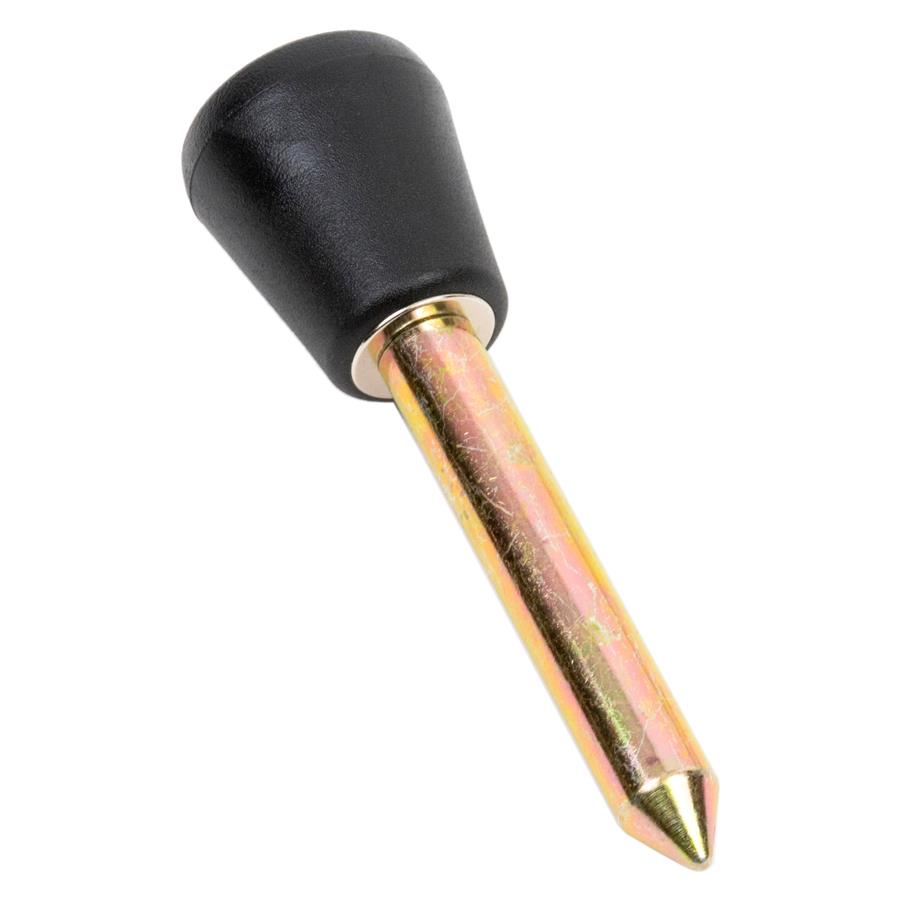

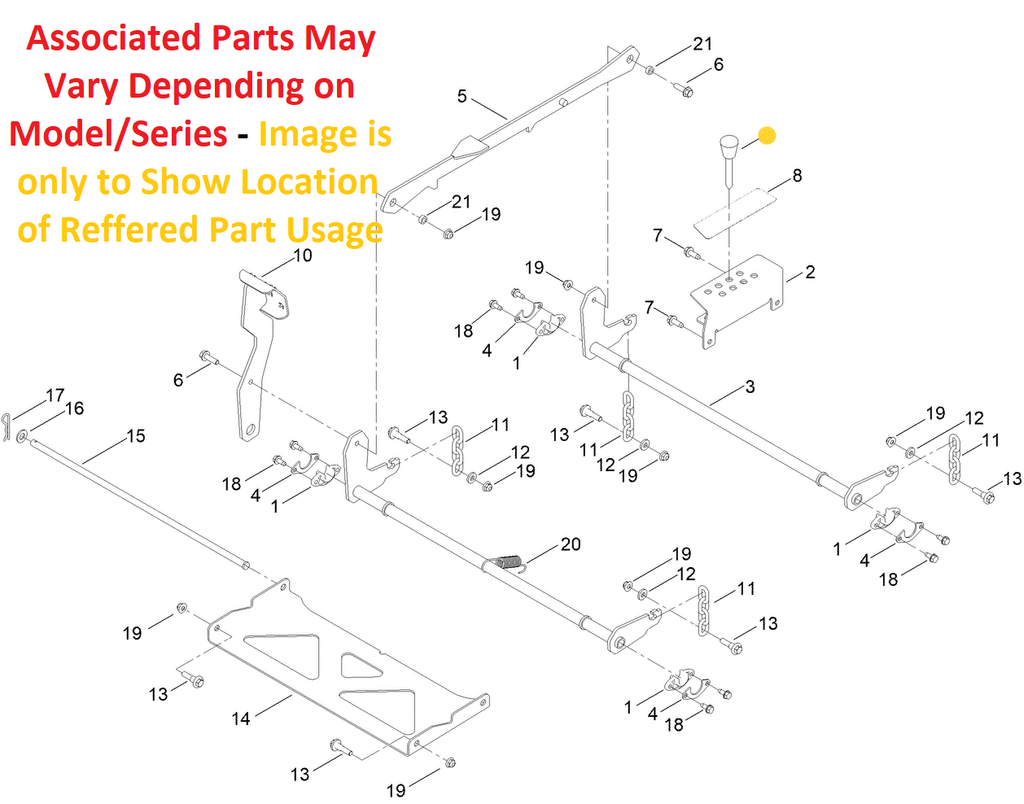

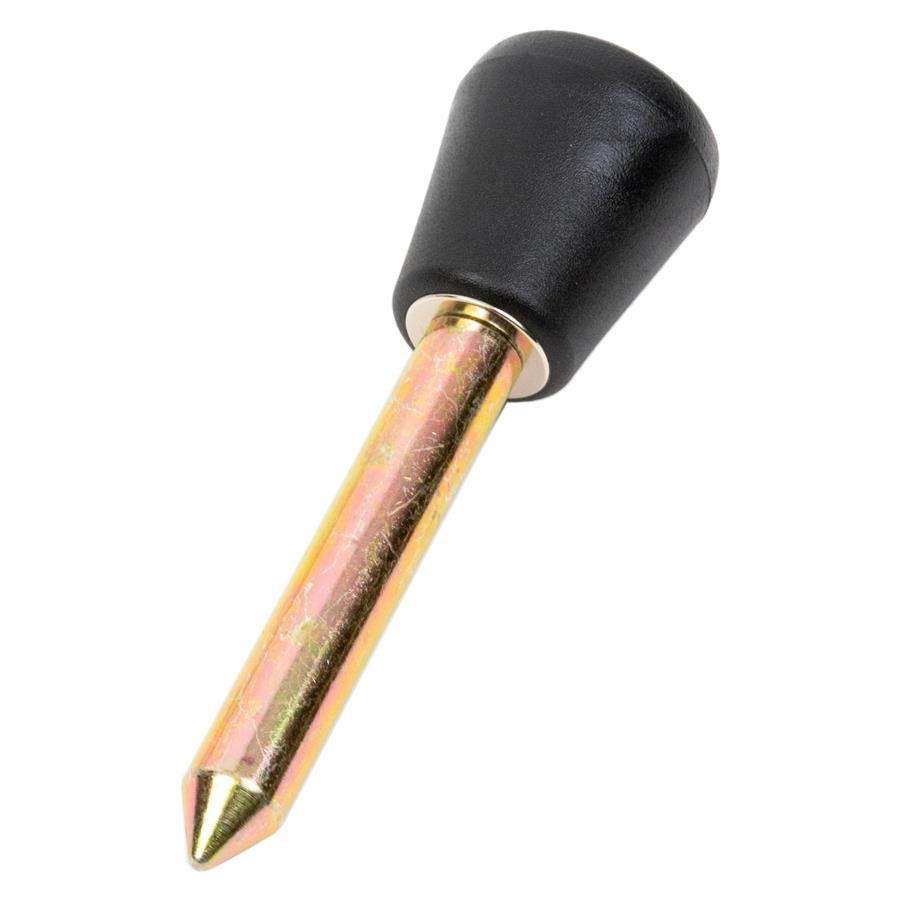

The Toro OEM 140 2146 Height of Cut Pin fits into the Height of Cut Pin Adjustment Bracket, providing a stable resting point for the Height Adjustment Link at the operator’s chosen setting. Its magnetic design ensures the pin remains securely in place, even when navigating uneven terrain. Toro OEM 140 2146 is Designed for Toro Late 42", 50", 54", 60" Timecutter Standard, My-Ride Models (Replaceable Cast Aluminum Axle's) - Current 42", 50", 54", 60" Timecutter MAX Standard, My-Ride - Late 48", 54", 60" TITAN Standard, My-Ride, X, XS, 4800, 5400, 6000 Models (Tube Style Framing) - Current 48", 54", 60" TITAN Standard, My-Ride (I-BEAM Style Framing) - Current 48", 54", 60" TITAN MAX Models (I-BEAM Style Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage and to Ensure a Proper Fit.
Specification
|
Product Number: |
1402146 |
|
Brand: |
Toro |
|
Length: |
4.730 IN (12.014 CM) |
|
Width: |
1.410 IN (3.581 CM) |
|
Height: |
1.410 IN (3.581 CM) |
|
Weight: |
0.043 LB (0.020 KG) |
Model Fit:
TIMECUTTER
42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)
42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)
50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)
60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
TITAN
48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)
48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)
54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
