Description

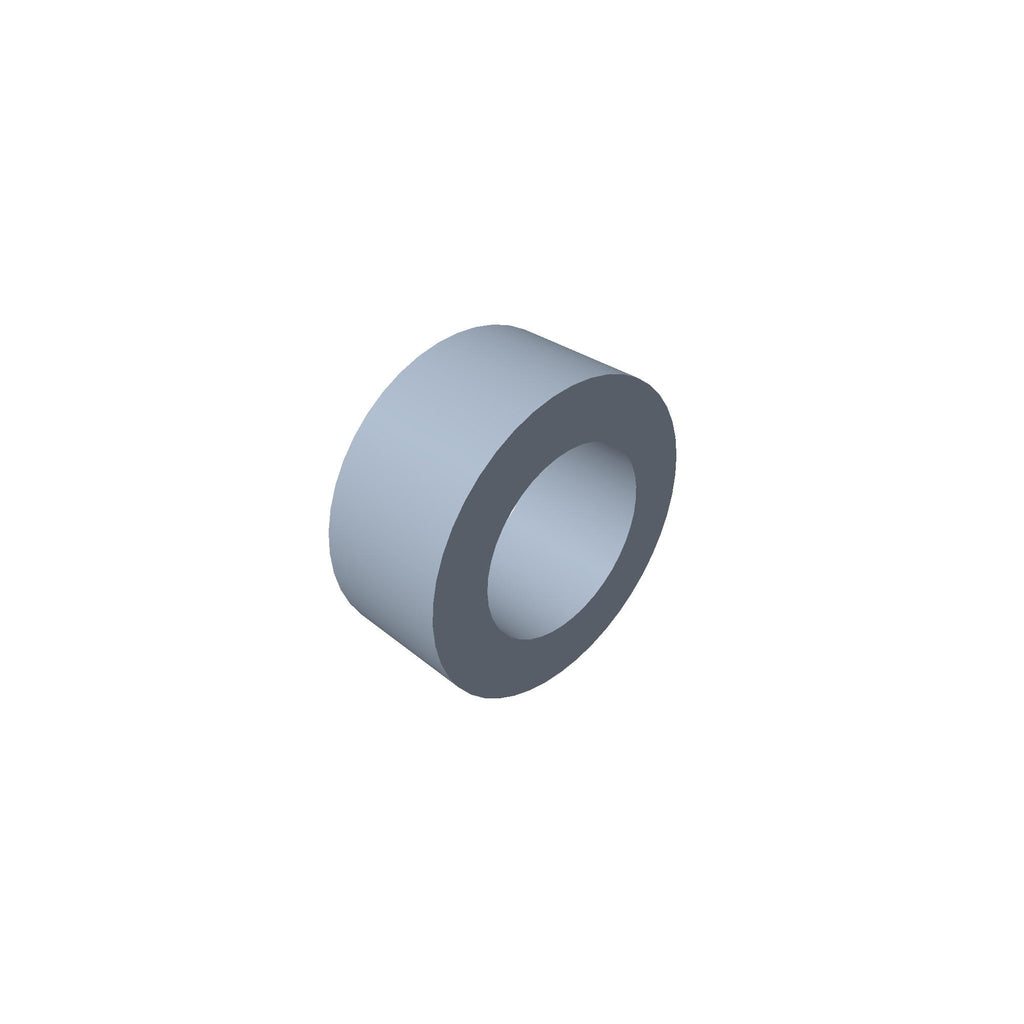

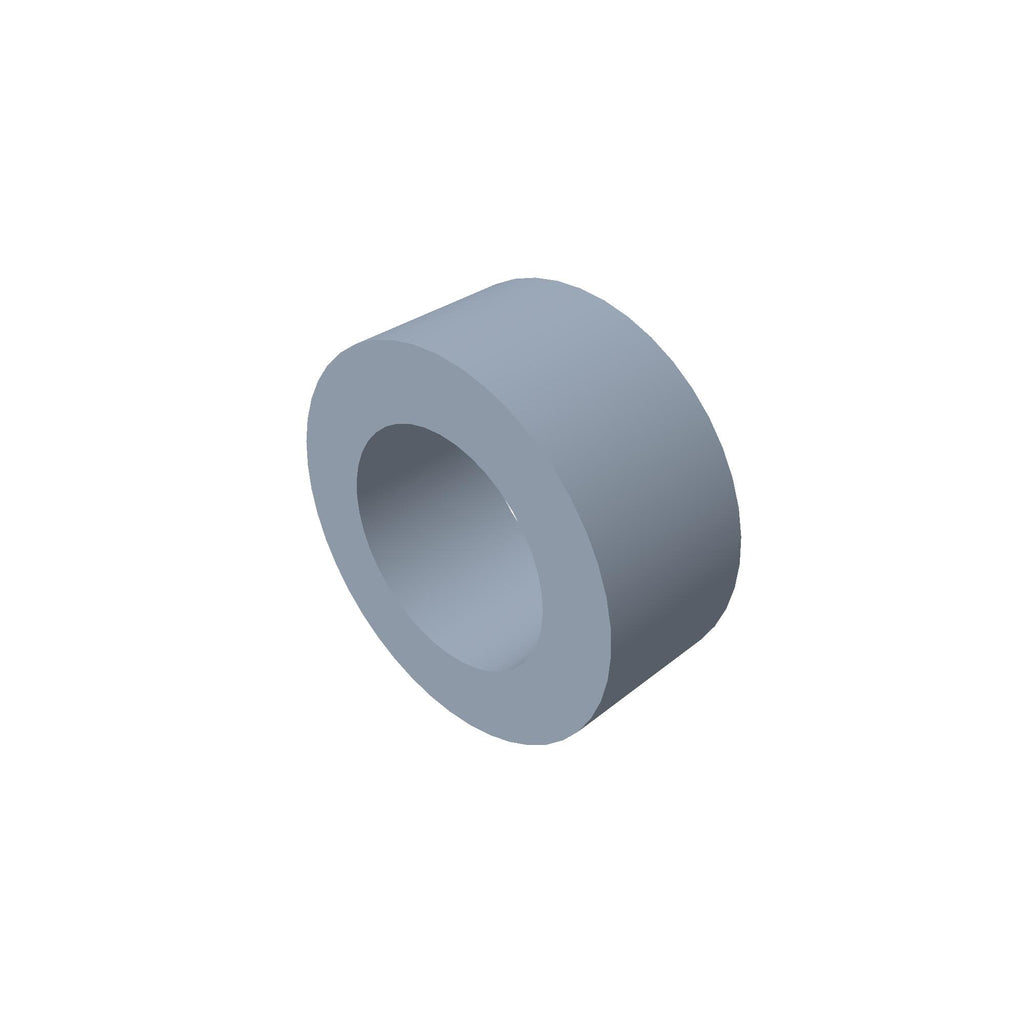

- TYPE: TORO OEM Foot-Lift Assist Linkage Spacer
- SIZE: NA

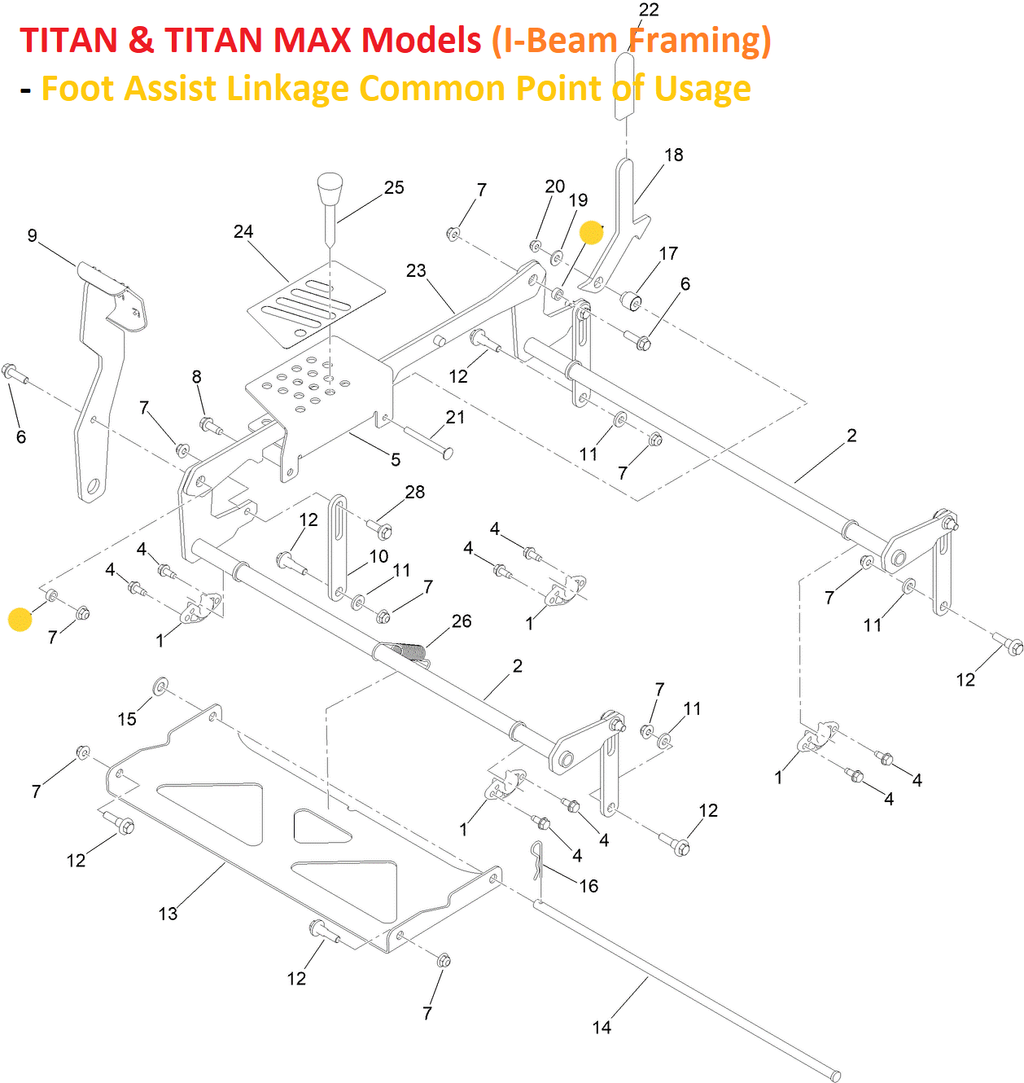

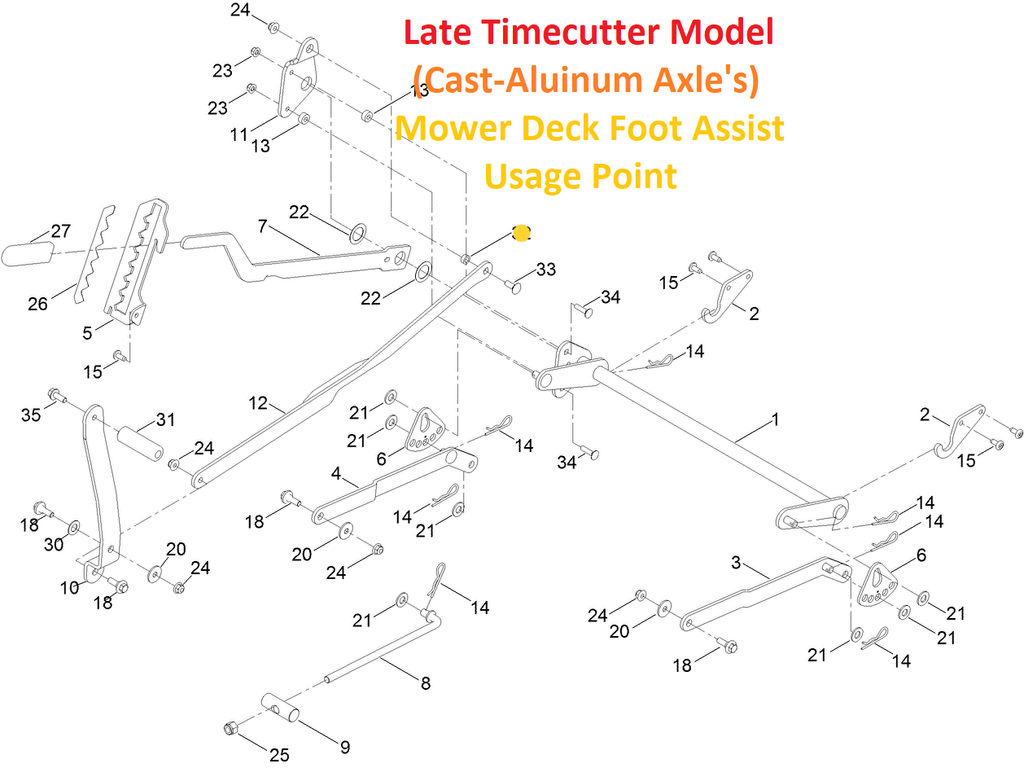

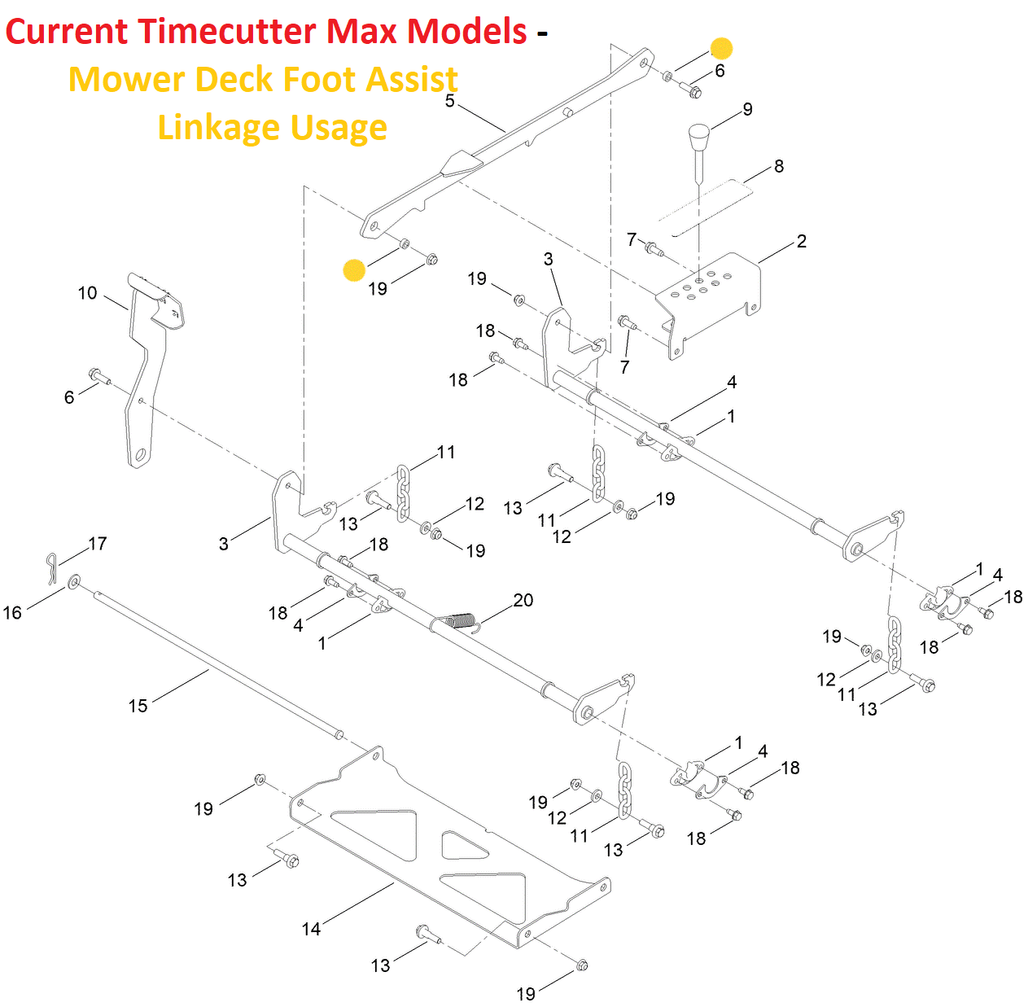

- APPLICATIONS: Primarily Used in Foot Assist Lift Linkage - (Late Timecutter Models with Cast Aluminum Axle's) - Inserts in the Mower Deck Lift Handle Between Mower Deck Lift Plate and Mower Deck Pivot Arm Allowing them to be Fastened Together without Eliminating the Necessary Rotational Movement (Current Timecutter MAX, TITAN & TITAN MAX - with I-Beam Framing) - Commonly Used in the Foot Lift Link or Height of Cut Link To Enable it to Be Tightened Without Restricting It's Necessary Movement.
- COMMON SERIES APPLICATIONS: Select Late Timecutter Models (Cast Aluminum Axle's) - Current TITAN Standard, My-Ride Models (Models with I-Beam Framing) - Current TITAN MAX Models (Models with I-Beam Framing).
NOTE: For Current/Late 34", 42" Timecutter Models (With Cast Aluminum Axle's) - Mower Deck Foot Assist Lift Kit Does Not Come Factory Installed However is Available and does Contain 140-2093 in it. Part Number 161-4527 Deck Assist Lift Kit is for 34" & 42" Models Listed as Optional Models below in the Model Fit Chart.
Specification
|
Product Number: |
140 2093, 1402093 |
|
Brand: |
Toro |
|
Length: |
0.750 IN (1.905 CM) |
|
Width: |
0.750 IN (1.905 CM) |
|
Height: |
0.375 IN (0.953 CM) |
|
Weight: |
0.012 LB (0.005 KG) |
Model Fit:
Model Factory Assemble Usages
TIMECUTTER
42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)
42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)
50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)
50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)
50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)
50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)
54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
TITAN
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
MOWER DECK LIFT ASSIST KITS
MOWER DECK LIFT ASSIST KITS – (* Part Numbers 140-2056, 161-4527)
TIMECUTTER OPTIONAL USAGE WITH FOOT ASSIST LIFT PEDAL KIT 161-4527
TIMECUTTER
34” TIMECUTTER (STANDARD) Series – (* Model Numbers 75734, 77301)
42” TIMECUTTER ZS Series – (* Model Numbers 74677, 74683, 74685, 74687)
42” TIMECUTTER MX Series – (* Model Numbers 74690, 74691)
42” TIMECUTTER 4200 & ZR 4200 Series – (* Model Numbers 74679, 75740)
42” TIMECUTTER (STANDARD) Series - (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)
42” TIMECUTTER (My-Ride) Series – (* Model Numbers 74692, 75743, 75745, 75747)
42” TIMECUTTER (Standard & My-Ride - Battery) Series – (* Model Numbers 75841, 75642)
