Toro OEM 139-9900 Auger Sheer Bolt Kits Fits Toro Select Power Max Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Number 133-2575 Supersede to Part Number 139-9900





• PRODUCT NUMBER AND VARIATIONS: 139-9900, 139 9900, 1399900, 133-2575, 133 2575, 1332575

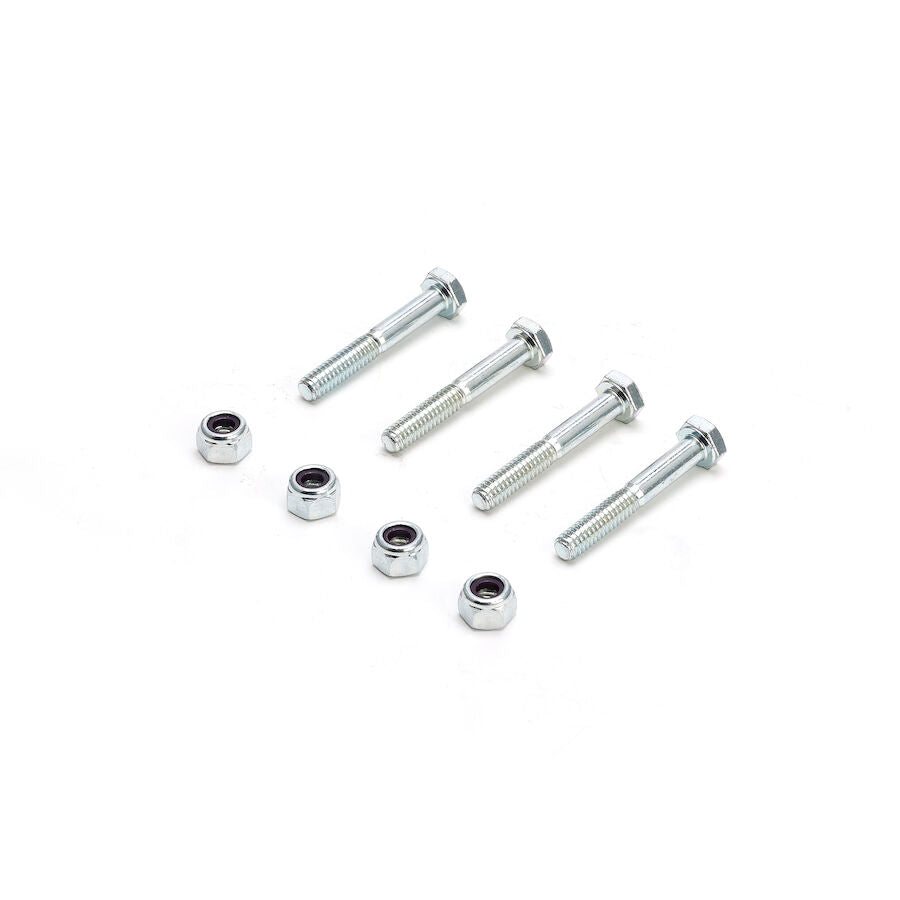

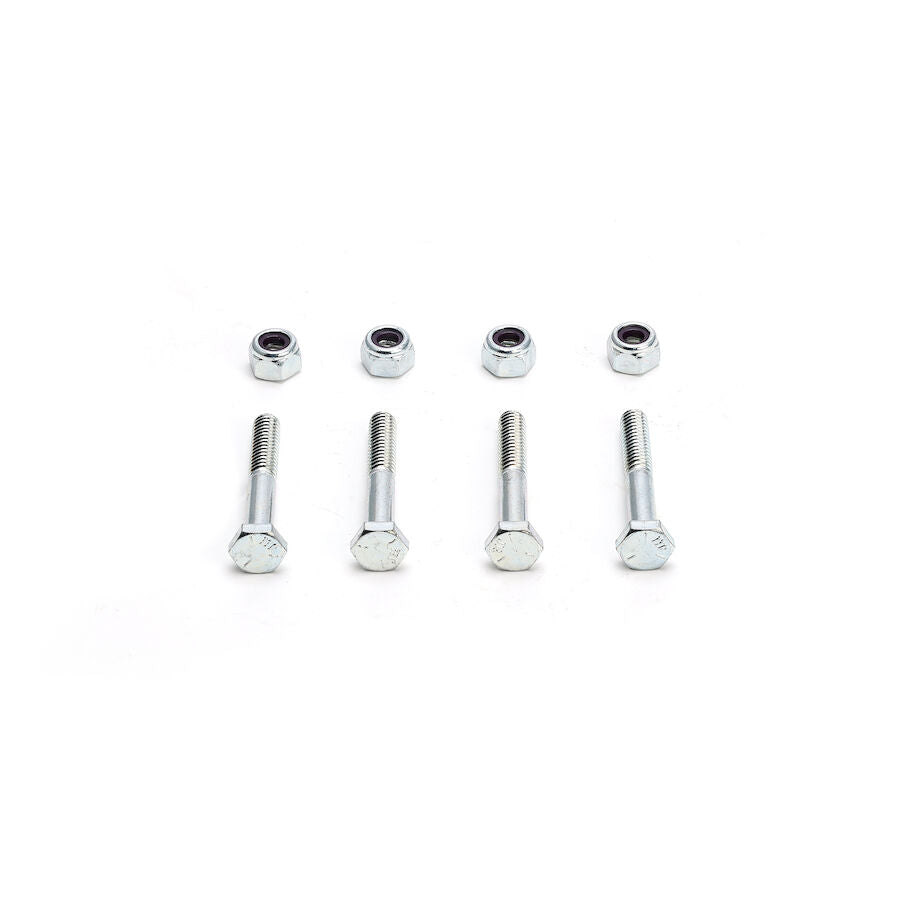

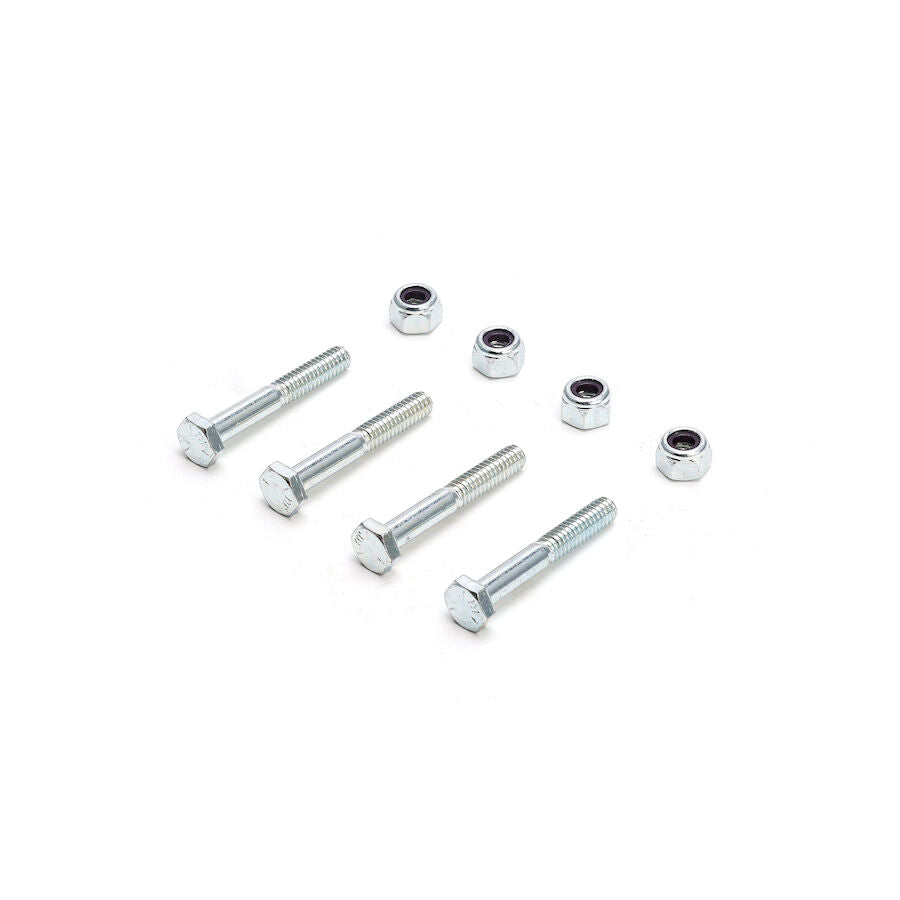

• PRODUCT TYPE: Auger Sheer Pin Bolt Kit - Comes with Necessary Bolts and Nuts to Replace Both Side-to-Side Augers and Rear Impeller Hardware.
• SIZE: Weight 0.145 lbs.
• NOTES & DETAILS: Toro OEM the 139-9900 shear pin bolt is a critical safety component designed to protect your Power Max snow blower's auger assembly and gearbox. This OEM Toro bolt connects the auger to the auger shaft and is engineered from a softer material that intentionally breaks under excessive load. When foreign objects jam the auger or cause sudden stoppage, the bolt shears rather than allowing damage to propagate through the gearbox and auger mechanism. Genuine OEM construction ensures reliable performance and proper protection of your equipment's drivetrain components. 139-9900 Sheer Pin Bolt Kit Comes with the Necessary Sheer Pin Bolts and Nuts to Replace Both Side-to-Side Auger as well as the Rear Impeller Sheer Bolts - for Independent Parts Listings Review the Associated Parts Chart.



IMPORTANT TO VERIFY

321-44 & 137-3032 Could be Interchanged as Individual Bolts. List of Associated Parts for Select Power Max, Power Max HD, Power TRX and Multi-Force Snowblowers Models Refer to Part Number 139-9901 - Kits Contains Different Size Auger & Impeller Bolts as Well as a Nut Grommet Spacer (Auger Bolt - 5/16 x 2 1/4 - 18) x2 (Impeller Bolts 1/4 x2 - 20) x2 (Grommet Spacer) x2   & For Select Standard Power Max Models Complete Sheer Pin Kit Refer to Part Number 139-9900 - Kit Contains Same Size Auger & Impeller Bolts and No Spacers (Auger & Impeller Bolts 1/4 x 2 - 20) x4.



• COMMON SERIES APPLICATIONS: Toro Select Power MAX Snow Blower Models.





• MODEL FIT CHART:





POWER MAX Series – Model Numbers – (* Model Numbers 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38810, 38811, 38812, 38813, 38814, 38815, 38819)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-9900 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

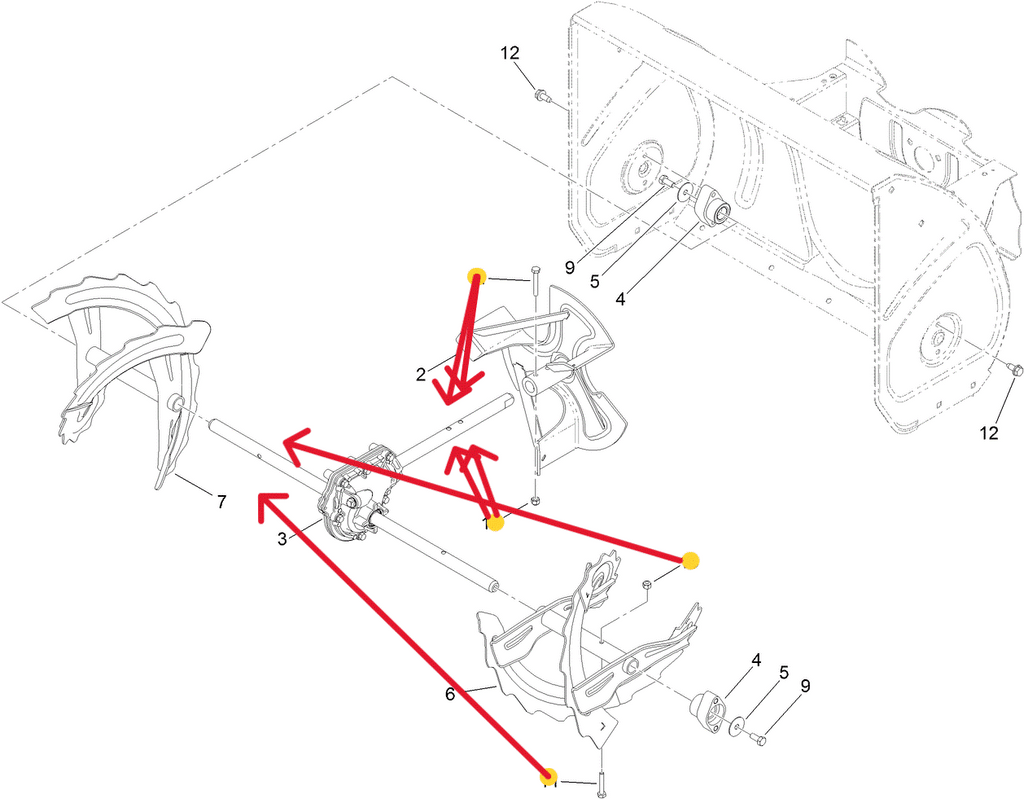

AUGER ASSEMBLY





1. 137-3032 (Hex Head Bolt) OR 321-44 (Flange Bolt) - Sheer Pin Bolt x2
2. 137-3088 OR 3296-42 - Sheer Pin Bolt's Nylon Lock Nut x2




IMPELLER ASSEMBLY





1. 137-3032 (Hex Head Bolt) OR 321-44 (Flange Bolt) - Sheer Pin Bolt x2
2. 137-3088 OR 3296-42 - Sheer Pin Bolt's Nylon Lock Nut x2
