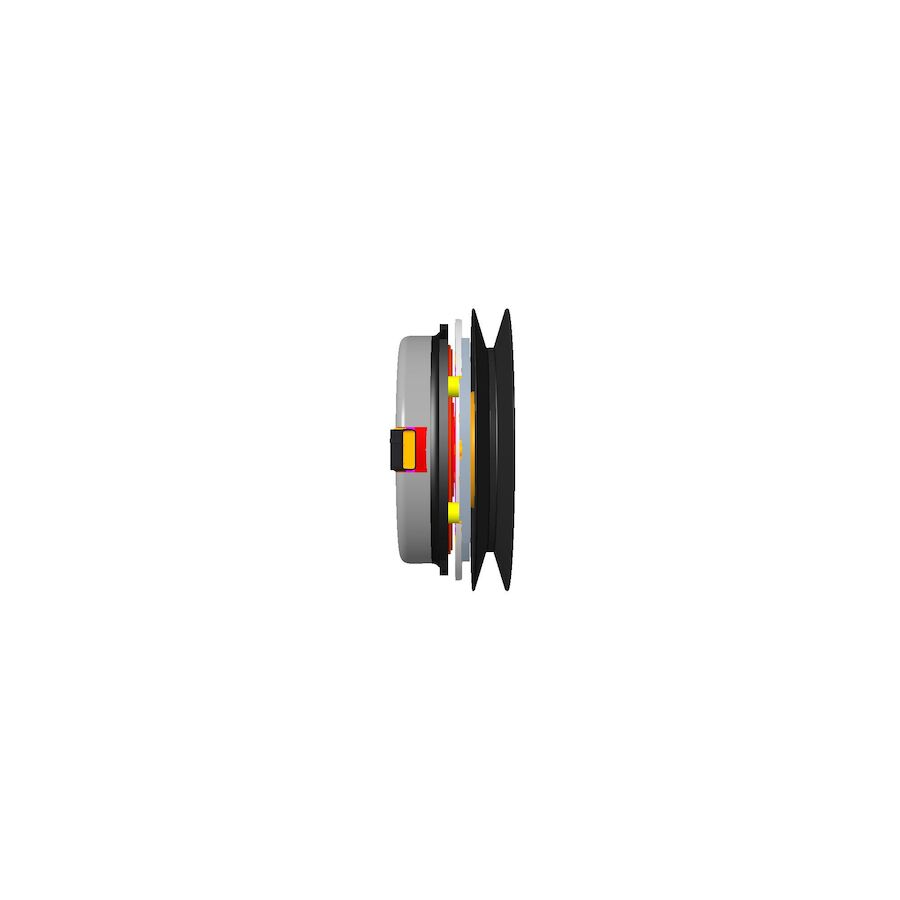

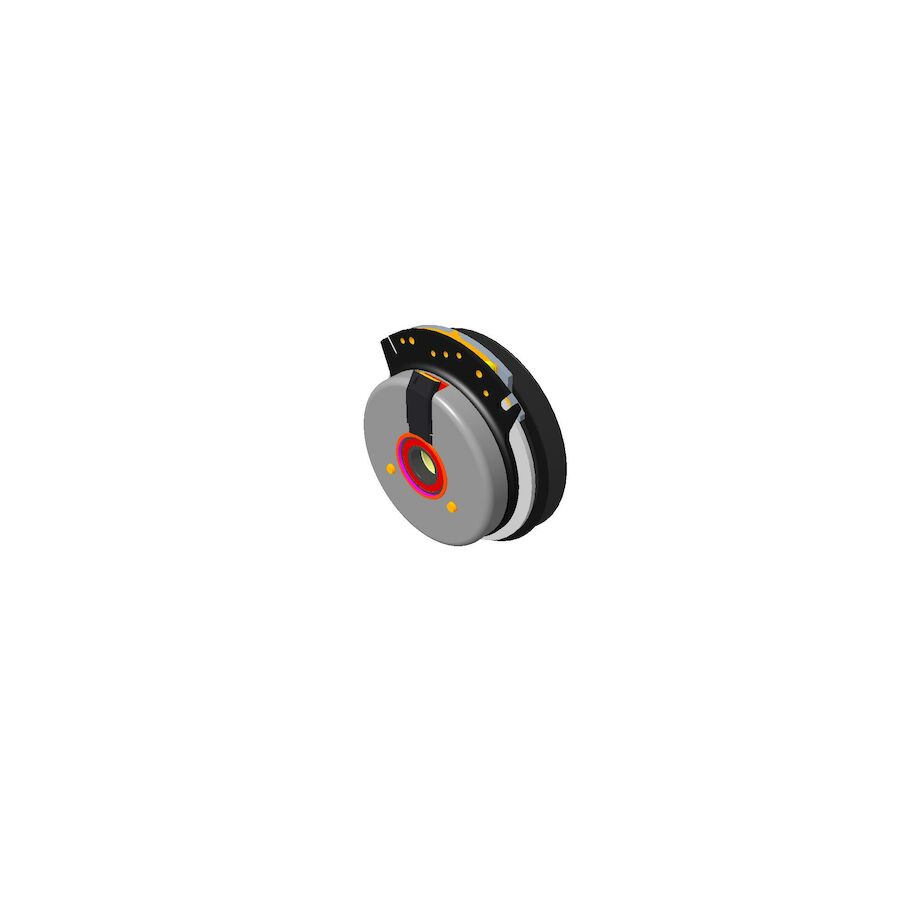

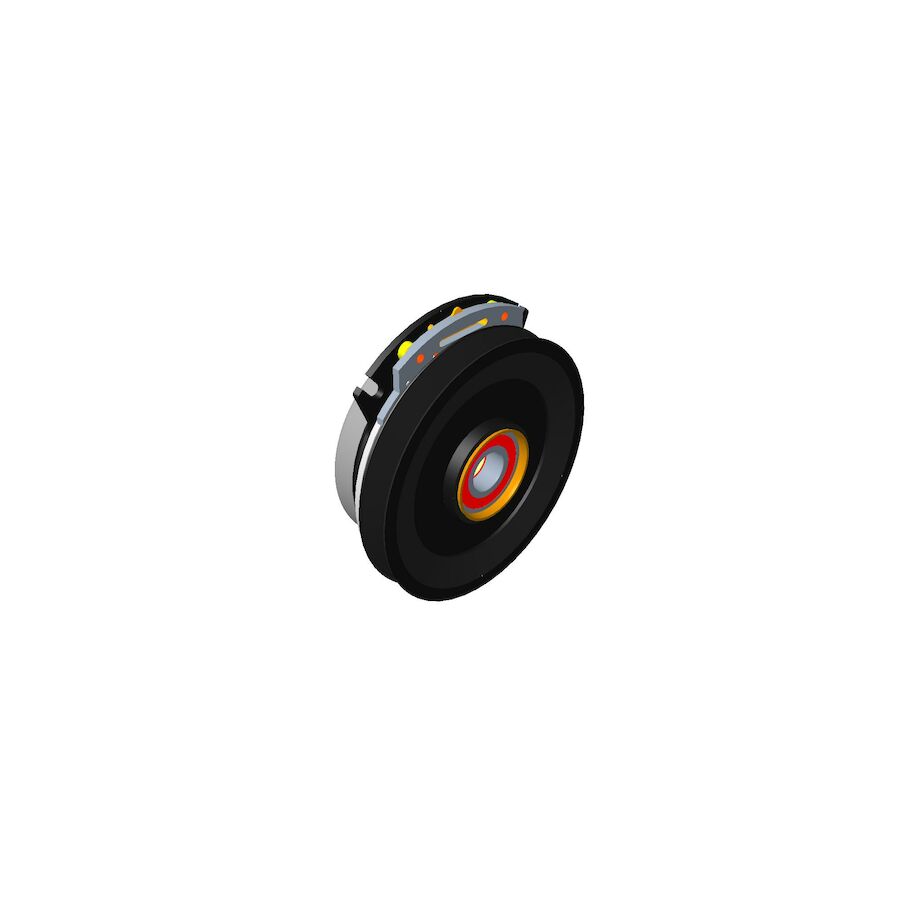

Toro OEM 139-7910 PTO Clutch Fits Toro 48", 52", 60", 72" Grandstand Standard, MultiForce and HDX Models.

Toro OEM 139 7910 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro139 7910 PTO Clutch is Designed for Current/Late Toro 48", 52", 60", 72" Grandstand Standard, Multi-Force and HDX Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Number 138-8800 Supersedes to Part Number 139-7910







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-7910 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

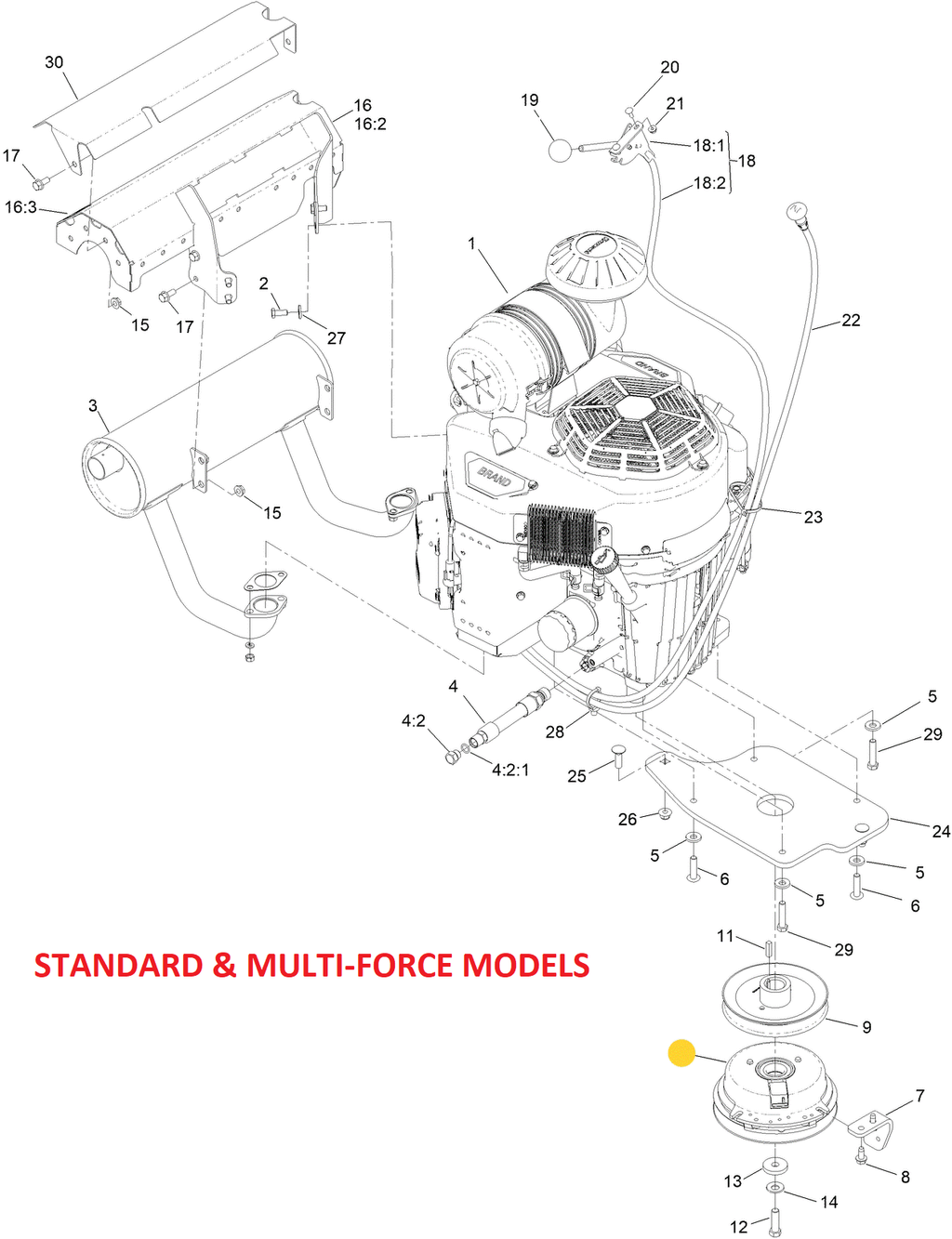

STANDARD & MULTI-FORCE MODELS



1. 3212-6 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 1-543610 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
3. 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x1 Per PTO Clutch
4. 131-3586-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

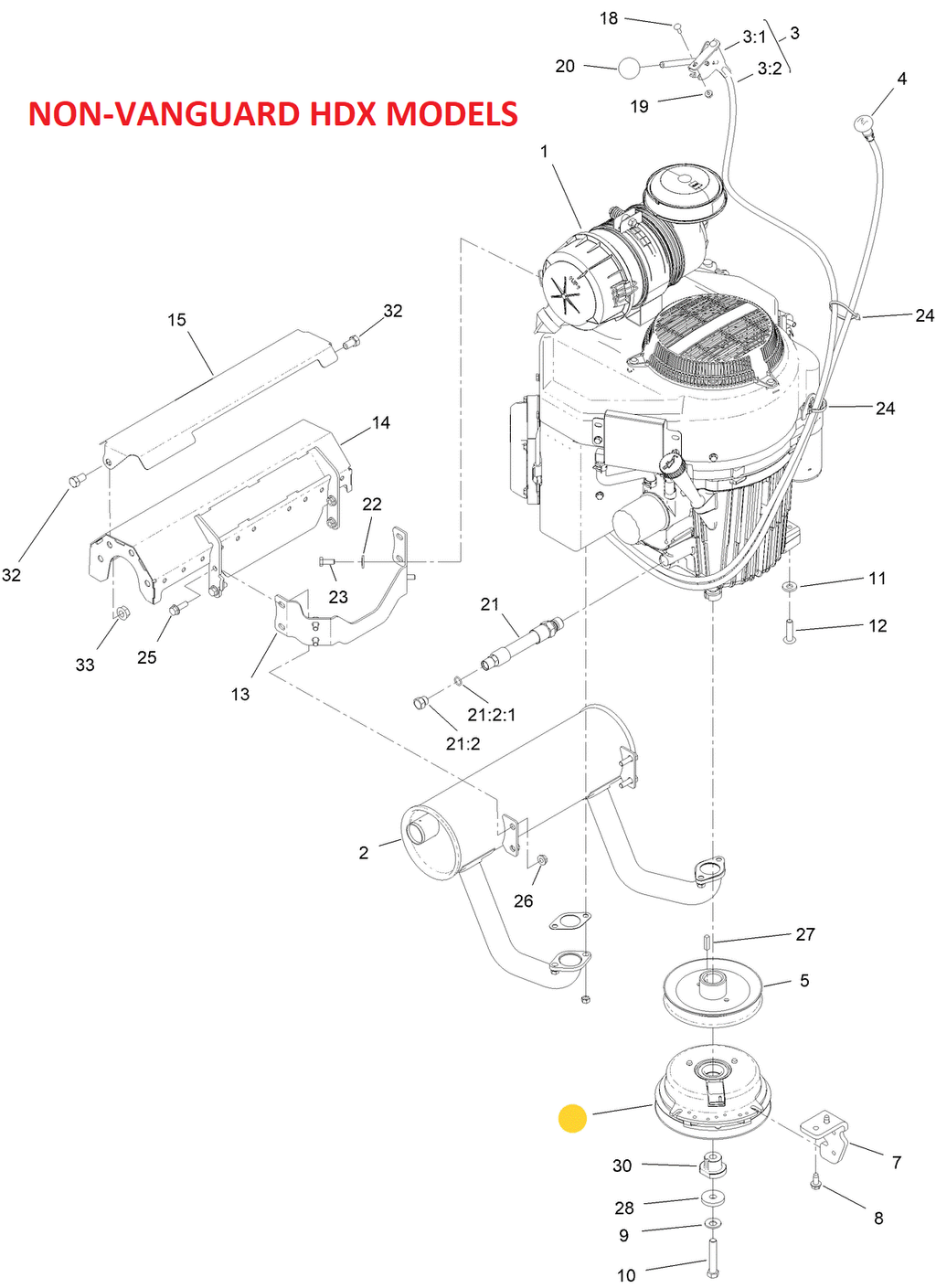

HDX

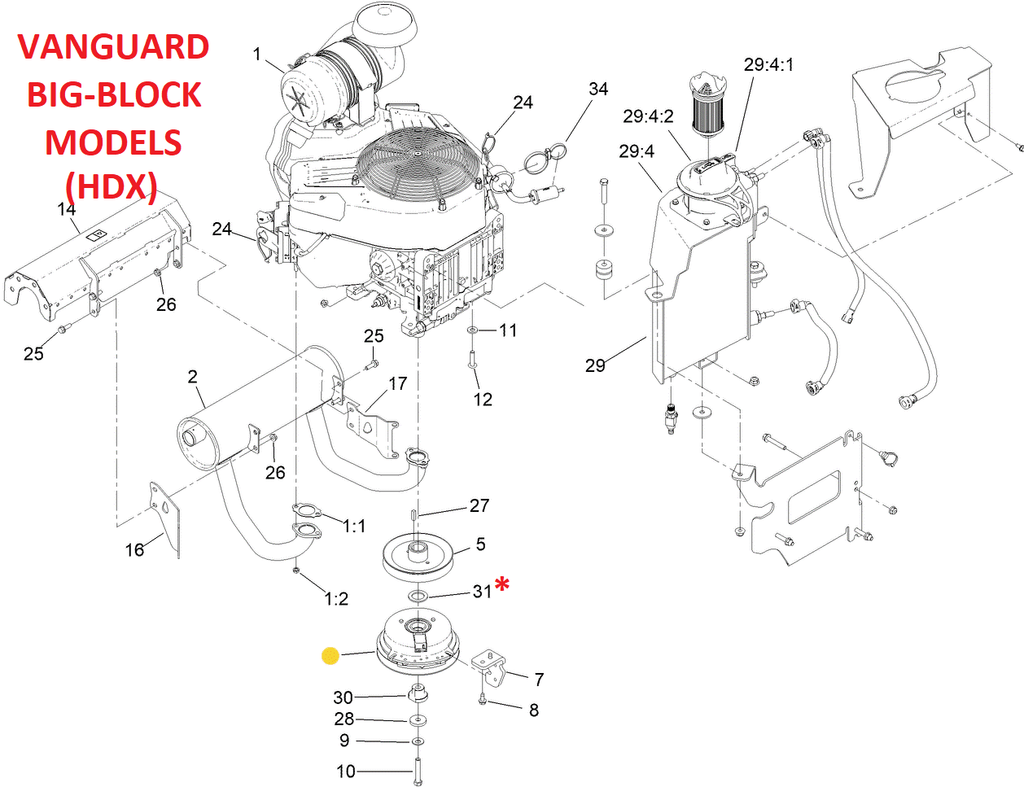

1. 3-6781 - PTO CLUTCH/ENGINE PULLEY FLAT SPACER WASHER - (Spaces Engine Pulley from PTO Clutch Bolt) x1 Per PTO Clutch - * USED ONLY ON MODELS WITH BIG BLOCK VANGUARD ENGINES
2. 3212-10 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
3. 147-4838 - PTO CLUTCH/ENGINE PULLEY DRIVE SPACER - (Inserts into PTO Clutch from PTO Clutch Bolt Side to Space Engine Crankshaft/PTO Clutch) x1 Per Engine
4. 1-543610 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
5. 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x1 Per PTO Clutch
6. 147-0345-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch







*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES











Specification

Product Number:	1388800, 1397910
Brand:	Toro
Length:	9.250 IN (23.495 CM)
Width:	9.250 IN (23.495 CM)
Height:	5.750 IN (14.605 CM)
Weight:	13.340 LB (6.051 KG)





Model Fit:



48” GRANDSTAND - 139-7910 MODEL/SERIES USAGE



GRANDSTAND – (Standard) – (* Model Numbers 71504, 72504, 72518, 74504, 74518, 79504, 79518)





52” GRANDSTAND - 139-7910 MODEL/SERIES USAGE



GRANDSTAND – (Standard) – (* Model Numbers 71505, 72505, 72507, 72519, 74505, 74519, 74529, 79505)



GRANDSTAND – (Multi-Force) – (* Model Numbers 72529, 72530)



GRANDSTAND – (HDX) – (* Model Numbers 72506)





60” GRANDSTAND - 139-7910 MODEL/SERIES USAGE



GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523)



GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)



GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)





72” GRANDSTAND - 139-7910 MODEL/SERIES USAGE



GRANDSTAND – (HDX) – (* Model Numbers 72517)
