Description

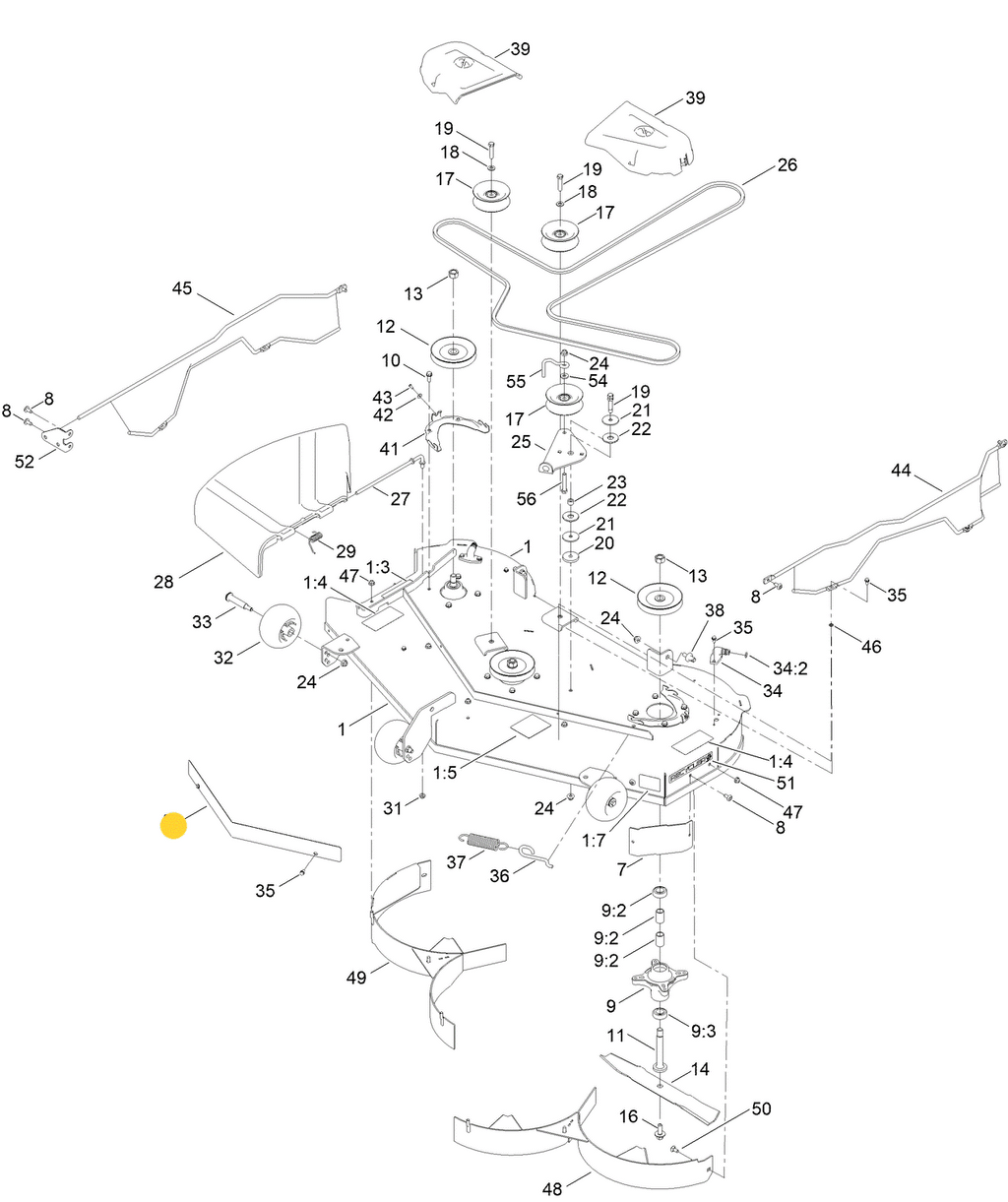

The Toro OEM 139 7485 03 Front Debris/Safety Shield is a bolt-on Shield engineered to Minimize Debris Build-Up on the Top Side of the Mower Decks and Increase Safety. Models Do Not Normally Come with the Front Debris Shield Pre-Installed, but it can be Added According Personal Preferences. 139 7485 03 attach to the Topside Front of the Mower Deck and Fits Select Toro 50" Timecutter Standard & My-Ride Models (Models with Replaceable Cast-Aluminum Axle's and Fabricate or Welded Reinforced Mower Decks).
ASSOCIATED IDLER ARM PARTS FOR PART NUMBER 139-7485-03 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
32144-4 - HEX WASHER HEAD TAP SCREW (Retains the Front Debris/Safety Shield to the Front of the Mower Deck) x2 Per Front Debris/Safety Shield
Specification
|
Product Number: |
139748503, 139-7485-03 |
|
Brand: |
Toro |
|
Length: |
24.250 IN (61.595 CM) |
|
Width: |
5.250 IN (13.335 CM) |
|
Height: |
2.000 IN (5.080 CM) |
|
Weight: |
0.703 LB (0.319 KG) |
Model Fit:
74694, 74695, 74696
