ToroSKU: 1397452
Price:
$19.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

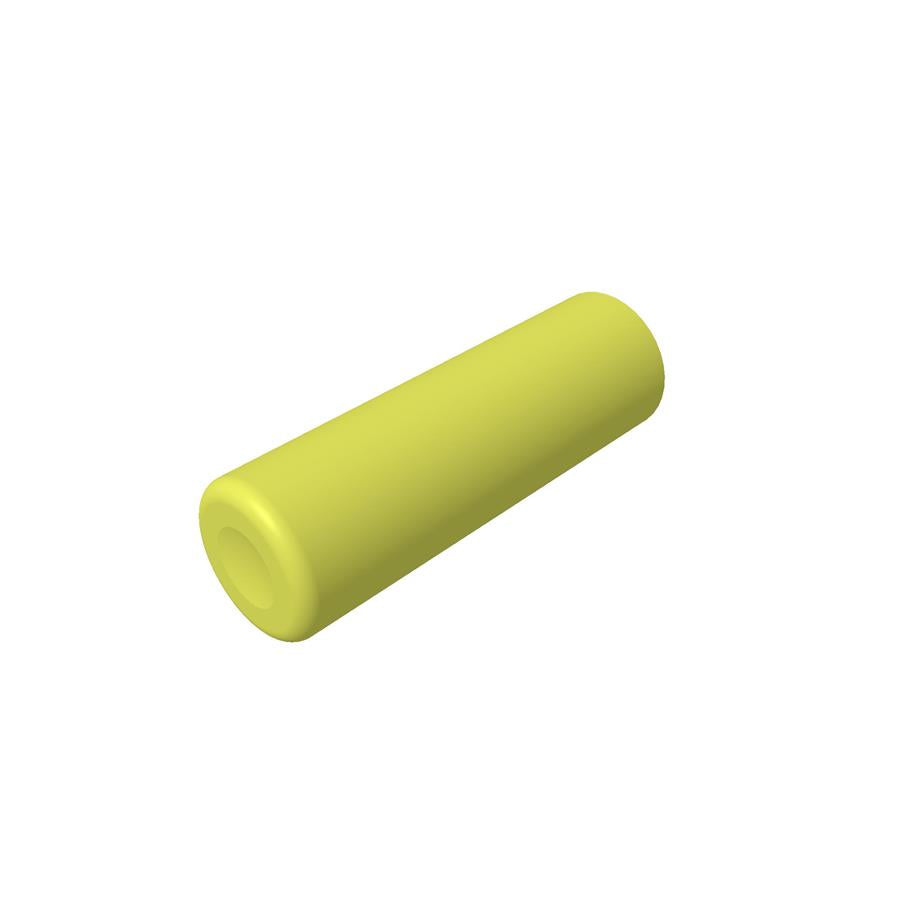

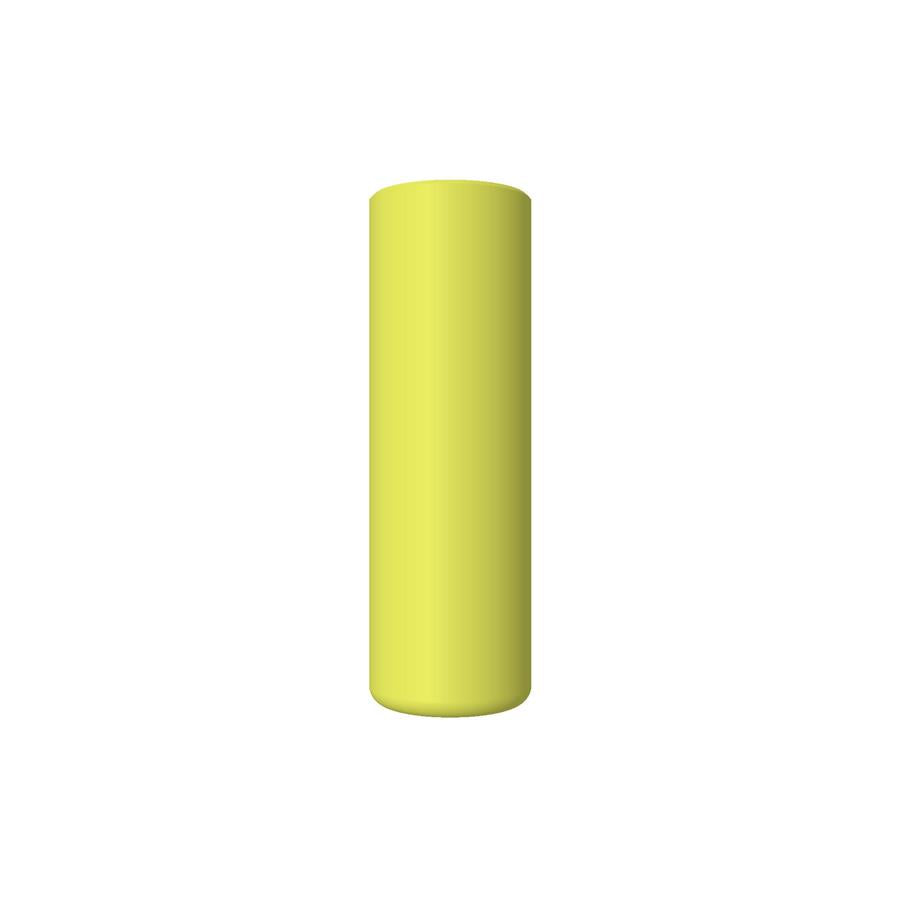

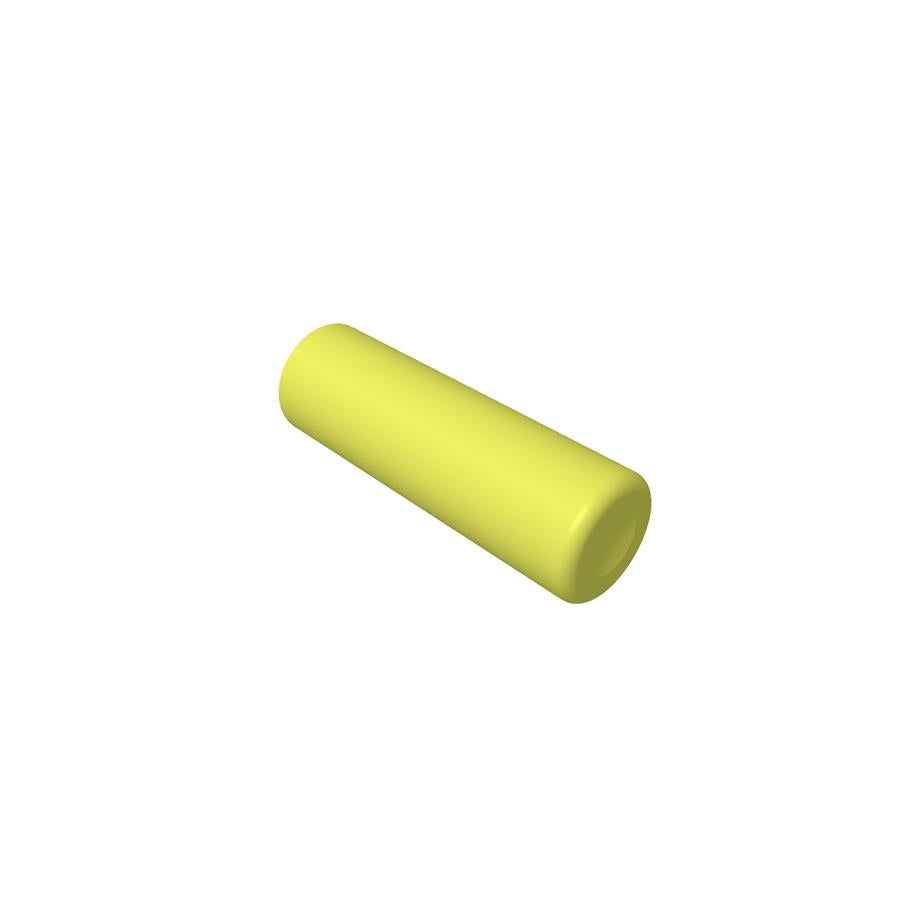

Toro OEM 139 7452 Foot Pedal (Mower Deck Assist-Lift) is a Cylinder Shape Pedal that Bolt to the Foot Pedal Pivot Bracket and is Designed for a More Comfort when Using the Foot Assist Pedal. Toro 139 7452 Foot Pedal Comes Assembled Standard on 50", 54", 60" Timecutter Models (Models with Cast Aluminum Axles) and is Optional for 34", 42" Timecutter Models (Models with Cast Aluminum Axles). Refer to the Model Fit Chart Below for an Accurate Break Down of Models that Part Number 139-7452 would or could be used on. Part Number 161-4527 Deck Assist Lift Kit is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Below - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-7452 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

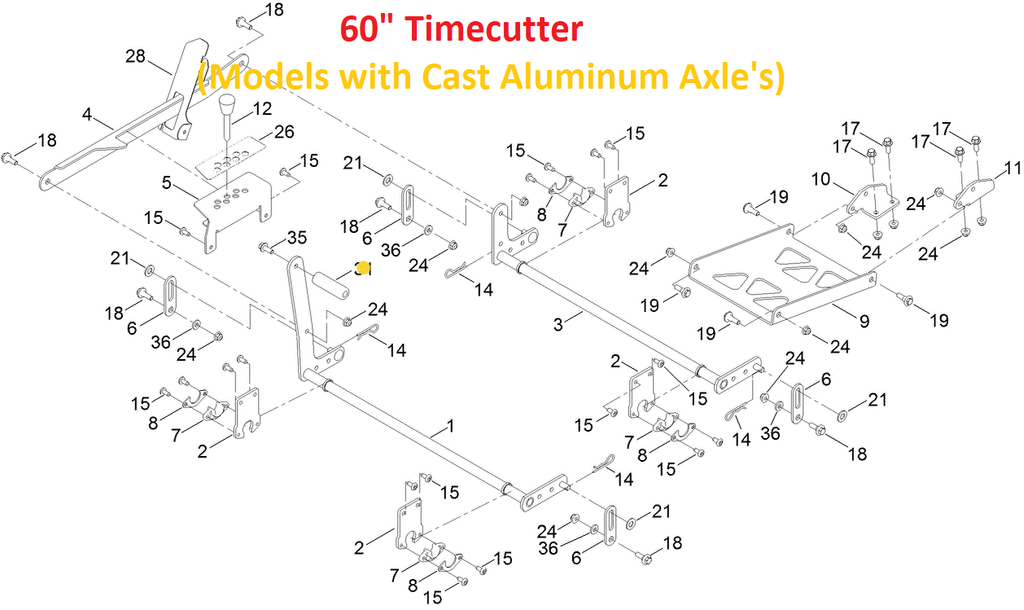

PARTS REFERENCES FOR 60" MODELS WITH MOWER DECK FOOT-ASSIST PEDAL KITS

*60"Mower Models Front Deck Pivot/Lift Leverage Arm and Pedal Bracket or Made as One Piece Part Number 139-7452 will Fasten Directly to the Fron Pivot/Lift Leverage Arm.



  1. 138-2503-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT ONLY)- (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
  2. 139-2597 - FLANGE BOLT - (Retains the Foot Lift Pedal to the Front Mower Deck Pivot Lift Arm) x1 Per Foot Lift Pedal

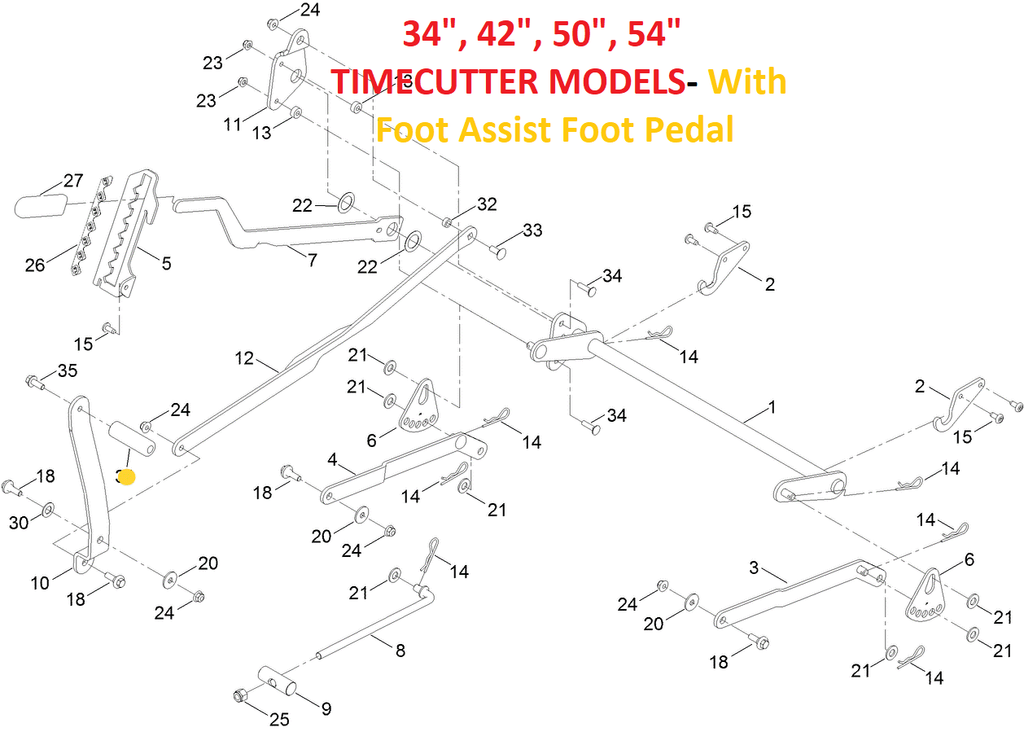

PARTS REFERENCES FOR 50", 54" MODELS WITH MOWER DECK FOOT-ASSIST PEDAL KITS

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Below is the Complete List of Foot Assist Kit Parts List



  1. 139-7452 - FOOT PEDAL - (The Cylinder Shape Foot Pedal That Bolt to the Foot Pedal Bracket) x1 Per Unit
  2. 139-2597 - FLANGE BOLT - (Threads into the Foot Pedal and Retains the Foot Pedal to the Foot Pedal Bracket) x1 Per Foot Pedal
  3. 138-2549-03 - FOOT PEDAL BRACKET - (Fastens to Mower Frame and Retains the Foot Assist Pedal and connect to the Foot Lift Link) x1 Per Unit





MOWER DECK FOOT-ASSIST PEDAL KIT FOR 34", 42" TIMECUTTER MODELS



161-4527 - FOOT PEDAL ASSIST KIT FOR TIMECUTTER - 34" & 42" Timecutter Models (161-4527 is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Above - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Above)







Specification

Product Number:

1397452

Brand:

Toro

Length:



3.500 IN (8.890 CM)

Width:



1.000 IN (2.540 CM)

Height:

1.000 IN (2.540 CM)

Weight:



0.904 LB (0.410 KG)





Model Fit:





Model Factory Assemble Usages



74694, 74695, 74696, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75851, 75760, 75762, 75763



USAGE IN FOLLOWING KITS:



Foot Assist Mower Deck Lift Kit: 161-4527

Foot Assist Mower Deck Lift Kit: 140-2059



TIMECUTTER STANDARD AND OPTIONAL USAGE WITH FOOT ASSIST LIFT PEDAL



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
