Toro OEM 139-5892 Height of Cut Decal Fits Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763.

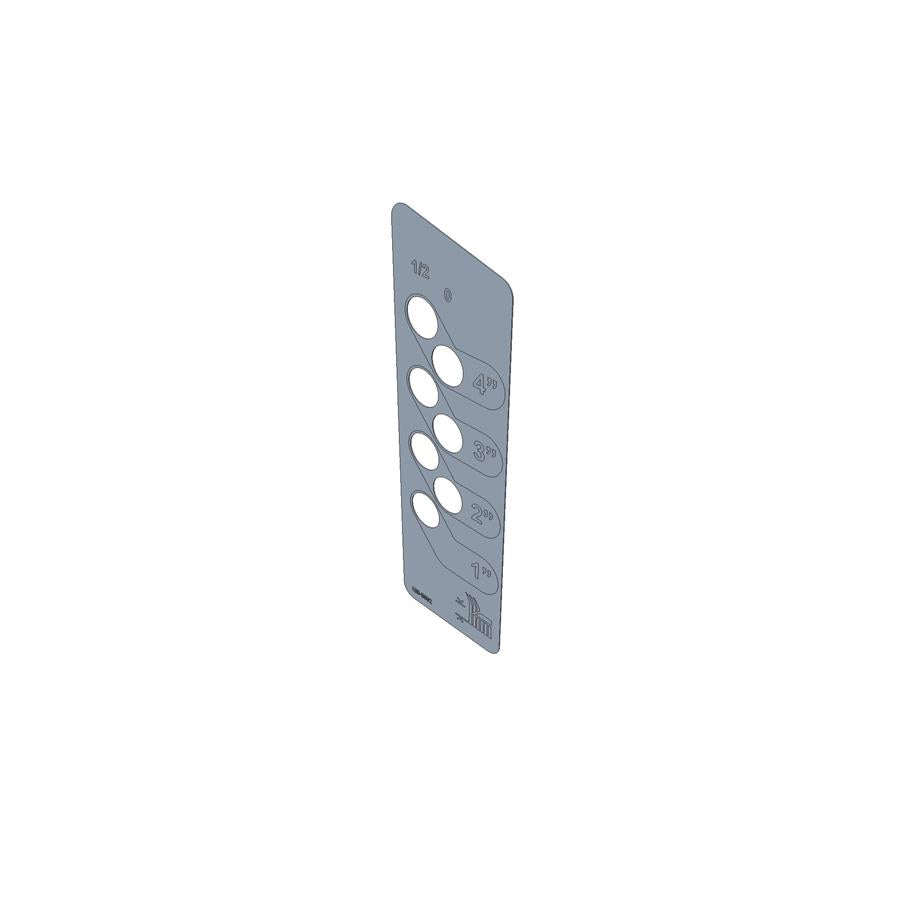

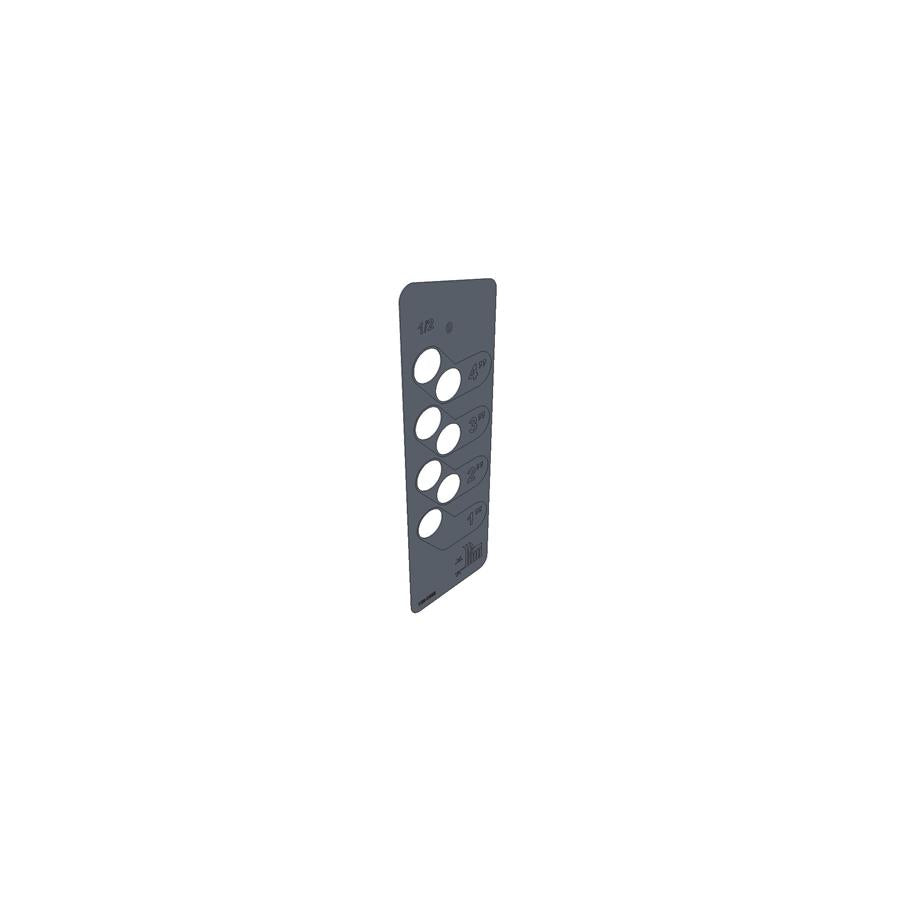

Toro OEM 139 5892 Height of Cut (HOC) Decal is a Numerical Decal and Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting. Toro OEM 139 5892 is Installed on the Top-Side Surface of the (HOC) Bracket and Fits Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

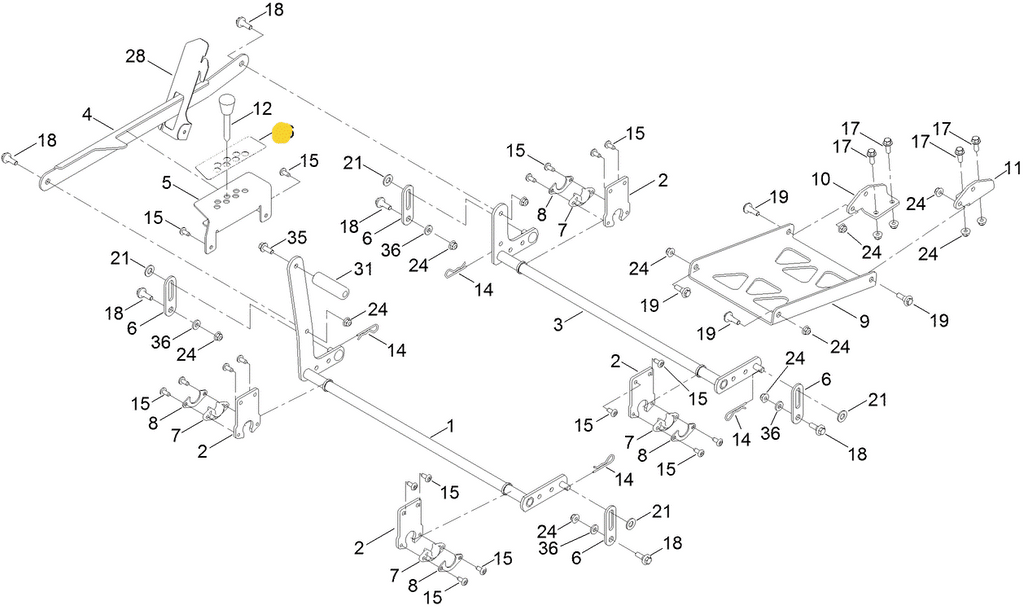

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-5892 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-5092-03 - (HOC) BRACKET - (Bolts to the mower Deck Frame Above the Height of Cut Link and Allow the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height) x1 Per Unit
2. 139-5892 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Top-Side Surface of the (HOC) Bracket) x1 Per (HOC) Bracket
3. 140-2146 - (HOC) Pin - (Fits into the Height of Cut Pin Adjustment Bracket, providing a stable resting point for the Height Adjustment Link at the operator’s chosen setting) x1 Per (HOC) Bracket







Specification

Product Number:	1395892
Brand:	Toro
Length:	7.250 IN (18.415 CM)
Width:	2.250 IN (5.715 CM)
Height:	0.030 IN (0.076 CM)
Weight:	0.008 LB (0.004 KG)





Model Fit:



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
