Description

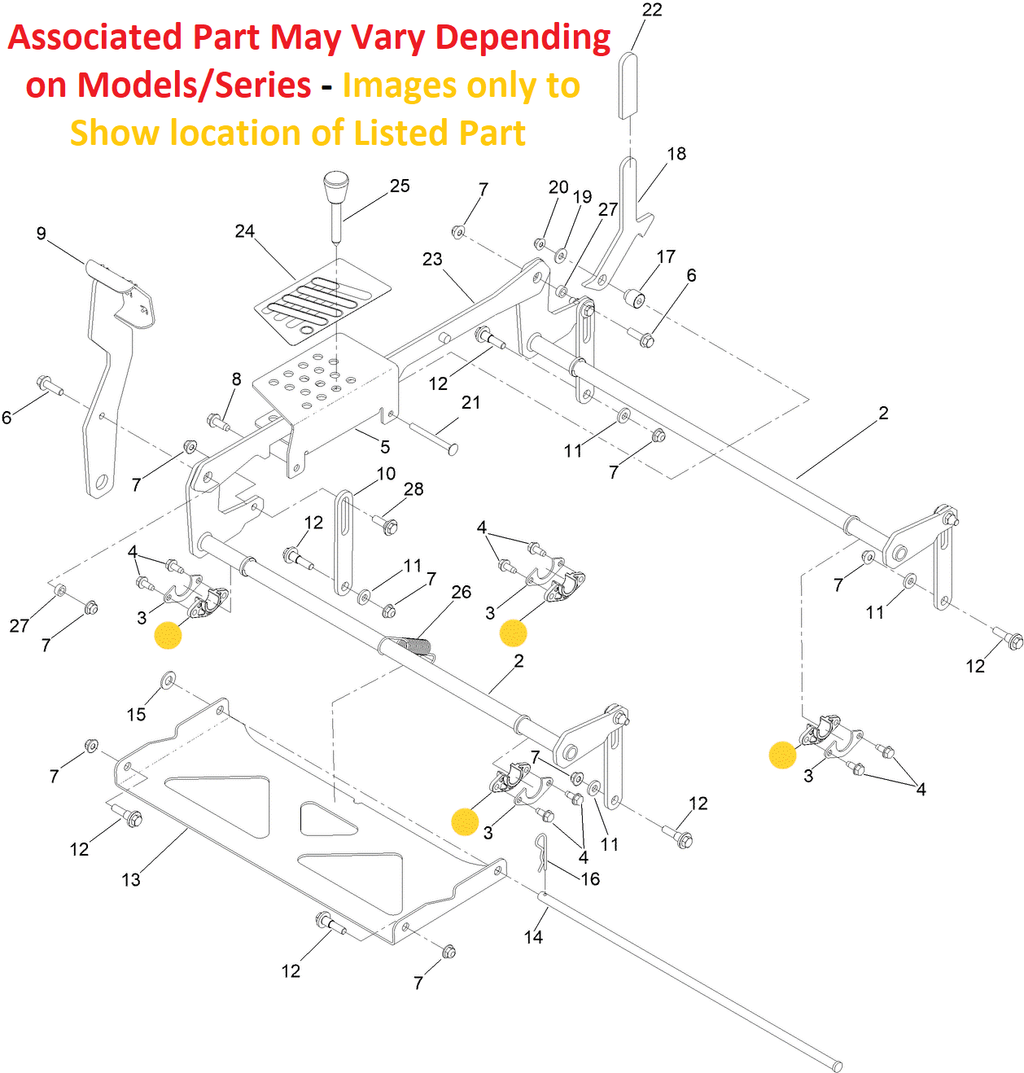

Toro OEM 139 5872 Mower Deck Pivot Arm Bearing/Bushing Attaches with a Gusset or Lower Cross Support Bracket to the Upper Mower Deck Pivot/Lift Arm Bracket or Upper Cross Support Bracket and Assists in retaining the Mower Deck Pivot/Lift Arm as well as allowing it to freely rotate against the Surface of OEM 139 5872 Replaceable Bearing/Bushing. Toro OEM 139-5872 Bearing/Bushing is Designed to fits Toro Current/Late 48", 54", 60" PROLINE Models - Current 42", 50", 54", 60" Timecutter MAX (Standard, My-ride) Models - Late 60" Timecutter (Standard, My-Ride - Replaceable Cast Aluminum Axle's) Models - Current 48", 54", 60" TITAN and TITAN MAX (I-Beam Framing) Models - Late 48", 54", 60" TITAN 4800, 5400, 6000, X, XS, Standard, My-Ride, (Tube Framing) Models - Current Late 48", 52", 60", 72" Z Master 2000, 4000 and Revolution (I-Beam Framing) Models - Current Grandstand 32", 36" HDM or Compact (I-Beam Framing) MODELS - Current 48", 54", 60", 72" Grandstand HDX (I-Beam Framing) Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage.
IMPORTANT NOTE: Due to a Design Change Within Model Numbers There is a Serial Number Break with Usage of Part Number 139-5872. Refer to the Model Fit Chart for Model Numbers with a Part Number Differences. Models Numbers Will Have the Serial Number Breaks/Range Listed Beside them that are associated to the part number 139-5872. To redirected to earlier Design Changes, click on Part Number 115-5065.
Specification
|
Product Number: |
1395872 |
|
Brand: |
Toro |
|
Length: |
3.000 IN (7.620 CM) |
|
Width: |
1.500 IN (3.810 CM) |
|
Height: |
0.750 IN (1.905 CM) |
|
Weight: |
|
Model Fit:
TIMECUTTER
42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)
42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)
50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)
60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
TITAN
48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)
48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74876, 74877, 74889, 74898)
54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - * Model Numbers
76601 Serial Number 414709526 and Above,
76602 Serial Number 414300000 and Above
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
Z-MASTER 2000
48”, 52”, 60” Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)
Z-MASTER 4000
48”, 52”, 60”, 72” Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – MODEL NUMBERS
74000 Serial Number 414066968 and Above,
74002 Serial Number 414067572 and Above,
74004 Serial Number 414154219 and Above,
74010 Serial Number 414067788 and Above,
74015 Serial Number 414155425 and Above,
74020 Serial Number 414307276 and Above,
74022 Serial Number 414300000 and Above,
74035 Serial Number 414314541 and Above,
74050 Serial Number 414386850 and Above,
74052 Serial Number 410020994 and Above,
74054 Serial Number 414154319 and Above,
74055 Serial Number 414155409 and Above
Z-MASTER REVOLUTION
48”, 52”, 60” Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18762, 18765)
PROLINE
36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)
48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)
54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)
60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
GRANDSTAND
32” GRANDSTAND – (HDM) – (* Model Numbers 74532 Serial Number 417100000 and Above)
36” GRANDSTAND – (HDM) – (* Model Numbers 74535 Serial Number 417200000 and Above)
52” GRANDSTAND – (HDX) – (* Model Numbers 72506)
60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
Multi-Force Mulch Dump
Multi-Force Mulch Dump – Current/Late Models Only - (* Model Numbers 78597)
