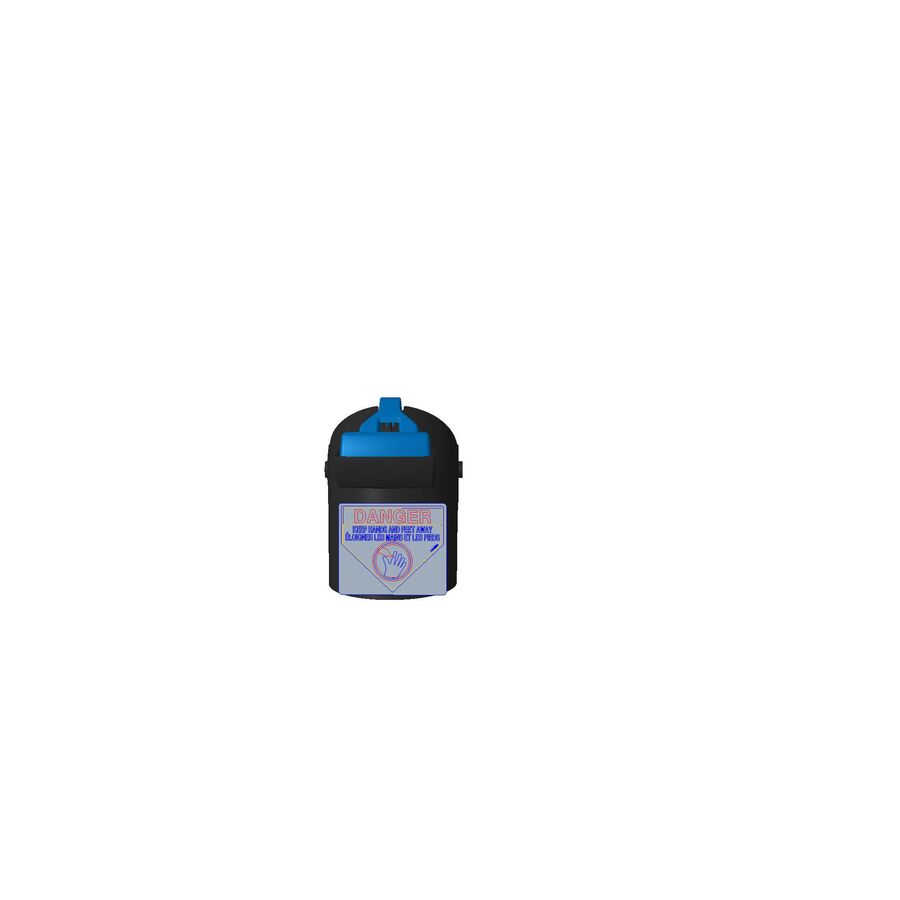

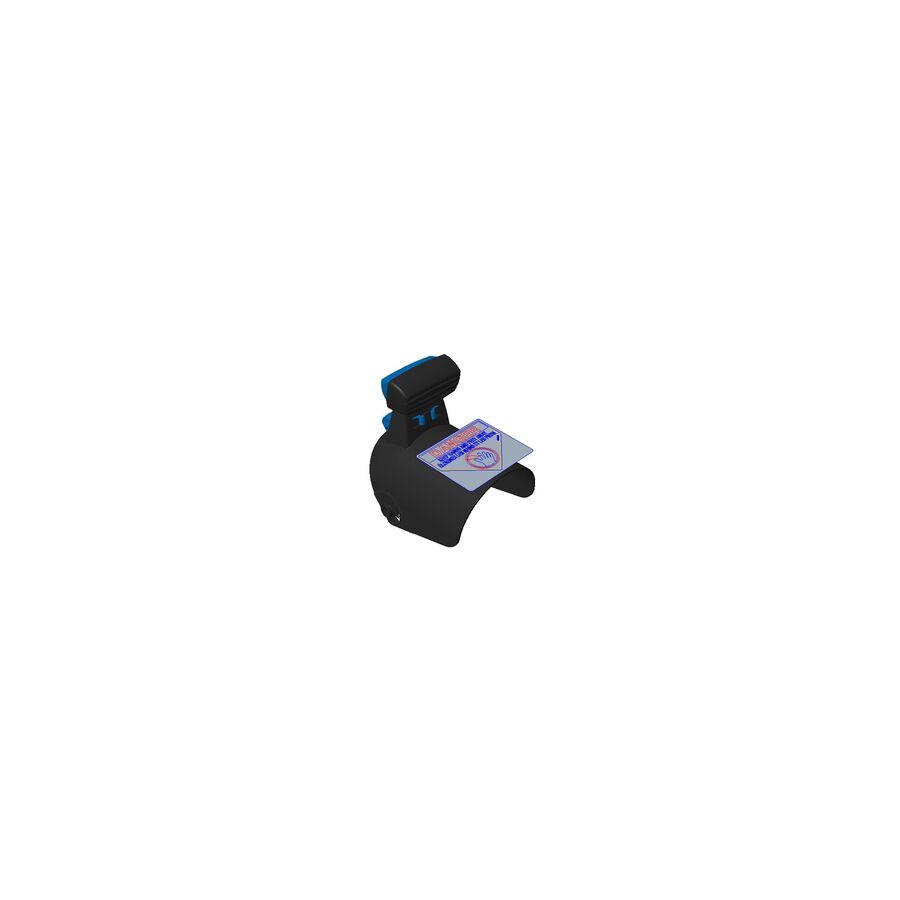

Toro OEM 139-5240 Chute Deflector



Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it.



• OEM Part Number: 139-5240, 139 5240, 1395240
• Part Name: Deflector-Chute
• Function: Controls discharge throw height at the chute outlet
• Genuine Toro OEM: Correct fit and performance on Select E-Power Clear & E-Snow Thrower Toro snow throwers



Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39901, 39901T, 39902)



E SNOW THROWER Series – Model Numbers – (* Model Numbers 31853, 31853T)

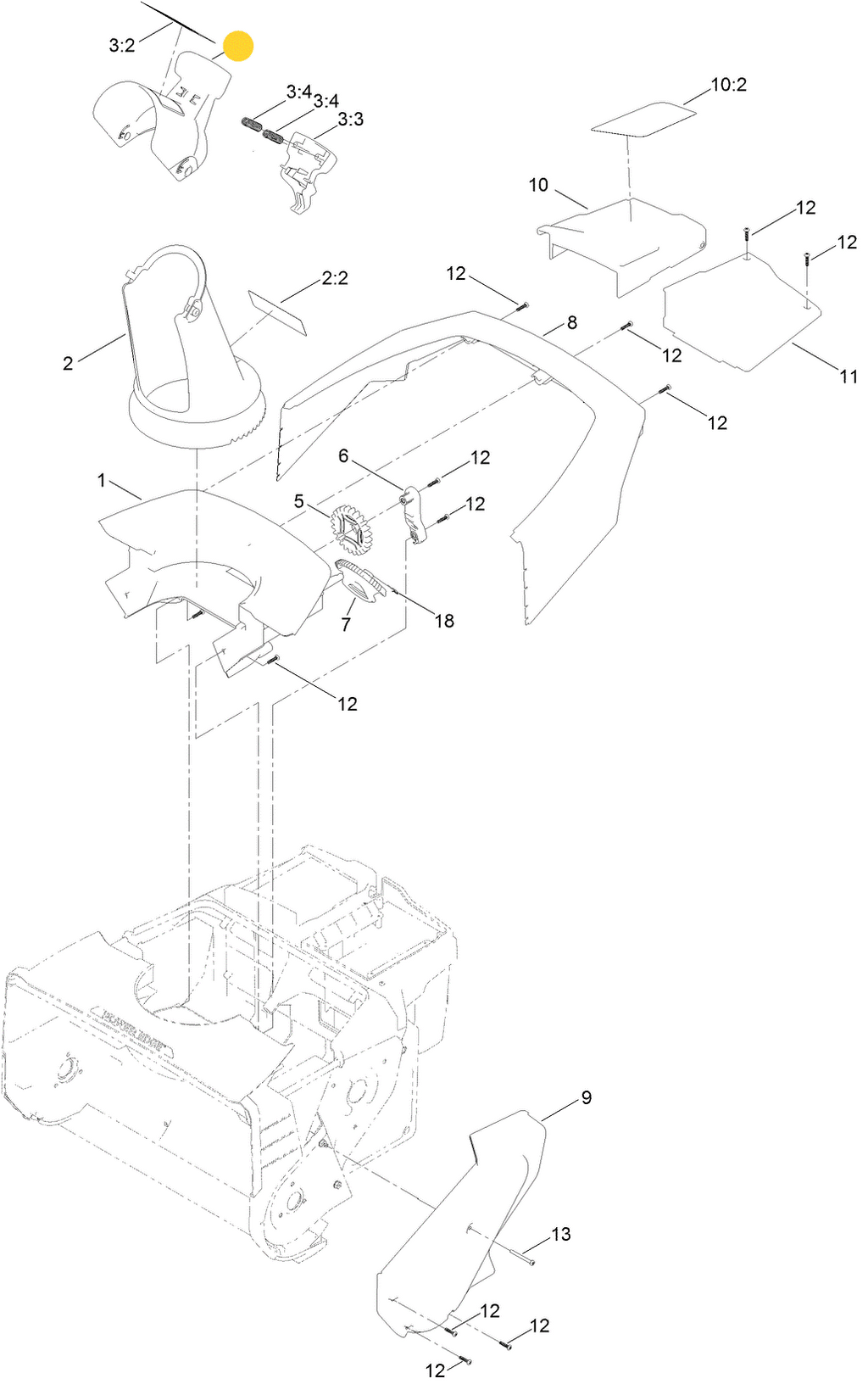

Associated Parts (Common “Replace With” Items)

These parts live in the same chute/deflector assembly and are commonly replaced together when the deflector is damaged or won’t hold position:

Review Model Numbers Associated to Each Part Number to Verify a Correct Fit



• 117-2314 – Trigger-Deflector
• 136-7136 – Spring-Compression (deflector/trigger feel & return)
• 139-5239 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)



Installation Tips (Chute Deflector Replacement)



• Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
• Visual Documentation: Raise the deflector and note the spring orientation before disassembly (a quick phone photo helps).
• Remove: The spring/trigger parts to the new deflector as needed - All Components are Clip Together Including the Chute Deflector to Discharge Chute (common: 136-7136 compression spring, 117-2314 trigger).
• Transfer or Assemble: The spring/trigger parts to the new deflector as needed - All Components are Clip Together Including the Chute Deflector to Discharge Chute (common: 136-7136 compression spring, 117-2314 trigger).
• Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind.



Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
