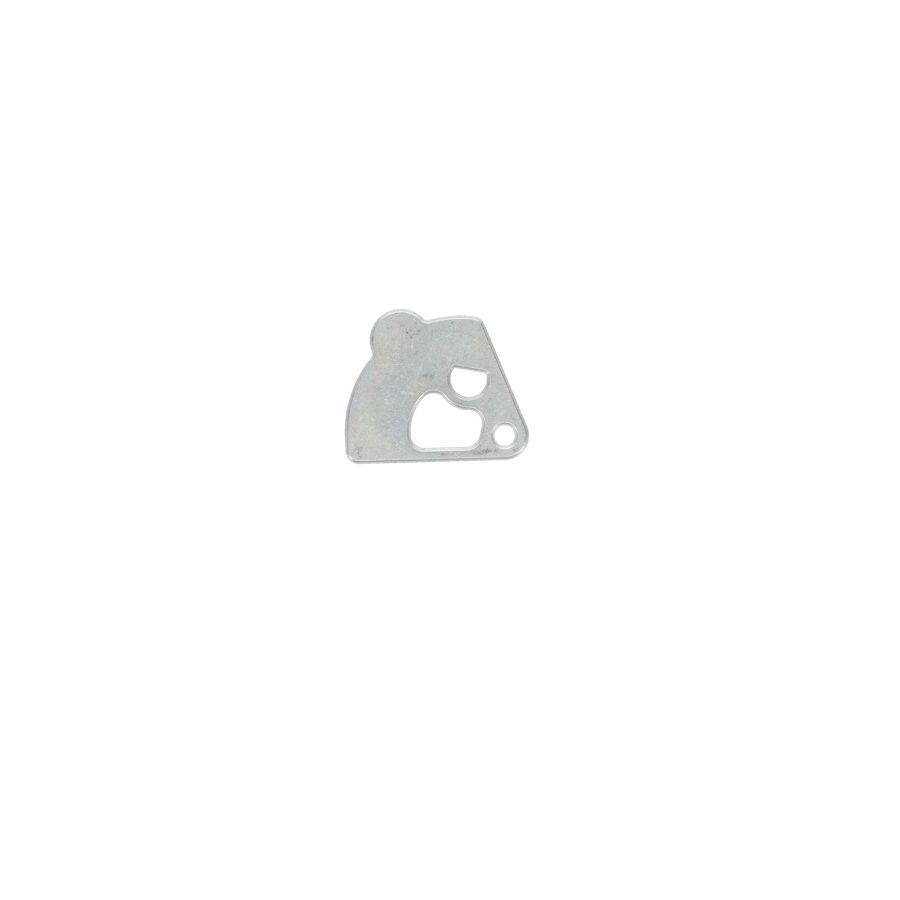

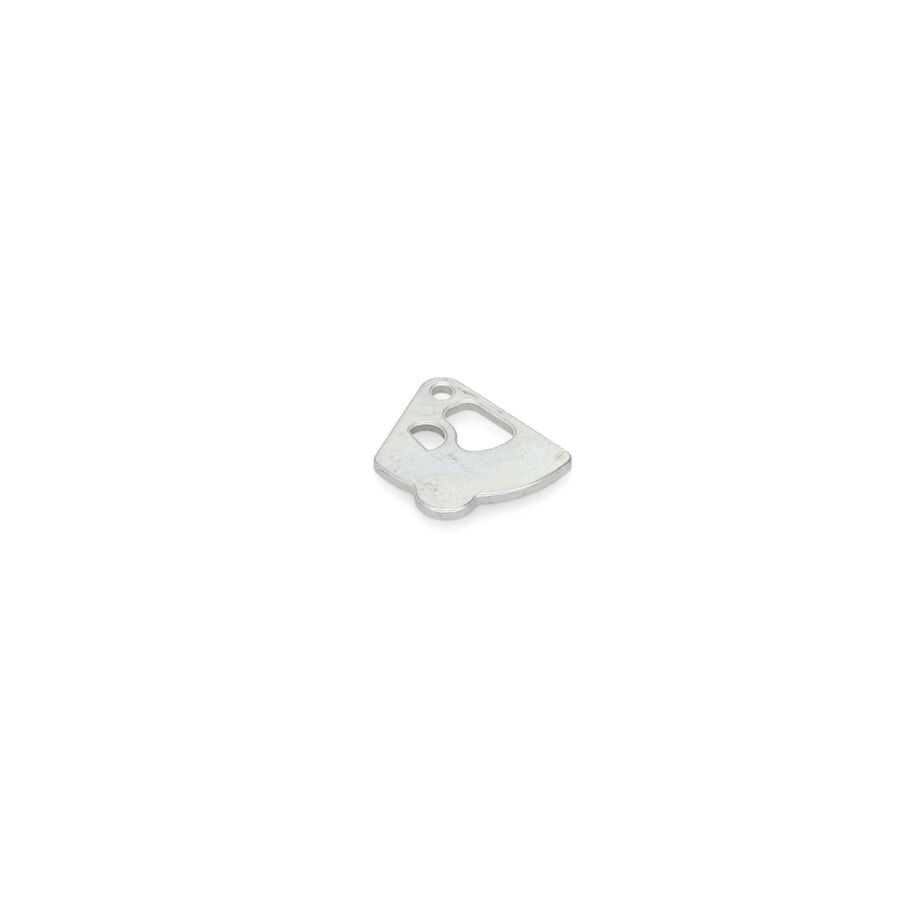

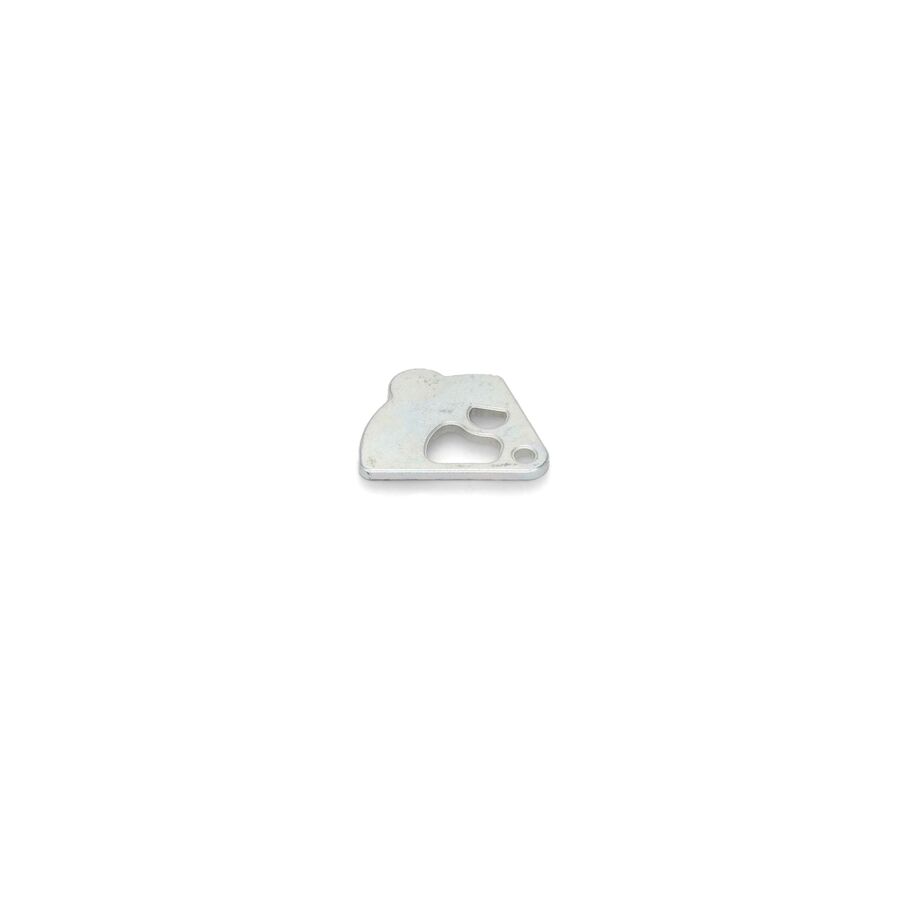

Toro OEM 139-3564 Cable Guide Cap Fits Toro Select 21" Power Clear and Quick Clear Models - 28", 32" Power TRX Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 139-3564, 139 3564, 1393564
• PRODUCT TYPE: Cable Guide Cap
• SIZE: Length 1.750 in. - Width 1.500 in. - Height 0.125 in. - Weight 0.044 lbs.
• NOTES & DETAILS: Toro OEM  139-3564 IS COMMINLY USED - Removeable Cap that Enable the Auger/Rotor Clutch Cable to be Inserted into the Cable Guide and Retains the Cable When Reinstalled - Used with Cable Guide 139-3564.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models - 28" & 32" Power TRX Models.





• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38453, 38454, 38458, 38459, 38472, 38473, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



Kit Assemblies – Part Numbers – (* Model Numbers 140-3660)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-3564

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



140-3660 - COMPLETE KIT - SCREW, CABLE GUIDE, CABLE GUIDE CAP AND LOCK NUT

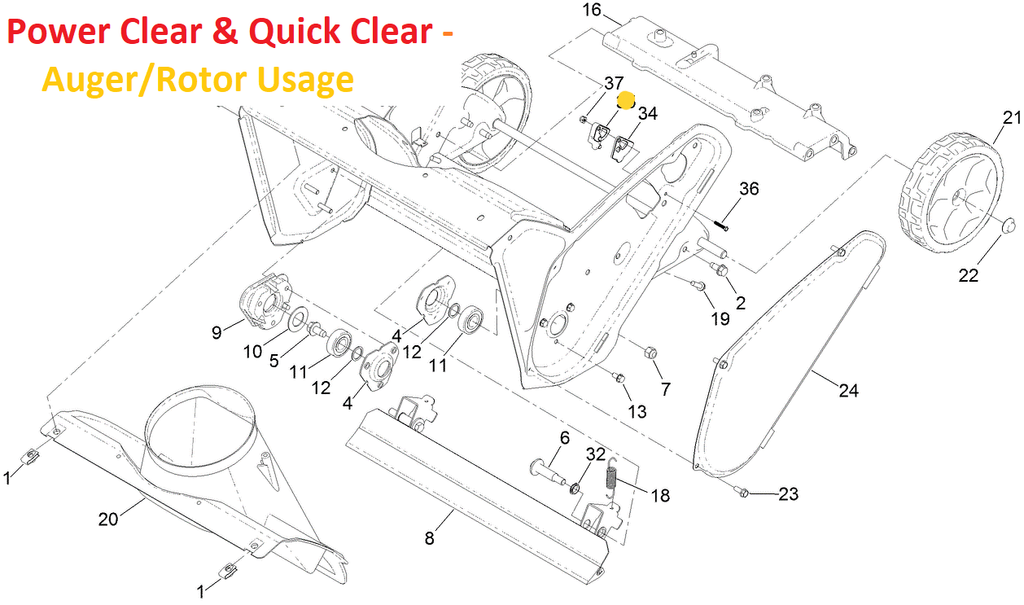

SINGLE STAGE SNOWBLOWER AUGER/ROTOR CABLE



1. 360-0272 - SCREW (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Cable Guide
2. 139-3565 - CABLE GUIDE (Installed on the Frame of the Snow Blower - Aguer/Rotor Clutch Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Guides are Made of a Softer Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges - Important to Check the Cable Guide when Replacing the Auger Clutch Cable) x1 Per Auger/Rotor Clutch Cable

3. 520-0006 - NYLON LOCK NUT (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Cable Guide

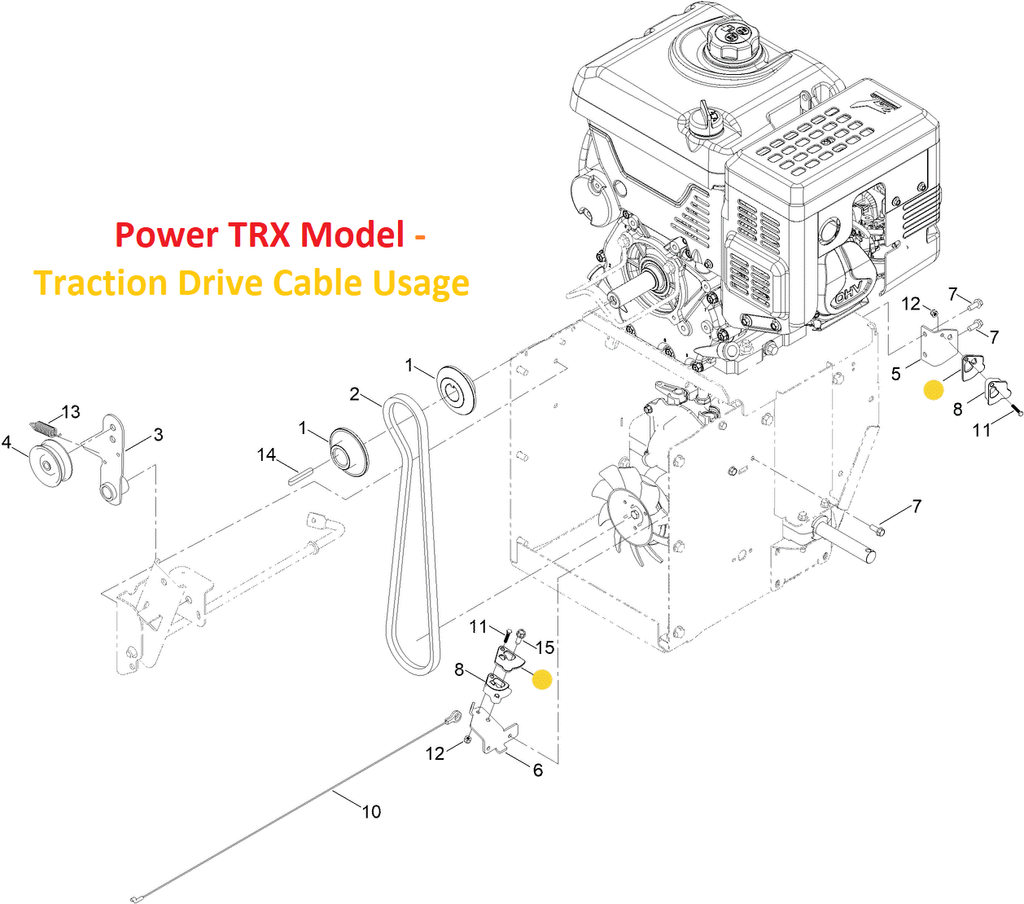

DUAL STAGE SNOWBLOWER TRACTION/DRIVE CABLE



1. 360-0272 - SCREW (Retains the Cable Guide and Cable Guide Cap to the Retaining Bracket which Fastens to the Snowblower Main Frame) x1 Per Cable Guide
2. 139-3565 - CABLE GUIDE (Installed on a Retaining Bracket that Fastens on the Frame of the Snow Blower - Traction/Drive Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Guides are Made of a Softer Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges - Important to Check the Cable Guide when Replacing the Traction/Drive Cable) x2 Per Traction/Drive Cable

3. 140-7894-03 - CABLE & CABLE GUIDE ANCHOR/BRACKET (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Unit * Installed under the Engine by the Transmission/Hydro
4. 140-7895-03 - CABLE & CABLE GUIDE ANCHOR/BRACKET (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Unit * Installed on the Snowblower Frame by the Engine under the Operator's Station.
5. 520-0006 - NYLON LOCK NUT (Retains the Cable Guide and Cable Guide Cap to the Retaining Bracket which Fastens to the Snowblower Main Frame) x1 Per Cable Guide
