Toro OEM 139-3557-03 Lower Height of Cut (HOC) Plate Fits Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Tube Framing).

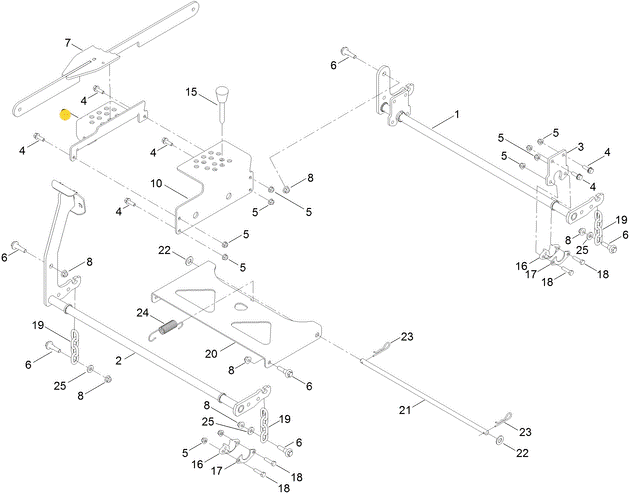

Toro OEM 139 3557 03 Lower Height of Cut (HOC) Pin Selection Plate is ONE OF TWO DIFFERENT-LOOKING PLATES SYSTEM that Bolt Against the Frame of the Mower (Typically Bolts to the Right side of Mower as you Sit on the Operators Seat or Discharge Side). The Spacing Difference Between The Upper (HOC) Selection Plate 139-3556-03 and Lower (HOC) Selection Plate139-3557-03 Allows the Height of Cut (HOC) Link to Travel Between (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height By Allowing the  (HOC) Pin to rest Against the Transport and Mower Deck Setting Notches That is Manufactured into the (HOC) Link. Toro OEM 139 3557 03 (HOC) Selection Plates Fits Toro Late TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Models with Tube Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-3557-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-3556-03 - UPPER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERENT LOOKING PLATES that Bolt Together Against the Mower Frame Allowing the Height of Cut (HOC) Link to Travel Between (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
2. 139-3557-03 - LOWER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERNET LOOKING PLATES that Bolt Together Against the Mower Frame (HOC) Plates Allowing the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
3. 140-3493 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
4. 3234-29 - FLANGE BOLTS - (Enables the (HOC) Selection Plate to be Fastened together Against the Mower Frame) x4 Per (HOC) Selection Plate
5. 104-8300 - FLANGE NUT - (Enables the (HOC) Selection Plates to be Fastened together Against the Mower Frame) x4 Per (HOC) Selection Plate
6. 140-2146 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notches to Rest Against at the operator’s chosen setting) x1 Per Unit
7. 139-3553-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit







Specification

Product Number:	139355703
Brand:	Toro
Length:	12.000 IN (30.480 CM)
Width:	4.000 IN (10.160 CM)
Height:	4.000 IN (10.160 CM)
Weight:	2.253 LB (1.022 KG)





Model Fit:



TITAN



48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
