Toro OEM 139-3553-03 Lift Link or Height of Cut Link Fits Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Tube Framing).

Toro OEM 139 3553 03 Lift Link or Height of Cut (HOC) Link Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enables the Operator to uniformly raise and lower the Front and Back of the Mower Deck Simultaneously. Toro 139 3553 03 Also is Essential for Setting Transport Mower Deck Height Setting as well as Optional Mowing Height Setting by Allowing the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing or Operating Height. Both Features are Designed and Require the Transport and Mower Deck Setting Notches That is Manufactured into the (HOC) Link. Toro OEM 139-3553-03 Height of Cut Link Fits  Toro Late TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Models with Tube Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

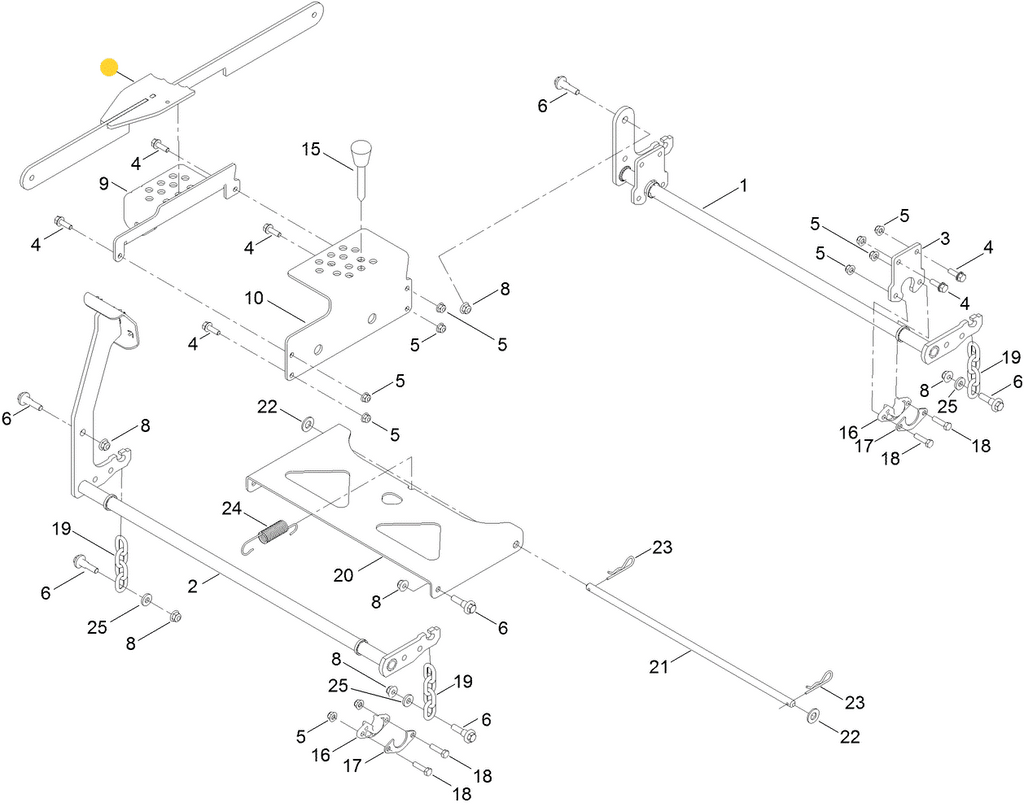

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-3553-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-3557-03 - UPPER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERENT LOOKING PLATES that Bolt Together Against the Mower Frame Allowing the Height of Cut (HOC) Link to Travel Between (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
2. 139-3556-03 - LOWER HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO DIFFERNET LOOKING PLATES that Bolt Together Against the Mower Frame (HOC) Plates Allowing the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x1 Per Unit
3. 140-3493 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
4. 3234-29 - FLANGE BOLTS - (Enables the (HOC) Selection Plate to be Fastened together Against the Mower Frame) x4 Per (HOC) Selection Plate
5. 104-8300 - FLANGE NUT - (Enables the (HOC) Selection Plates to be Fastened together Against the Mower Frame) x4 Per (HOC) Selection Plate
6. 140-2146 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notches to Rest Against at the operator’s chosen setting) x1 Per Unit
7. 139-3553-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit
8. 130-0742 - SHOULDER BOLTS - (Retains the (HOC) Link to the Front and Rear Pivot Arm) x2 Per (HOC) Lift Link
9. 104-8301 - FLANGE NUT - (Retains the (HOC) Link to the Front and Rear Pivot Arm) x2 Per (HOC) Lift Link
10. 133-4430-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
11. 137-2020-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit







Specification

Product Number:	139355303
Brand:	Toro
Length:	29.000 IN (73.660 CM)
Width:	3.750 IN (9.525 CM)
Height:	1.750 IN (4.445 CM)
Weight:	4.275 LB (1.939 KG)





Model Fit:



TITAN



48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
