Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Roll over image to zoom in Click on image to zoom
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).
Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).

Toro OEM 139-3272-03 Pulley Cover Retaining Tab Fits Late/Current Toro Timecutter 34" (Standard) - 42" (MX, Standard, My-Ride) - 50" (Standard, My-Ride, Max) - 54" (Standard, My-Ride, Max) Models (Cast Aluminum Axle to Current Timecutter Max Series).

Toro
Price:
$11.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

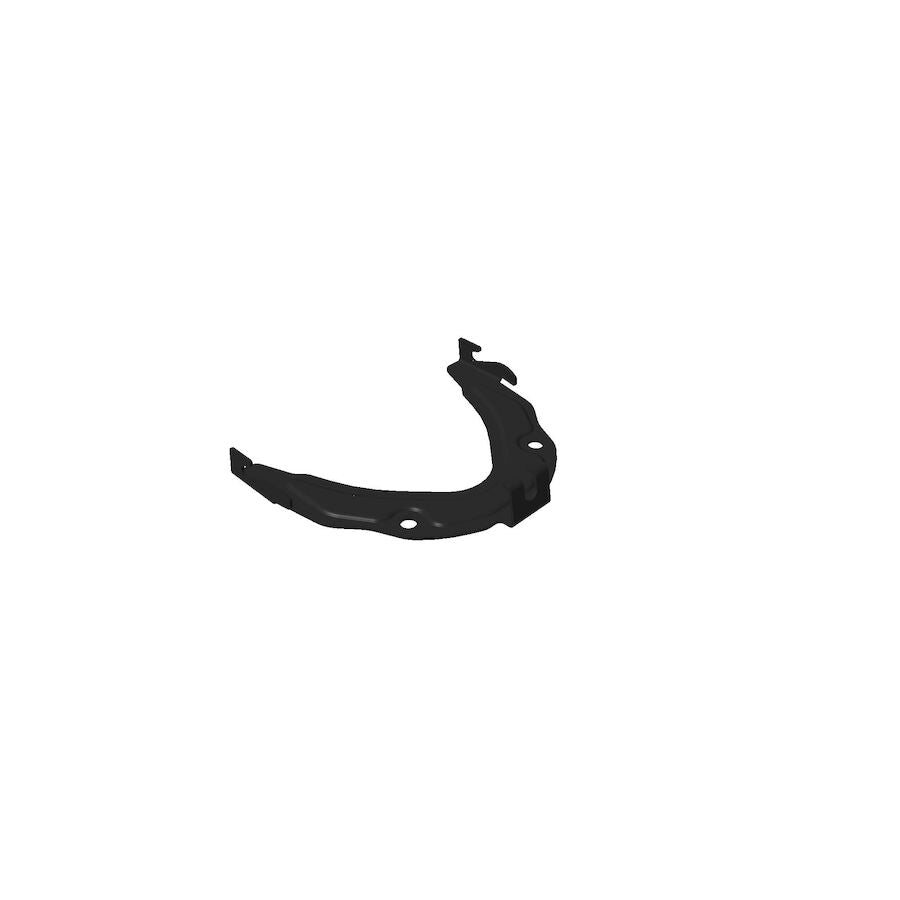

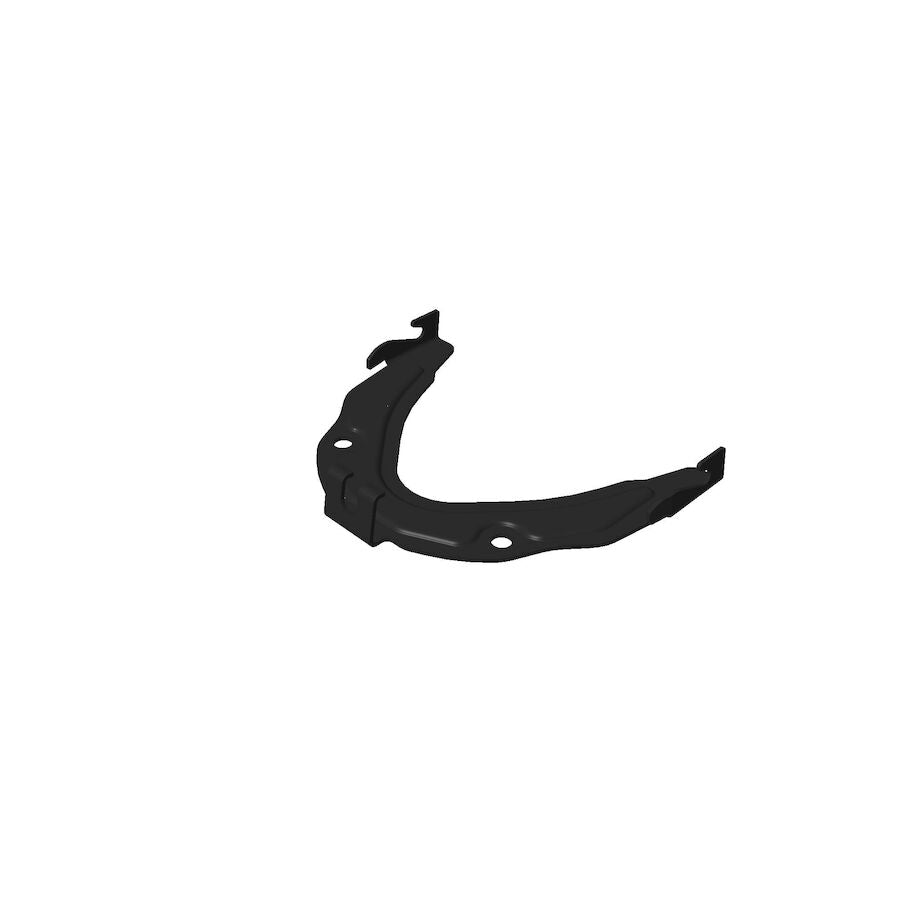

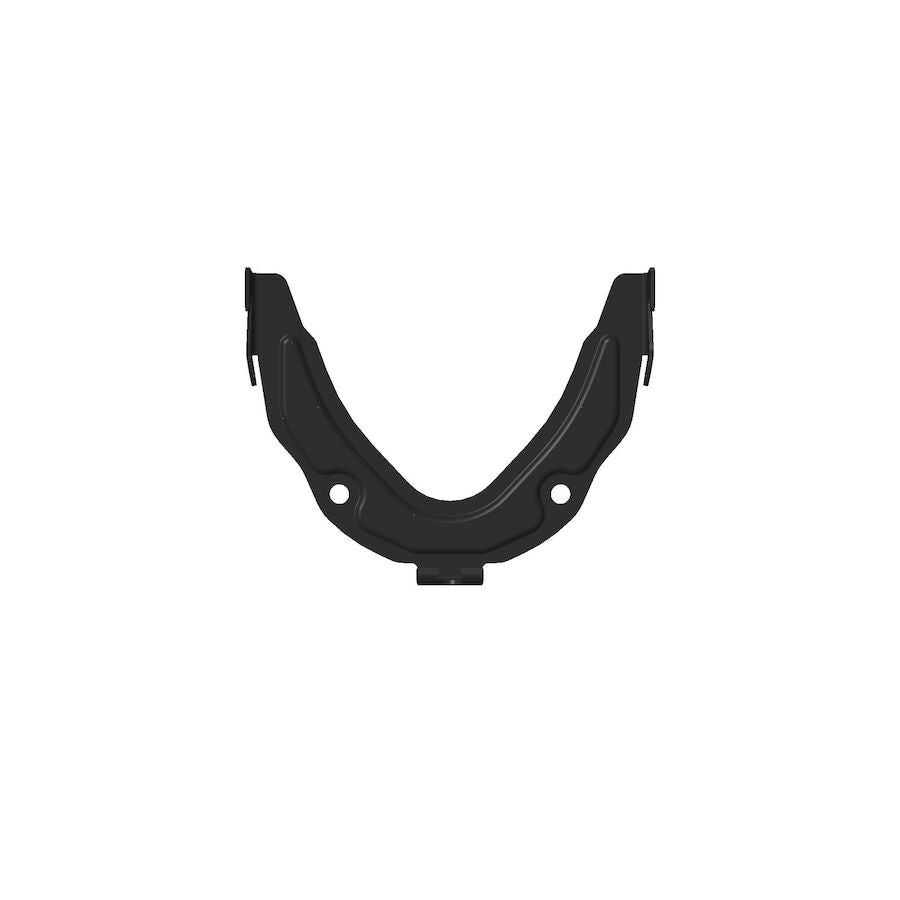

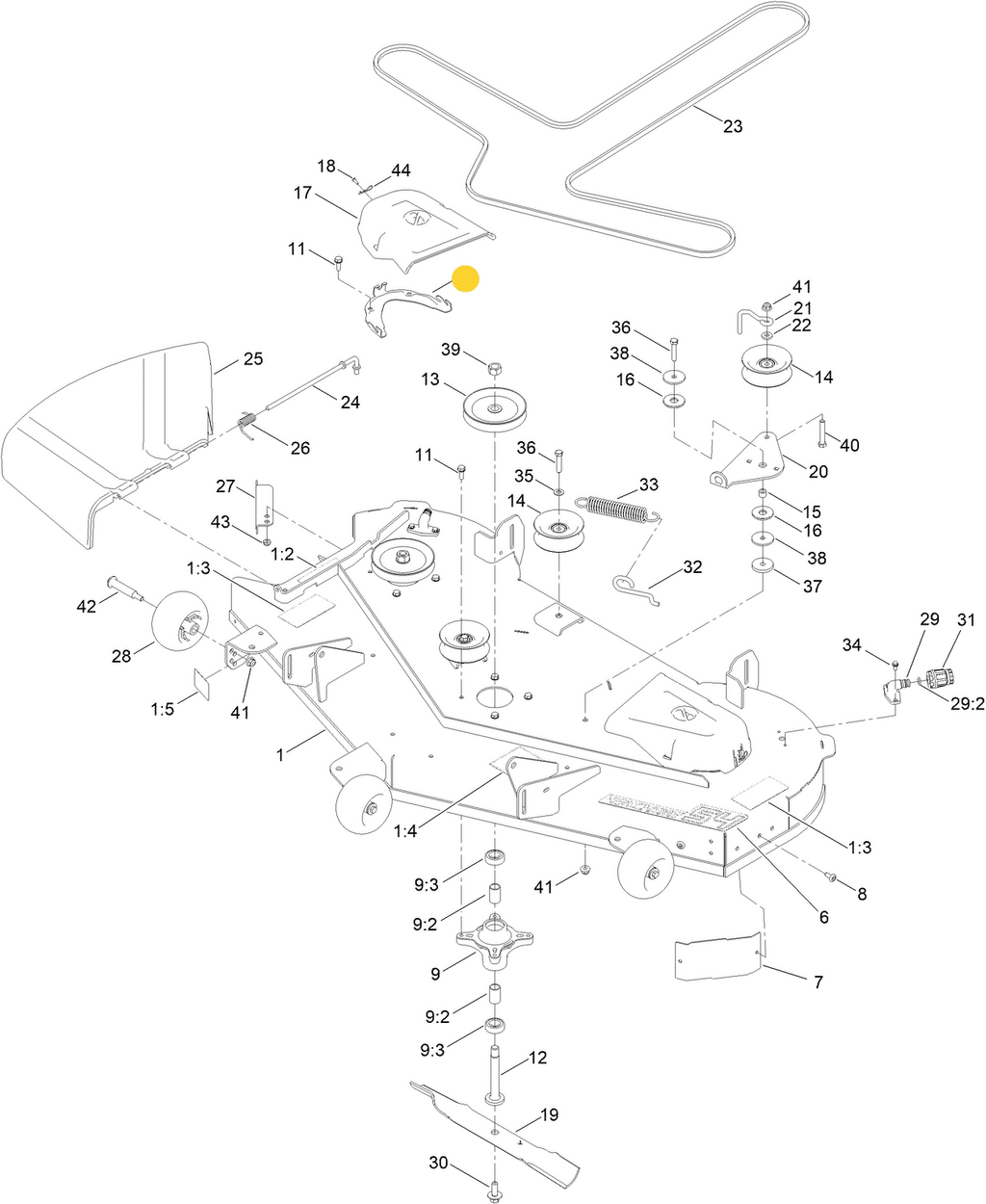

The Toro OEM 139-3272-03 pulley cover retaining bracket stays firmly attached to the mower deck and includes multiple slots/retaining tabs. These tabs or slots allow the pulley cover to be effortlessly removed and reinstalled, secured by a small locking tab on the Pulley Cover that holds it in place. The Toro OEM 139 3272 03 Design Enables users to Remove and Re-install Pulley Covers without requiring any tools. Tor 139 3272 03 Fits Toro 34" Timecutter (Standard) - 42" Timecutter (Standard, My-Ride) - 50" Timecutter (Standard, My-Ride, Max) - 54" Timecutter (Standard, My-Ride, Max) Models (Mower Models That use 139-3272-03 Will Range Between Series with Cast Aluminum Axles and Timecutter MAX Models). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED FASTNERS FOR PART NUMBER 139-3272-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





    1. 144-1905 - SPINDLE BELT & PULLEY COVER - (42" Mower Deck Models) x2 per Mower Deck
    2. 144-1906 - SPINDLE BELT & PULLEY COVER - (50" & 54" Mower Deck Models) x2 Per Mower Deck







 Specification

Product Number:

139327203

Brand:

Toro

Length:



7.000 IN (17.780 CM)

Width:



6.000 IN (15.240 CM)

Height:



1.000 IN (2.540 CM)

Weight:



0.402 LB (0.182 KG)





Model Fit:





TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301





TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691



TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679



TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75746, 77404



TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75747





TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695



TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753



TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505



TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502





TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506



TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507
