Toro OEM 139-3214 Fits 34", 42", 50", 54" and 60" Timecutter Models.

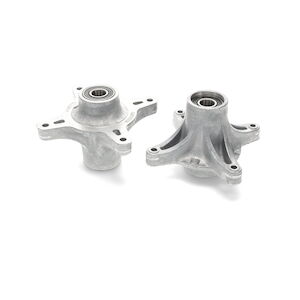

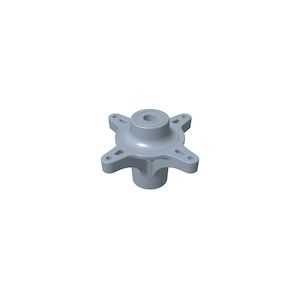

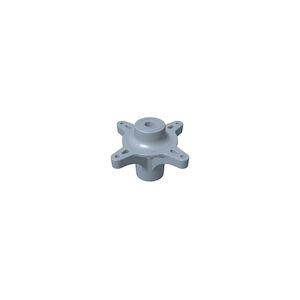

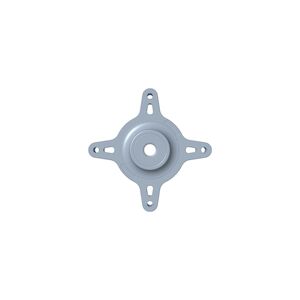

Replace your spindle ass. with the OEM replacement Part that was designed, tested and engineered to withstand the sheer point without sacrificing the strength and durability of your Lawn Mower Deck. Toro OEM Heavy Duty replacement Spindle Ass. 139 3214 is designed for multiple Toro Timecutter Models Including: Timecutter  34" - (MX, Standard), 42" (MX, SS, SW, SWX, ZS, 4200, ZR 4200, Standard, My-Ride), 50" - (MX, SS, SW, SWX, ZS, 5000, Standard, My-Ride, MAX), 54" - (SW, SS, Standard, My-Ride, MAX), 60" - (MX, Standard, My-Ride, MAX). Toro 139-3214 Also Fits Toro Titan 50" ZX, XLS Riding Tractors Models and E-Z Vac/Bagger Systems. For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 121-0751, 117-7267 and 117-7439 Supersede to Part Number 139-3214. Spindle Assembly 139-3214 comes only as pictured in the Images (with only the Housing, Bearing and Bearing Spacers).

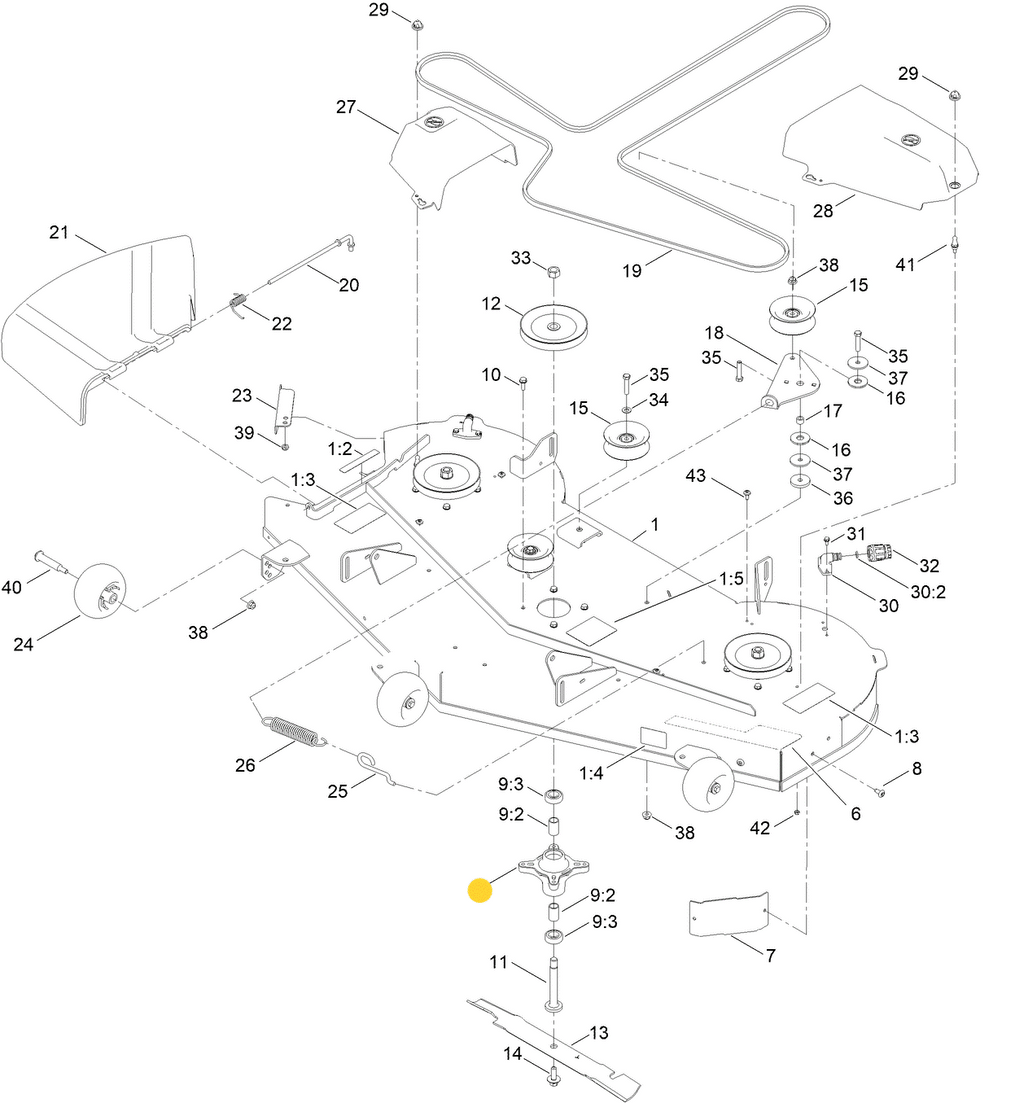

ASSOCIATED SPINDLE ASSEMBLY PARTS FOR PART NUMBER 139-3214 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 32144-41 - TAPTITE/TAP SCREW (Retains Spindle Assembly 139-3214) x1
2. 3219-6 - PULLEY NUT (Retains Internal Spindle Assembly Parts) x1
3. 138-9770 - BALL BEARING x2
4. 120-7935 - BEARING SPACER x2
5. 117-7268 - SPINDLE SHAFT x1
6. 145-0411 - FLANGED BLADE BOLT (Retains Mower Deck Blade) x1
7. 26-0671 - HEX HEAD BLADE BOLT (Retains Mower Deck Blade) x1
8. 3290-465 - BELLEVILLE WASHER (Only Used with Part Number 26-0671) x1







Specification

Product Number:	1210751, 1177267, 1177439, 1393214
Brand:	Toro
Length:	6.400 IN (16.256 CM)
Width:	6.600 IN (16.764 CM)
Height:	4.000 IN (10.160 CM)
Weight:	1.972 LB (0.894 KG)





Model Fit:



TIMECUTTER 34” MX Series – Model Numbers – 74750

TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74685, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766, 74649, 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747



TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74661, 74395

TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774

TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732

TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790

TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741

TIMECUTTER 54” SW Series – Model Numbers – 74793

TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603



TITAN 50” ZX Series – Model Numbers - 74820, 74840



XLS Riding Tractor Series – Model Numbers 71254, 71255



E-Z VAC BLOWER & BAGGER BLOWER ASS. MODELS – Model Numbers – 78401, 78403, 79345, 79346, 79347, 79348, 78402, 142-8782, 135-2604
