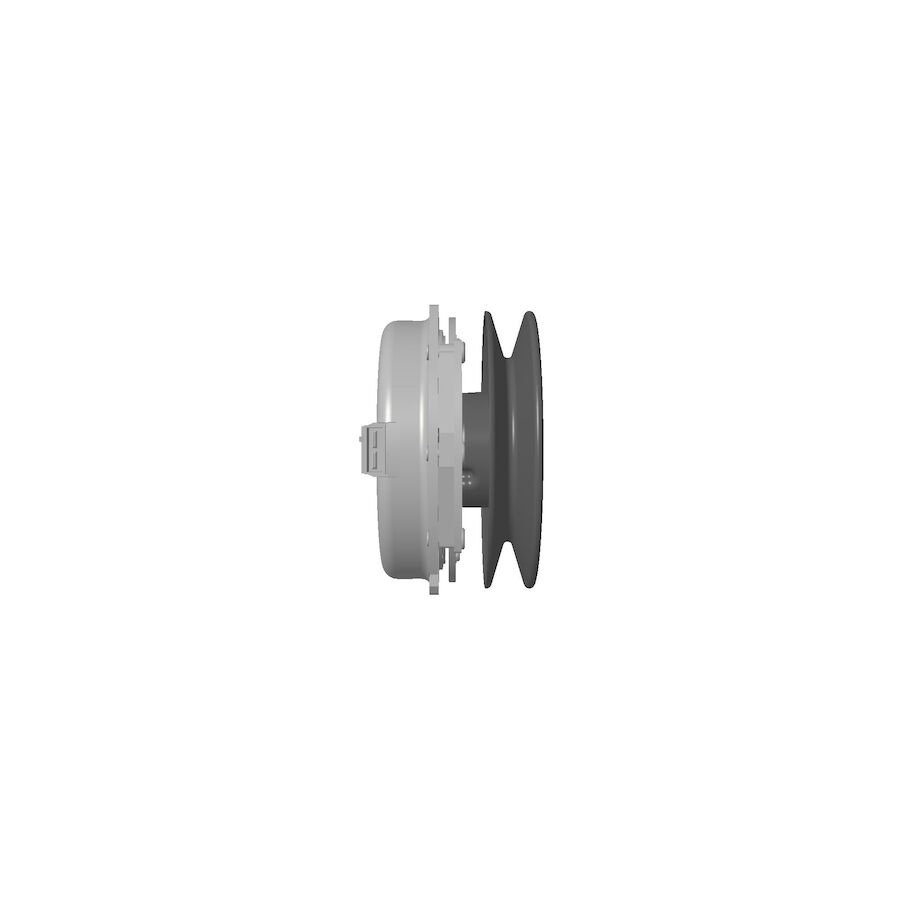

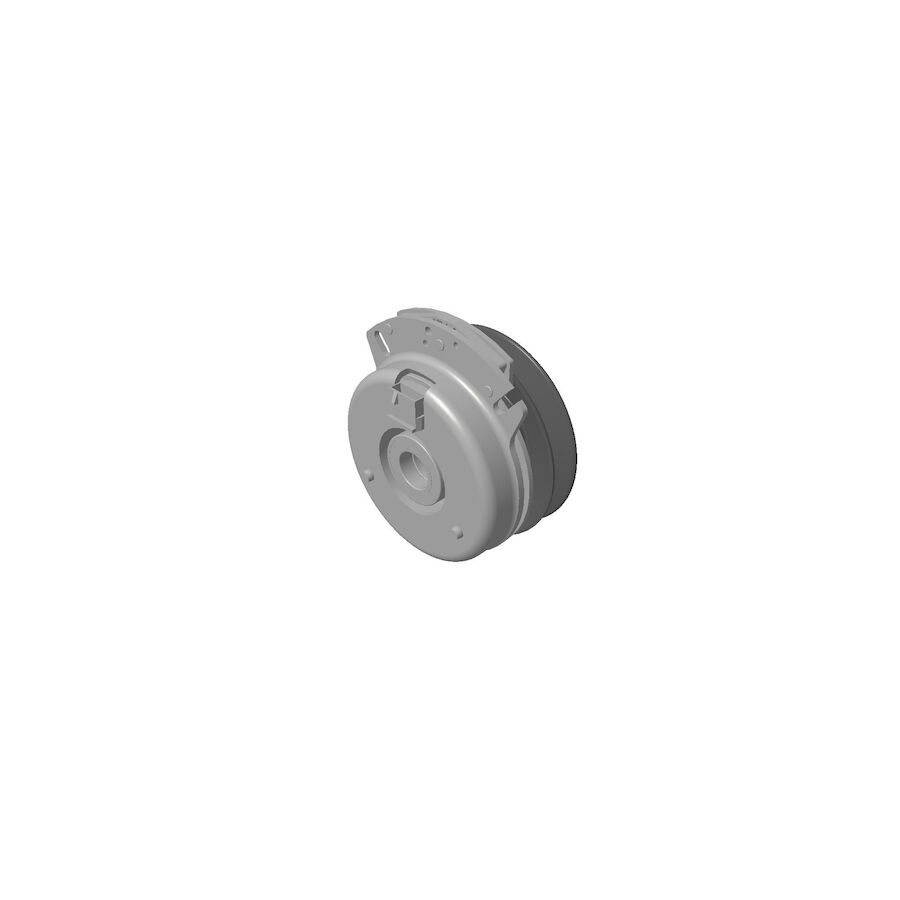

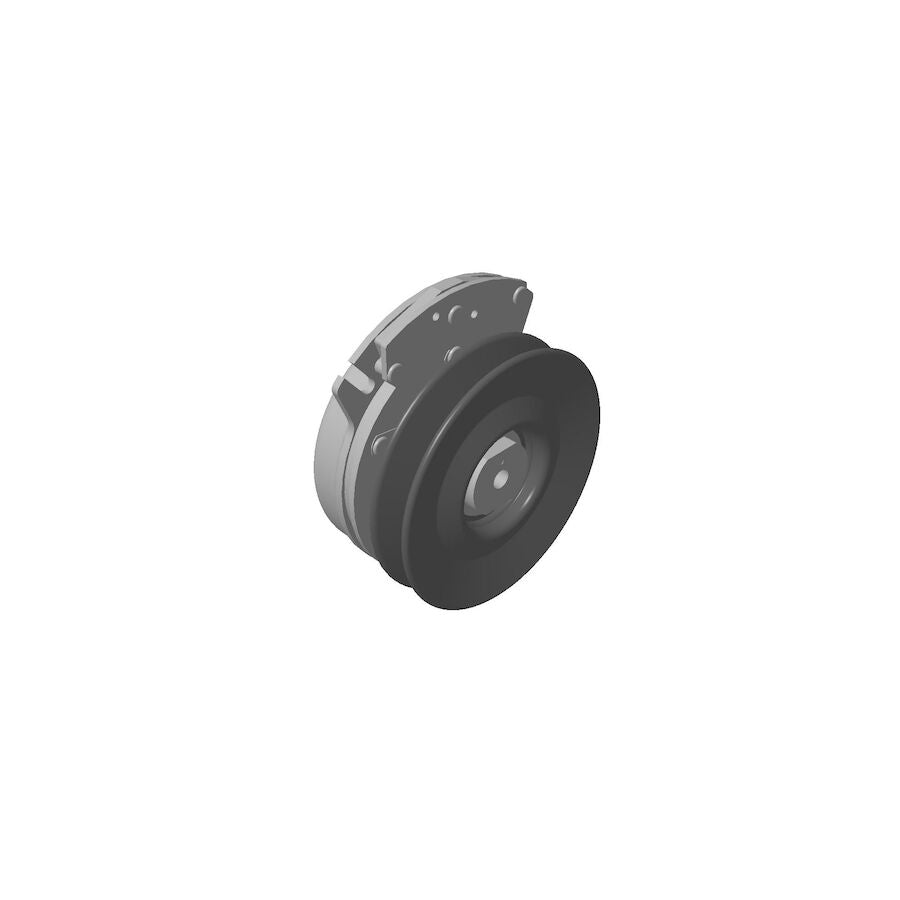

Toro OEM 139-2897 PTO Clutch Fits Current Toro 48", 52", 60" PROLINE HDX Models.

Toro OEM 139 2897 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro139 2897 PTO Clutch is Designed for Current Toro 48", 52", 60" PROLINE HDX Models 44448, 44454, 44460. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.





NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

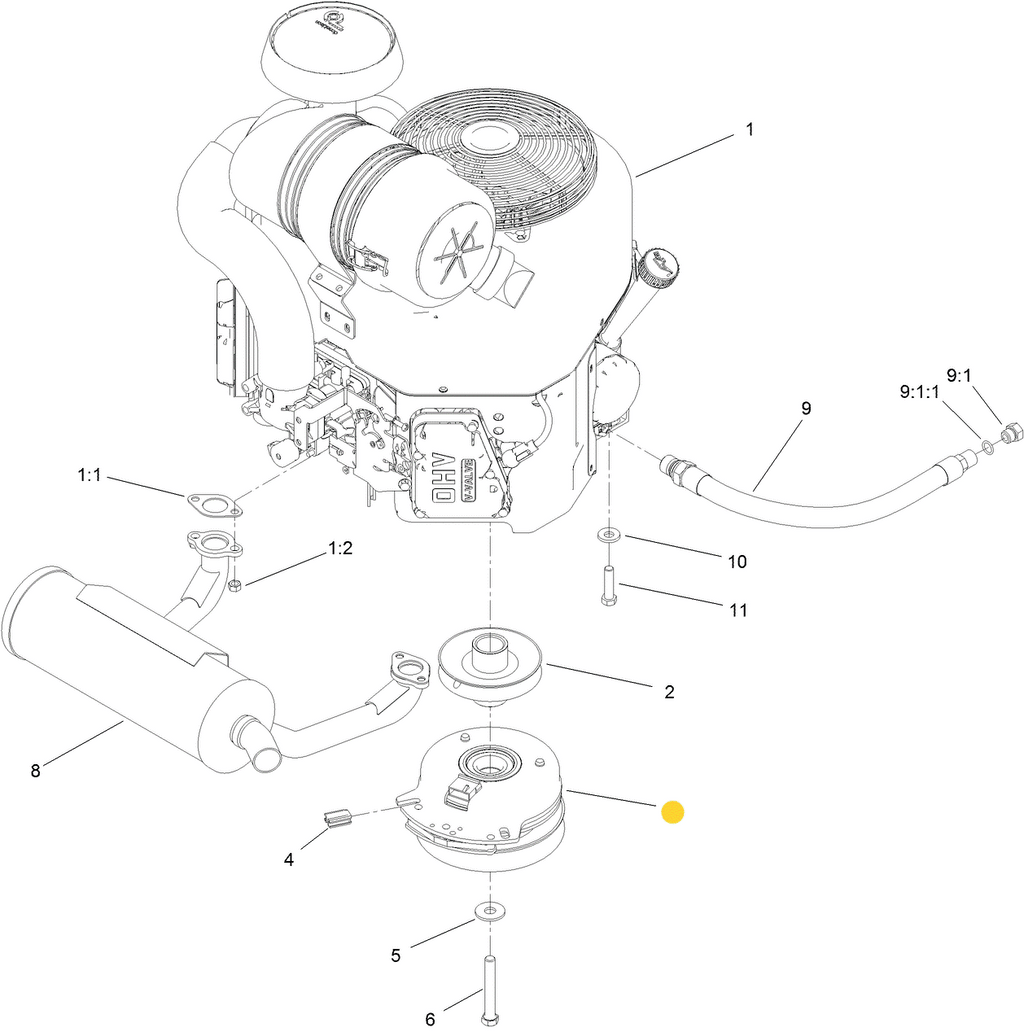

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-2897 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 126-7198 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 94-2701 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
3. 120-2217 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
4. 138-6819 - PTO CLUTCH STOP/ARBOR (Idler Arm Mount Bracket) - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

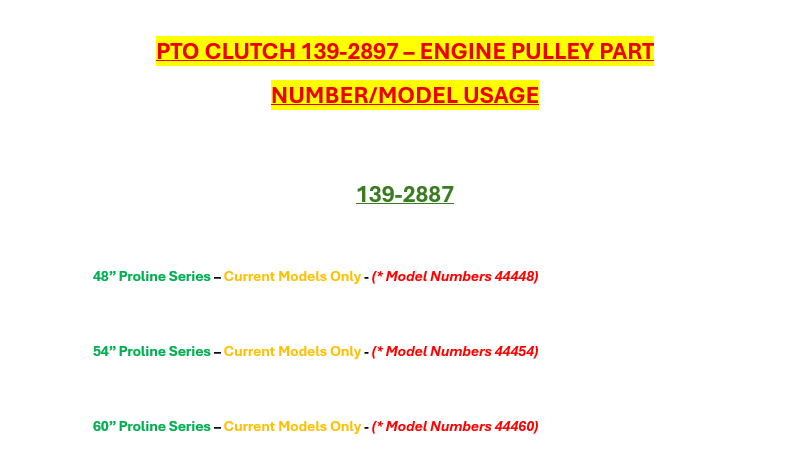

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES







139-2887 - ENGINE PULLEY - (Drives Hydraulic Drive Belt) x1 Per Unit







Specification

Product Number:	1392897
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	13.000 LB (5.897 KG)





Model Fit:



48”, 54”, 60” PROLINE - 139-2897 MODEL/SERIES USAGE



Proline Series 48” – Current Models Only - (* Model Numbers 44448)



Proline Series 54” – Current Models Only - (* Model Numbers 44454)



Proline Series 60” – Current Models Only - (* Model Numbers 44460)
