Toro OEM 139-2590 Carriage Bolt Fits Toro Current/Late - 34", 42", 50", 54" and 60" Timecutter Models (Models Cast Aluminum Axle's) and More....

• TYPE: TORO OEM Carriage Bolt
• SIZE: NA
• APPLICATIONS: Most Commonly - Mower Deck Foot Assist Lift Linkage - and more....
• COMMON SERIES APPLICATIONS: Following Timecutter Models with Foot Pedal Assist - Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles) - Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). POWER BROOM, FIELD PRO

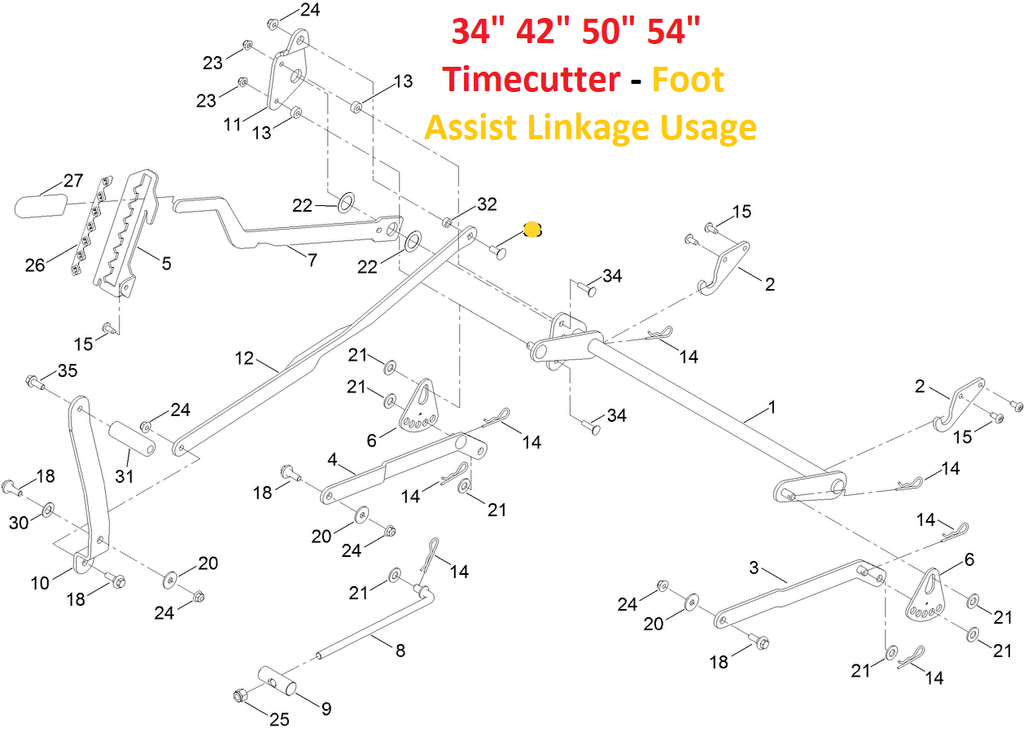

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







Product Number:

1392590





Model Fit:



Model Factory Assemble Usages



08839, 140-2059, 161-4527, 23741, 38701, 74682, 74684, 74686, 74688, 74694, 74695, 74696, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75851, 79487





OPTIONAL OR FACTORY INSTALLED FOOT ASSIST TIMECUTTER MODEL USAGE



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
