Description
- TYPE: TORO OEM Hex Head Flange Bolt
- SIZE: NA
- APPLICATIONS: Timecutter HD Models (Enables the Lift Plates or (HOC) Selection Plate to be Fastened together - Requires Spacer for every Bolt in order to Space the (HOC) Selection Plates Apart) *Select Timecutter HD Models will use the same bolts to fasten (HOC) Selection Plate Together as well as directly to a weldment on the Frame. While the Models Listed Under this Part Number Uses Different Part Number To Fasten the The (HOC) Selection Plate Together Versus to the Frame, Splitting the Quantity of Four to Two Using x2 139-2553 to Fasten the (HOC) Selection Plate together or Upper Two Bolt x2 139-2594 (HOC) Selection Plate to the frame or Lower Two Bolts. - Power Broom Models (Traction Drive Belt Idler Pulley & Idler Pulley Tensioner Arm) - Groundmaster (Control Console Assembly)
- COMMON SERIES APPLICATIONS: Select Late Timecutter HD Models (Models 74876, 74886, 74888) - Power Broom Models & Early Model Walk-Behind Power Broom 23741, 38701 - GroundMaster 31800.
*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
Specification
|
Product Number: |
1392553, 139 2553 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.085 LB (0.039 KG) |
Model Fit:

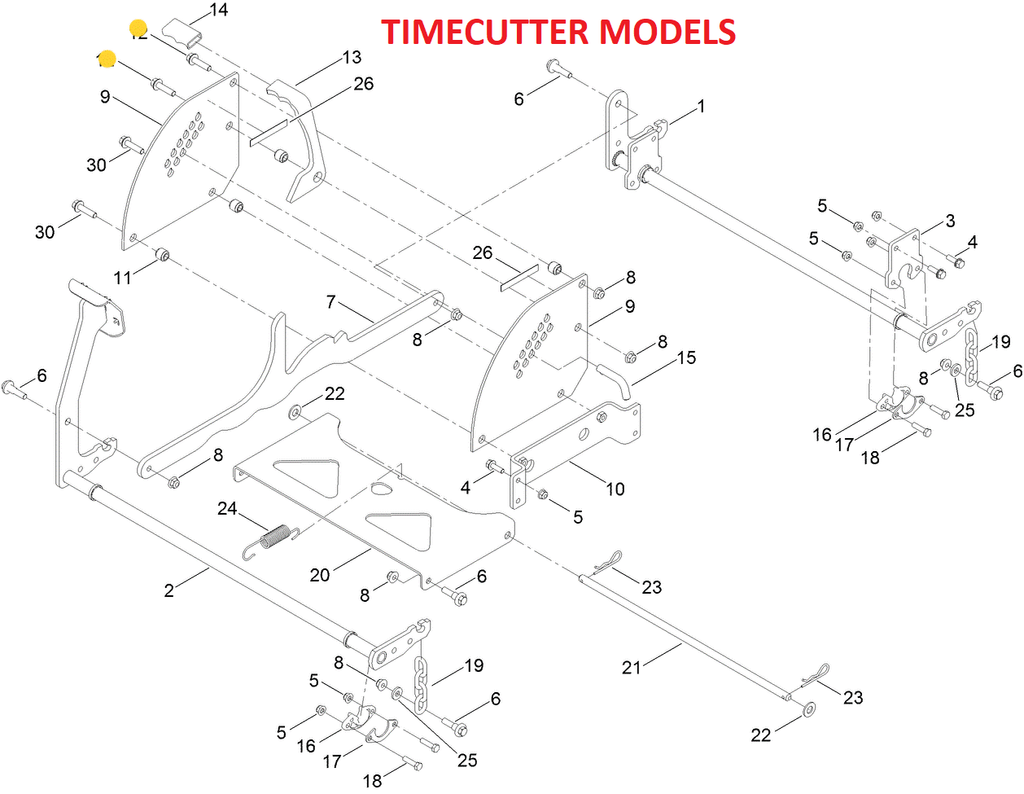

TIMECUTTER
48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74886)
54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74876, 74888)

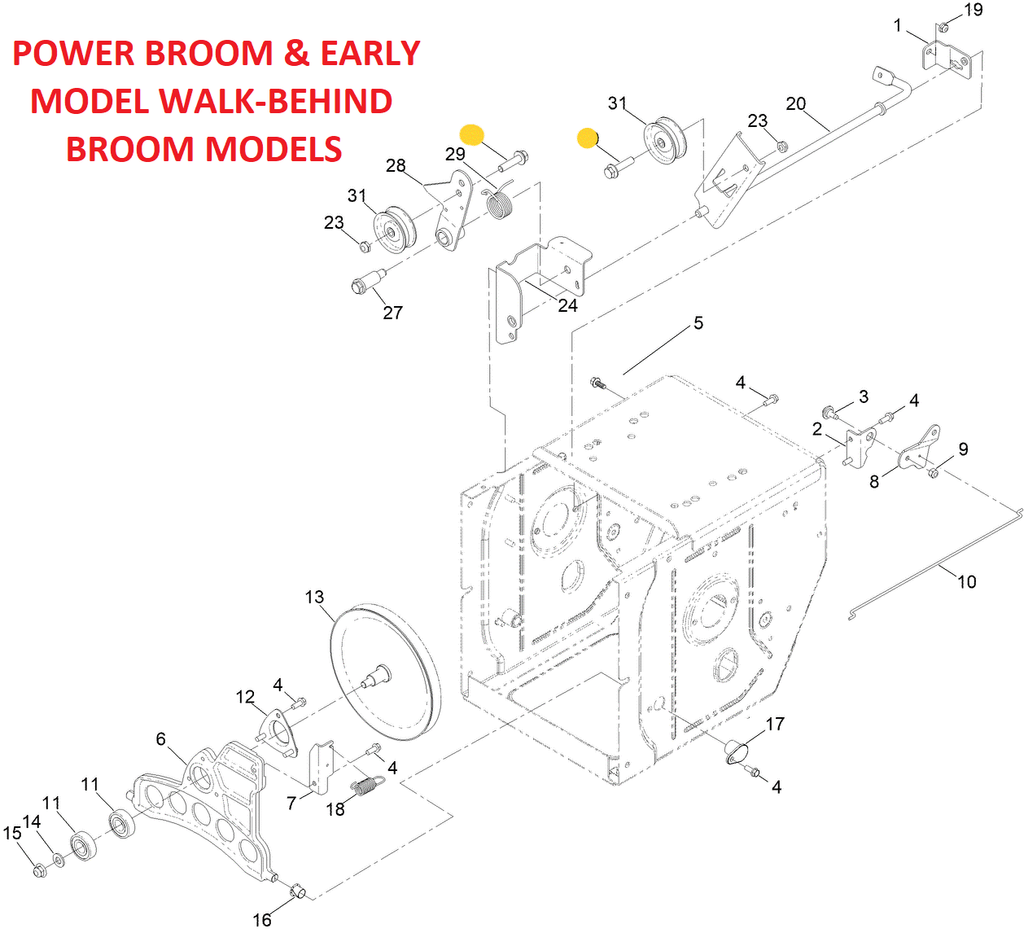

POWER BROOM
POWER BROOM & WALK-BEHIND BROOM Series – Model Numbers – (* Model Numbers 38701, 23741)

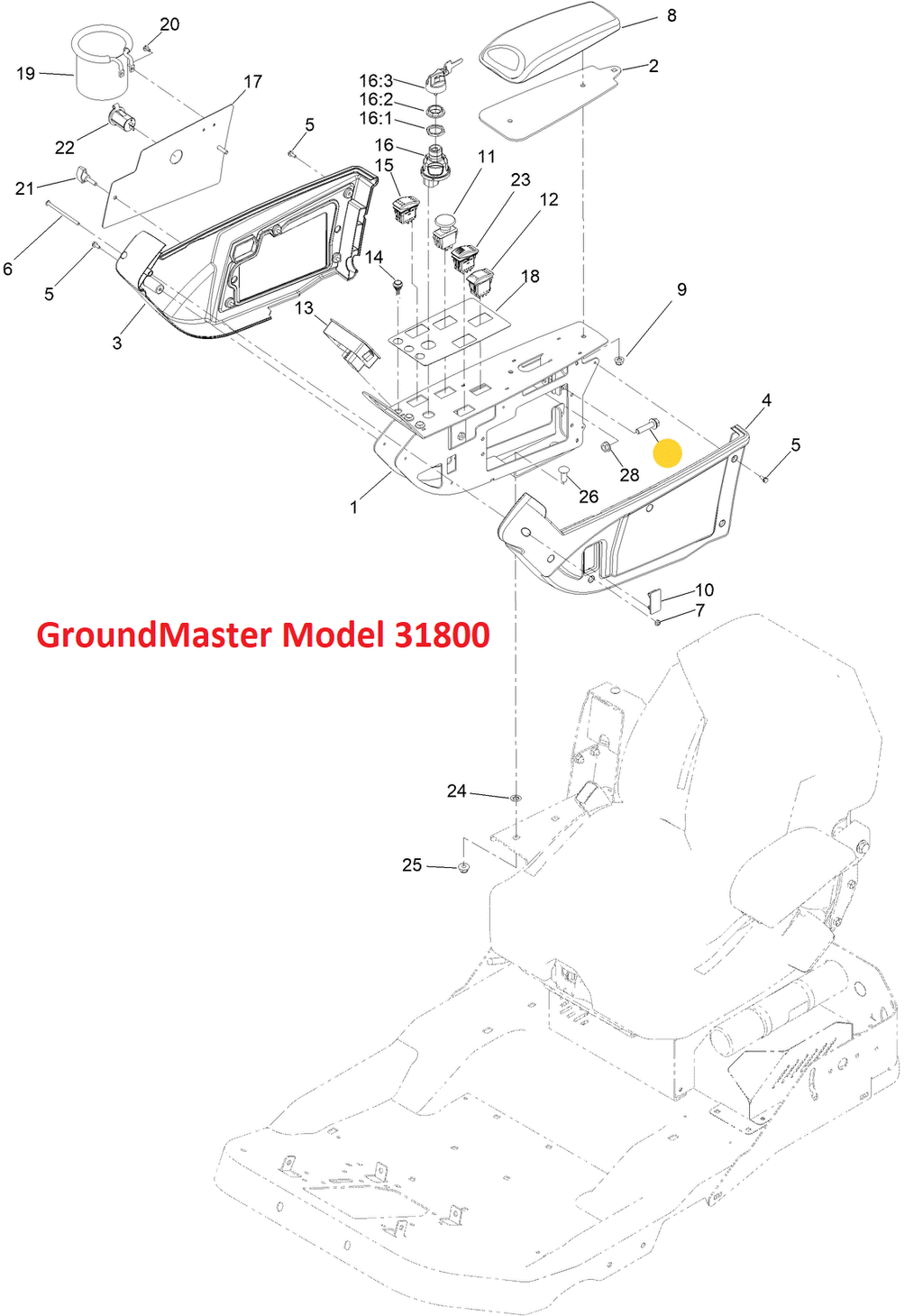

GROUNDMASTER
GROUNDMASTER Series – Model Numbers – (* Model Numbers 31800)
