Description
- TYPE: TORO OEM Hex Head Flange, Shoulder Bolt
- SIZE: Standard 3/8 Thread Pattern
- APPLICATIONS: Commonly used in Application such as Anti-Scalp Rollers, Mower Deck Tensioner Arm Assembly, Belt Hook/Mower Deck Belt Guide
- COMMON SERIES APPLICATIONS: Early/Latet 42" & 50" Timecutter ZS, MX, 4200, 5000, Standard, My-Ride Models. (Select Models with Cast-Aluminum Axles) - Late/Current 42" & 54" Battery Timecutter (Standard & My-Ride Models).

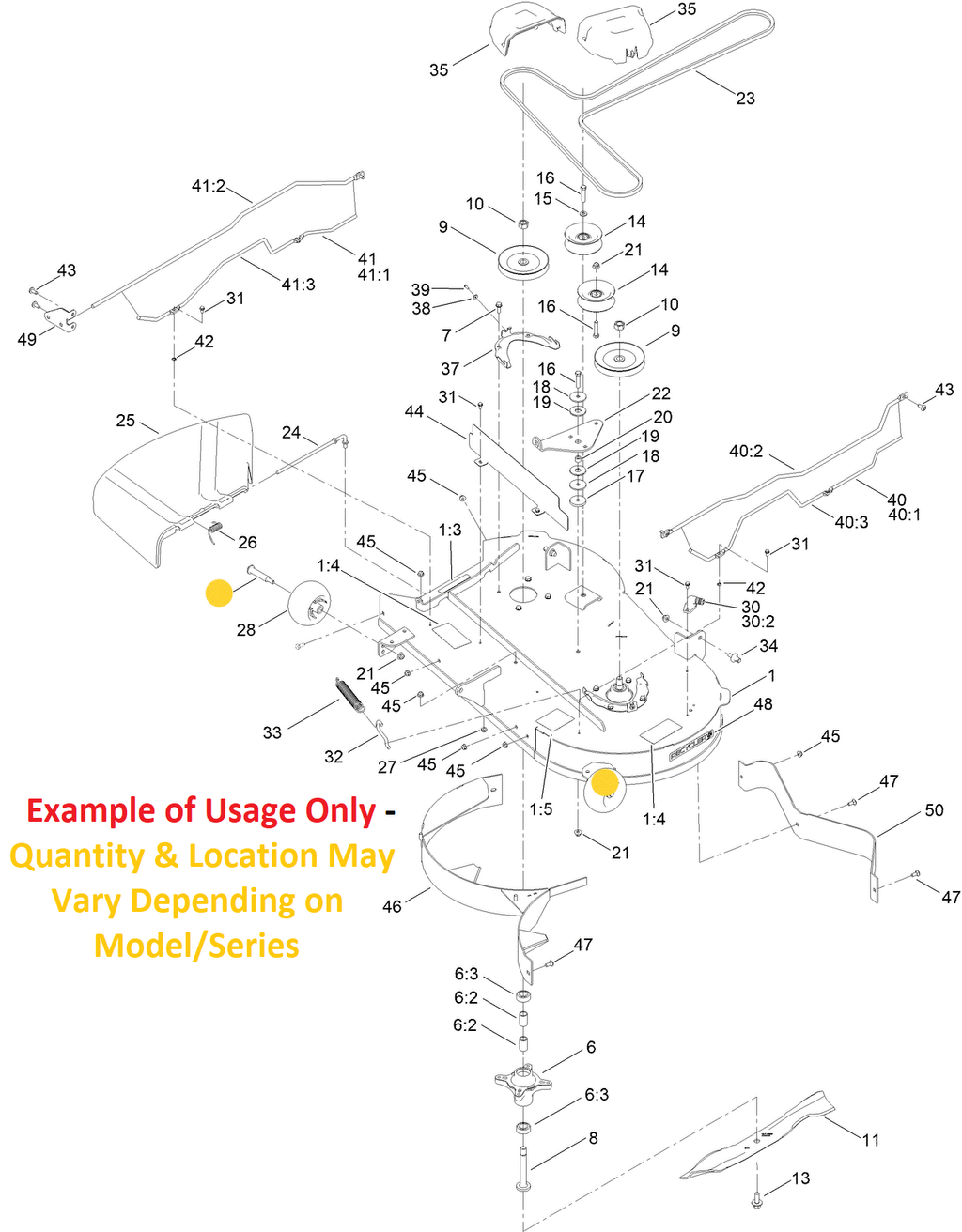

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 139-2551 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
- 119-4042 - FLANGE LOCK NUT (Retains Shoulder Bolt and Anti-Scalp Wheel to Mower Deck) x1 Per Anti-Scalp Wheel
Specification
|
Product Number: |
139 2551, 1392551 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.289 LB (0.131 KG) |
Model Fit:
TIMECUTTER
TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74684, 74685, 74686, 74687
TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679
TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692
TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841, 75642
TIMECUTTER 50” ZS Series – Model Numbers – 74688
TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695
TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696
TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851
