Toro OEM 139-2448-03 Corner Deflector Baffle Fits Select Toro 50", 54", 60" Current Timecutter Max - Late Timecutter Standard and MyRide Models (Models with Replaceable Cast Aluminum Axle's and Fabricated Mower Decks).

The Toro OEM 139 2448 03 Corner Deflector Baffle is a bolt-on component designed to enhance airflow and vacuum for effective grass discharge, promoting a clean cut. Toro OEM 139 2448 03 Mounts on the Inside Front Cutting/Trim Edge Corner of the Mower Deck, Improving Aerodynamic Airflow and preventing grass buildup in the Mower Deck’s Cutting/Trim Edge Corner. This part is compatible with select Toro 50", 54", and 60" TimeCutter Standard and MyRide Models (Featuring Replaceable Cast Aluminum Axles and Fabricated Mower Decks) - Current 50", 54", 60" Timecutter MAX Standard and My-Ride Models.

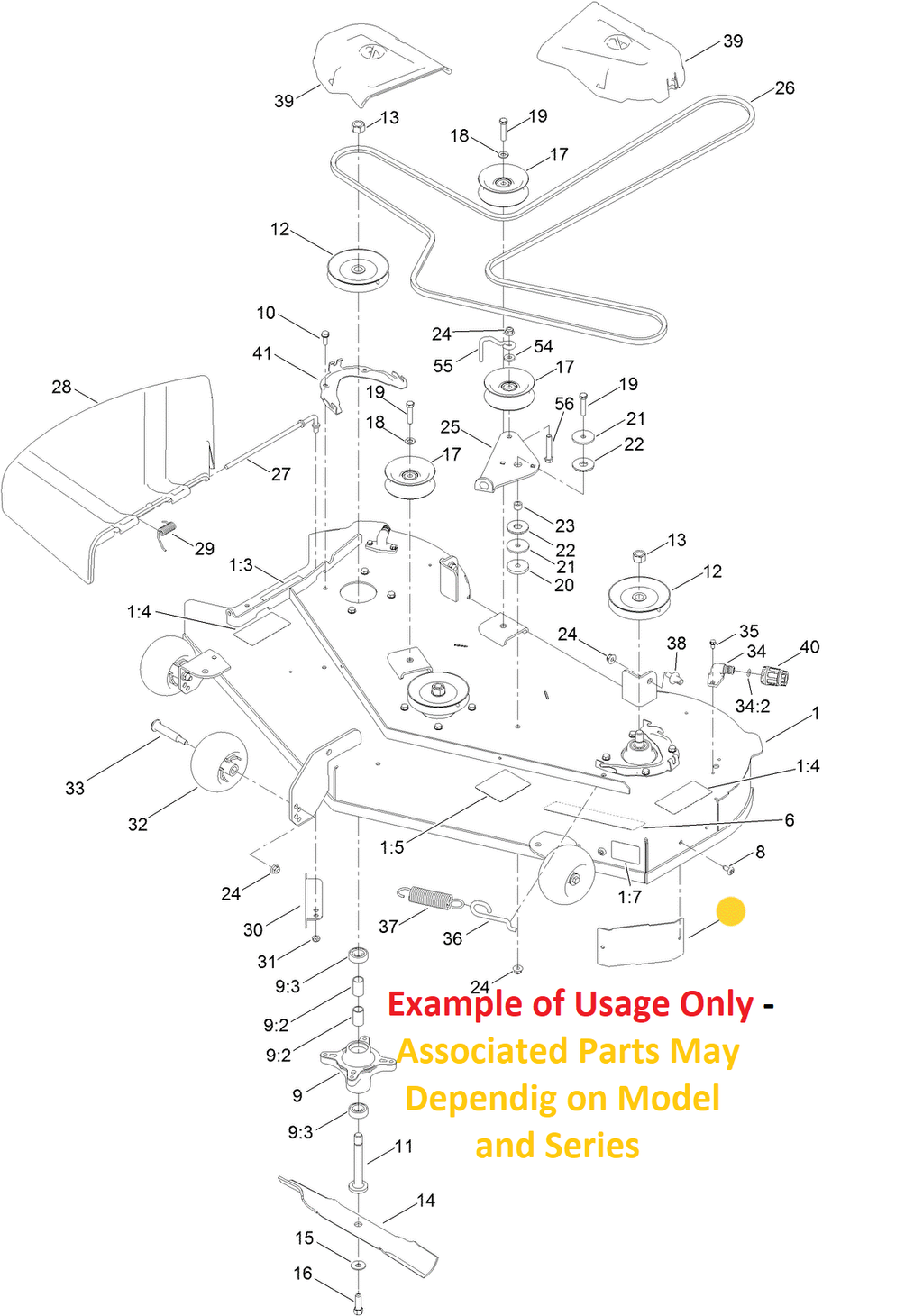

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 139-2448-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





138-9753 - PAN SCREW (Retains the Corner Deflector Baffle to the Inside Front Cutting-Edge Corner of the Mower Deck) x1 Per Rear Deflector Baffle







Specification

Product Number:	139244803, 139-2448-03
Brand:	Toro
Length:	7.125 IN (18.098 CM)
Width:	3.875 IN (9.843 CM)
Height:	0.750 IN (1.905 CM)
Weight:	0.750 IN (1.905 CM)





Model Fit:



TIMECUTTER



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507

TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603
