Description

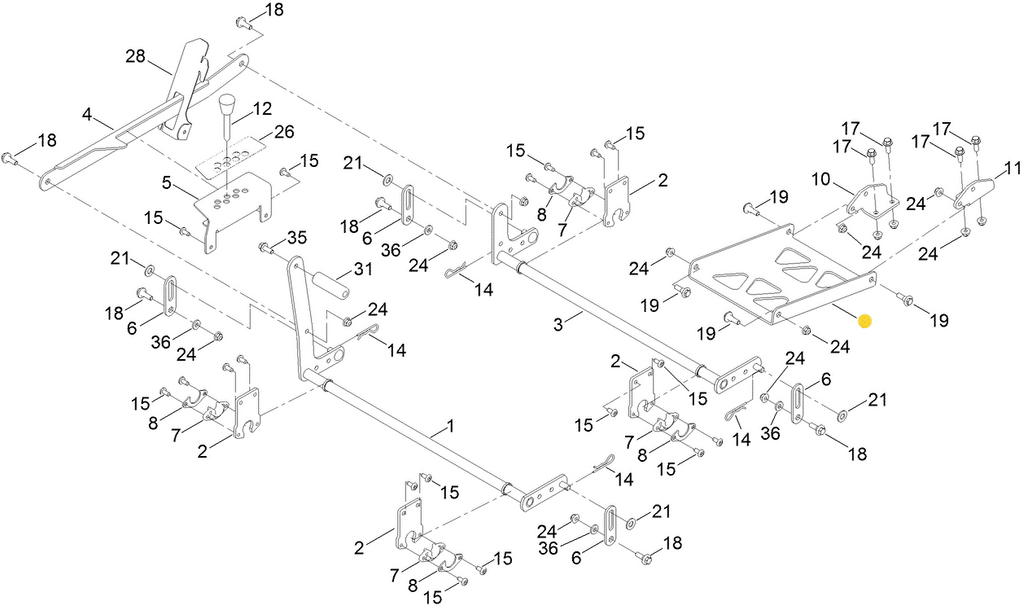

The Toro OEM 139 2435 03 Mower Deck Pivot Pan allows the front of the mower deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the deck. Toro OEM 139 2435 03 Pivot Pan is Designed to Fit on Toro Late 60" Timecutter Standard and My-Ride Models 75760, 75762, 75763 Only (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-2435-03 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 139-3200-01 - MOWER DECK PIVOT PAN FRAME BRACKETS - (Attaches to the Front of the Frame of the Mower and Spaces/Lowers the Position of the Mower Deck Pivot Pan Fasteners from the Frame of the Mower to Enable the Pivot Pan to Travel up and Down Un-Hindered) x2 Per Unit
- 109-9840 - FLANGE SHOULDER BOLT - (Retains the Mower Deck Pivot Pan to the Mower Deck and the Mower Deck Pivot Pan's Frame Brackets) x4 Per Mower Deck Pivot Pan
- 104-8301 - FLANGE NUT - (Retains the Mower Deck Pivot Pan to the Mower Deck and the Mower Deck Pivot Pan's Fram Brackets) x4 Per Mower Deck Pivot Pan
Specification
|
Product Number: |
139243503 |
|
Brand: |
Toro |
|
Length: |
13.000 IN (33.020 CM) |
|
Width: |
10.250 IN (26.035 CM) |
|
Height: |
1.875 IN (4.763 CM) |
|
Weight: |
6.754 LB (3.064 KG) |
Model Fit:
60” TIMECUTTER (STANDARD) Series – FRONT MOWER DECK SPANNER PAN – (* Model Numbers 75760, 75762)
60” TIMECUTTER (My-Ride) Series – FRONT MOWER DECK SPANNER PAN – (* Model Numbers 75763)
