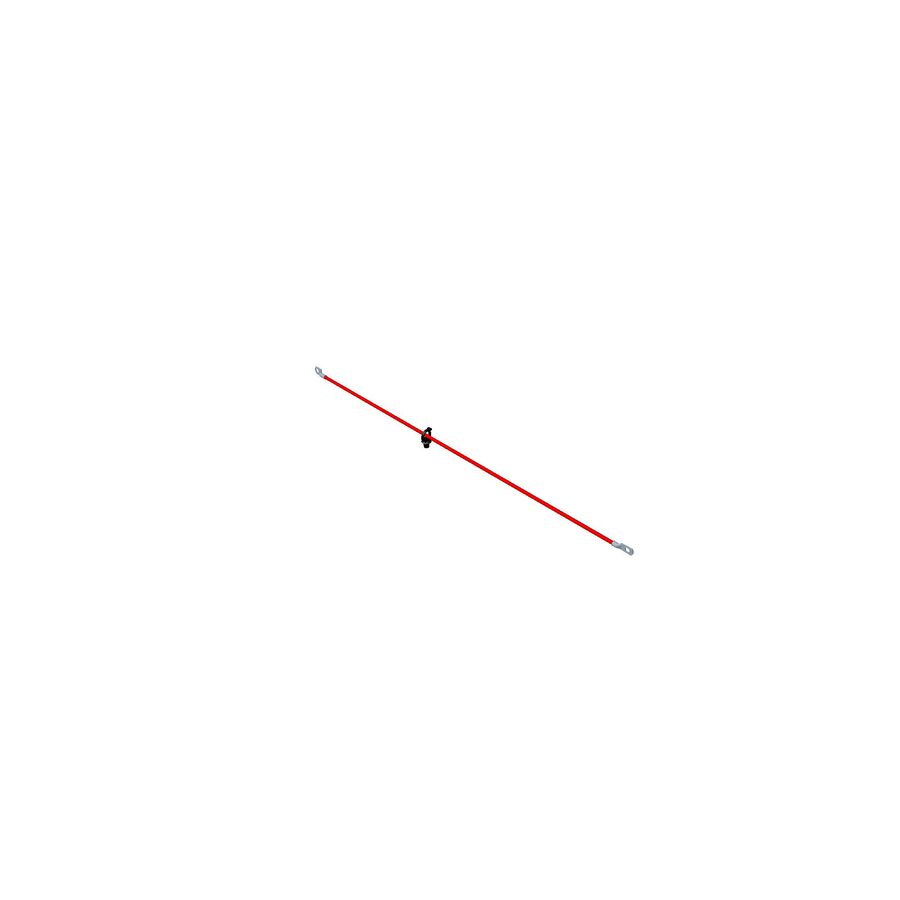

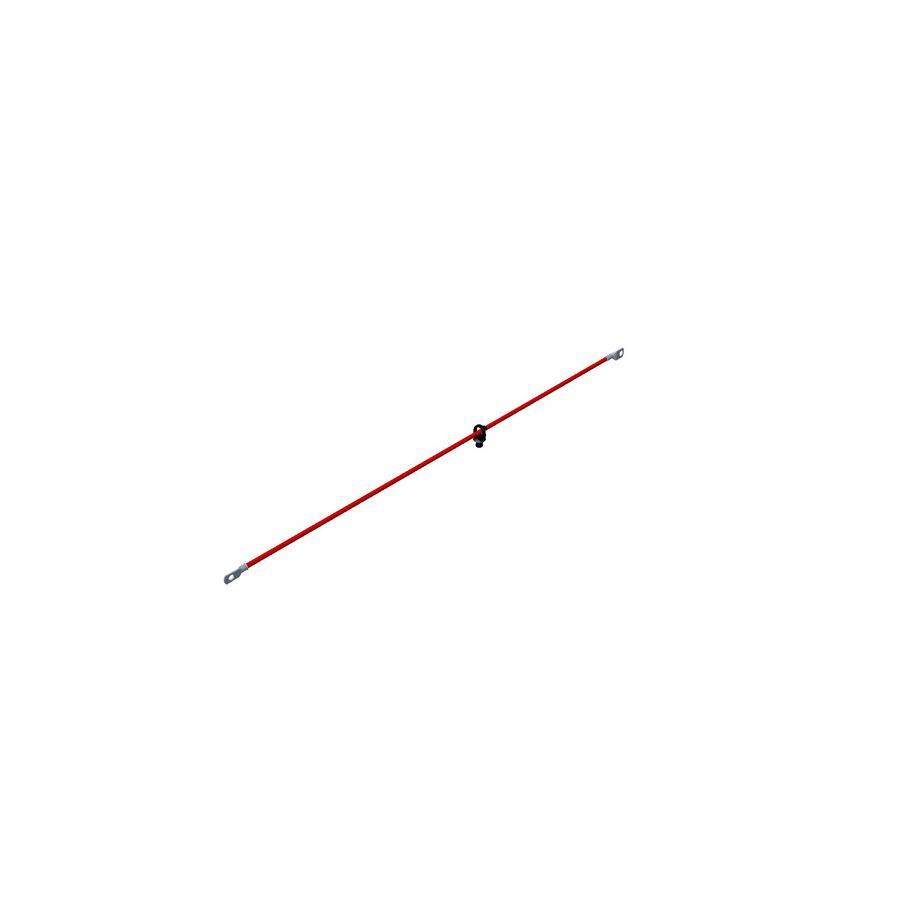

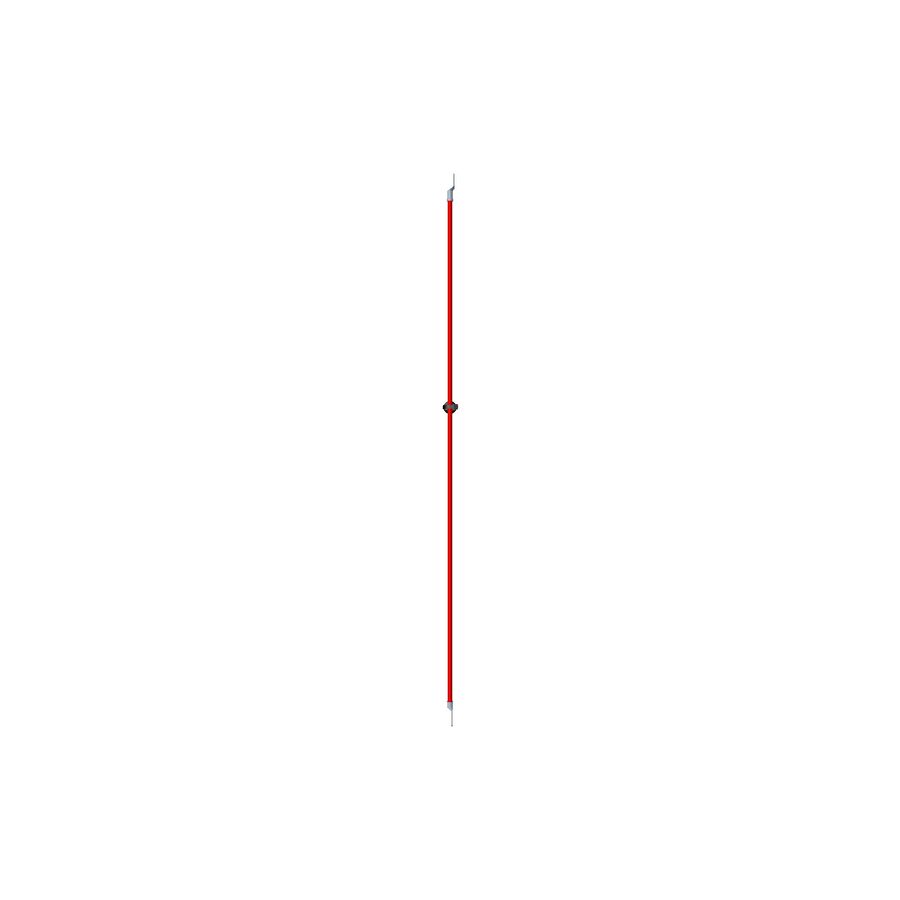

Toro OEM 139-2431 Red/Positive Battery Cable (8 Gauge Wire - 5/16" Eyelet/Bolt Whole - 1/4" Eyelet/Bolt Whole) Fits Select Late Timecutter Models/Series with Cast Aluminum Axle's.

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 139-2431, 139 2431, 1392431
• PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 139-2431 Red Positive Battery Cable is Primarily Used Between the Electrical Solenoid and the Engine's Starter Assembly. 139 2431 Main Purpose is Service by Transferring Electrical Current from the Solenoid to the Engine's Electric Starter under the Direction and Functions of the Ignition Switch and Electric Solenoid. 139 2431 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 25 in.
• COMMON SERIES APPLICATIONS:  Select Late 34" Timecutter Standard Models - 42" Timecutter ZS, MX, 4200, Standard, My-Ride Models - 50" Timecutter MX, 5000 Standard, My-Ride Models - 54" Timecutter My-Ride Models - 60" Timecutter Standard, My-Ride Models (All Models with Replaceable Cast Aluminum Axle's).

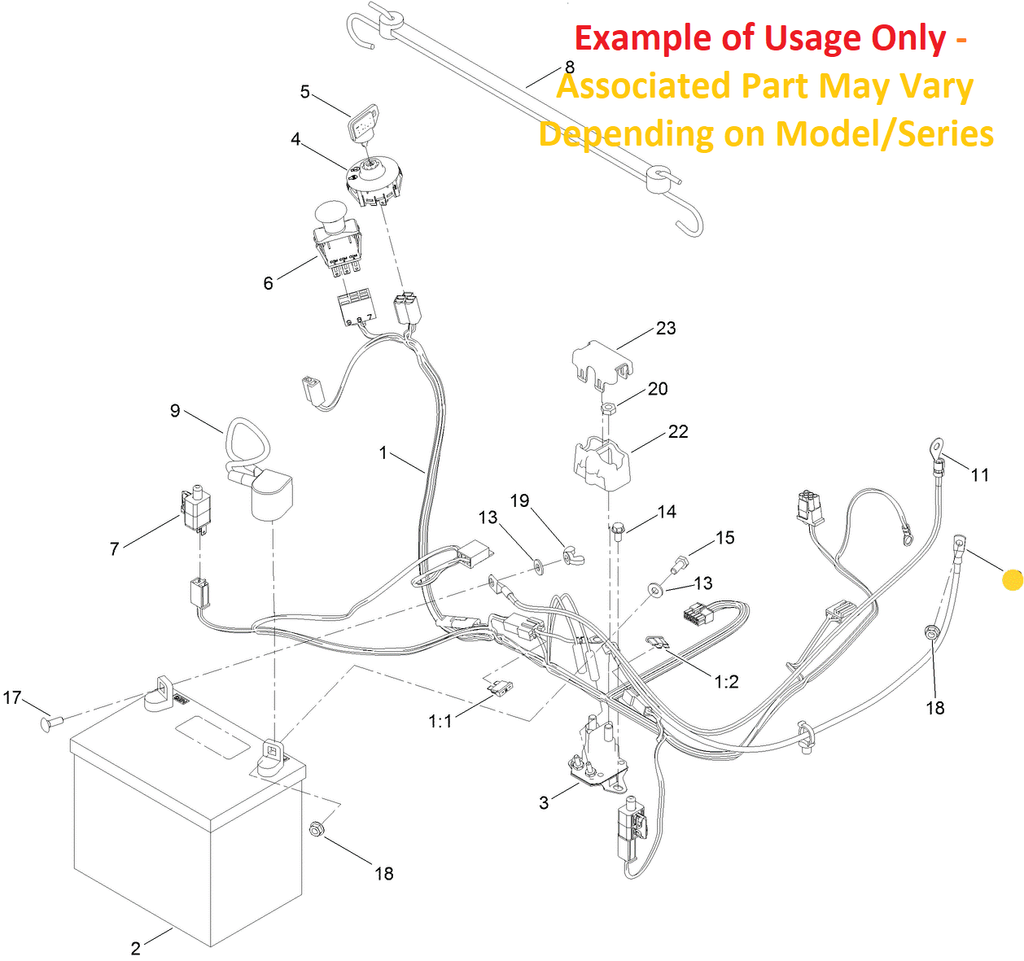

• ASSOCIATED FASTNER PARTS CHART:



STARTER ASSEMBLY



1. 32128-33 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Engine Starter Assembly) x1 Per Engine Starter Assembly



SOLENOID



1. 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
2. 3220-2 - NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post





• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74685, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
