Toro OEM 139-2401 Threaded Knob Fits Late 42", 50", 60" Timecutter MX Models (Cast Aluminum Axle's) - Current 42", 50", 54", 60" Timecutter MAX Models - (Non - My-Ride Models).

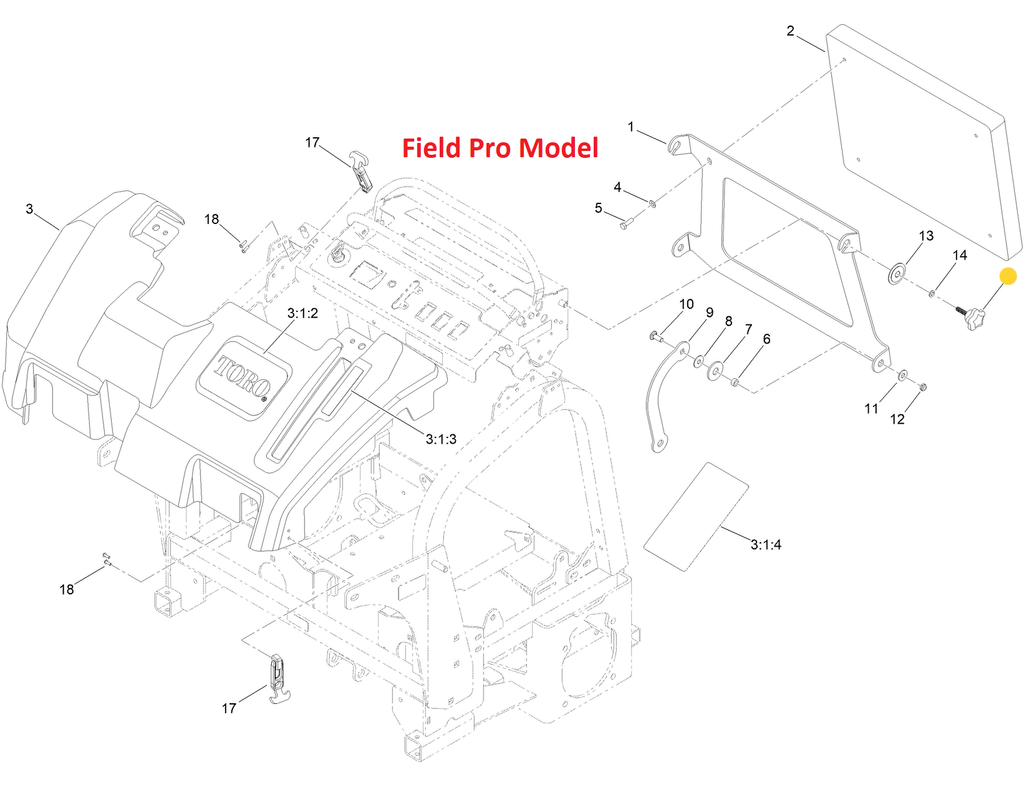

Toro OEM 139 2401 Threaded Knob Is used in in the slotted seat Pan on the Late 42", 50", 60" Timecutter MX Models (Models with Cast Aluminum Axles) - Field Pro Models (Operator's Pad Hinge) - Current 42", 50", 54", 60" Timecutter Max Models - (Usage does Exclude all My-Ride Model) Toro 139-2401 is typically used independently along with three Flange Bolt Fastners this along with the Slotted Feature of the Seat Pan allows the Operator to adjust their seat accordingly to their Preference and without the use of any tools. Toro 139-2401 Can be used on More Models than Listed in the Model Fit Chart as long as the Seat, Spacer Washer and Seat Thread Patterns are Similar. For a Complete list of Models that are Factory Equipped with Threaded Seat Knob 139-2401 Refer to the Model Fit Chart.







ASSOCIATED SEAT & FASTNER PARTS REFERENCES

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



TIMECUTTER MAX MODELS ONLY





1. 147-8732 - SEAT ASSEMBLY (KING) - (Part Number for Complete Seat) x1 Per Mower
2. 147-3002-05 - SEAT PAN - (Metal Pan that Retains the Mower Seat to the Mower and Allows it to Swivel Up and Down - Slotted Whole Allows the seat to be Slid Forward and Backward According to the Operators Preference) x1 Per Mower
3. 147-5174 - FLANGE SHOULDER BOLT - (Used in Relation to 139-2401 Threaded Knob, Serves the Purpose of Keeping the Seat in the Travel Slots - Does Not Serve the Purpose of Tightening the seat Tightly against the Seat Pan, 139-2401 Serves that Purpose) x3 Per Seat Pan or Seat
4. 1-603716 - FLAT FRICTION WASHER - (Supports 139-2401 Threaded Seat Knob in Tightening the Seat Against the Slotted Seat Pan) x1 Threaded Seat Knob

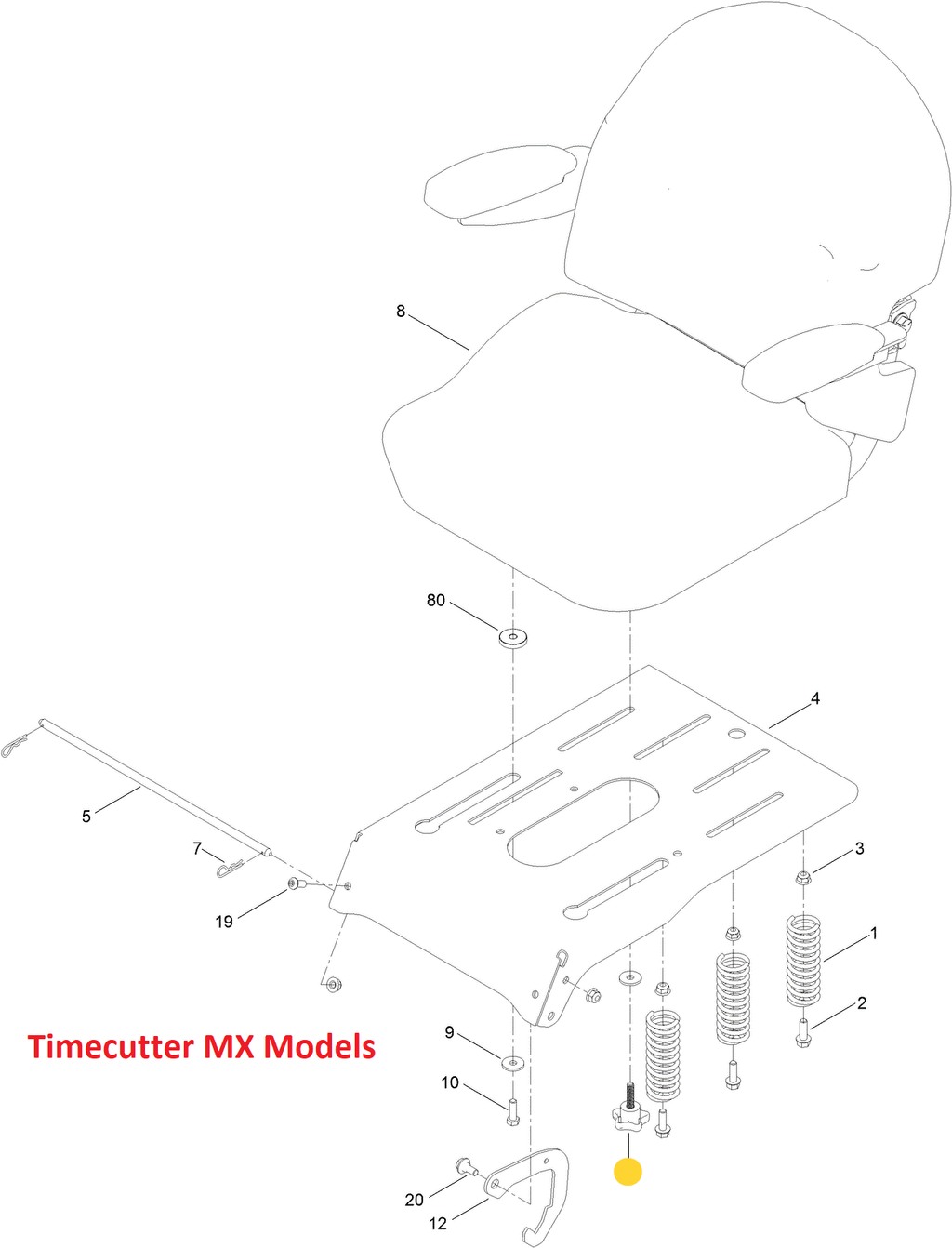

TIMECUTTER MX MODELS ONLY





1. 139-2365 - SEAT ASSEMBLY (Select Models - Narrow Seat Pan) - (Part Number for Complete Seat) x1 Per Mower
2. 140-5043 - SEAT ASSEMBLY (Select Models - Wide Seat Pan) - (Part Number for Complete Seat) x1 Per Mower
3. 139-2378-03 - SEAT PAN (Select Models - Narrow Seat Pan) - (Metal Pan that Retains the Mower Seat to the Mower and Allows it to Swivel Up and Down - Slotted Whole Allows the seat to be Slid Forward and Backward According to the Operators Preference) x1 Per Mower
4. 138-9775-03 - SEAT PAN (Select Models - Wide Seat Pan) - (Metal Pan that Retains the Mower Seat to the Mower and Allows it to Swivel Up and Down - Slotted Whole Allows the seat to be Slid Forward and Backward According to the Operators Preference) x1 Per Mower
5. 139-2377 - FLAT SPACER WASHER - (Spaces the Seat Away from the Slotted Seat Pan) x4 Per Seat Pan or Seat
6. 322-5 - HEX HEAD BOLT - (Used in Relation to 139-2401 Threaded Knob and Helps Serve the Purpose of Tightening the seat Tightly against the Seat Pan) x3 Per Seat Pan or Seat
7. 1-603716 - FLAT WASHER - (Supports 139-2401 Threaded Seat Knob and Hex Head Bolts in Tightening the Seat Against the Slotted Seat Pan - Installed on the Bottom Side of the Seat Pan) x4 Per Seat Pan or Seat







Specification

Product Number:	1392401
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.007 LB (0.003 KG)





Model Fit:





42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74760)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74774, 74776, 75750, 75751, 75753)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74777, 75760)



FIELD PRO MODELS (Operator Cushion Pad Hinge) – Model Numbers – (* Model Numbers 08839)
