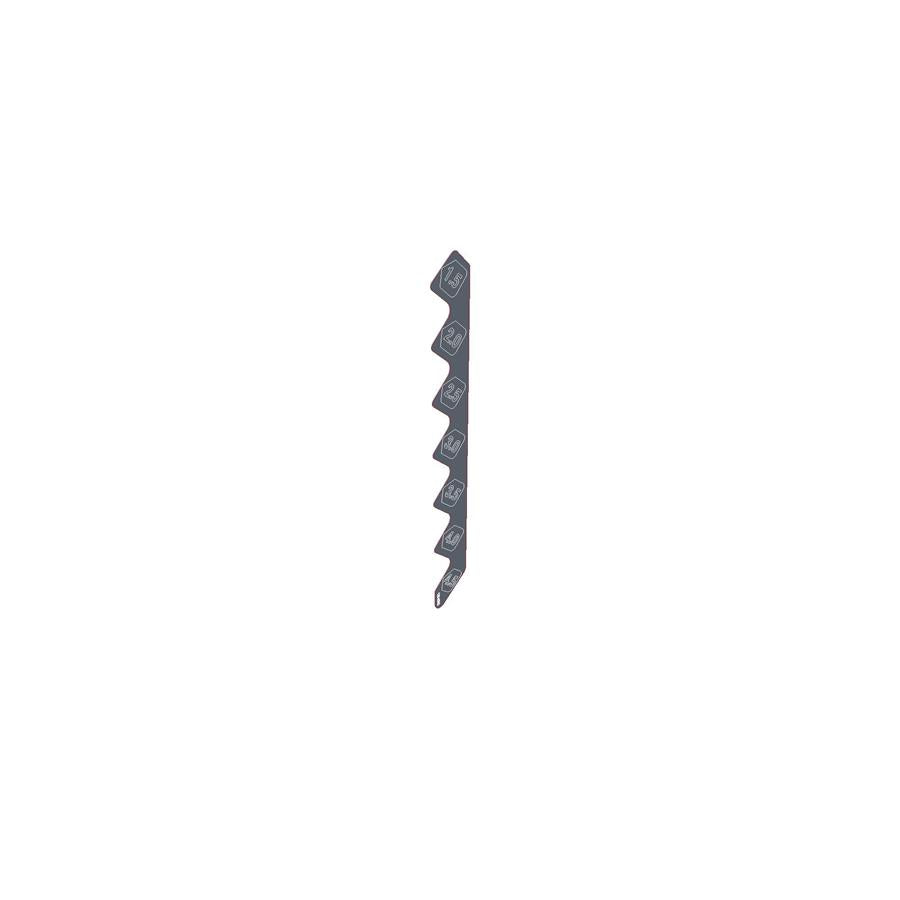

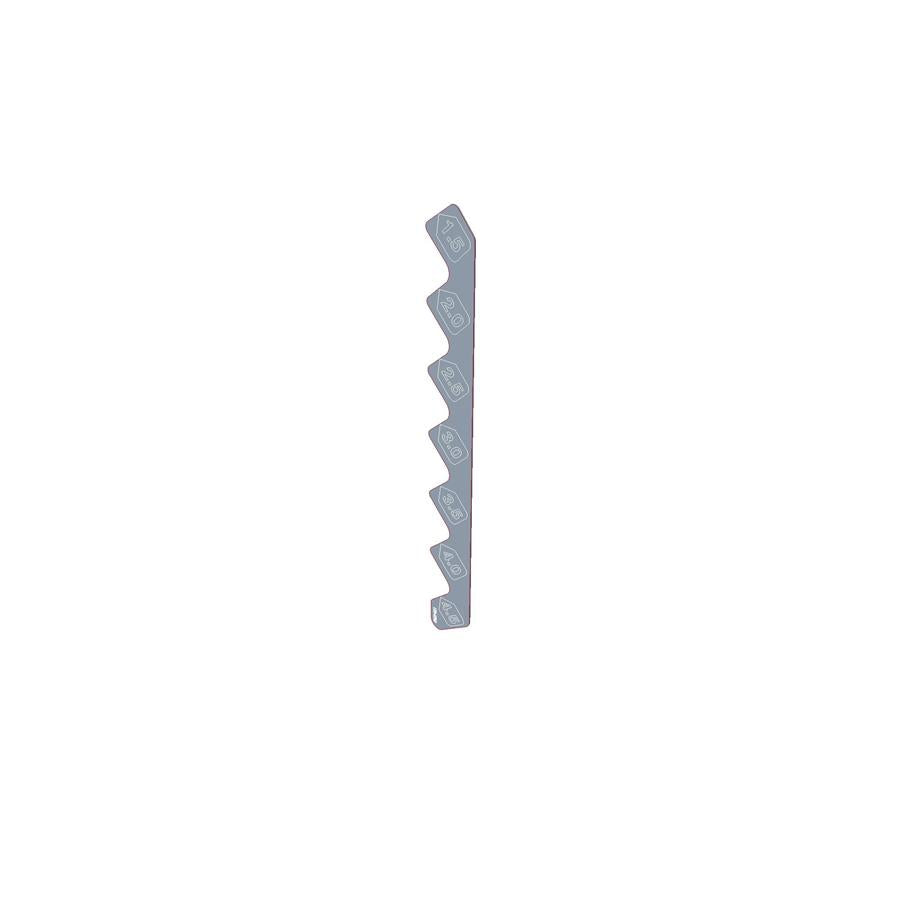

Toro OEM 139-2392 Height of Cut Decal Fits Select - 34" Timecutter Standard - 42" Timecutter 4200, Standard, My-Ride, Battery - 50" Timecutter 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).

Toro OEM 139 2392 Height of Cut (HOC) Decal is a Numerical Decal and Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting. Toro OEM 139 2392 is Installed on the Front-Side Surface of the (HOC) Bracket and Fits Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles).  Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.







ASSOCIATED PART REFERENCES FOR PART NUMBER 139-2392 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

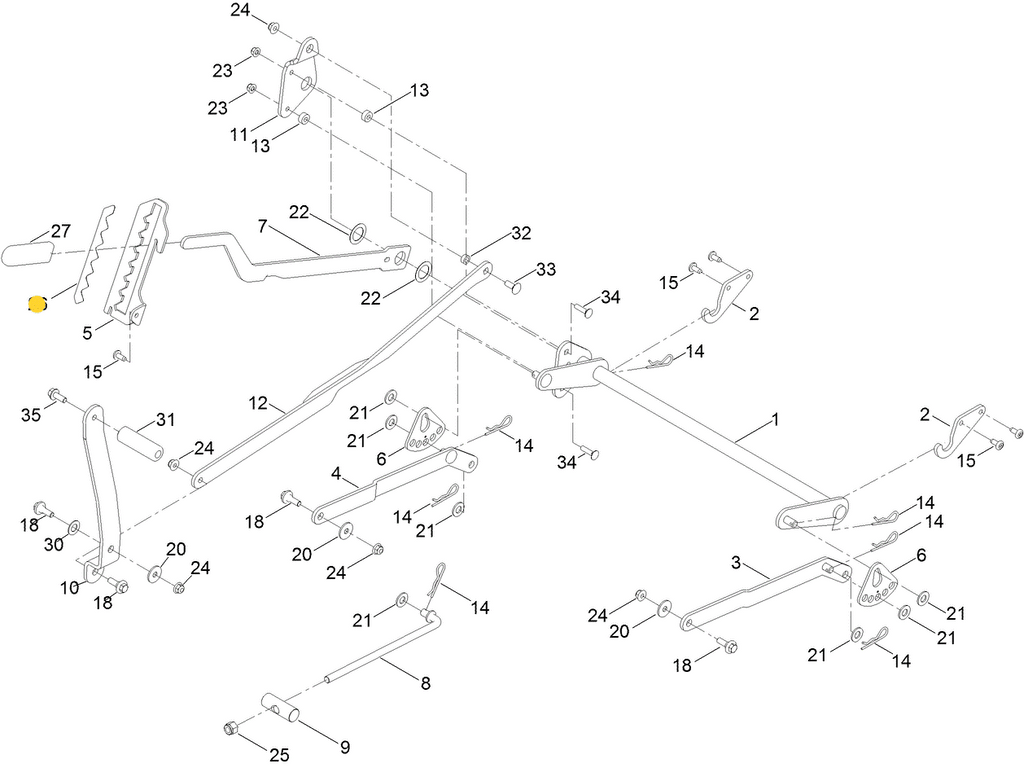

1. 139-2350-01 - HEIGHT OF CUT (HOC) BRACKET- (A Slotted /Toothed Bracket that Fastens to the Frame of the Mower and Allows the Mower Deck Lift Lever to Travel through it, enabling the Mower Deck Lift Lever to Rotate Up and Down and Allowing it to Rest into the (HOC) Brackets Slots/Teeth at the Operators Preferred Height Selection). x1 Per Mower Deck Lift Lever







Specification

Product Number:	1392392
Brand:	Toro
Length:	7.500 IN (19.050 CM
Width:	0.875 IN (2.223 CM)
Height:	0.030 IN (0.076 CM)
Weight:	0.004 LB (0.002 KG)





Model Fit:





34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841)



50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
