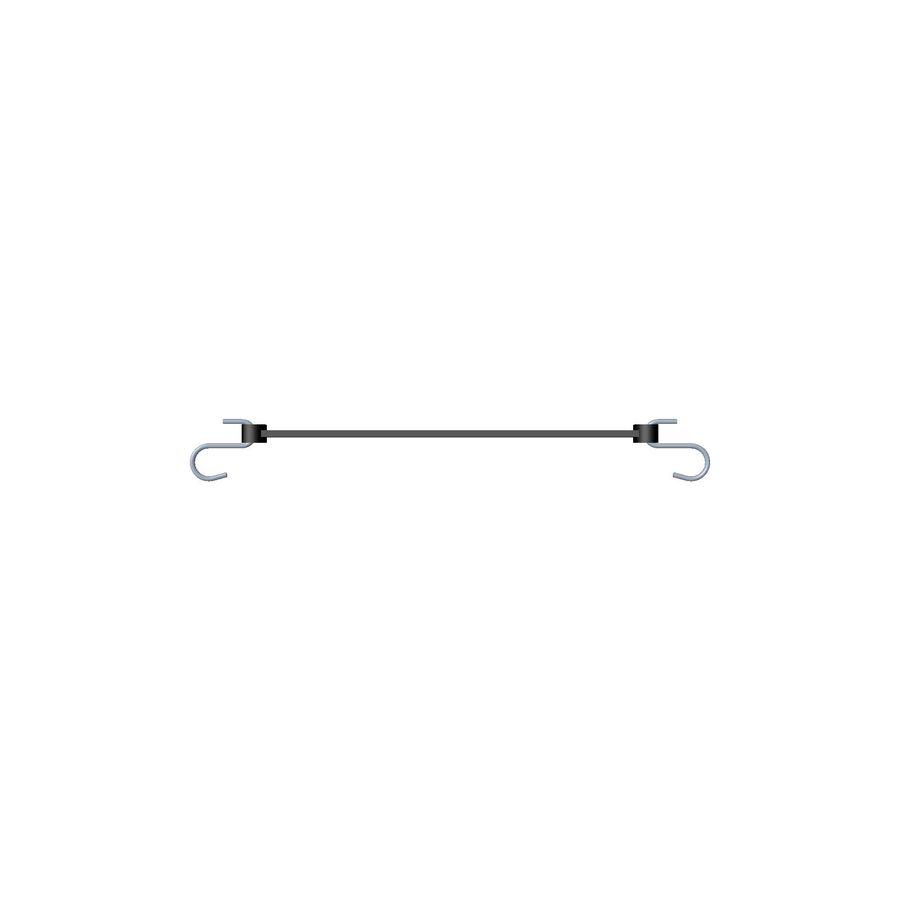

Toro OEM 139-2381 Battery Hold-Down Strap Fits a Wide Range of Toro Models (15 in.).

Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit. The Differences in sizes With the Battery Hold-Down Straps that contain the Two Metal Hook-Style Basically Revolves Between a 15" & 14" Strap. The Models with the Shorter Strap Will Typically Have Elevated Ears that the Strap Will Hook into Whereas the Longer of the Two would typically Hook into the Slots on the Battery Plate where the Battery is Setting.



• PRODUCT NUMBER AND VARIATIONS: 139-2381, 139 2381, 1392381
• PRODUCT TYPE: TORO OEM BATTERY HOLD-DOWN STRAP
• NOTES & DETAILS: Toro OEM 139-2381 15 in. Battery Hold Down Strap is Made to Perfection for the Toro Battery Size and is Designed for Quick Easy Disconnect with a Hook & Bungy Strap Design Allowing. Toro OEM 139 2381 Battery Bungy Strap Eliminates Removing Corroded Battery Hold Down Bracket and Hardware.
• SIZE: 15 in.
• COMMON SERIES APPLICATIONS:  Toro Select Late 34" Timecutter Standard Models - Select Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride Models - Late 50" Timecutter MX, 5000, Standard, My-Ride Models - Select Late 54" Timecutter My-Ride Models - Select Late 60" Timecutter Standard, My-Ride Models - All Current Titan MAX Models (Only Models With I-Beam Framing).



• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74685, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763



TITAN MAX



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)



GRANDSTAND



52” GRANDSTAND – (HDX) – (* Model Numbers 72506)

60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)

72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
