Toro OEM 139-2350-01 Height of Cut (HOC) Bracket Fits Current/Late - 34" Timecutter Standard - 42" Timecutter ZS, MX, 4200, Standard, My-Ride - 50" Timecutter MX, 5000, Standard, My-Ride - 54" Standard, My-Ride (Models Cast Aluminum Axle's).

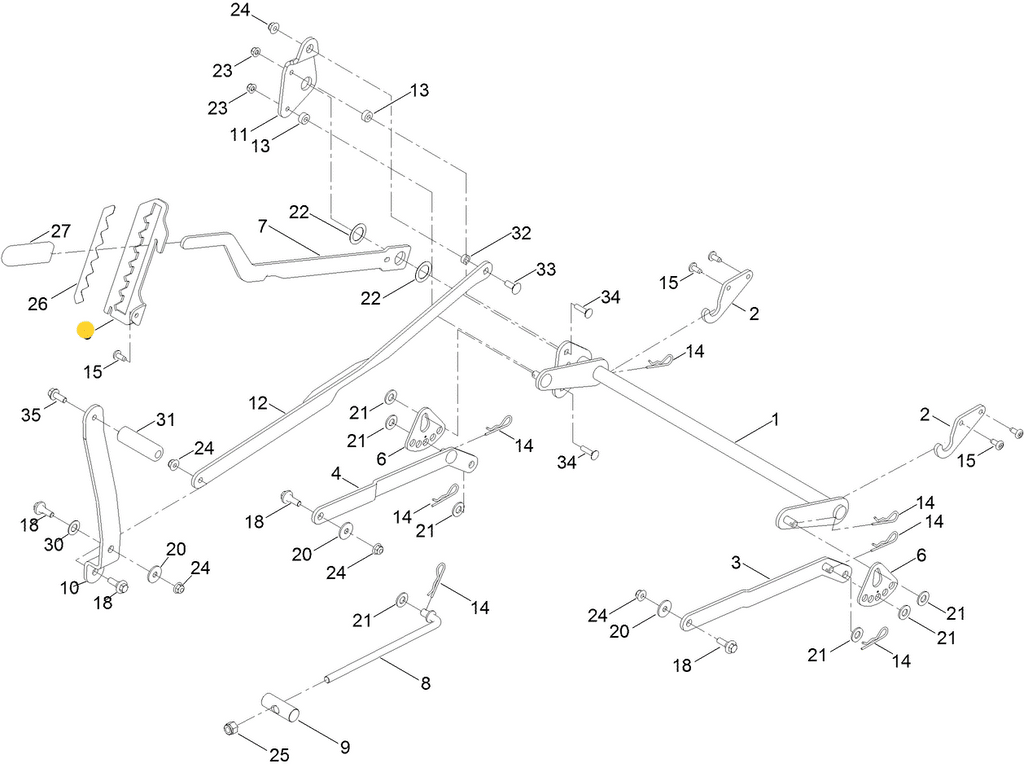

Toro 139 2350 01 Height of Cut (HOC) Bracket is a Slotted /Toothed Bracket that Fastens to the Frame of the Mower and Allows the Mower Deck Lift Lever to Travel through it, enabling the Mower Deck Lift Lever to Rotate Up and Down and Allowing it to Rest into the (HOC) Brackets Slots/Teeth at the Operators Preferred Height Selection. Toro 139 2350 01 Fits Toro Current/Late 34" Timecutter Standard Models (Models with Cast Aluminum Axles) - Current/Late 42" Timecutter ZS, MX, 4200, Standard, My-Ride and Battery Models (Models with Cast Aluminum Axles) Late 50" Timecutter MX, 5000, Standard and My-Ride Models (Models with Cast Aluminum Axles) - Current/Late 54" Timecutter My-Ride and Battery Models (Models with Cast Aluminum Axles). Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. For Additional Part Number References Refer to the Associate Parts References Chart Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-2350-01 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-2350-01 - HEIGHT OF CUT (HOC) BRACKET- (A Slotted /Toothed Bracket that Fastens to the Frame of the Mower and Allows the Mower Deck Lift Lever to Travel through it, enabling the Mower Deck Lift Lever to Rotate Up and Down and Allowing it to Rest into the (HOC) Brackets Slots/Teeth at the Operators Preferred Height Selection). x1 Per Mower Deck Lift Lever
2. 138-9753 - SCREW - (Enables the Height of Cut Bracket to be Fastened to the Mower Deck Frame) x1 Per (HOC) Bracket
3. 140-2748 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 42" & 50" Timecutter Models Review Models under Part Number's Model Fit Chart
4. 139-2392 - HEIGHT OF CUT (HOC) NUMERICAL DECAL - (A Decal that sticks to the (HOC) Bracket and enable the Operator to easily Select Their Preferred Height of Cut) x1 Per (HOC) Bracket *Select 34", 42", 50", 54" Timecutter Models Review Models under Part Number's Model Fit Chart

5. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit







Specification

Product Number:	139235001
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.898 LB (0.407 KG)





Model Fit:





34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
