Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
NOTE: Carburetor Rebuild Kits is the Cost-Effective Approach for Fixing Carburetor Issue - However, Hilly Ridge cannot Guarantee that a Carburetor Repair Kit will be an Effective Approach in Repairing your Carburetor Problems - Sometimes a Complete Carb. Assembly is the only Necessary to Repair Carburetor Issues.
- PRODUCT NUMBER AND VARIATIONS: 139-0625, 139 0625, 1390625
- PRODUCT TYPE: Carburetor Repair Kit
- SIZE: Weight 0.022 lbs.
- NOTES & DETAILS: Toro OEM 139-0625 IS COMMINLY USED -
Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure and Possible Gas Spills or Leaks.
139-0625 Carburetor Rebuild Kit Contains Necessary Parts to Rebuild Select Carburetors Listed Below.
- 139-0582 - Power MAX 1232 Series (Only Model 38842)
- 139-0594 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)
- 144-0964 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)

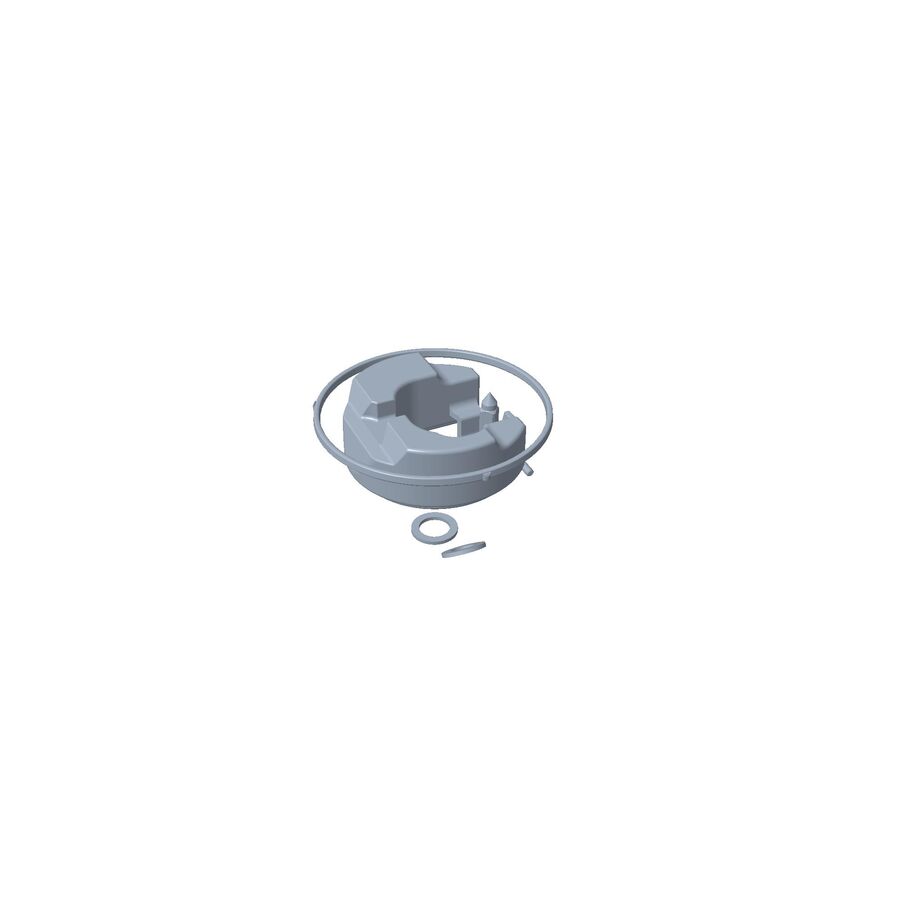

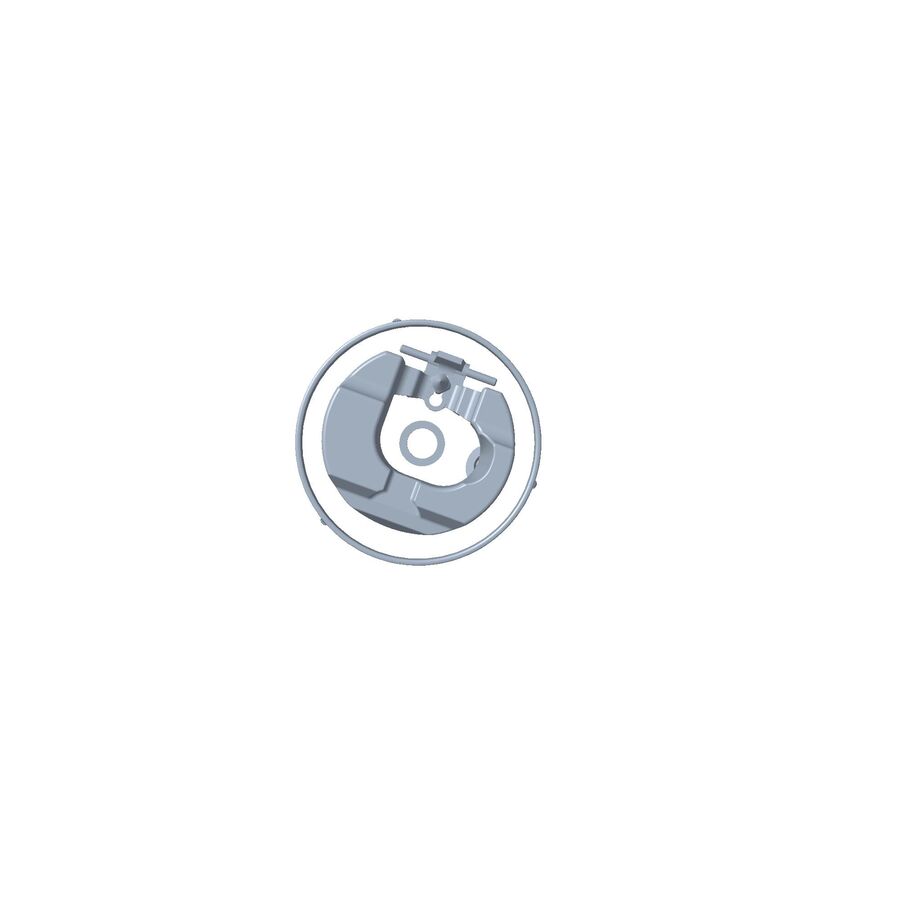

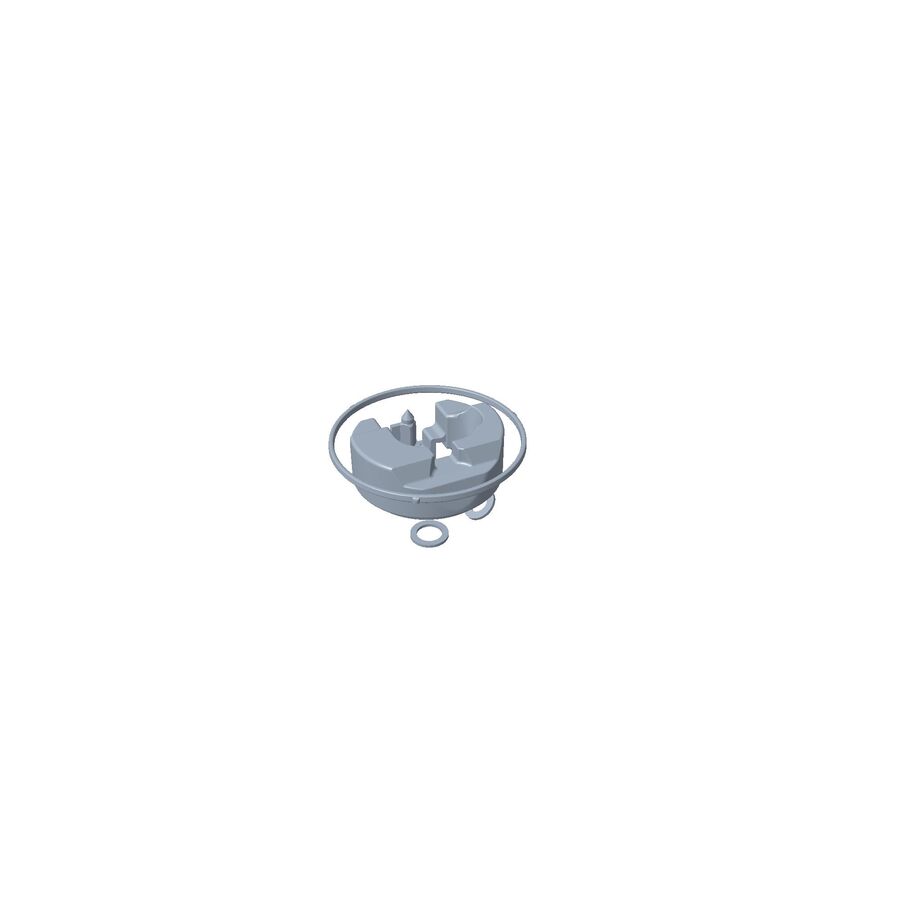

139-0625 Carburetor Repair Kits Come Contain the Following Part
- Float or Inlet Needle
- Float Retaining Pivot Pin
- Float
- Bowl Sealing O-Ring
- Bowl Retaining Bolt Gasket
- COMMON SERIES APPLICATIONS: Toro Select 1232 Series (Only Model 38842) & 1400 Series Power TRX and Power MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 38842, 38843, 38844, 38860, 38865)
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)

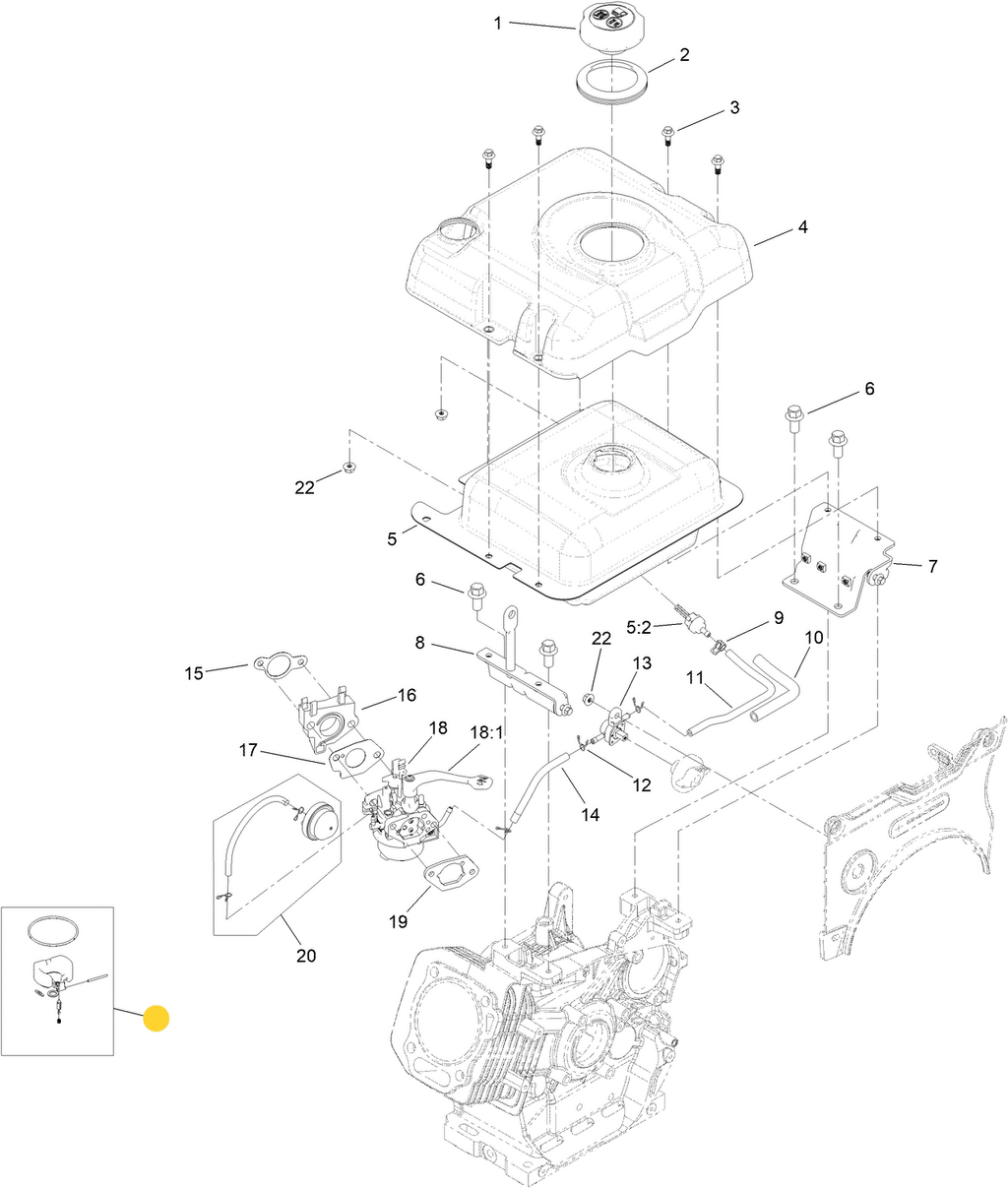

- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-0625 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
COMPLETE CARBURETOR ASSEMBLY
- 139-0582 - Power MAX 1232 Series (Only Model 38842)
- 139-0594 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)
- 144-0964 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)
ASOCCIATED INDIVIDUAL PARTS & KITS
- 139-0579 - INSUALTOR GASKET (Gasket That is Assembled Between the Isolator and Engine Block) x1 Per Carburetor
- 139-0580 - INSULATOR - CARBURETOR (Insulator Assembled Between the Carburetor and Engine Block as well as Between 139-0579 Insulator Gasket and 139-0581 Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
- 139-0581 - CARBURETOR GASKET (Gasket That is Assembled Between the Carburetor and Insulator) x1 Per Carburetor
- 121-0254 - CARBURETOR SHROUD or HEAT BOX GASKET (Gasket That is Assembled Between the Carburetor and Heat Box) x1 Per Carburetor
- 139-0585 - CARBURETOR SHROUD or HEAT BOX (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Only 1232 Series & Select 1400 Series - Serial Number Break.
- 144-0962 - CARBURETOR SHROUD or HEAT BOX (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Only Select 1400 Series - Serial Number Break.
-
121-0308 - CARBURETOR & HEAT BOX RETAINING NUT (Retains the Carburetor Assembly, Gasket and Heat Box to the Snowblower Engine) x2 Per Carburetor
- 139-0584 - CARBURETOR/GOVENOR ROD (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor
- 121-0261 - CARBURETOR/GOVERNOR ROD TENSION SPRING or THROTTLE RETURN SPRING (Installed Between the Carburetor and Governor Linkage with the Governor Rod - Eliminates Play in Connection Between the Governor Rod, Governor Linkage and Carburetor Linkage - This Eliminates Throttle Surge) x1 Per Carburetor
- 139-0638 - CHOKE LEVER (Inserts into the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
- 127-9372 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit
- 121-0087 - FUEL LINE CLAMP - CARB. & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor & Fuel Valve) x3 Per Carburetor
- 139-0583 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor
- 121-0258 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
- 127-9064 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank
- 139-0566 - FUEL LINE ABRASIVE SLEEVE (Insert over the Fuel Line Hose and Protects the Fuel Line from Abrasive Edge) x1 Per Fuel Line
- 127-9065 - FUEL TANK FILTER - (Screws into the Bottom of the Fuel Tank and Filter the Fuel as well as Enable the Fuel Line to Be Slid onto the End of it) x1 Per Fuel Tank
- 127-9120 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Carburetor
