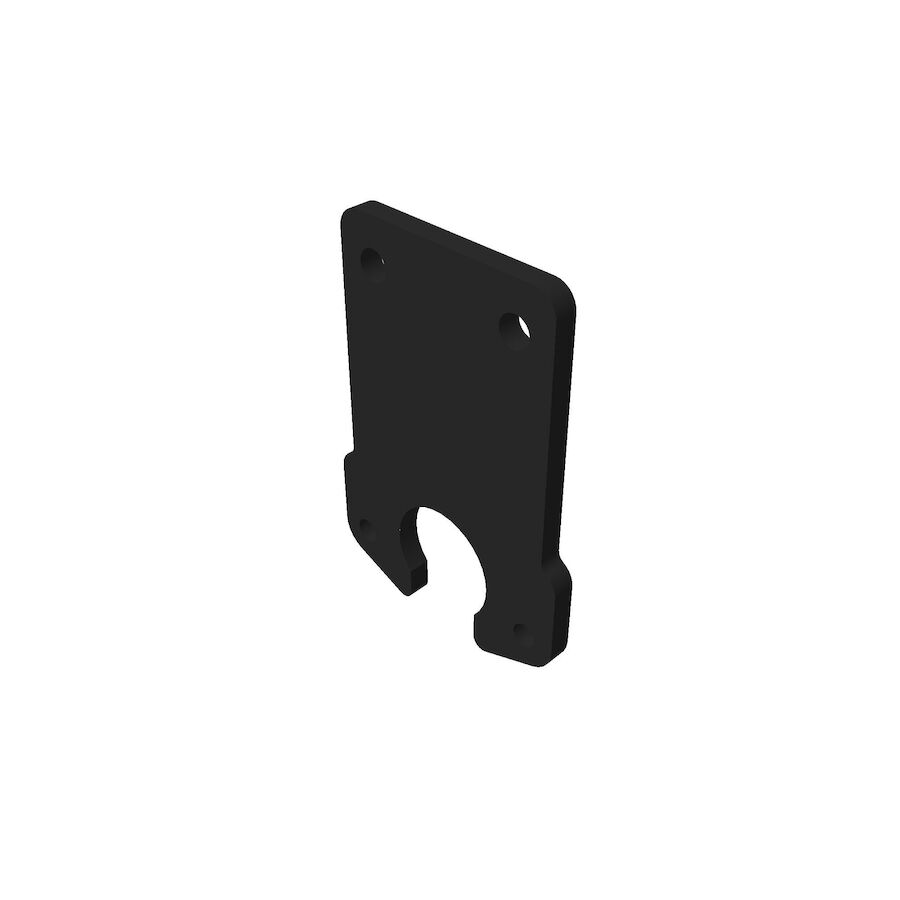

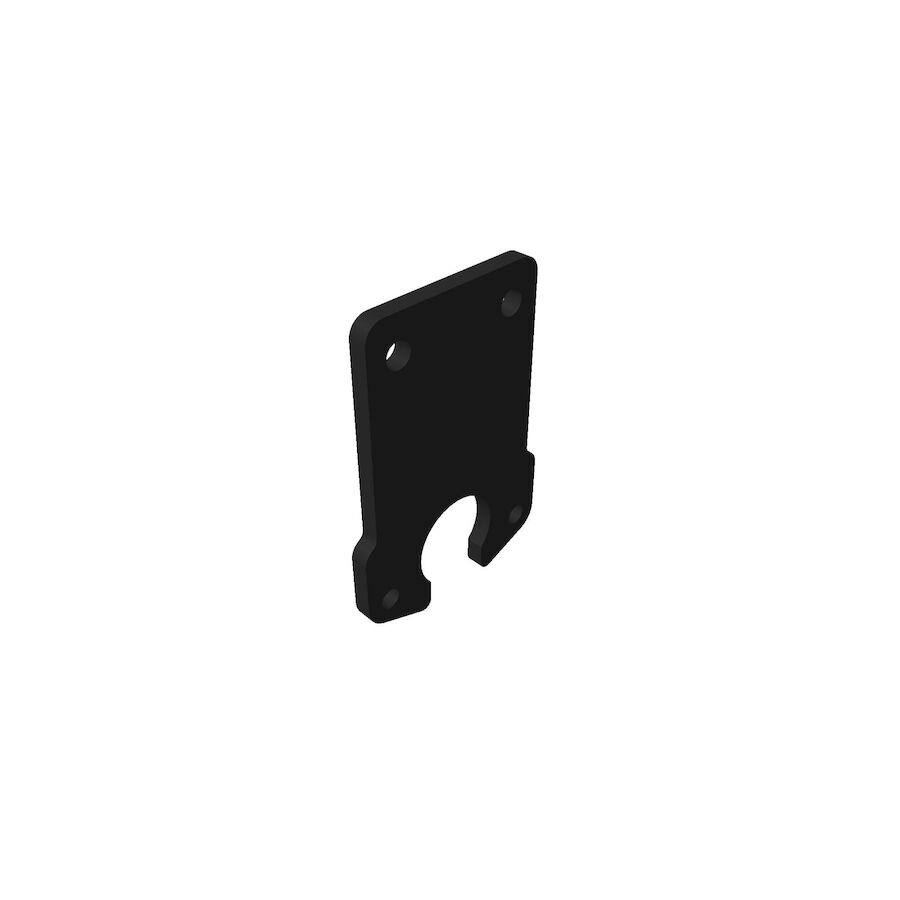

Toro OEM 138-9804-03 Shaft Upper Cross Support Fits Toro Late 60" Timecutter Standard, My-Ride Models 75760, 75762, 75763.

Toro OEM 138 9804 03 Shaft Upper Cross Supports are Designed to Serve the Purpose of Retaining the Mower Deck Lift/Leverage Arm to the Frame as well as Allowing it to Pivot. Toro 138 9804 03 Is Designed for Toro Late 60" Timecutter Standard, My-Ride Models 75760, 75762, 75763 (Models with Replaceable Cast Aluminum Axles). Unlike Other Models - Models Using 138-9804-03 Require Four Shaft Cross Support Brackets and Two Lift Pivot Arms. Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.

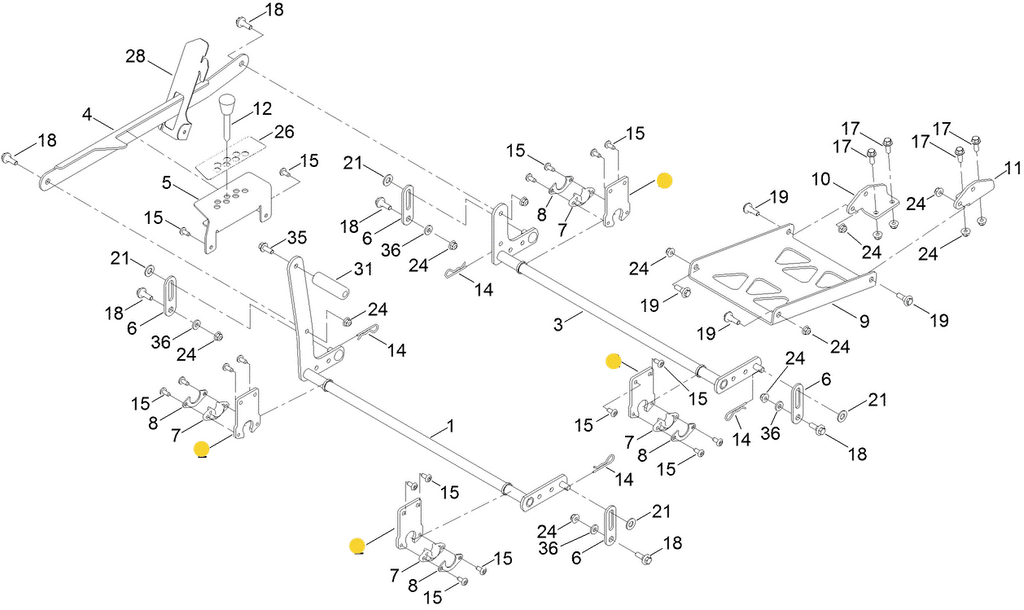

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-9804-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-9753 - SCREW - (Retains Upper Mower Cross Support Bracket to Mower Frame as well as Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Cross Support Bracket) x4 Per Bracket
2. 138-2503-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT)- (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
3. 138-2504-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
4. 139-5872 - LOWER MOWER DECK LIFT LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Support Gusset/Bracket to the Upper Mower Cross Support Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
5. 138-7204 - LOWER MOWER DECK LIFT LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Support Bearing/Bushing to the Upper Mower Cross Support Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit







Specification

Product Number:	138980403
Brand:	Toro
Length:	4.500 IN (11.430 CM)
Width:	3.000 IN (7.620 CM)
Height:	0.750 IN (1.905 CM)
Weight:	0.701 LB (0.318 KG)





Model Fit:



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
