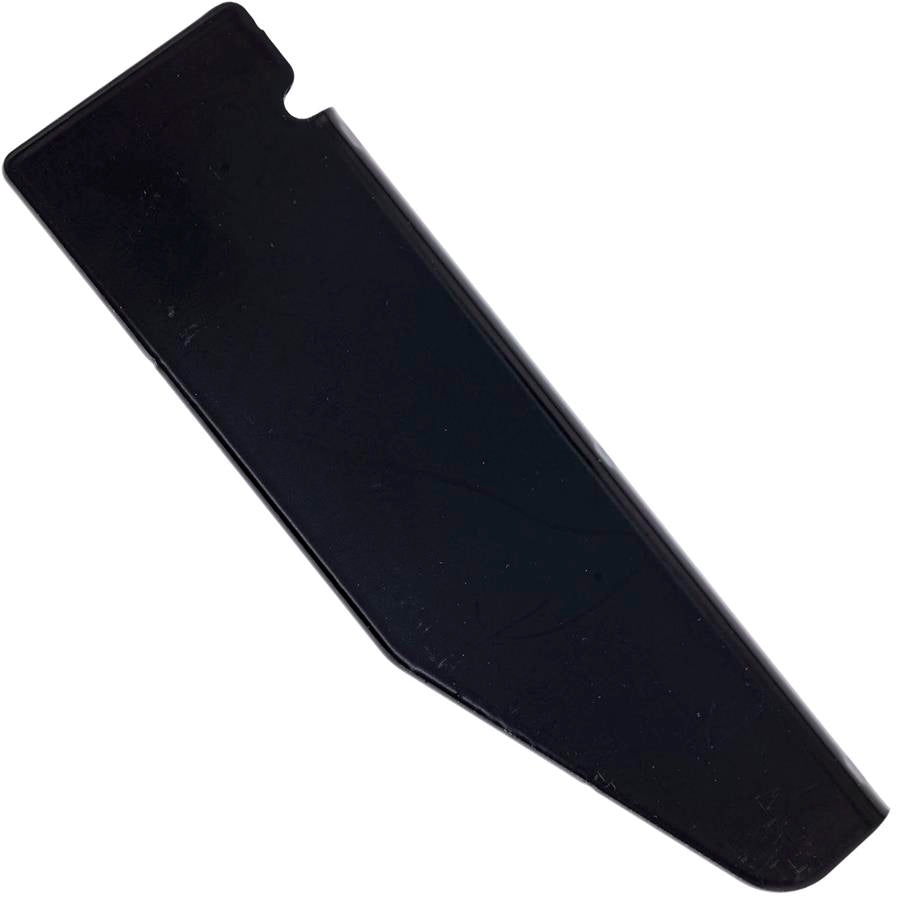

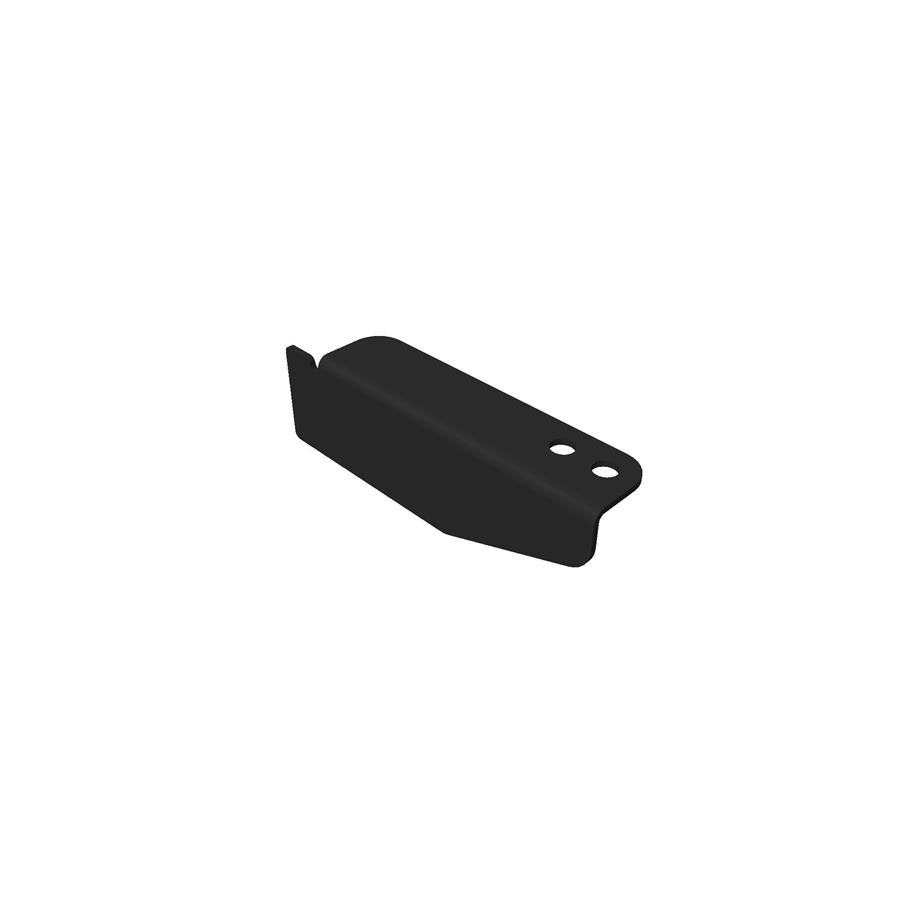

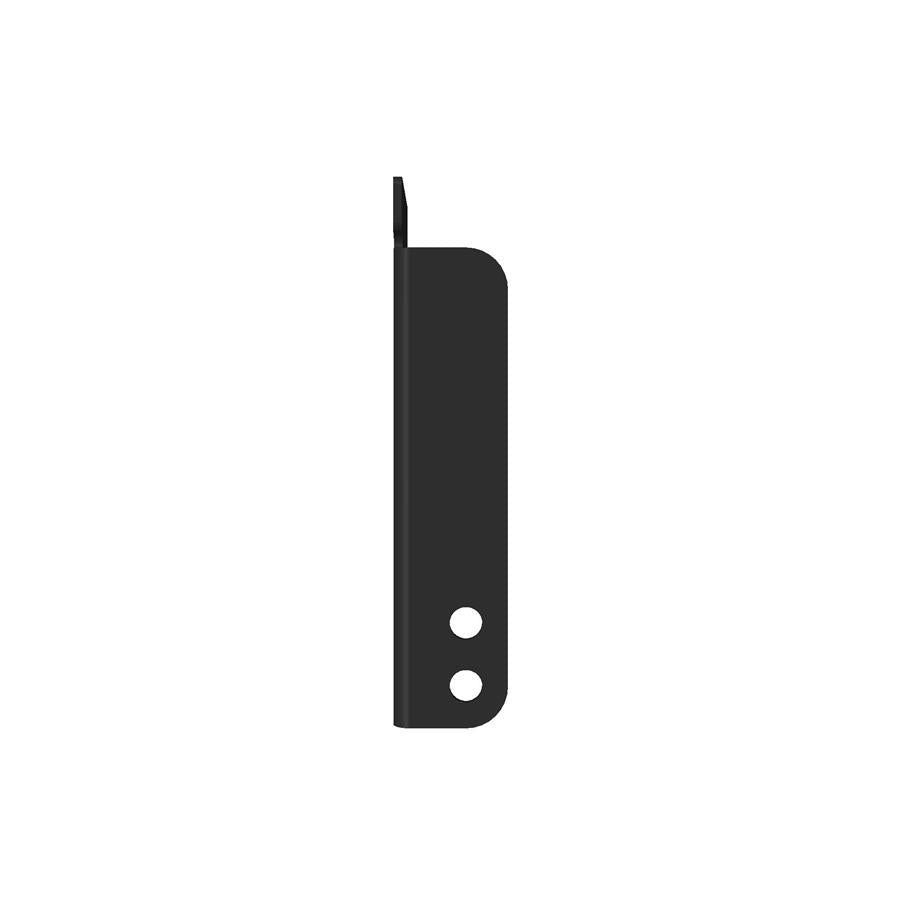

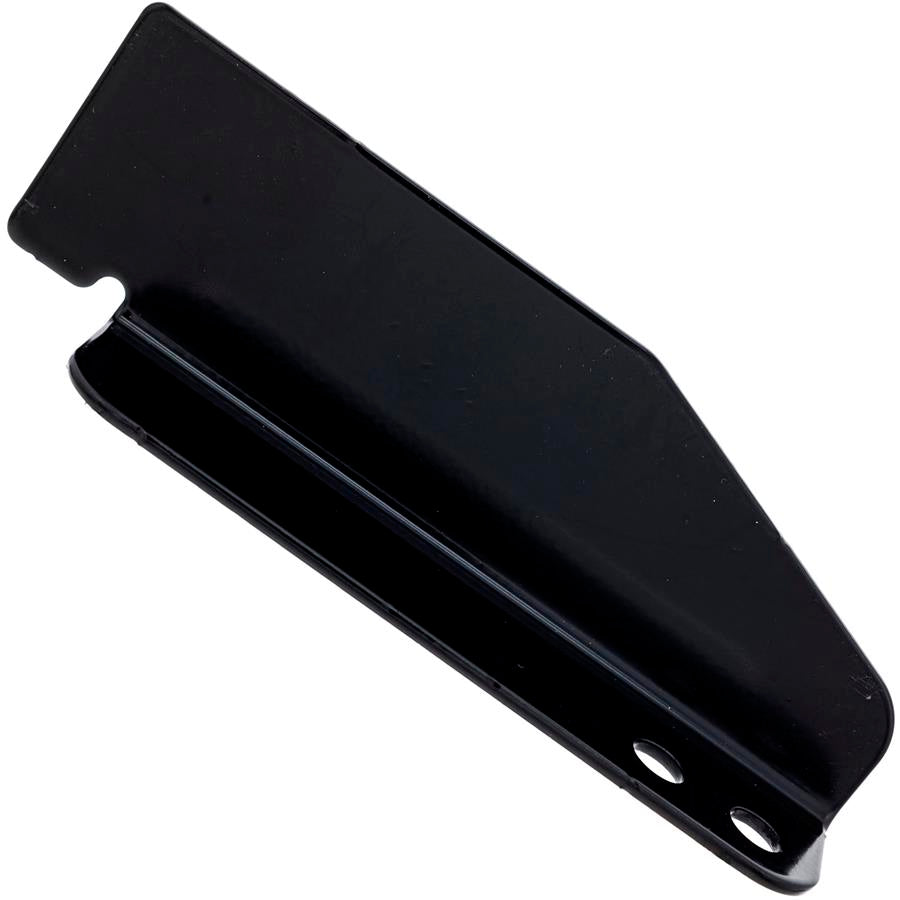

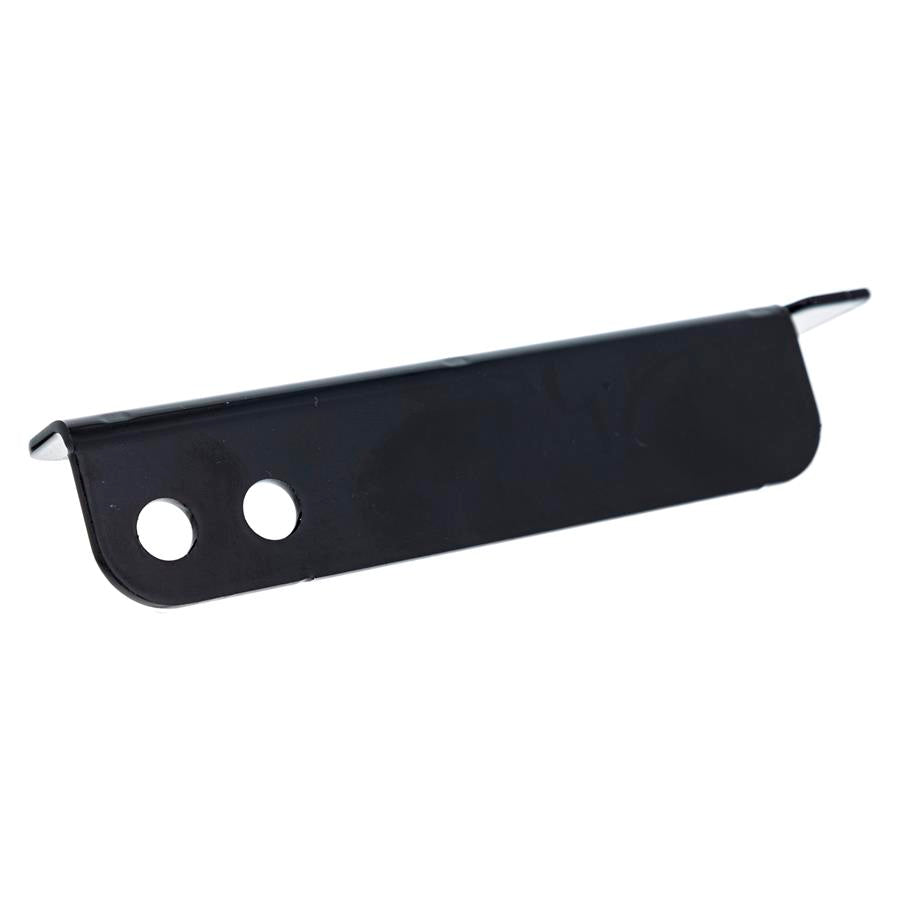

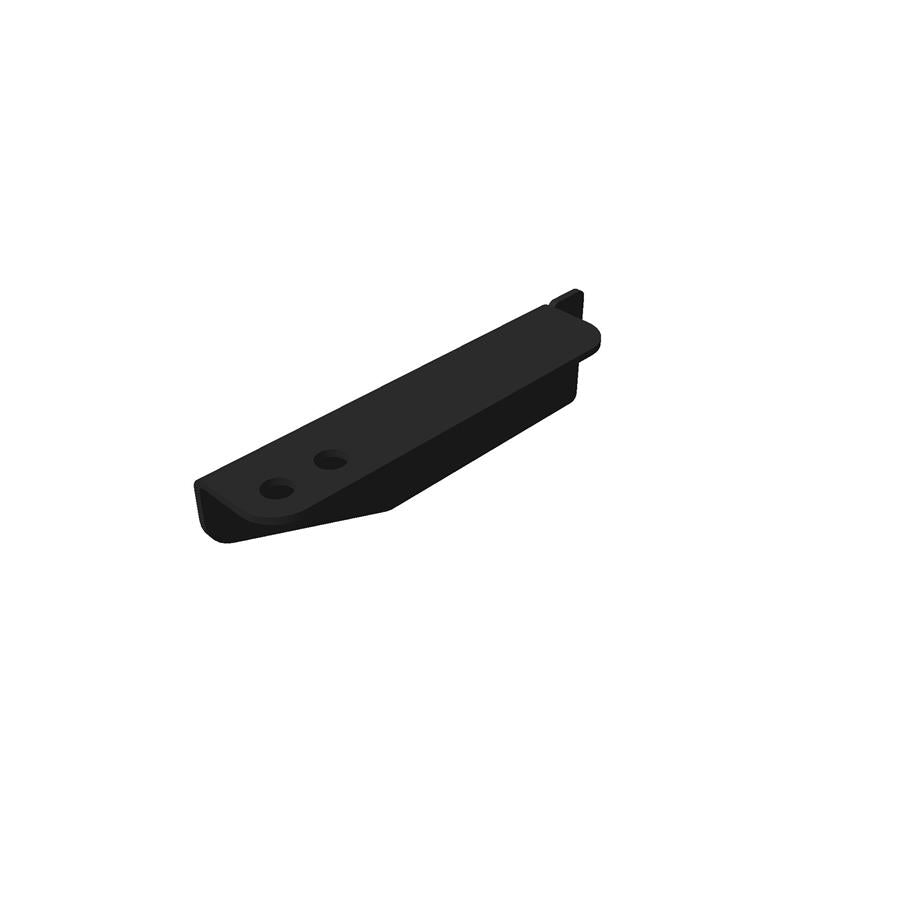

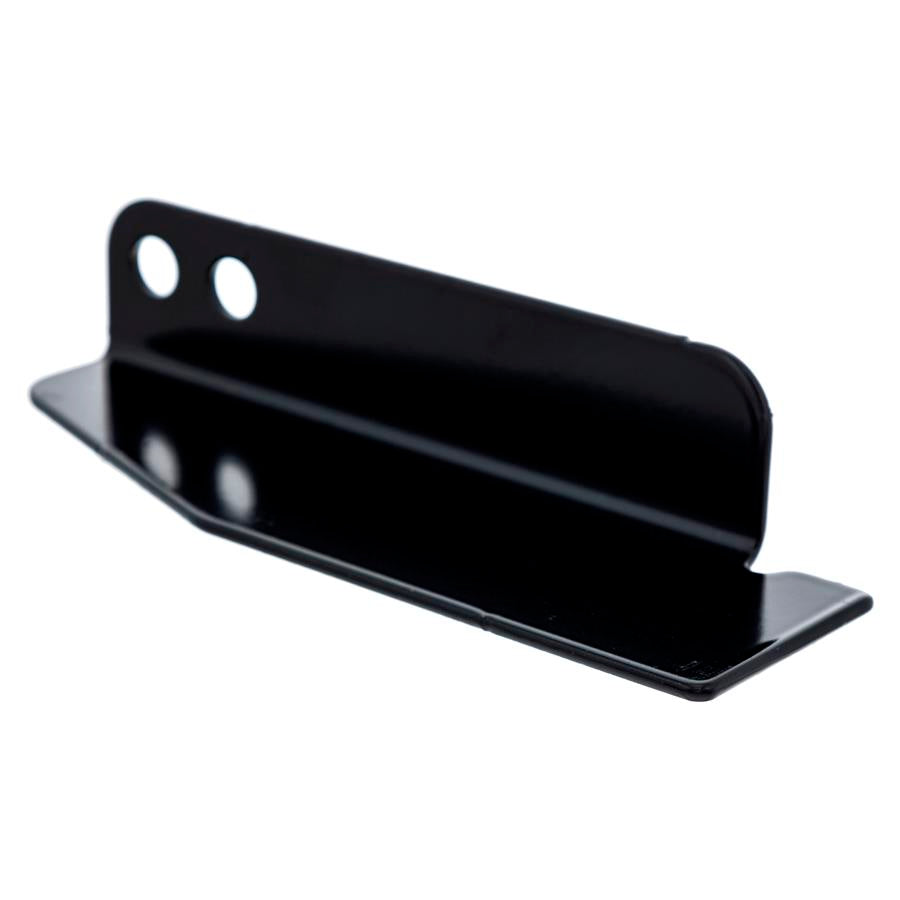

Toro OEM 138-9800-03 Discharge Baffle Fits Current 50", 54", 60" Timecutter MAX Models - Late 50", 54", 60" Timecutter Standard and My-Ride Model (With Cast Aluminum Axle's).

Toro OEM 138 9800 03 Discharge Baffle is used under or inside the Mower Deck by the Discharge Opening. Toro 138 9800 03 Discharge Baffle is used for the Purpose of Redirecting or Interrupting Air Flow and Grass, Stemming Circular Air Flow Toward the Discharge Opening. Toro OEM 138-9800-03 is Designed to fit Current 50", 54", 60", Timecutter MAX Models - Late 50", 54", 60", Timecutter Models (with Replaceable Cast Aluminum Axle's). *Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 138-9800-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-2019 - MOWER DECK DISCHARGE CHUTE PIVOT ROD (Discharge Chute Pivot Pin Threads insert through the Mower Deck and Discharge Baffle Enabling the Discharge Baffle to be Tightened in place with a Nut on the Bottom Side) x1 Per Mower Deck
2. 121-4600 or 119-4041 - NYLON LOCK NUT (Retains the Mower Deck Discharge Baffle, Discharge Chute Pivot Pin and Discharge Chute to the Mower Deck) x1 Per Discharge Chute Pivot Pin and Discharge Baffle







Specification

Product Number:	138980003
Brand:	Toro
Length:	6.350 IN (16.129 CM)
Width:	2.250 IN (5.715 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.540 LB (0.245 KG)





Model Fit:





50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)

50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)

54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)

60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
