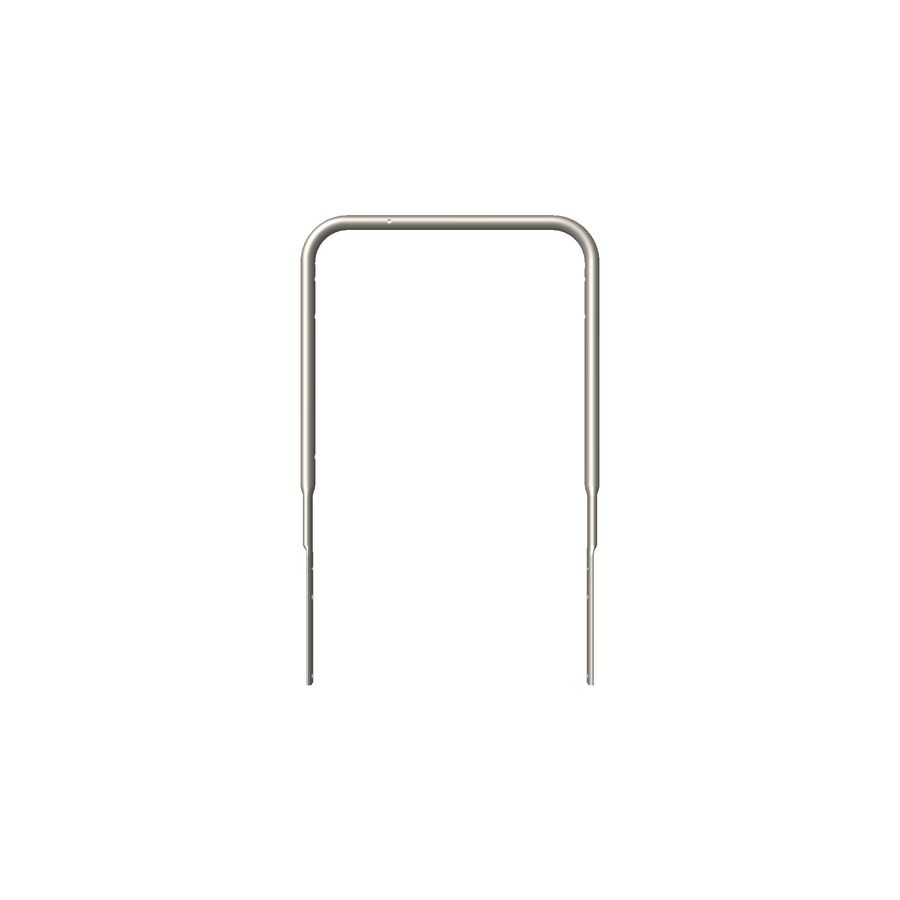

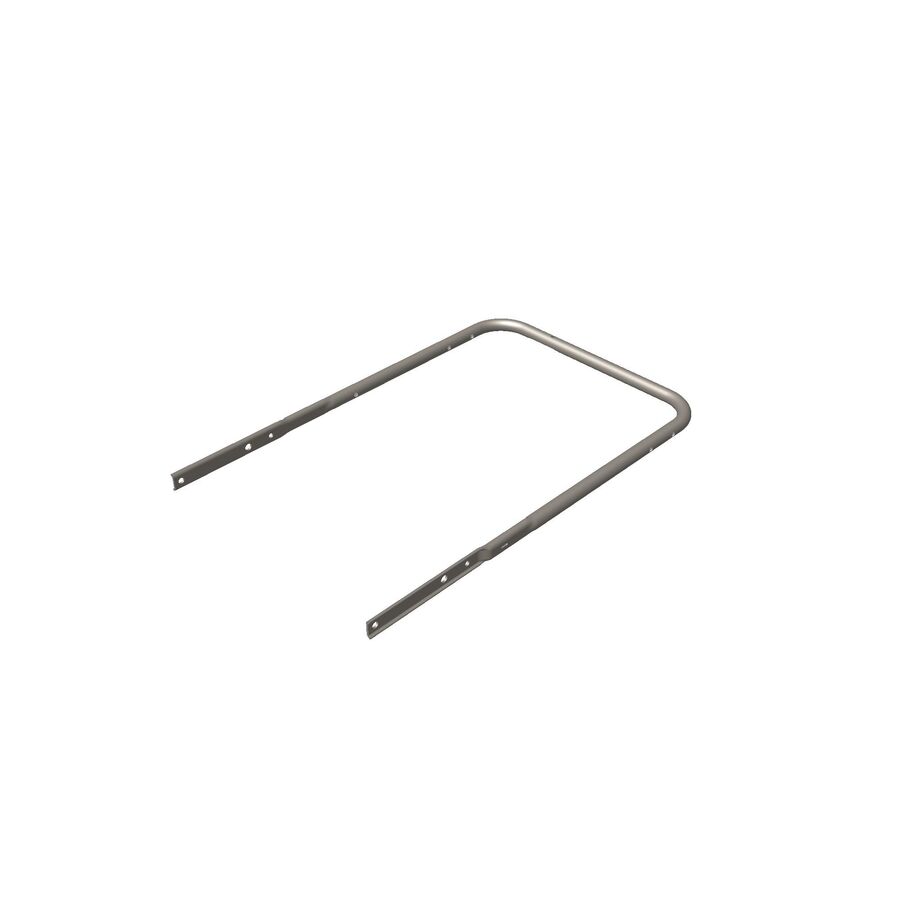

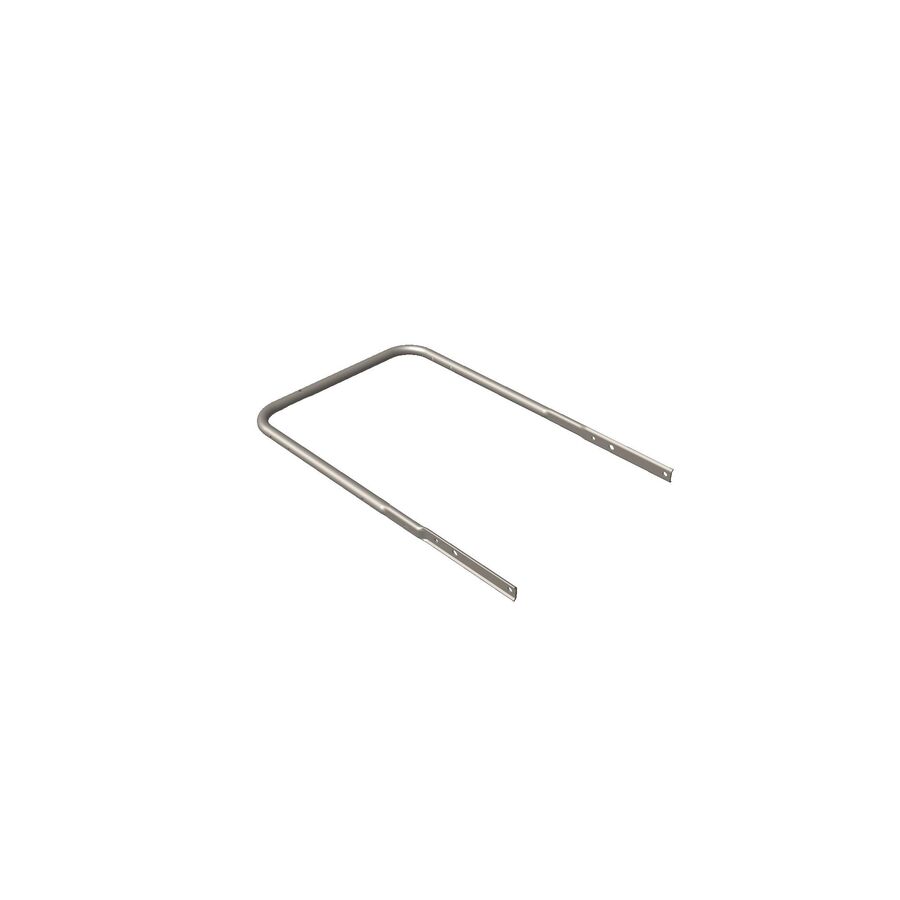

Toro OEM 138-8760-03 Lower Handle Section Fits Toro Select 21" Single Stage Power Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 138-8760-03, 138 8760 03, 138876003
• PRODUCT TYPE: Lower Handle Section
• SIZE: Length 28.000 in. - Width 18.000 in. - Height 1.000 in. - Weight 3.992 lbs.
• NOTES & DETAILS: Toro OEM  138-8760-03 IS COMMINLY USED - As the Lower of a Two-Piece Handle Assembly and Fastens to The Main Snowblower Assembly - Enabling the Operator to Fold the Upper Handle Section for Transporting and Storage.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



POWER CLEAR Series – Model Numbers – (* Model Numbers 38752, 38753, 38754, 38755, 38756, 38757)



• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-8760-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

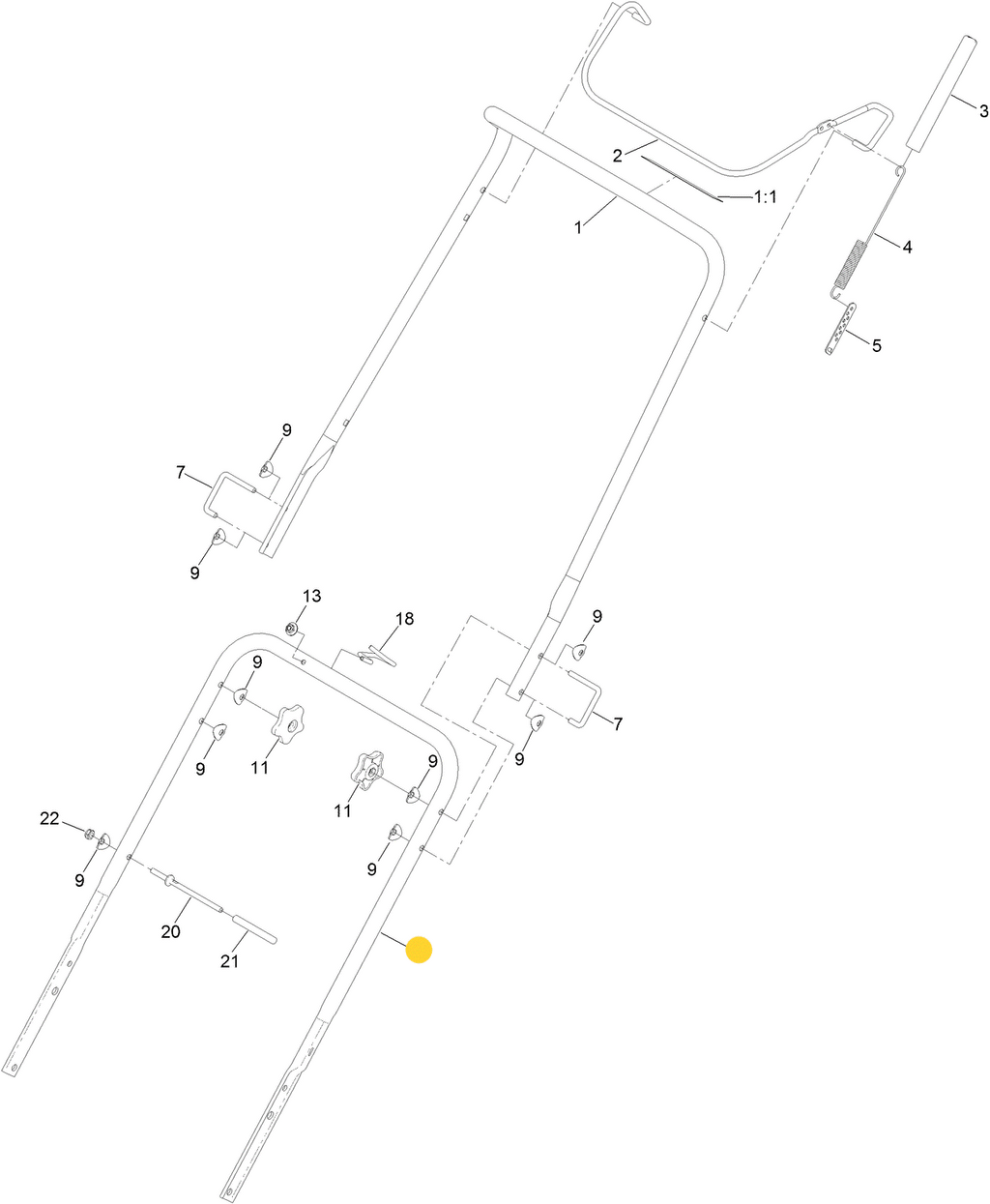

UPPER & LOWER HANDLE FASTNERS



1. 136-7130 - HANDLE LOCK BOLT/FASTNER (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
2. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner or x2 Per Hex Head Bolt & x2 Per Switch Box Support
3. 114-3779 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
4. 125-7944 - HEX HEAD BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only
5. 3296-72 - LOCK NUT (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only



LOWER HANDLE & MAIN SNOWBLOWER UNIT FASTNERS & COMPONENTS



1. 130-9795 - FLANGE BOLT (Retains the Bottom Handle Section to the Main Snowblower Section - Upper Whole Only) x2 Per Handle Assembly
2. 136-7148 - SPACER (Inserts into the Handle Whole Eliminating the Slop from a Smaller Bolt Diameter Bolt that is Required for Screwing into the Transmission Assembly - Upper Bolt Whole Only) x2 Per Handle Assembly
3. 136-7198 - FLANGE SPACER BOLT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
4. 3296-39 - NYLON LOCK NUT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
5. 139-3543 - ROPE GUIDE (Fastened to the Lower Handle Section and Retains the Rope Handle within easy Access to the Operator) x1 Per Handle Assembly
6. 114-3778 - FLANGE NYLON LOCK NUT (Retains the Rope Handle Guide to the Lower Handle Section) x1 Per Handle Assembly
7. 139-3501 - SWITCH BOX SUPPORT (Retains the Electric Start Button/Switch Box) x1 Per Handle Assembly *Select Models - Excludes R-C (Contractor Grade) Series
8. 139-3504 - SWITCH BOX SUPPORT (Retains the Electric Start Button/Switch Box) x1 Per Handle Assembly *Select Models - *R-C (Contractor Grade) Series Only
9. 3296-47 - FLANGE NYLON LOCK NUT (Retains Switch Box Support to the Lower Handle Section) x1 Per Handle Assembly
