ToroSKU: 1387597
Price:
$14.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

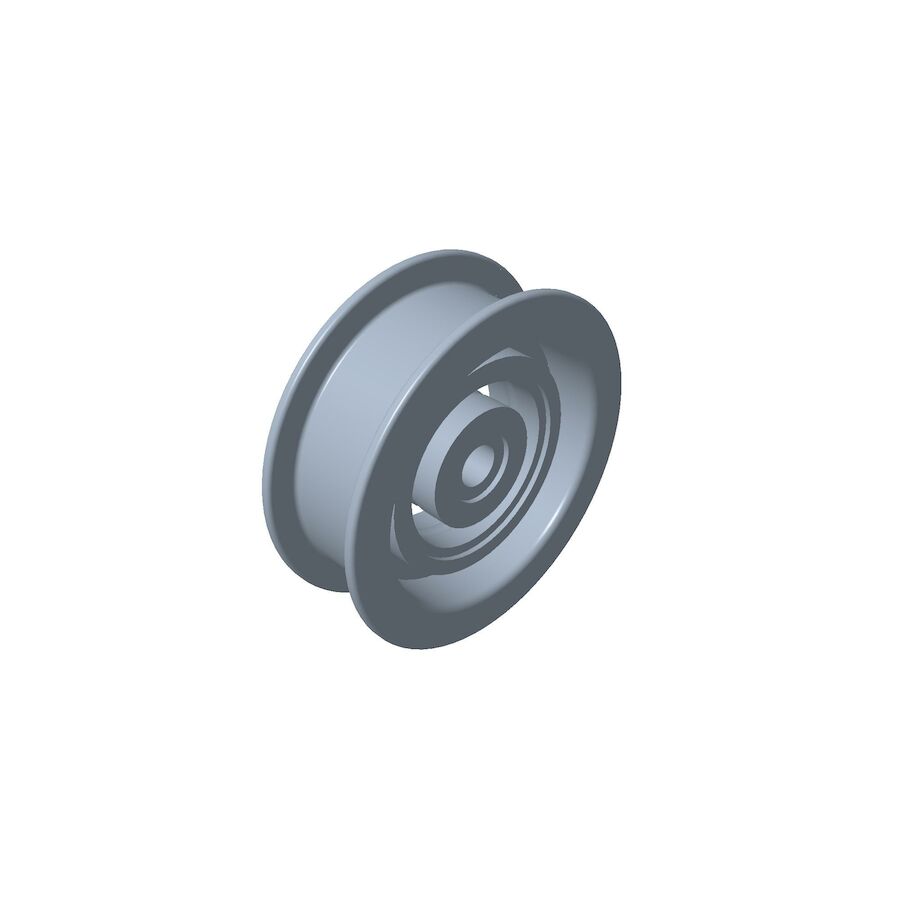

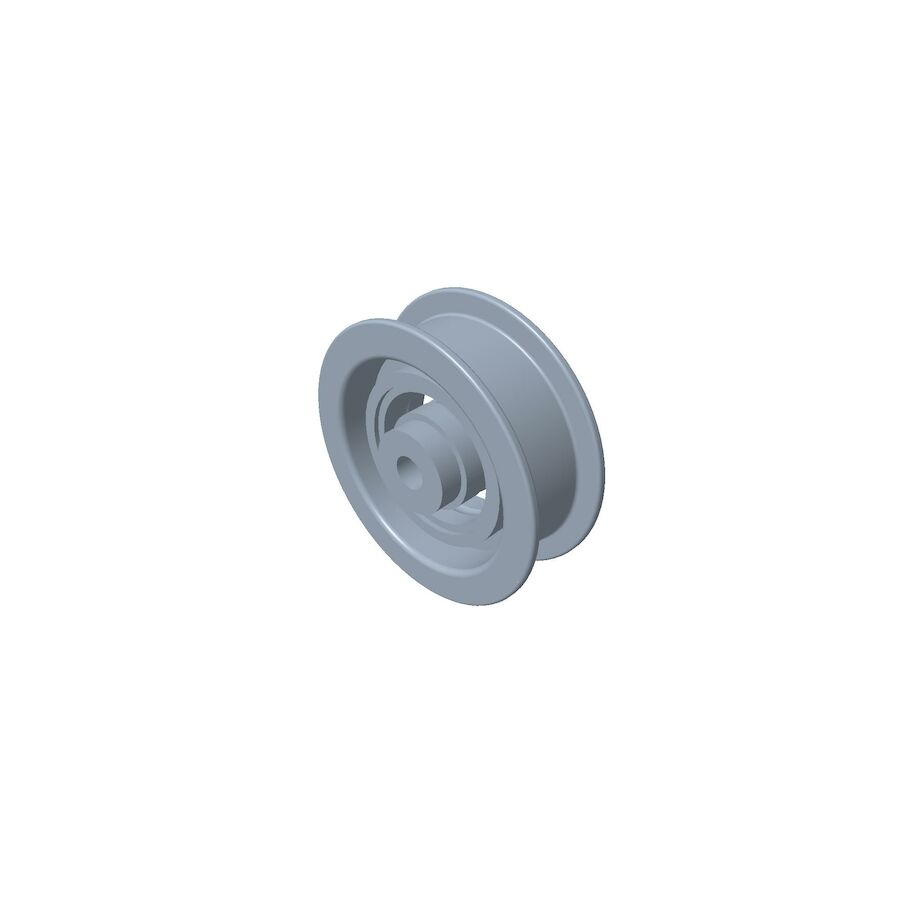

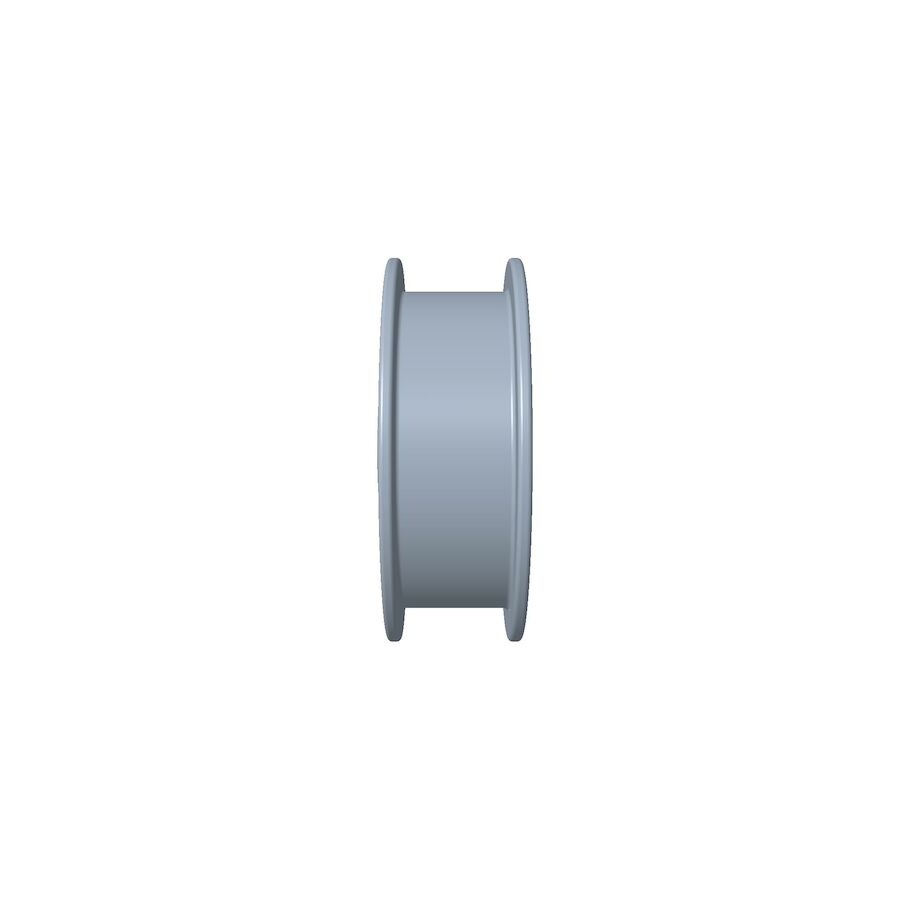

The Toro OEM 138 7597 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 138 7597 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 32", 34", 42", 48", 50", 54",60", Timecutter HD, MX, SS, ZS, 4200, 5000, Standard, My-Ride, MAX Models - Late 48", 54", 60" TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride (with Tube Framing) - 48", 54", 60" TITAN Standard, My-Ride, MAX (with I-Beam Framing) - EZ-VAC Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 138-7597 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:

1387597

Brand:

Toro

Length:

2.700 IN (6.858 CM)

Width:

2.700 IN (6.858 CM)

Height:

0.800 IN (2.032 CM)

Weight:

0.282 LB (0.128 KG)





Model Fit:



74677, 74679, 74682, 74683, 74684, 74685, 74686, 74687, 74688, 74690, 74691, 74692, 74694, 74695, 74696, 74705, 74706, 74710, 74711, 74750, 74766, 74772, 74773, 74774, 74776, 74874, 74875, 74876, 74877, 74886, 74887, 74888, 74889, 74890, 74898, 75210, 75301, 75302, 75303, 75304, 75305, 75306, 75310, 75311, 75312, 75313, 75314, 75315, 75316, 75734, 75740, 75741, 75742, 75743, 75744, 75745, 75746, 75747, 75748, 75749, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75760, 75762, 75763, 76401, 76411, 76420, 76425, 76448, 76501, 76511, 76530, 76554, 76604, 76605, 76606, 76607, 76608, 76609, 76610, 76614, 76635, 76660, 77301, 77401, 77402, 77403, 77404, 77501, 77502, 77503, 77504, 77505, 77506, 77507, 77601, 77602, 77603, 79345, 79346, 79347, 79348







32”, 34”, 42”, 50”, 54”, 60” Timecutter – 138-7597 MODEL/SERIES USAGE





32” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74682)

32” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74710 Serial Number 402842615 and Higher)



34” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74750 Serial Number 404314000 and Higher)

34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74684, 74685, 74686, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74705 Serial Number 403320567 and Higher, 74706 Serial Number 404314200 and Higher, 74711 Serial Number 403045174 and Higher)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74688)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74772, 74773, 74774, 74776 Serial Number 404315000 and Higher, 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)

50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)

60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)





48”, 54” Timecutter – 138-7597 MODEL/SERIES USAGE





48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74886, 75210 Serial Number 404314000 and Higher)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74876, 74888)





48”, 54”, 60” TITAN – 138-7597 MODEL/SERIES USAGE





48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)

60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)





EZ-VAC MODELS – 138-7597 MODEL/SERIES USAGE





TITAN EZ-VAC – Model Numbers – (* Model Numbers 79346

TITAN MAX EZ-VAC – Model Numbers – (* Model Numbers 79347

TITAN & TITAN MAX EZ-VAC – Model Numbers – (* Model Numbers 79348

TIMECUTTER HD EZ-VAC – Model Numbers – (* Model Numbers 79345 Serial Number 405700000 and Higher









ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7597 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

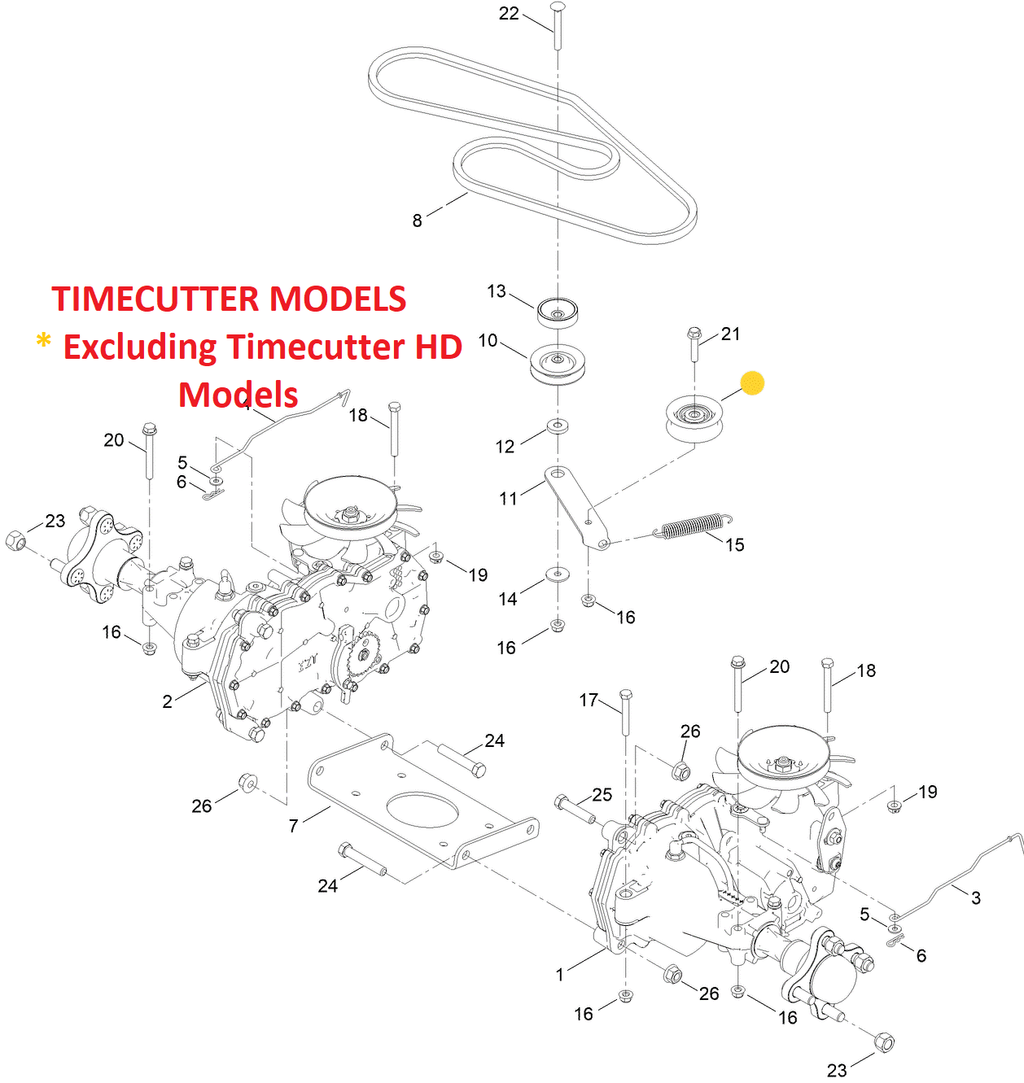

TIMECUTTER MODELS ONLY (* Excludes Timecutter HD Models)





  1. 115-1794 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm
  2. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Flat Idler Pulley Fastened to Idler Arm - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
  3. 104-8300 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm

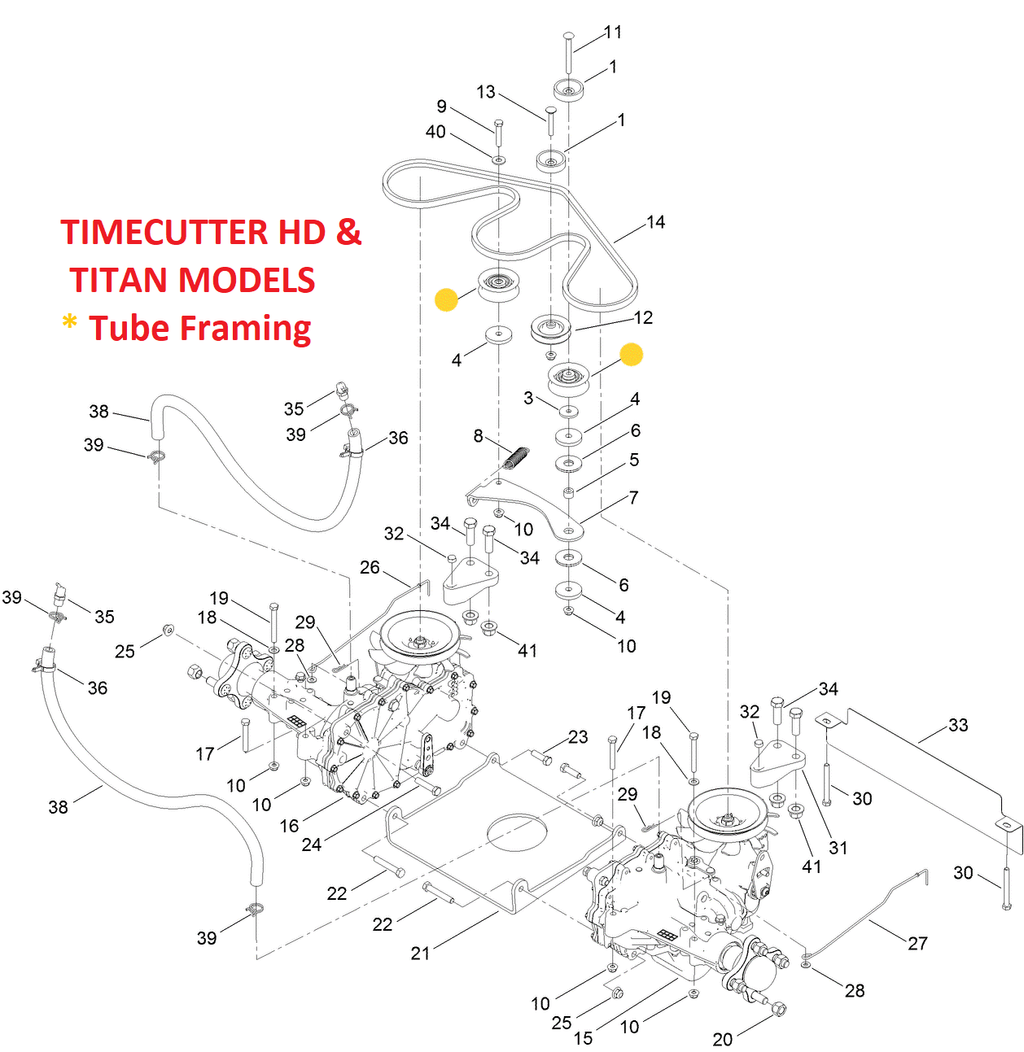

TITAN (Tube Framing) & TIMECUTTER HD MODELS ONLY



FRAME/ENGINE PLATFORM FLAT IDLER – IDLER ARM FASTENING



  1. 119-9784 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler/Idler Arm) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
  2. 119-3353 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
  3. 139-1704 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface and is Used under Flat Idler Above the Spacer Washer) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
  4.  139-5802 - IDLER PULLEY SPACER WASHER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Idler Arm as Well as Supports the Composite Friction Washer) x2 Per Pulley Idler Arm * One on Each Side
  5. 114-0463 - IDLER PULLEY ARM - FRICTION WASHER - (Reduces the Slop from the Idler Arm Spacer and Reduces Wear from Metal Against Metal from The Idler Arm and Idler Arm Spacer Washer Being in Direct Contact) x2 Per Pulley Idler Arm * One on Each Side
  1. 138-7209 - IDLER ARM SPACER/BUSHING - (Inserts into Idler Pulley Arm and Spaces V-Idler Pulley to Correct Height Above the Ilder Pulley Arm as Well as Enabling Idler Pivot Arm to Pivot After It’s Tightened) x1 Per Idler Pulley Tensioner Arm
  2. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
  3. 119-4041 - IDLER PULLEY NUT - (Retains Idler/Idler Arm) x1 Per Idler Pulley





IDLER ARM FLAT IDLER



  1. 139-1719 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler/Idler Arm) x1 Per Flat Idler Pulley Fastened to Idler Arm.
  2. 139-1723 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface and is Used Above Flat Idler and Under the Engine Platform/Mower Frame) x1 Per Flat Idler Pulley Fastened to Idler Arm.
  3. 139-5802 - IDLER PULLEY SPACER WASHER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Idler Arm) x1 Per Flat Idler Pulley Fastened to Idler Arm.
  4. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
  5. 119-4041 - IDLER PULLEY NUT - (Retains Idler/Idler Arm) x1 Per Idler Pulley

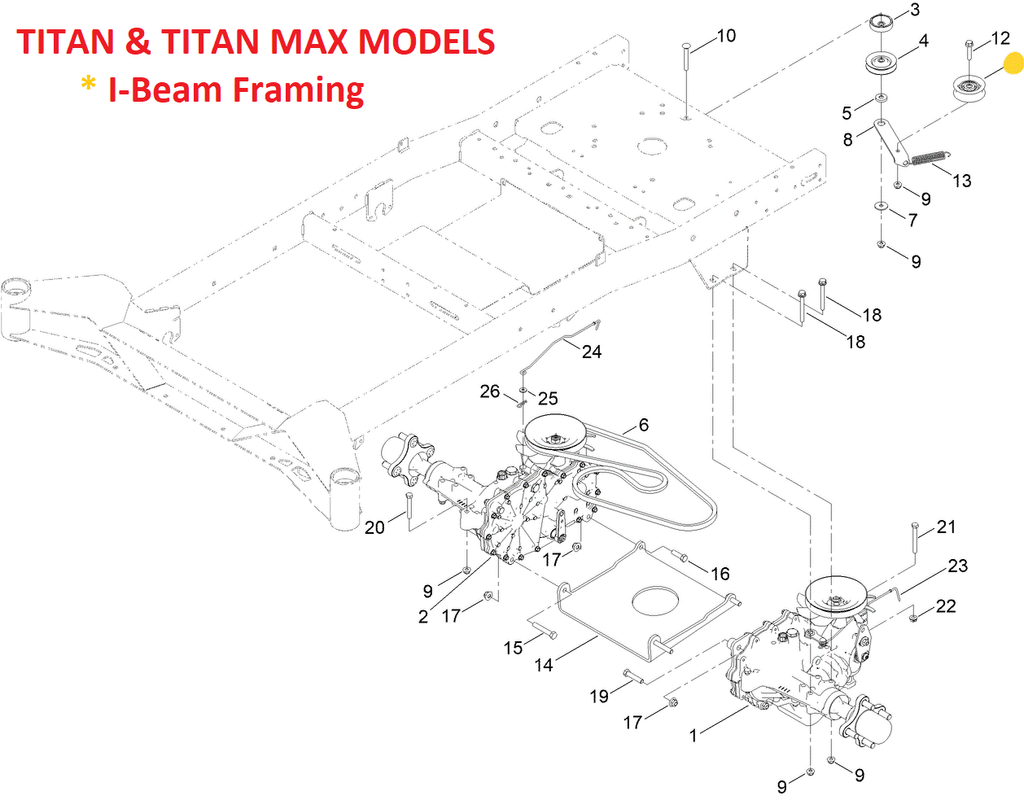

CURRENT TITAN & TITAN MAX MODELS ONLY (* I-Beam Framing)





  1. 140-5024 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm
  2. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Flat Idler Pulley Fastened to Idler Arm - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
  3. 119-4041 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm
