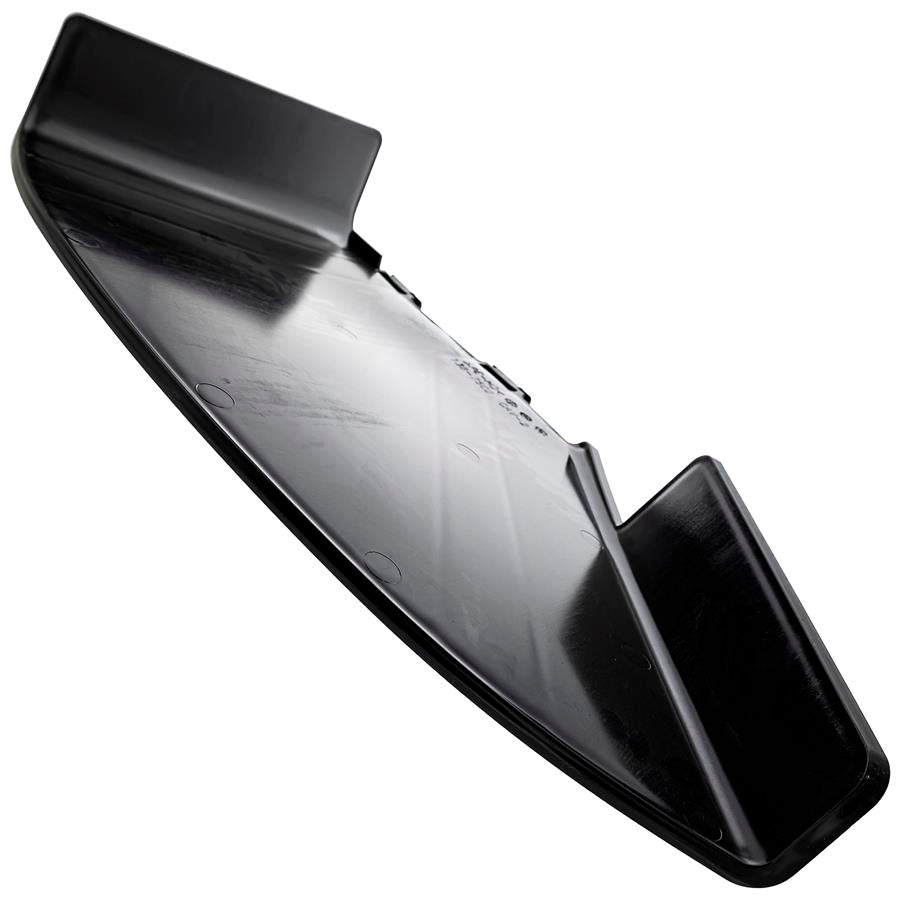

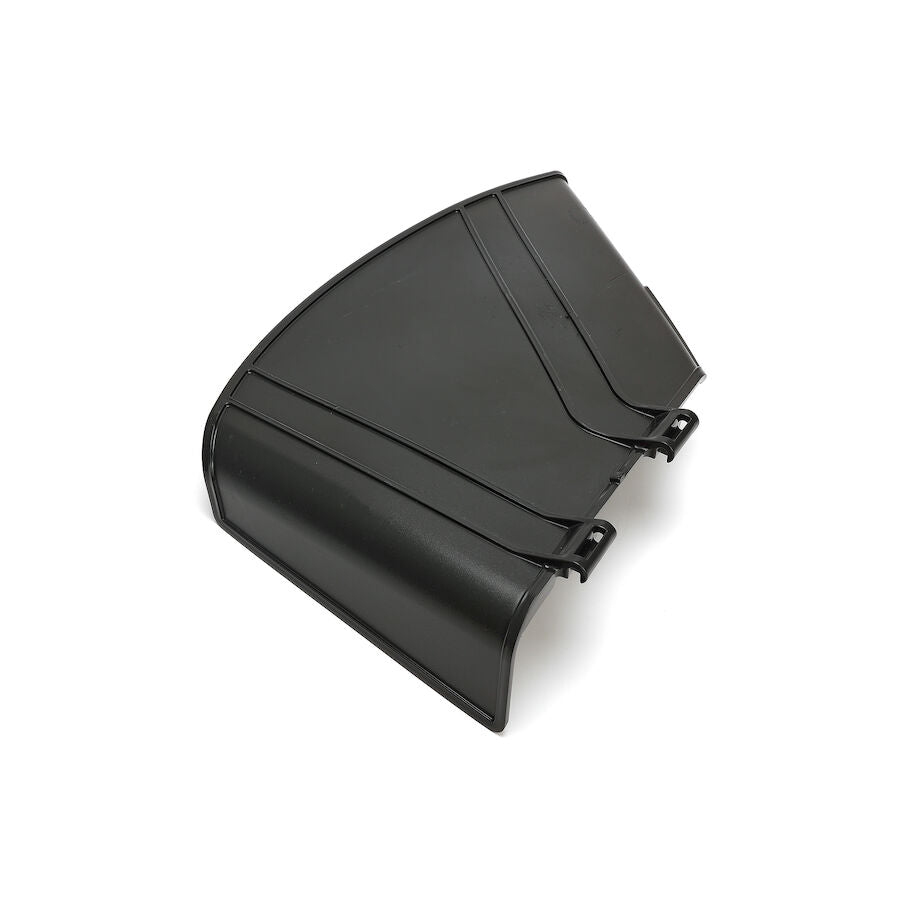

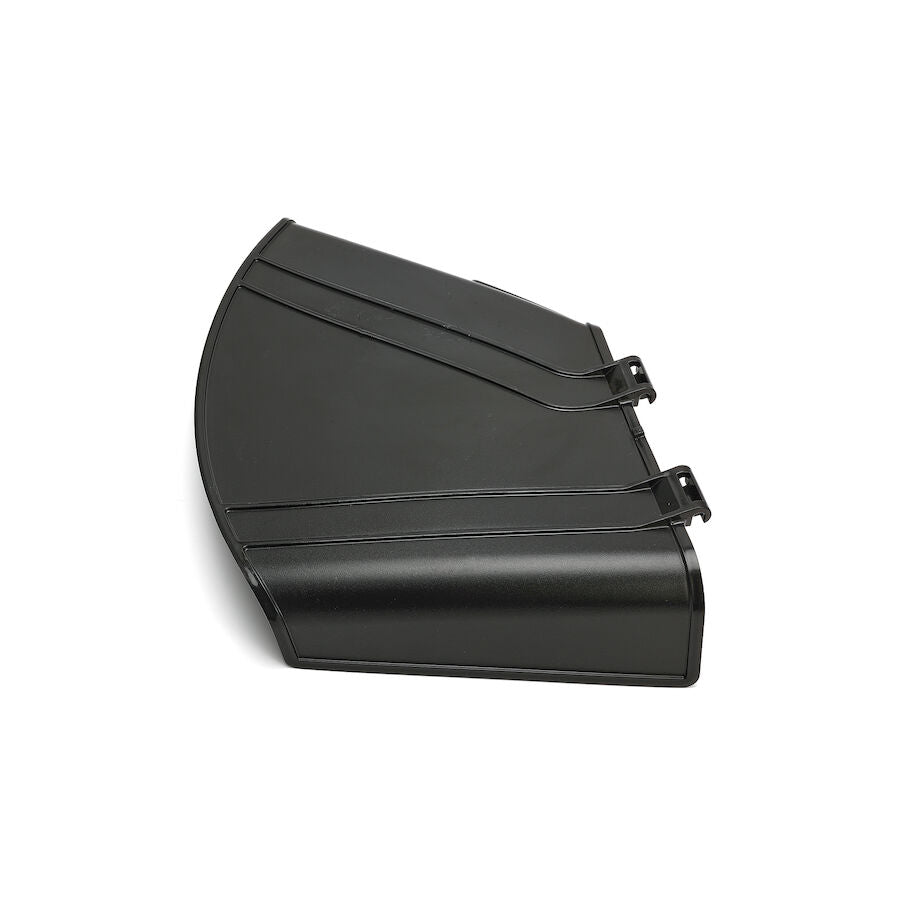

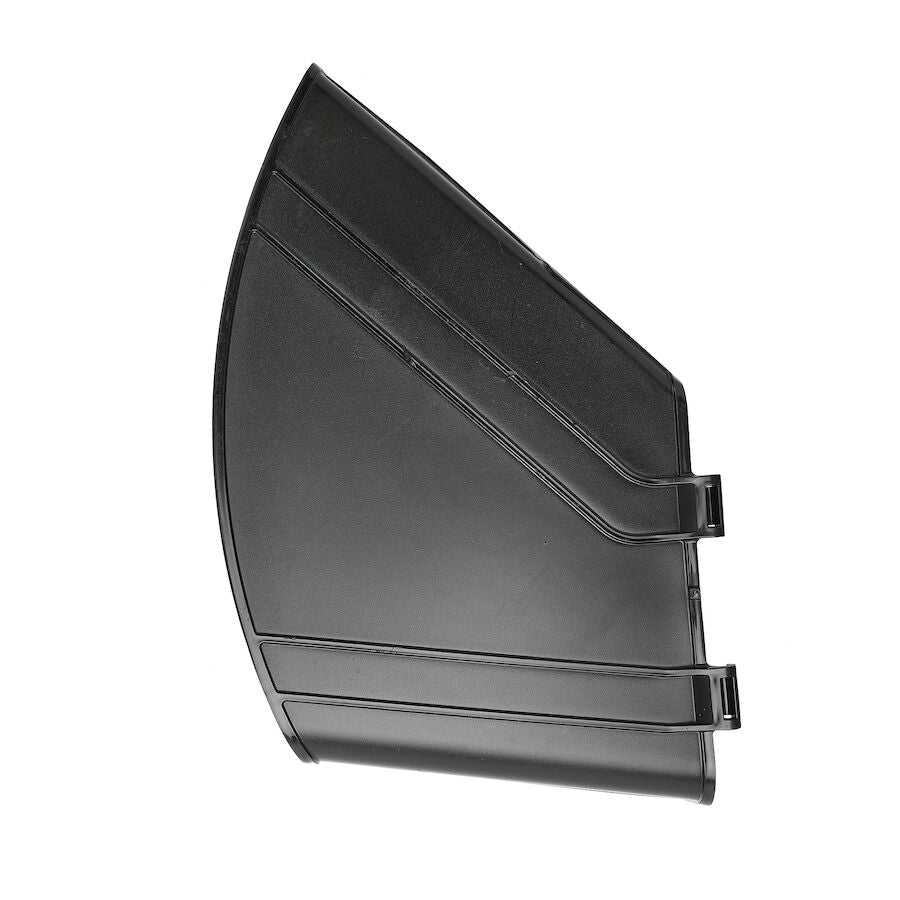

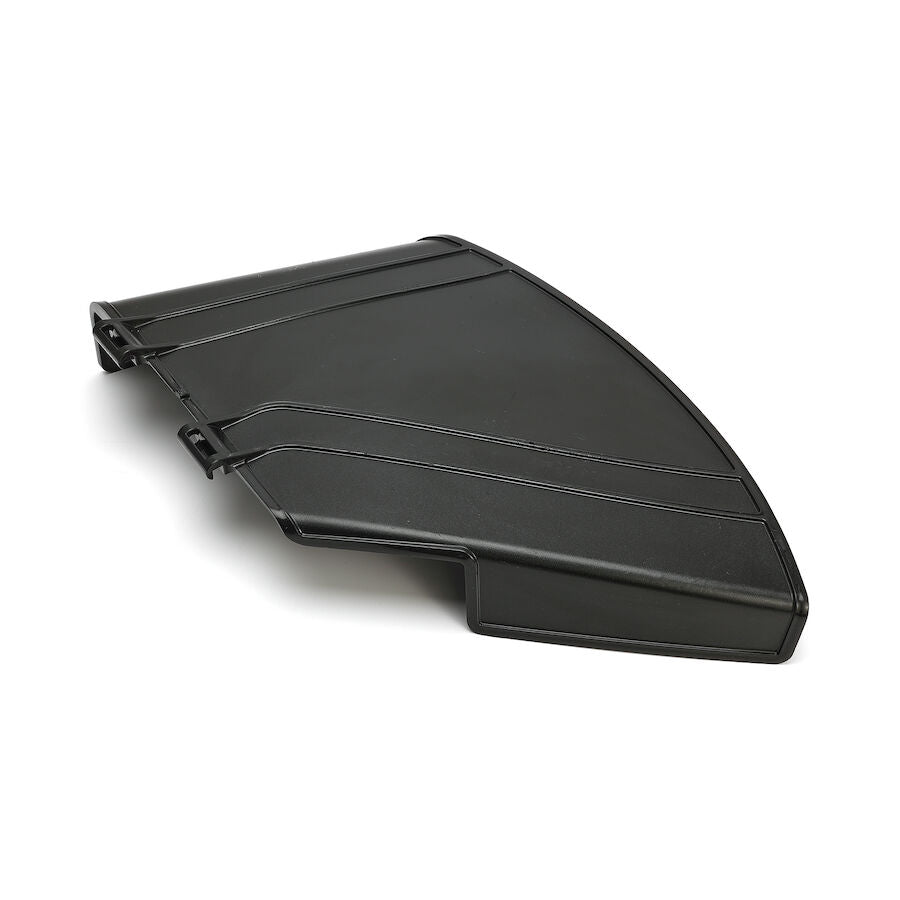

Toro OEM 138-7502 Discharge Chute Fits Late Toro 42", 50", 54", 60" Timecutter (Cast Aluminum Axles) and Timecutter MAX Models with Fabricated Mower Deck.

Toro OEM 138 7502 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Toro OEM 138 7502 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation. Toro OEM 138-7502 Discharge Chute is Designed to Fit Toro Late (Cast Aluminum Axles) and Current (Timecutter MAX) 42", 50", 54", 60", Timecutter Models - with Welded Reinforced Mower Deck or Fabricated Mower Decks. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.

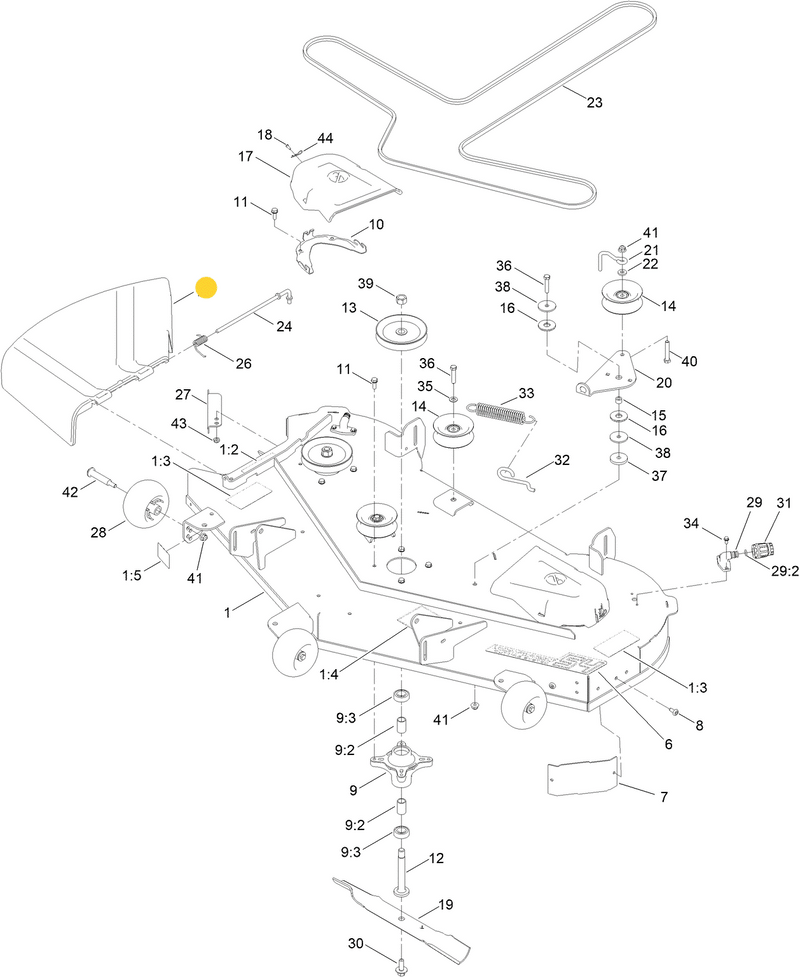

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7502 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-2019 - PIVOT PIN (Retains Discharge Chute)
2. 121-4600 - LOCKING NUT (Retains Pivot Pin)
3. 138-7268 - TORSION SPRING (Attaches over Pivot Rod)







 Specification

Product Number:	1387502
Brand:	Toro
Length:	25.000 IN (63.500 CM)
Width:	17.000 IN (43.180 CM)
Height:	5.000 IN (12.700 CM)
Weight:	2.221 LB (1.007 KG)





Model Fit:



TIMECUTTER 42” Models – Model Numbers – 74679, 74690, 74691, 74692, 75743, 75744, 75745, 75746, 75747, 77404,



TIMECUTTER 50” Models – Model Numbers – 74694, 74695, 74696, 75750, 75751, 75753, 75755, 75759, 77501, 77502, 77505,



TIMECUTTER 54” Models – Model Numbers – 74695, 75754, 75756, 75757, 77503, 77504, 77506, 77507



TIMECUTTER 60” Models – Model Numbers – 75760, 75761, 75763, 77601, 77602, 77603, 77604



TIMECUTTER 42” Electric Models – Model Numbers – 75642, 75841



TIMECUTTER 54” Electric Models – Model Numbers – 75851
