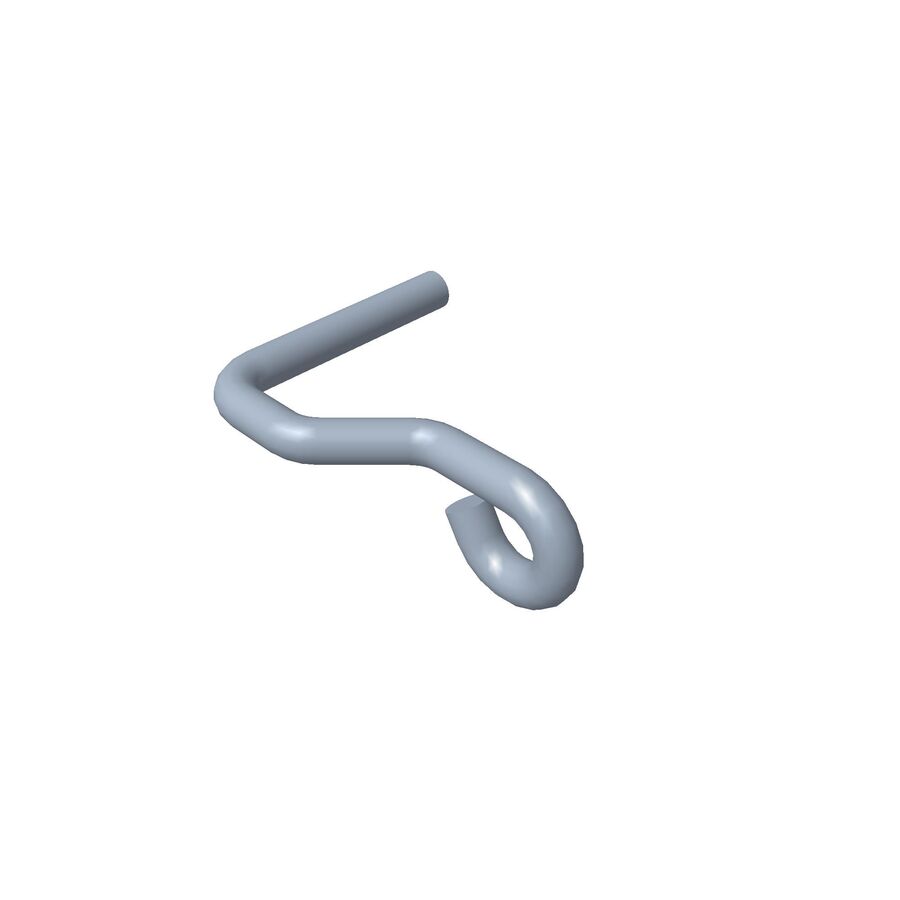

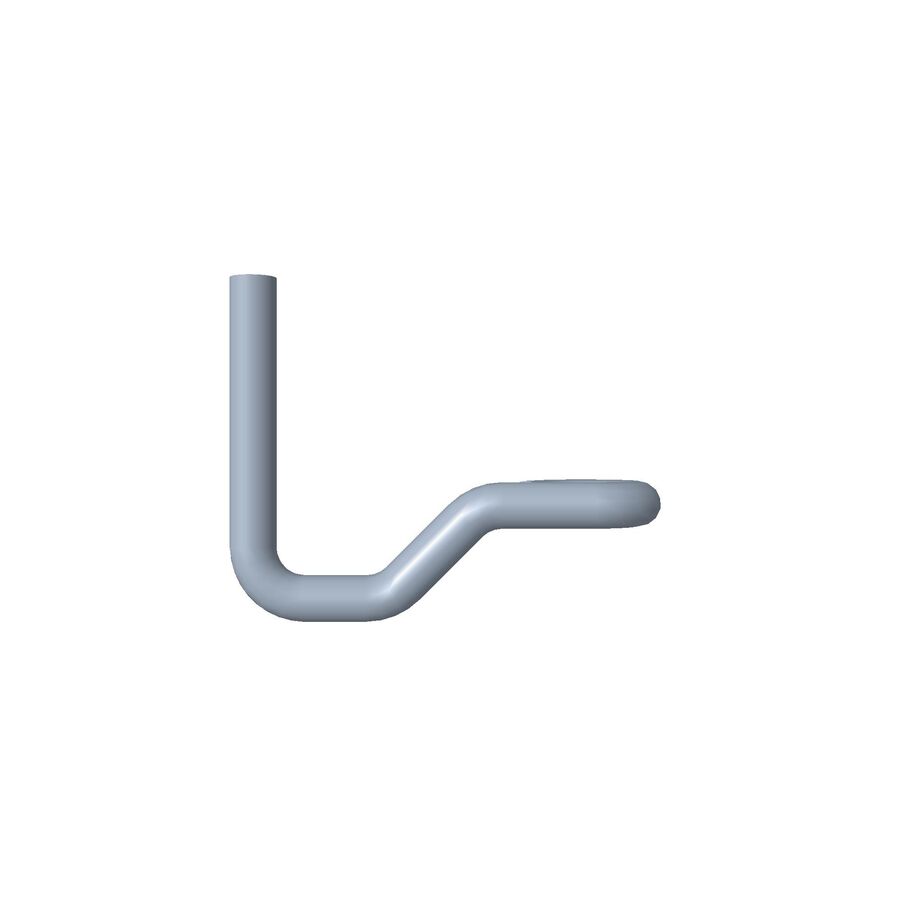

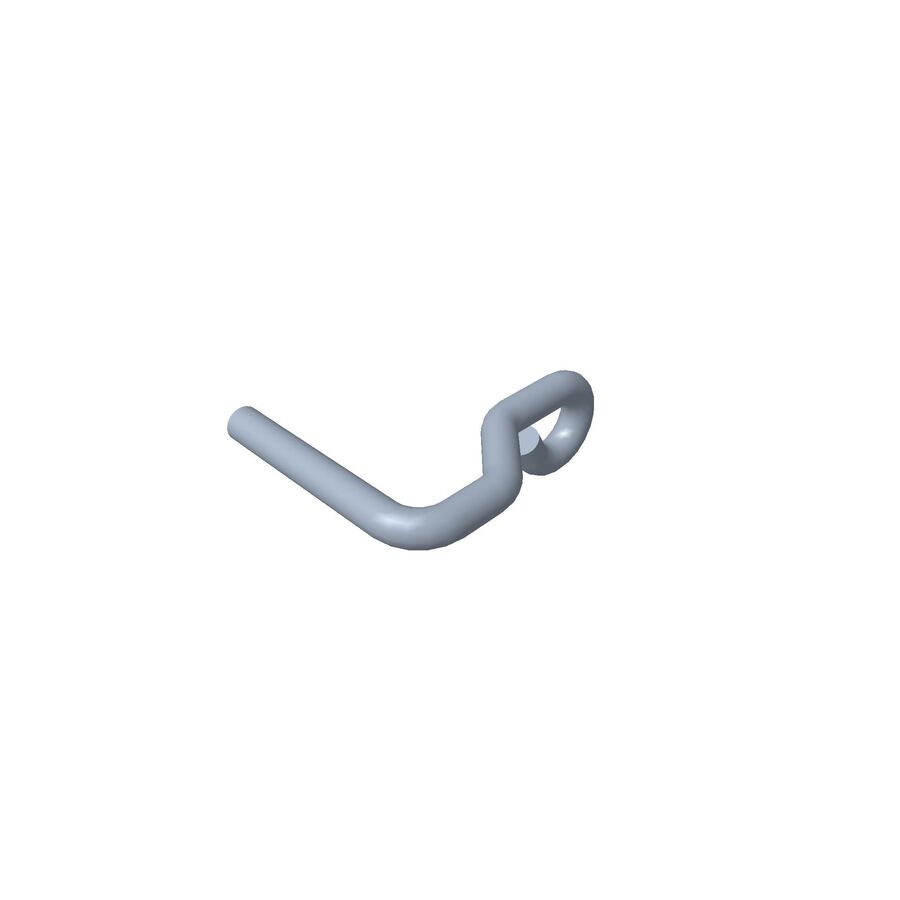

Toro OEM 138-7270 Mower Deck Belt Guard Fits Toro Select 32", 34", 38", 42", 44", 50", 54" Timecutter Models - Including Current Timecutter MAX Models.

Toro OEM 138 7270 Heavy-Duty Mower Deck Belt Guard is used on a Variation of Models within Different Timecutter Series this is contributed to Engineering Specifications on Engine Torque as well as Mower Deck Idler Spacing and a Few other Contributing Factors. Toro 138 7270 Mower Deck Belt Guard is the Exclusive/Standard Belt Guard for Timecutter Models and Serves the Purpose of Retaining the Mower Deck Belt closer to the Pulley on the Tensioner Idler Pulley. The Tensioner arm is Designed to Allow Forgiveness in Differentials of Torque and Load Contributing to Movement of Tensioner Pulley Which Could Causes Mower Deck Belt Slapping. Toro OEM 138-7270 is Designed to Maintain the Mower Deck Belt Close to the Mower Deck Tensioner Idler Pulley when Mower Deck Slapping or a Differential of Load and Torque is Applied this Eliminates the Mower Deck Belt from Slipping off the Tensioner Pulley. Toro 138-7270 Fits Toro Select 32" Timecutter ZS, SS, SW Models - Select 34" MX Models - Select 38" Timecutter Z Models - Select 42" Timecutter MAX, Z, ZS, SS, SW, 4200, Standard Models - Select 50" Timecutter MAX, MX, 5000, Standard, My-Ride Models - Select 54" Timecutter MAX, Standard, My-Ride Models - and More....  Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage. *Part Number 107-7307 & 88-5070 Supersede to Part Number 138-7270

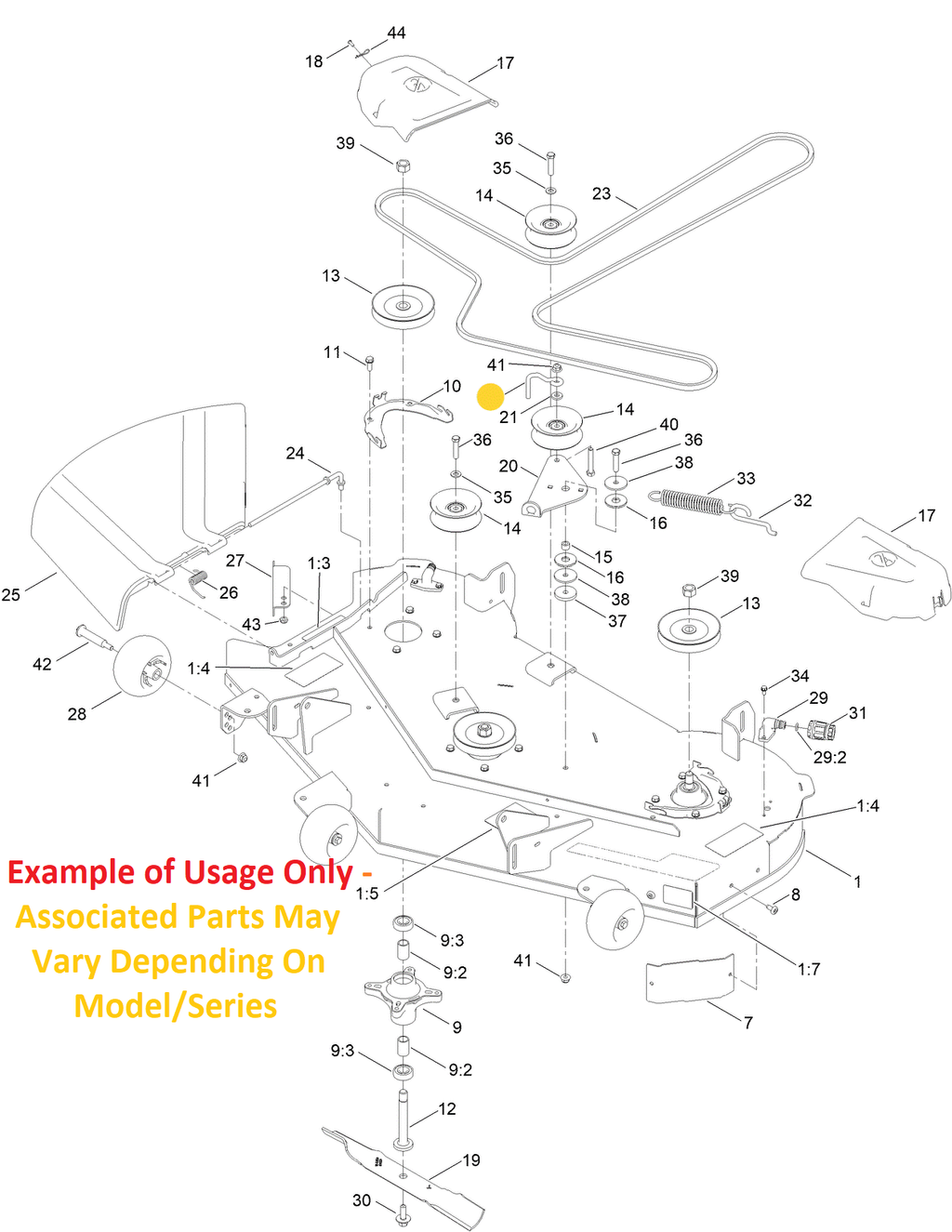

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7270 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-11 - HEX HEAD BOLT (Retains Belt Guard, Idler Pulley & Spacer Washer to the Mower Deck Idler Arm - Installed from the Bottom Side of the Idler Pulley) x1 Per Mower Deck Idler Arm
2. 138-7262 - MOWER DECK IDLER PULLEY (Mower Deck Belt Guard, Idler Pulley & Spacer Washer are Fastened to It - All of which use the same Fastners and Retaining Hole) x1 Per Mower Deck
3. 132-9420 - IDLER PULLEY (Mower Deck Belt Guard Fastens over top of the Idler Pulley using the same Hardware and Retains the Mowe Deck Belt Between the Belt Guard and Pulley) x? Quantity Varies Upon Mower Deck Size
4. 138-7207 - BLOWER HUB/SPACER WASHER (Spaces the Mower Deck Belt Guard Away from the Mower Deck Tensioner Idler Pulley - Contains the Correct Radius of Tightening to Ensure the Bearing can Still Spin Freely) x1 Per Mower Deck Tensioner Idler Pulley
5. 104-8301 - FLANGE NUT (Retains Belt Guard, Idler Pulley & Spacer Washer to the Mower Deck Idler Arm - Installed from the Bottom Side of the Idler Pulley) x1 Per Mower Deck Tensioner Idler Pulley







 Specification

Product Number:	1327270, 1077307, 885070
Brand:	Toro
Length:	3.000 IN (7.620 CM)
Width:	2.250 IN (5.715 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.134 LB (0.061 KG)





Model Fit:



TIMECUTTER



TIMECUTTER 32” ZS Series – Model Numbers – 74385, 74388, 74650, 74682

TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710

TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 38” Z Series – Model Numbers – 74301, 74402, 74419



TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706, 74711, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74676, 74788

TIMECUTTER 42” Z Series – Model Numbers – 74325, 74327, 74330, 74350, 74403, 74420, 74425

TIMECUTTER 42” ZS Series – Model Numbers – 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75748, 75749, 77401



TIMECUTTER 44” Z Series – Model Numbers – 74351



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



LT, SD, V, HXL, XL, XLS, and Other Older Model Riding Tractors and Zero Turns Series (MOWER DECK) – Model Numbers 71180, 71181, 71184, 71185, 71190, 71191, 71193, 71198, 71202, 71203, 71205, 71208,  71212, 71213, 71215, 71217, 71219, 71220, 71221, 71223, 71225, 71226, 71227, 71228, 71240, 71241, 71242, 71243, 71245, 71246, 71252, 71254, 71255, 71427, 71428, 77102, 77104, 77106, 79105, 79105, 79107, 79108,  79109, 81180, 81181, 81182, 81191,



MZ Riding Tractor Series – Model Numbers 94301, 94327, 94330, 94351, 725057006, 725057016, 725057026, 725058026



Mower Deck Service Kits – Part Numbers 132-9330, 132-9331, 132-9332
