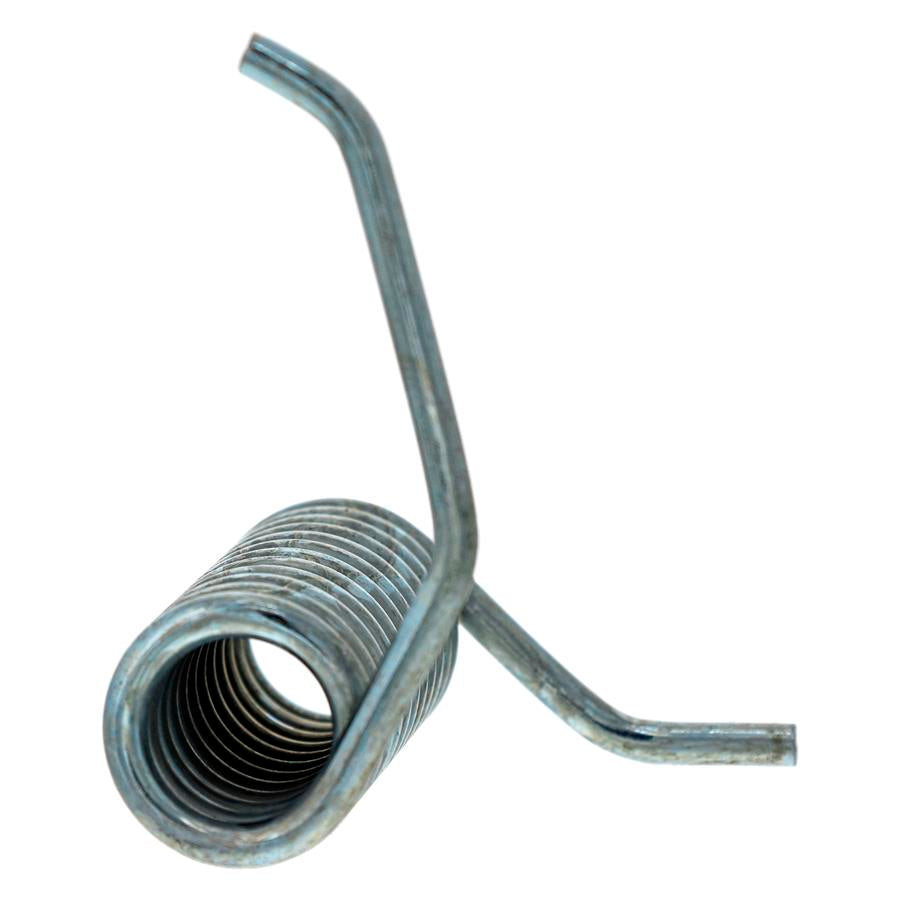

Toro OEM 138-7268 Discharge Chute Torsion Spring Fits Late/Current Toro 42", 50", 54", 60" Timecutter Models with Fabricated Mower Deck.

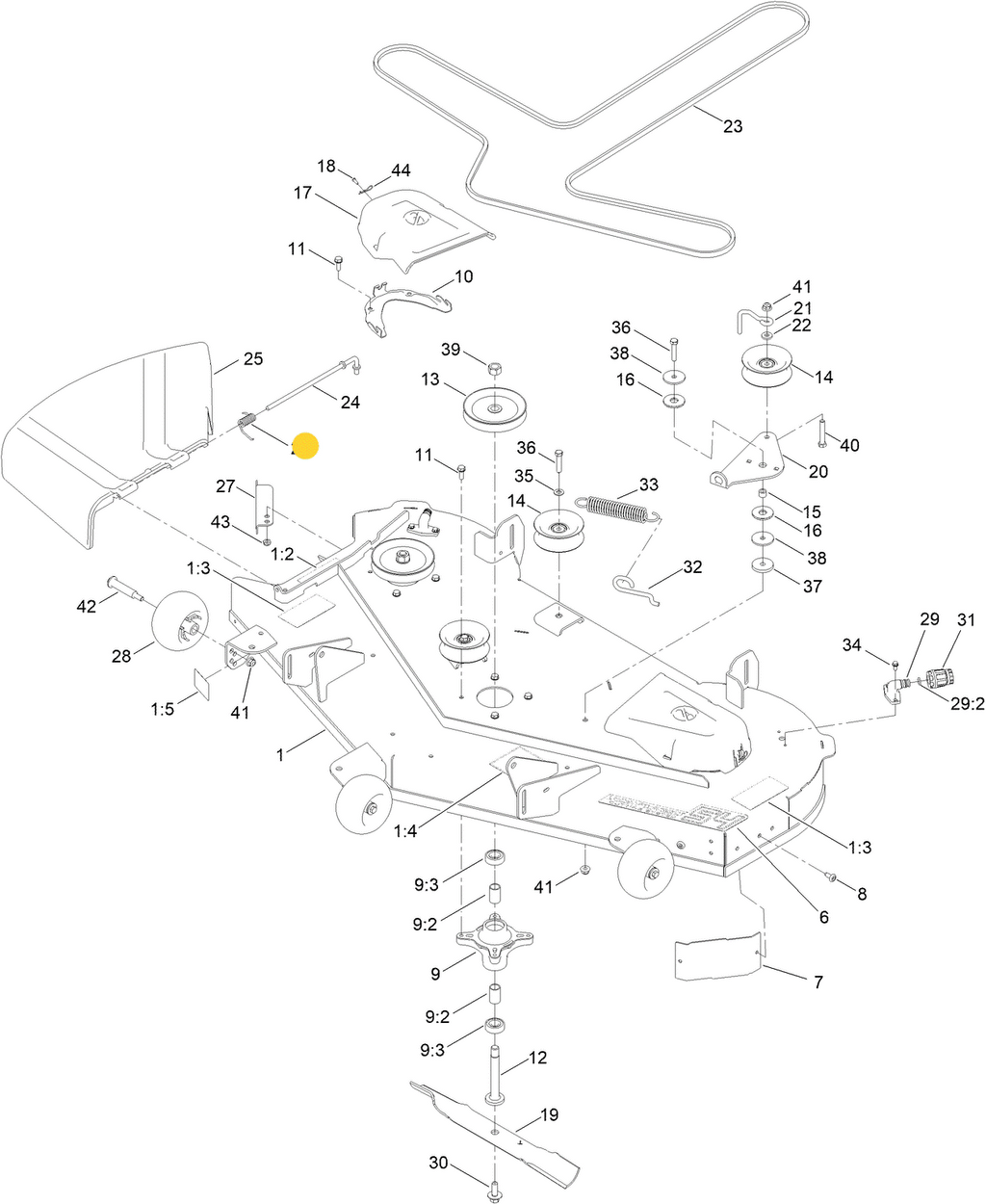

The Toro OEM 138 7268 is specially made for the Toro Discharge Chute Application. This Discharge Chute Torsion Spring keeps the chute in the down position and provides adequate downward pressure, preventing it from bouncing on rough terrain. Discharge Torsion Spring 138-7268 is Used on Toro Late (Cast Aluminum Axles) and Current (Timecutter MAX) 42", 50", 54", 60", Timecutter Models - with Welded Reinforced Mower Deck or Fabricated Mower Decks. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7268 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 137-2019 - PIVOT PIN (Retains Discharge Chute)
2. 121-4600 - LOCKING NUT (Retains Pivot Pin)

3. 138-7502 - DISCHARGE CHUTE (Late/Current Models - Review Part Number Model Fit Chart to Ensure Correct Fit)
4. 121-0739 - DISCHARGE CHUTE (Late 34", 42", 50" SWX, MX, ZS Timecutter Models - Review Part Number Model Fit Chart to Ensure Correct Fit)








Specification

Product Number:	1387268
Brand:	Toro
Length:	2.000 IN (5.080 CM)
Width:	1.500 IN (3.810 CM)
Height:	1.400 IN (3.556 CM)
Weight:	0.066 LB (0.030 KG)





Model Fit:



TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74684, 74685, 74686, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75740, 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747

TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841, 75642,



TIMECUTTER 50” ZS Series – Model Numbers – 74688

TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851,

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603
