Description

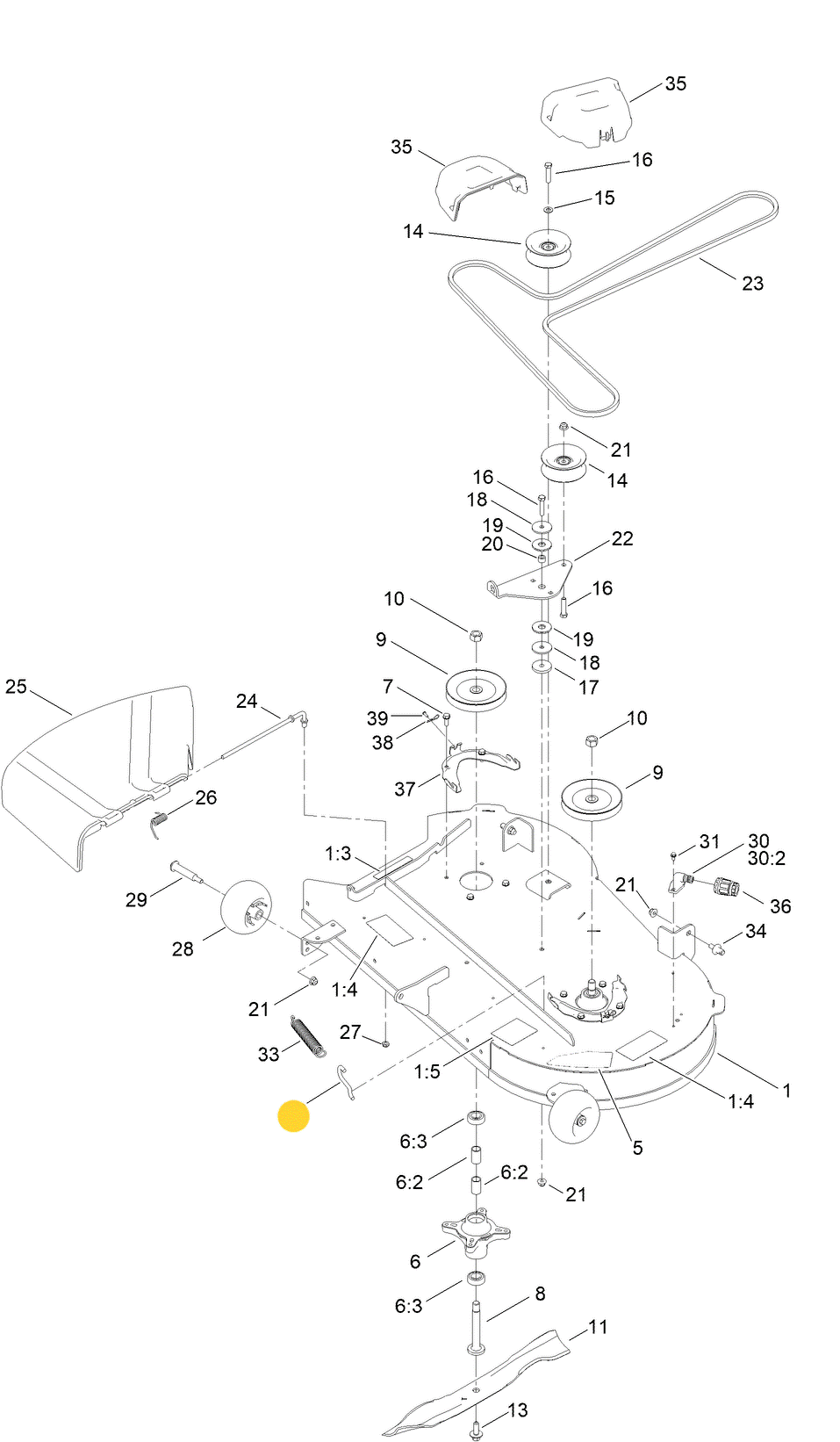

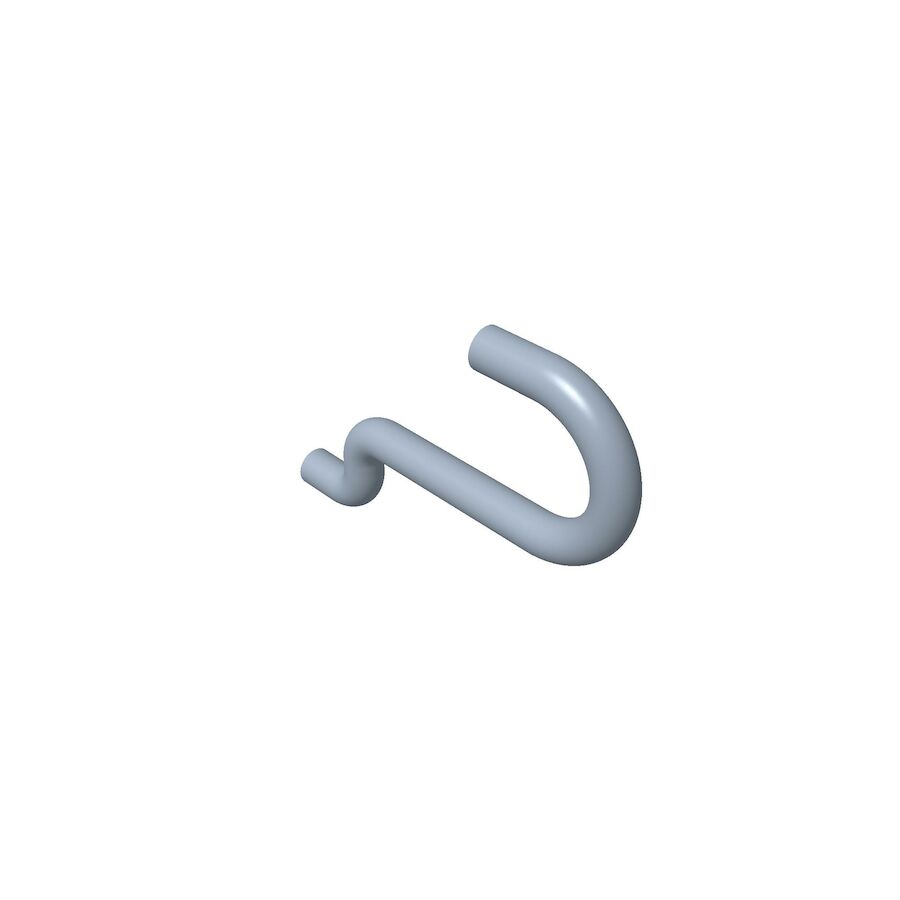

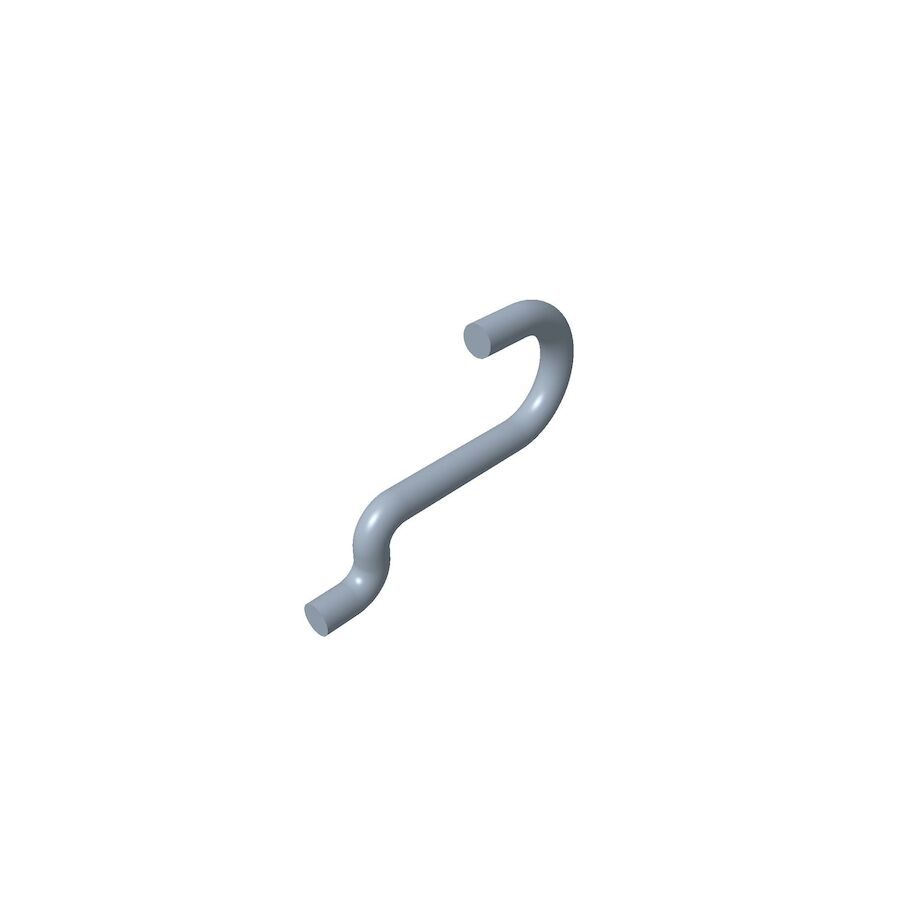

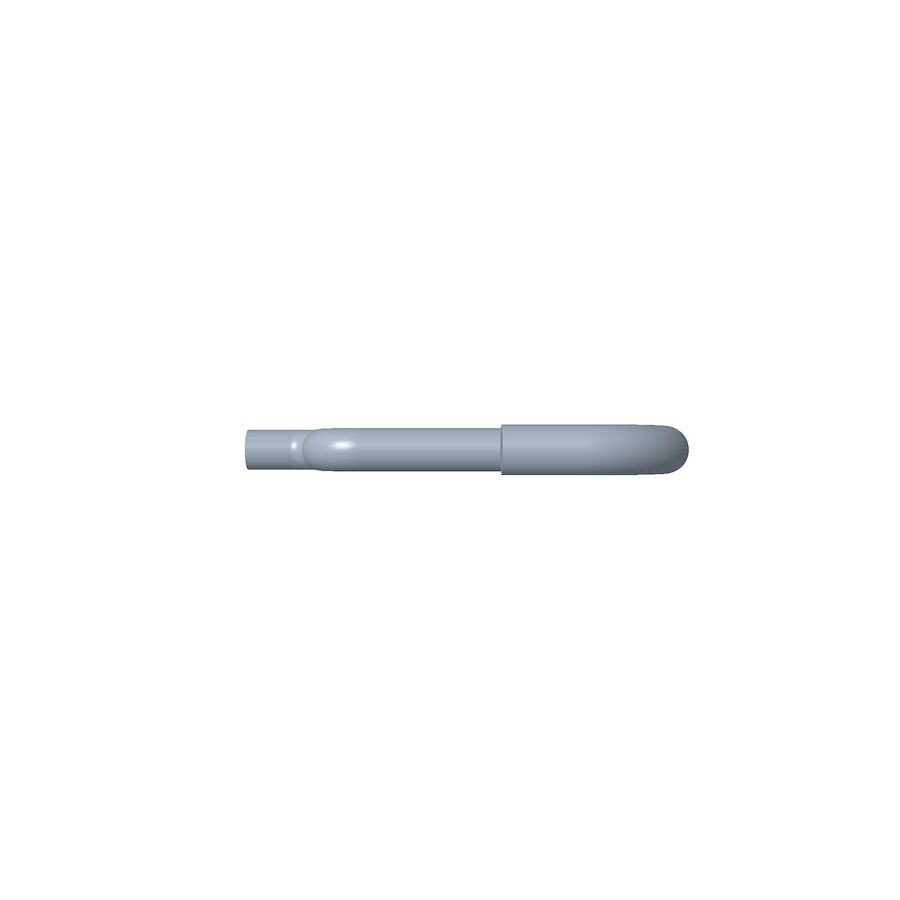

No Longer is it Necessary to twist those spring trying to Hook them into some small whole in the Mower Deck only to Have them not Hook Properly and we all know what Happens Next - a Blurring Moment of Pain, Rage and Frustration. Toro OEM Found that useless and developed a solution with the convenience of 138 7267 Tension Return Spring Hook. 138 7267 Tension Spring Hook Allows you to easily Hook Your Spring and Giving you the combability of Easly Replacing it without any tools if it were to wear from the Constant Mower Deck Spring Movement. Toro OEM 138-7267 Spring Hook is used on Current/Late Model Timecutter 32", 34", 38", 42" Timecutter Models (With/Prior to Replaceable Cast Aluminum Axles Edition). For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Number 88-5970 Supersedes to Part Number 138-7267.
Specification
|
Product Number: |
885970, 1387267 |
|
Brand: |
Toro |
|
Length: |
3.100 IN (7.874 CM) |
|
Width: |
2.200 IN (5.588 CM) |
|
Height: |
0.300 IN (0.762 CM) |
|
Weight: |
0.112 LB (0.051 KG) |
Model Fit:
LATE EDITION MODELS WITH REPLACEABLE CAST ALUMINUN AXLES
TIMECUTTER 32” ZS Series – Model Numbers – 74682
TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301
TIMECUTTER 42” SS Series – Model Numbers – 74705, 74706
TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74684, 74685, 74686
TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740
TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404
TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747
EARLY MODELS THAT ARE PRIOR TO REPLACABLE CAST ALUMINUM AXLE EDITION
TIMECUTTER 32” ZS Series – Model Numbers – 74385, 74388, 74650
TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710
TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781
TIMECUTTER 34” MX Series – Model Numbers – 74750
TIMECUTTER 38” Z Series – Model Numbers – 74301, 74402, 74419
TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766
TIMECUTTER 42” Z Series – Model Numbers – 74325, 74327, 74330, 74350, 74360, 74380, 74363, 74381, 74365, 74366, 74389, 74390, 74403, 74420, 74425, 74655, 74656, 74657, 74665, 74667
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74667
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788
TIMECUTTER 42” SWX Series – Model Numbers – 74787
G4000 Series (MOWER DECK)– Model Numbers - 94360, 725058046
MISC. RIDING TRACTOR MODELS (SPRING HOOK USED ON MOWER DECK AND BRAKE LINKAGE DEPENDING ON MODEL) – Model Numbers 71180, 71181, 71184, 71185, 71190, 71191, 71193, 71195, 71198, 71202, 71203, 71205, 71208, 71213, 71217, 71220, 71221, 71223, 71254, 71225, 71226, 71227, 71240, 71241, 71242, 71243, 71245, 77102, 77104, 81180, 81181, 81182, 81191
MZ Riding Tractor Series (MOWER DECK) – Model Numbers 94301, 94327, 94330, 725057006, 725057016, 725058026, 94327
