Description

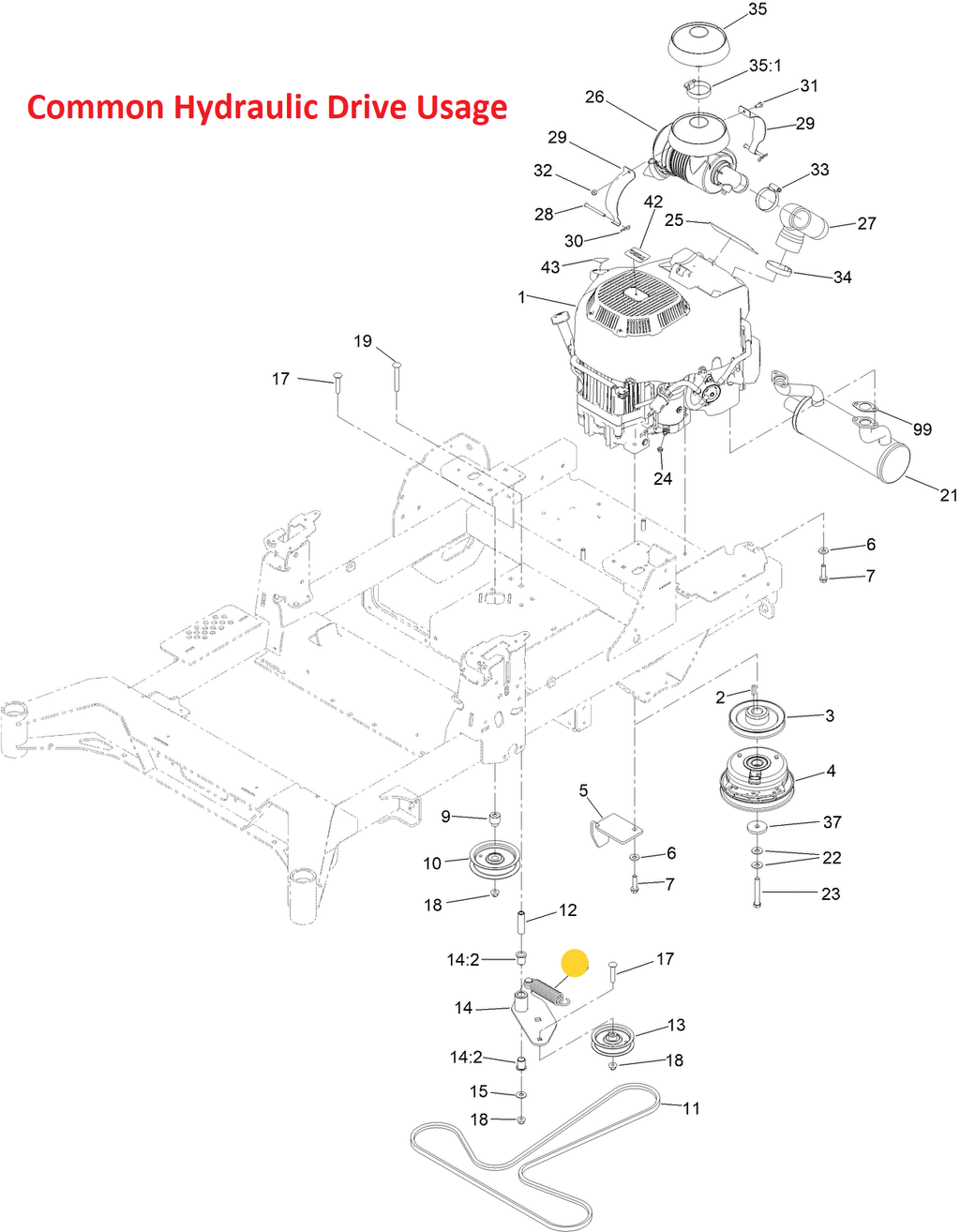

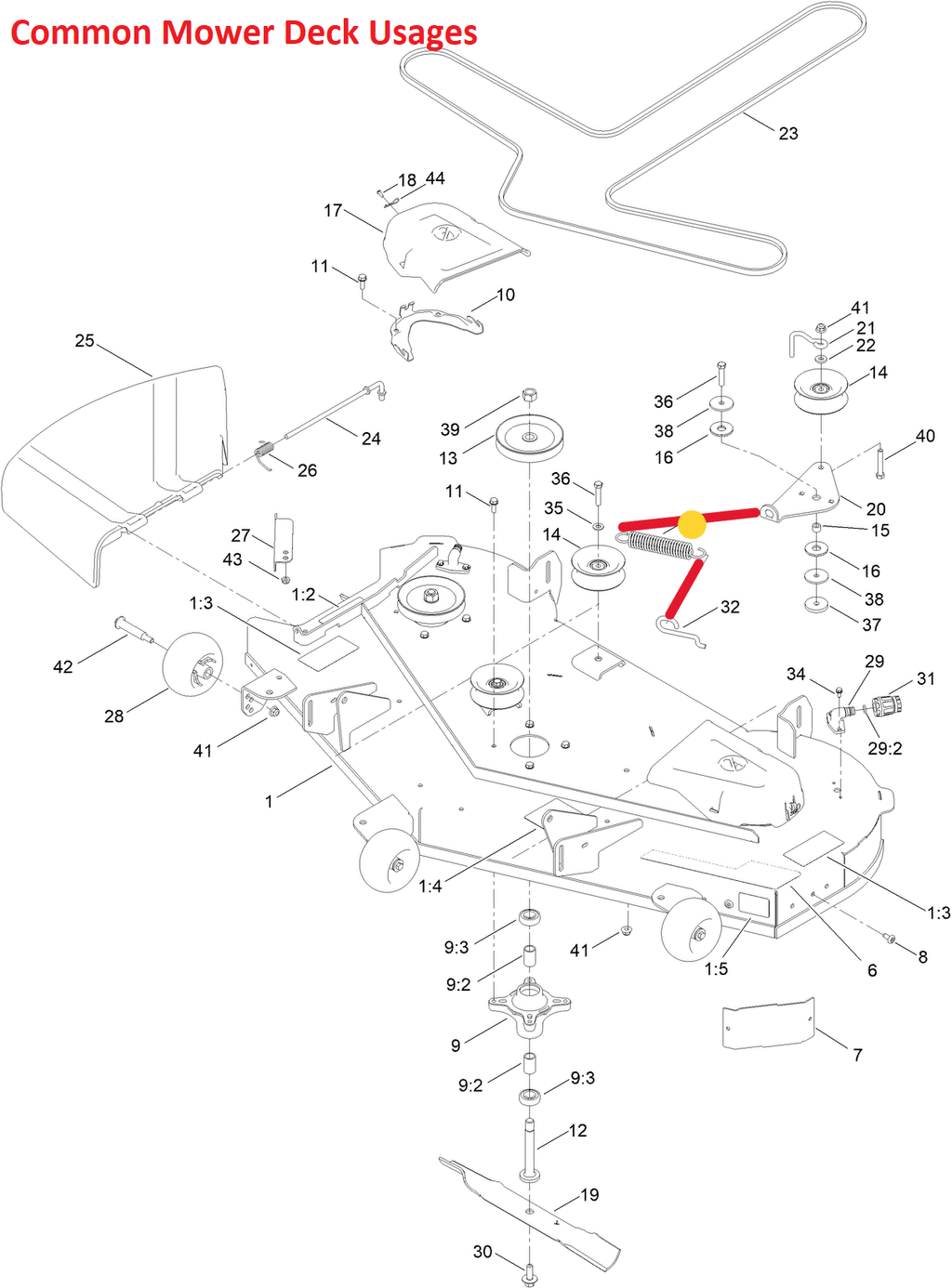

Toro OEM 138 7264 Mower Deck and Hydraulic Tension Spring is the Part that allows for Forgiveness in Uneven Mower Deck and Hydraulic Work Loads, Absorbing Unfortunate Mower Blade Impacts and Uneven Terrains, keeping that Belt Tight and by doing all that Eliminating the Belt from coming Off and Creating Additional Damage. So, when it comes to a Replacement Springs Trust no other than Toro OEM to Be Size Correctly and Tested to withstand the Hard Rigorous Workload the Toro OEM 138 7264 is expected to fulfill. Toro OEM 138-7264 Spring is used on Late Model Timecutter 50", 54", 60" Timecutter Models (With Replaceable Cast Aluminum Axles) as a Mower Deck Belt Tension Spring - Current 50", 54", 60" Timecutter MAX Models as a Mower Deck Belt Tension Spring - Current Z Master 2000 Models (I-BEAM Framing) as a Hydraulic Belt Tension Spring. For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
Specification
|
Product Number: |
1387264 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.417 LB (0.189 KG) |
Model Fit:
TIMECUTTER 50” ZS 5000 Series – Mower Deck – Model Numbers 74688
TIMECUTTER 50” MX Series – Mower Deck – Model Numbers 74694, 74695
TIMECUTTER 50” 5000 Series – Mower Deck – Model Numbers 75751
TIMECUTTER 50” (STANDARD) Series – Mower Deck – Model Numbers 75750, 75753
TIMECUTTER 50” (My-Ride) Series – Mower Deck – Model Numbers 74696, 75755, 75759
TIMECUTTER MAX 50” (STANDARD) Series – Mower Deck – Model Numbers 77501, 77505
TIMECUTTER MAX 50” (My-Ride) Series – Mower Deck – Model Numbers 77502
TIMECUTTER 54” (My-Ride) Series – Mower Deck – Model Numbers 75754, 75756, 75757
TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851,
TIMECUTTER MAX 54” (STANDARD) Series – Mower Deck – Model Numbers 77504, 77506
TIMECUTTER MAX 54” (My-Ride) Series – Mower Deck – Model Numbers 77503, 77507
TIMECUTTER 60” (STANDARD) Series – Mower Deck – Model Numbers 75760, 75762
TIMECUTTER 60” (My-Ride) Series – Mower Deck – Model Numbers 75763
TIMECUTTER MAX 60” (STANDARD) Series – Mower Deck – Model Numbers 77601, 77604
TIMECUTTER MAX 60” (My-Ride) Series – Mower Deck – Model Numbers 77602, 77603
Z-MASTER 2000 Series (Current I-BEAM Framing) Series – Hydraulic Drive – Model Numbers – 77281, 77283, 77285, 77288, 77291, 77294
