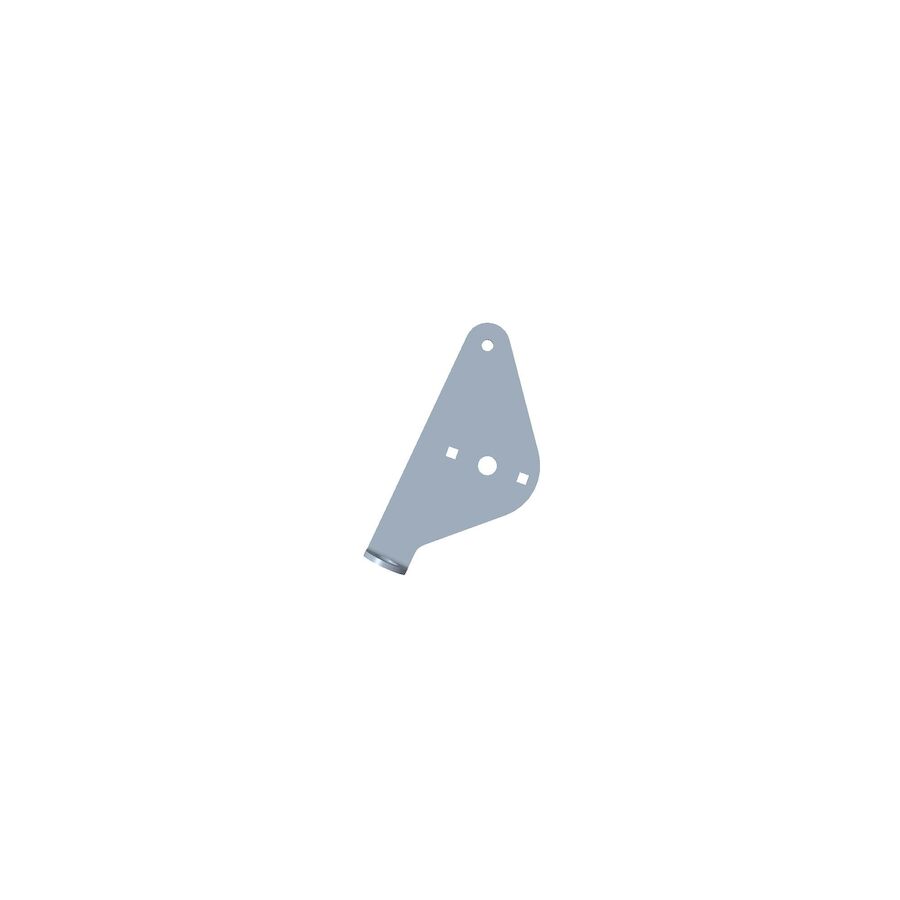

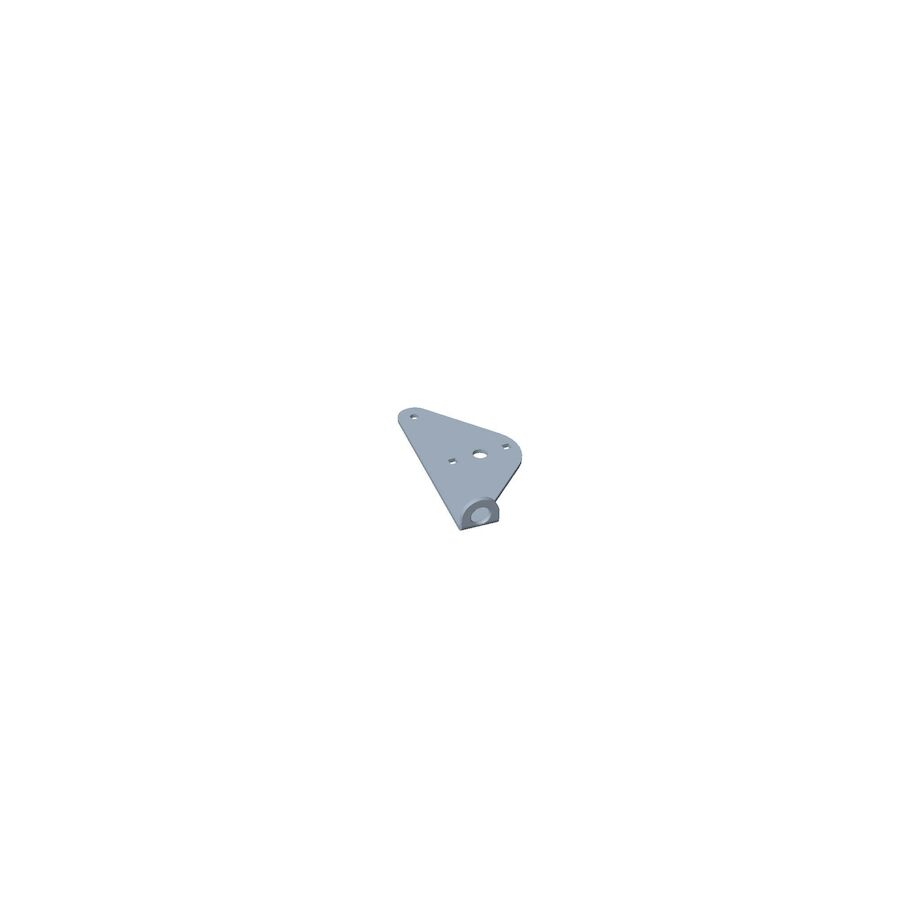

Toro OEM 138-7262 Mower Deck Idler Arm Fits Late/Current 34", 42", 50", 54", 60" Timecutter 4200, ZR4200, 5000, ZS, MX, Standard and My-Ride Models.

Toro OEM 138 7262 Mower Deck Idler Arm is an Essential Toro OEM Part that Enables "THE PROPER AMOUNT OF TENSION" to be Applied. Having Issues with Mower Deck Slapping on Start-Up or Slipping - Not Saying this is the Cause but Look No Further and Evaluate the wear on your Idler Arm. Toro OEM Idler Pulley Tension Arm 138 7262 Fit a Large Selection of Current - Late Model Toro Timecutter 34" (Standard Models) - 42" (4200, ZR4200, ZS, MX, Standard, My-Ride Models) - 50" (5000, ZS, MX, Standard, My-Ride, MAX Models) - 54" (Standard, My-Ride, MAX Models) 60" (Standard, My-Ride, MAX Models). For a Detail Break-Down of Model and Series that use Mower Deck Idler Arm 138-7262 Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED IDLER ARM PARTS FOR PART NUMBER 138-7262 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-9 - HEX HEAD BOLT (Retains Idler Arm 138-7262 & Components) x1
2. 63-7400 - FLAT WASHER (Supports 114-0463) x2
3. 114-0463 - RUBBER/COMPOSITE WASHER (Applies Pressure to Idler Arm) x2
4. 115-4986 - SPACER (Inserts into Idler Arm) x1
5. 110-9981 - SPACER WASHER (Supports Idler Arm Spacer 115-4986) x1
6. 104-8301 - FLANGE NUT (Retains Idler Arm 138-7262 & Components) x1
7. 138-7264 - TENSION SPRING (Attaches to Idler Arm & Mower Deck) x1







Specification

Product Number:	1387262
Brand:	Toro
Length:	8.750 IN (22.225 CM)
Width:	4.500 IN (11.430 CM)
Height:	1.500 IN (3.810 CM)
Weight:	1.222 LB (0.554 KG)





Model Fit:

Model Range from Models with Cast Aluminum Axle to Current Timecutter Max Models.



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301





TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” MX Series – Model Numbers – 74649, 74691



TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740



TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404



TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747





TIMECUTTER 50” ZS Series – Model Numbers – 74688



TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695



TIMECUTTER 50” 5000 Series – Model Numbers – 75751



TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753



TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505



TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502





TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506



TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507





TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762



TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763



TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604



TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603
