Toro OEM 138-7261 Spindle Assembly Pulley Fits Late/Current 54" Timecutter Standard, My-Ride, MAX Models.

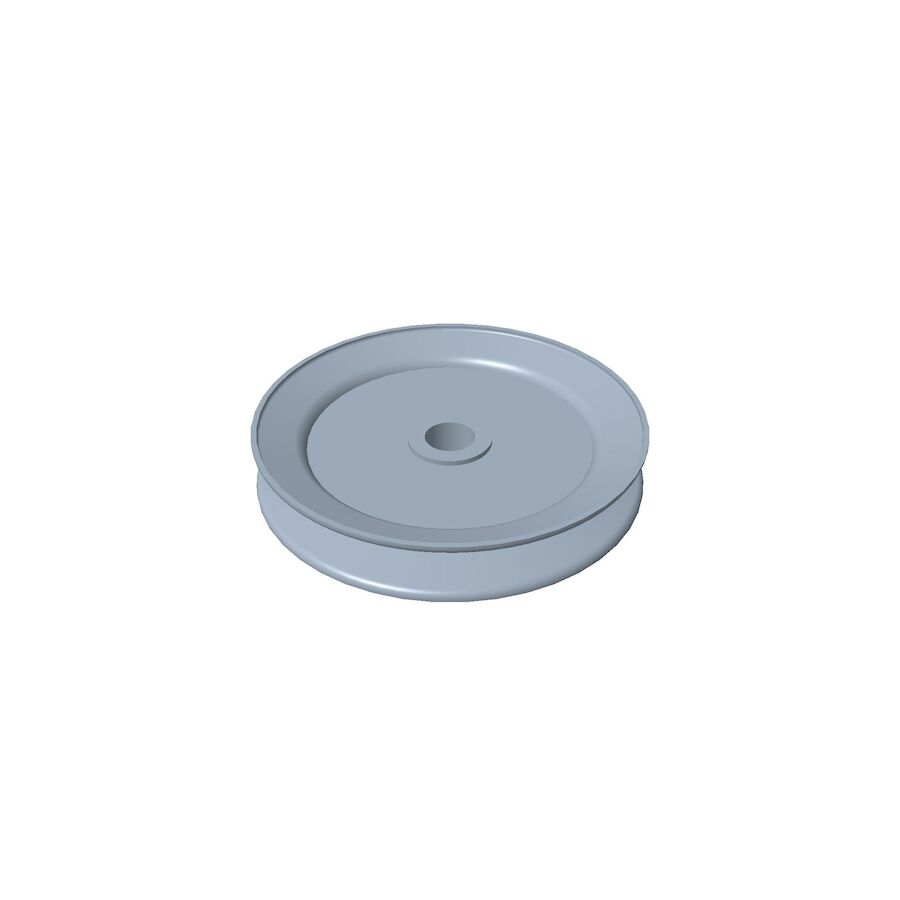

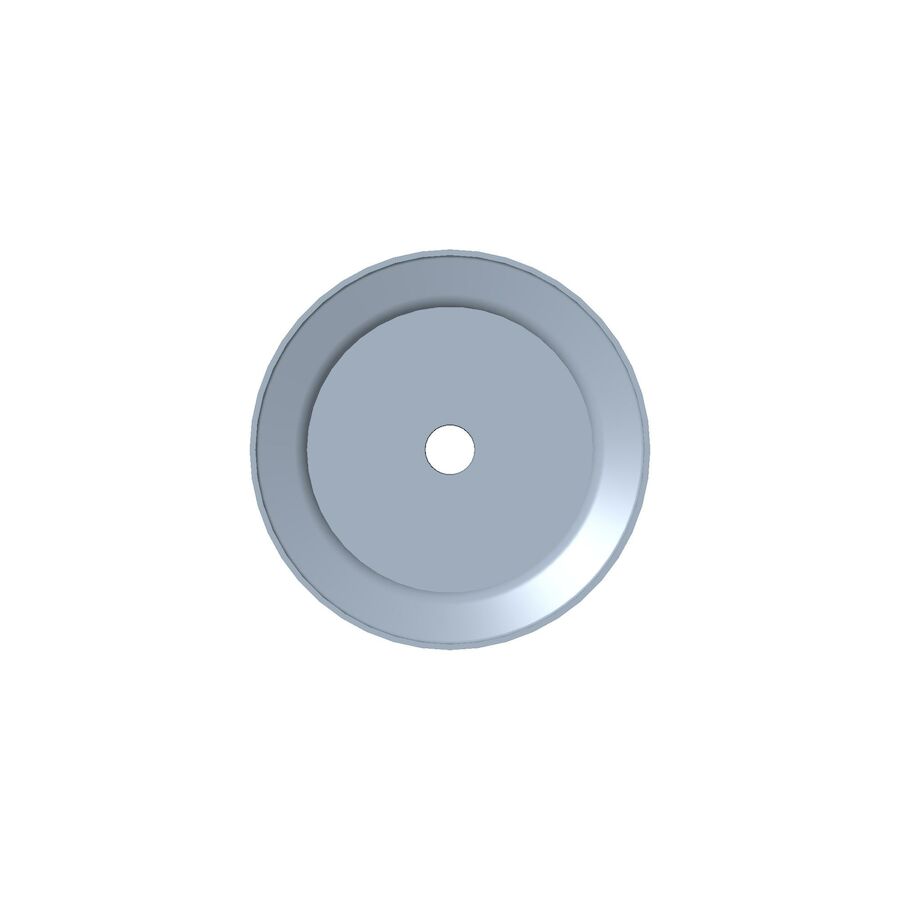

Expertly crafted from durable metal, the Toro OEM 138 7261 Spindle Assembly Pulley is designed for precision and efficiency. Specifically made to fit Toro Spindle Assemblies on all Toro Current/Late 54" Timecutter Standard, MyRide and MAX Models (Mower Models That use 138-7261 Will Range Between Series with Cast Aluminum Axles and Timecutter MAX Models). The Toro high-quality 138-7261 pulley ensures accurate blade speed for optimal performance. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.







NOTE: To Gain a better understanding of part number variations for Timecutter Models Refer to the 54" Spindle Pulley Chart below. The chart also includes Models/Series not listed within the Timecutter Model/Series to clarify their corresponding part numbers.

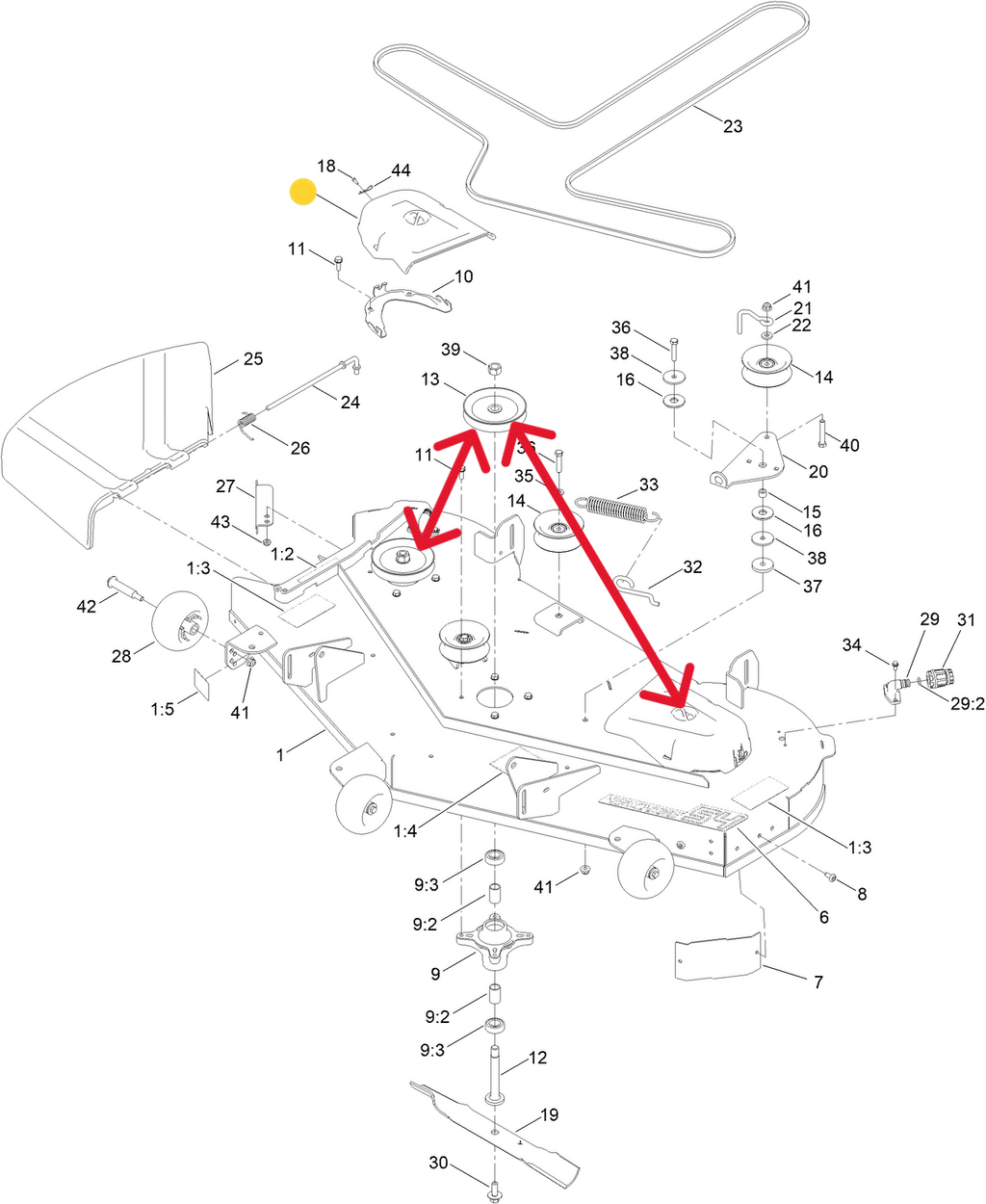

ASSOCIATED MOWER DECK SPINDLE ASSEMBLY FOR PART NUMBER 138-7261

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

* TIMECUTTER MODELS ONLY



133-1199 - SPINDLE ASSEMBLY - REQUIRES THREE PER MOWER DECK







Specification

Product Number:	1387261
Brand:	Toro
Length:	5.125 IN (13.018 CM)
Width:	5.125 IN (13.018 CM)
Height:	1.000 IN (2.540 CM)
Weight:	1.132 LB (0.513 KG)





Model Fit:





1.      Timecutter MAX Series - Current Models Only (* Model Numbers 77504,77503, 77506,77507)

2.      Timecutter (Standard) and My-Ride Series (* with cast aluminum axle) - Late Models (* Model Numbers 75754, 75757, 75756)
