Toro OEM 138-7239 Mower Deck Rear Lift Arm Fits Toro Late/Early 50" Timecutter MX, SS, SW, SWX, ZS - Late/Early 54" Timecutter SS, SW - Early 60" Timecutter MX Models.

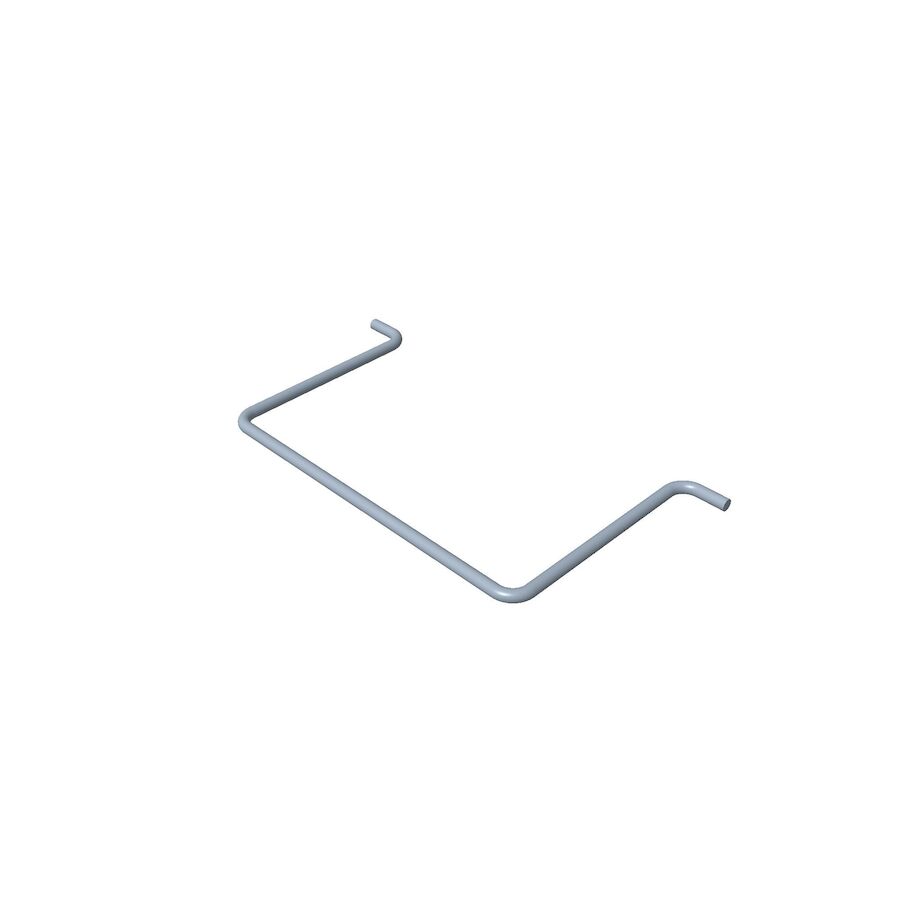

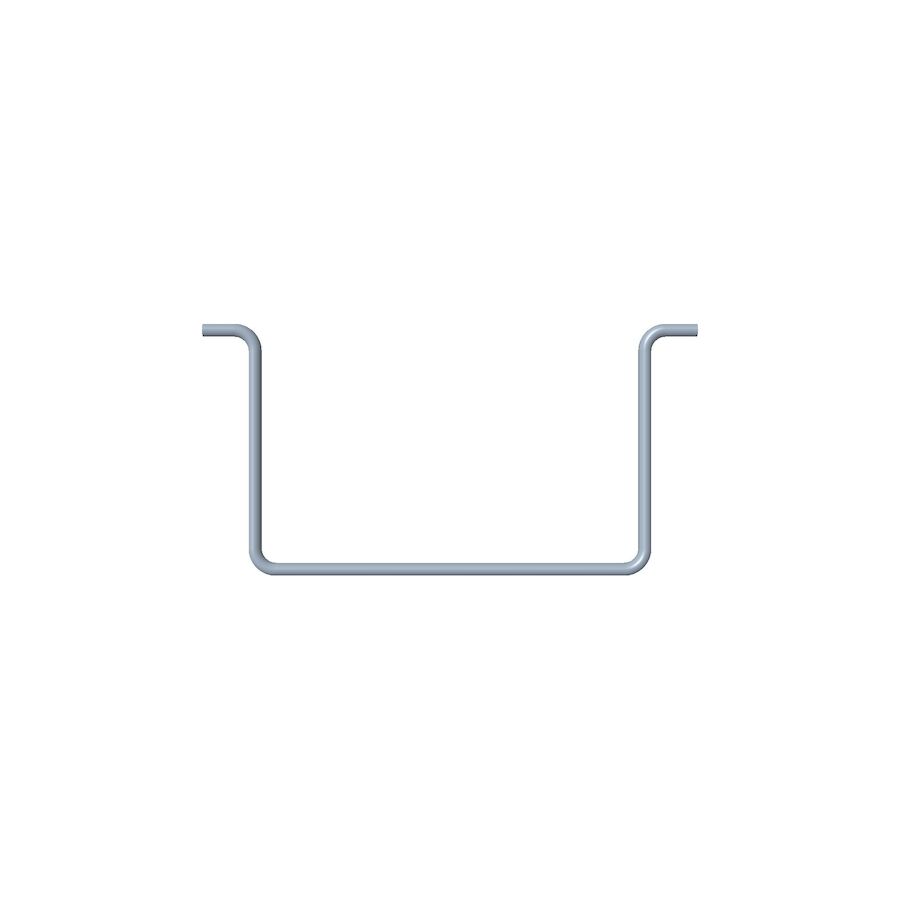

The Toro OEM 138-7239 Mower Deck Rear Lift Arm serves dual functions: supporting the mower deck and facilitating elevation adjustments. This component features a specialized design that enables straightforward connection and disconnection via the hooks on mower deck brackets, simplifying removal and reinstallation procedures. The arm's pivoting capability allows the deck to float freely over uneven terrain, while providing precise height control during operation. Due to continuous friction from deck movement, this part may experience natural wear and may require periodic replacement to maintain optimal performance. 138-7239 is specifically Designed for Toro Early/Late 50" (MX, SS, SW, SWX, ZS), 54" (SS, SW) and 60" (MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 119-3347 Supersede to Part Number 138-7239.

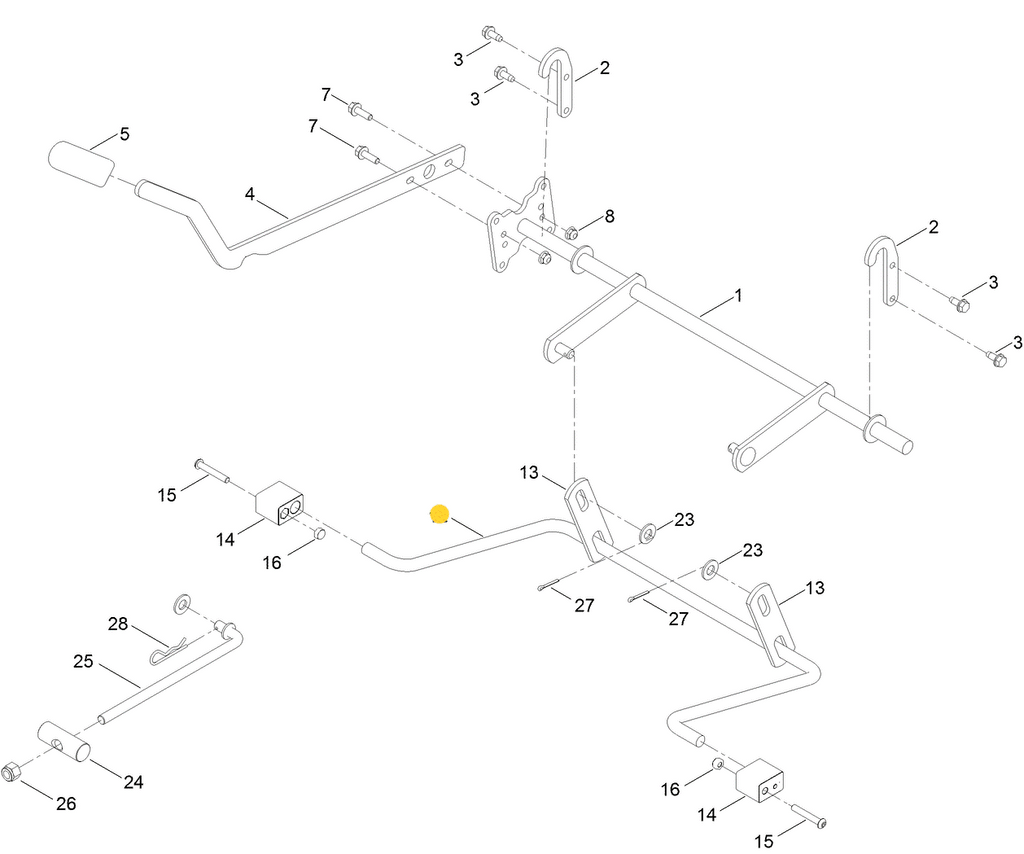

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7239 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7235 - DECK LIFT LINK (Deck Lift Links Retain Mower Deck Lift Arm)
2. 108-7845 - PIVOT BLOCK (Pivot Block Retains and Allows Mower Deck Lift Arm Pivot)







Specification

Product Number:	1193347, 1387239
Brand:	Toro
Length:	24.000 IN (60.960 CM)
Width:	12.000 IN (30.480 CM)
Height:	0.750 IN (1.905 CM)
Weight:	3.910 LB (1.774 KG)





Model Fit



TIMECUTTER 50” ZS 5000 Series - Model Numbers - 74688



TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776





TIMECUTTER 50” ZS Series – Model Numbers – 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
