Description

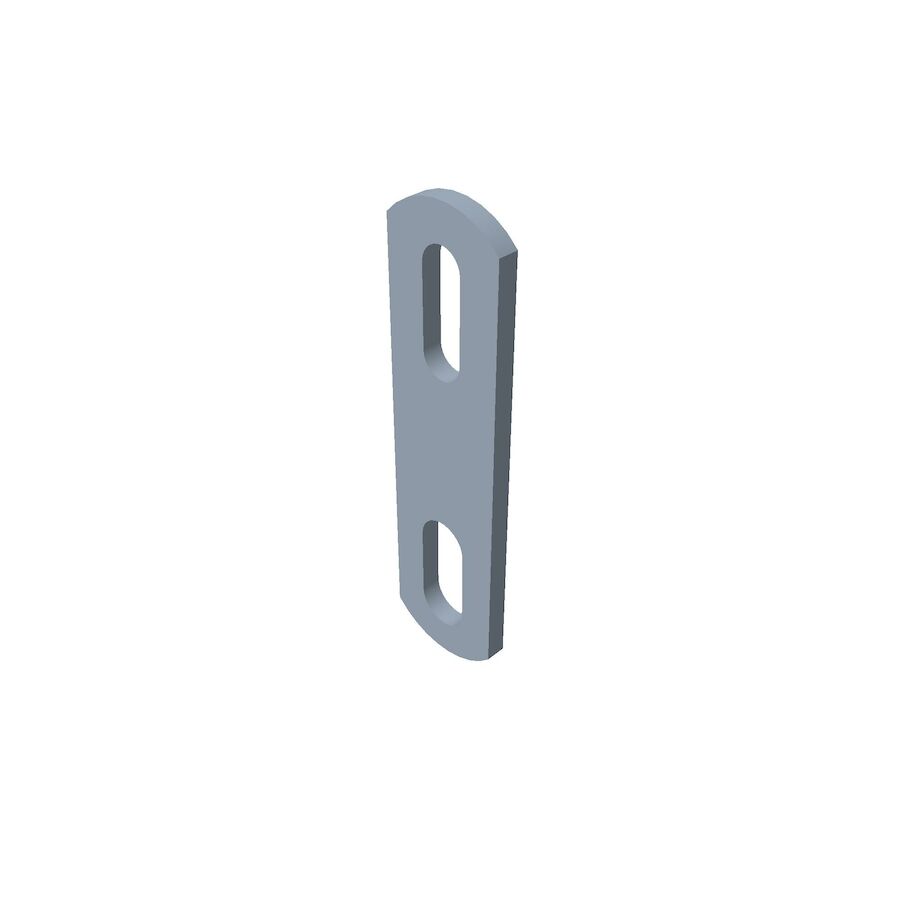

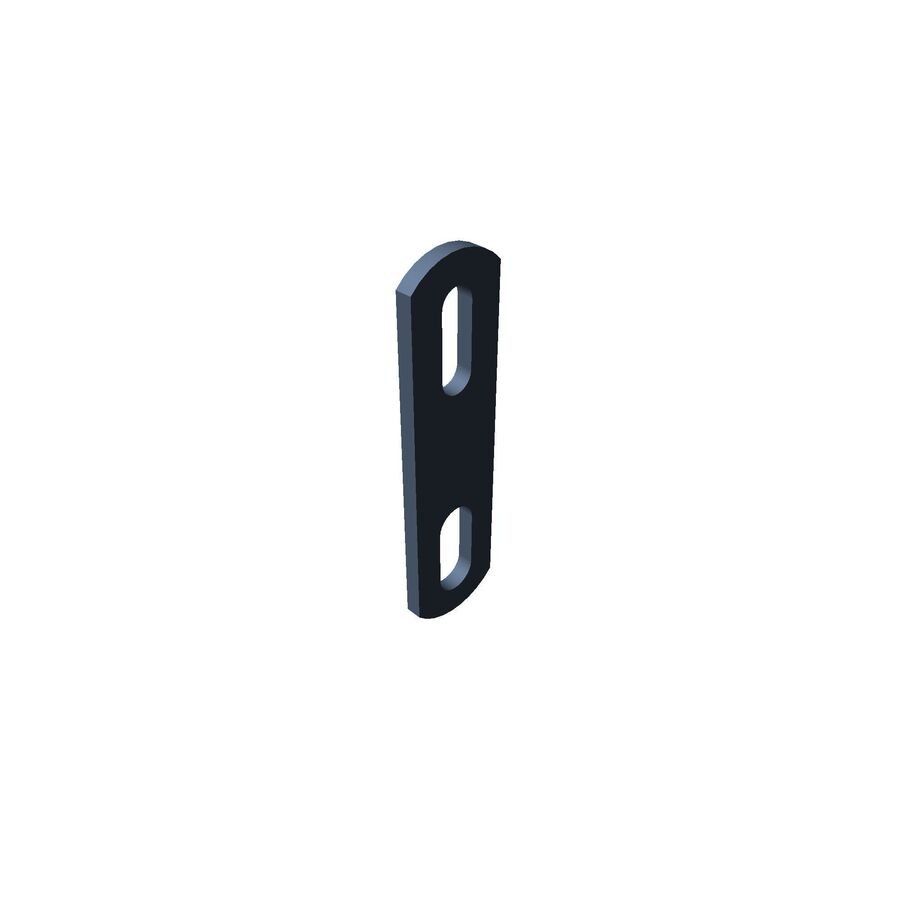

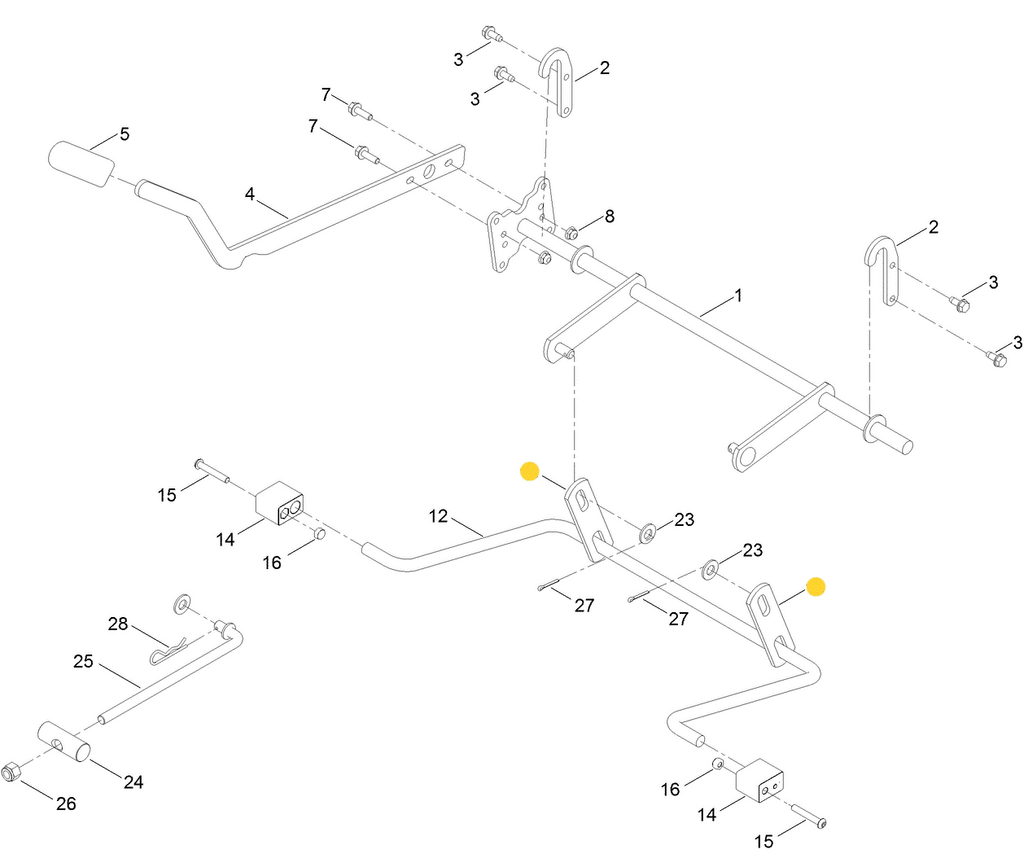

Toro OEM 138 7235 Lift Linkage is the Link that Connects the Mower Deck Rear Lift Arm and the Mower Deck Lift Leverage Bar (Travels across the Frame of the Mower and Attaches to the Lift Handle) Toro Oem Lift Links are use on Toro Timecutter Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, SWX, Z, ZS), 50" (MX, SS, SW, SWX, Z, ZS), 54" (SS, SW) and 60" (MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 108-7840 Supersede to Part Number 138-7235.
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7235 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 138-7234 - MOWER DECK REAR LIFT ARM - (Fits select 32", 34", 42", 50" Timecutter Models - Attaches to Mower Deck and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1
- 138-7239 - MOWER DECK REAR LIFT ARM - (Fits select 50", 54", 60" Timecutter Models - Attaches to Mower Deck and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1
- 132-6872-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 32", 34", 42" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1
- 132-6878-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 50", 54" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1
- 133-7010-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits Only 60" Timecutter Model 74777 - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1
- 139-2611 - FLAT WASHER - (Supports Cotter Pin Fastener) x2
- 139-2614 - COTTER PIN - (Retains Lift Linkage) x2
Specification
|
Product Number: |
1087840, 1387235 |
|
Brand: |
Toro |
|
Length: |
5.700 IN (14.478 CM) |
|
Width: |
1.500 IN (3.810 CM) |
|
Height: |
0.250 IN (0.635 CM) |
|
Weight: |
0.476 LB (0.216 KG) |
Model Fit:
TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650
TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710
TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781
TIMECUTTER 34” MX Series – Model Numbers – 74750
TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766
TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788
TIMECUTTER 42” SWX Series – Model Numbers – 74787
TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398
TIMECUTTER 50” ZS 5000 Series - Model Numbers - 74688
TIMECUTTER 50” ZS Series – Model Numbers – 74660, 74661, 74395, 74387
TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776
TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732
TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790
TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795
TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741
TIMECUTTER 54” SW Series – Model Numbers – 74793
TIMECUTTER 60” MX Series – Model Numbers – 74777
G4000 Series (MOWER DECK)– Model Numbers - 94360, 94370, 94372, 94375, 725058056, 725058066, 725058086, 725058046
