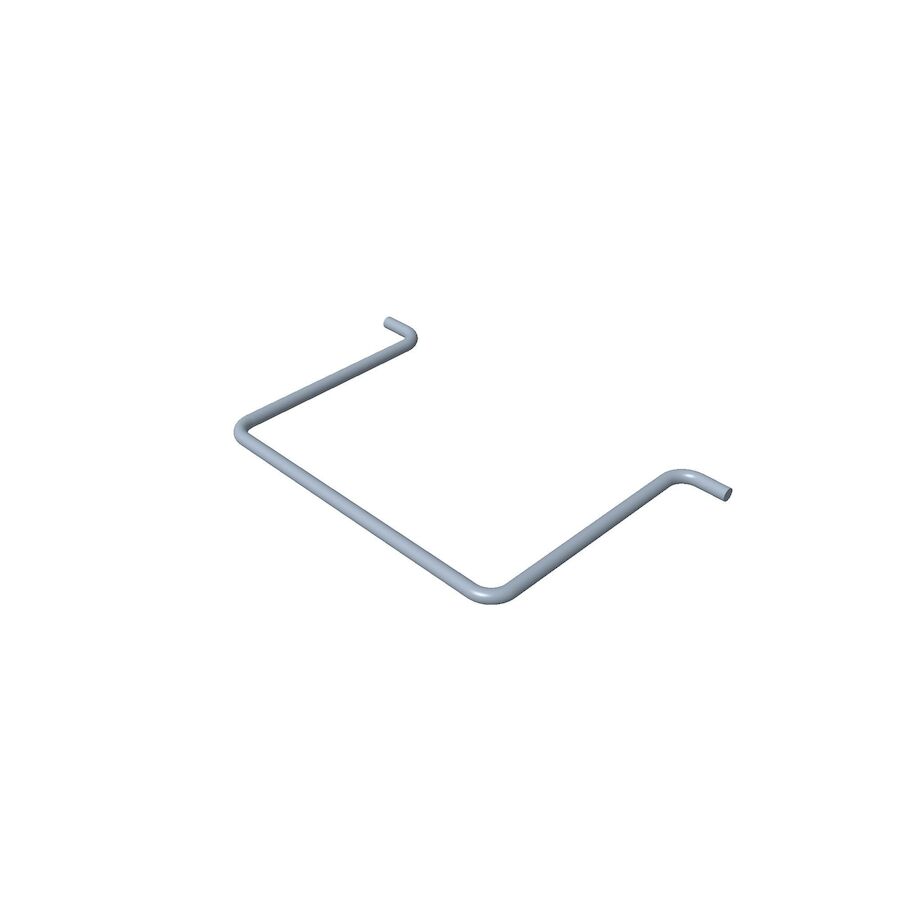

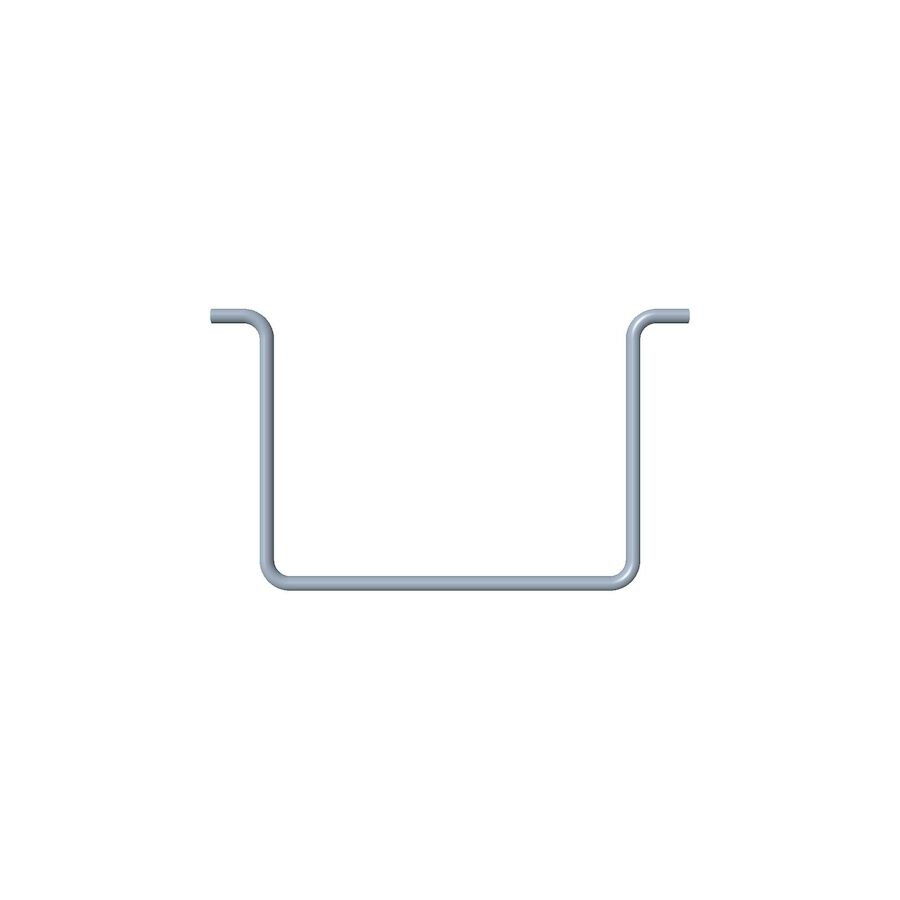

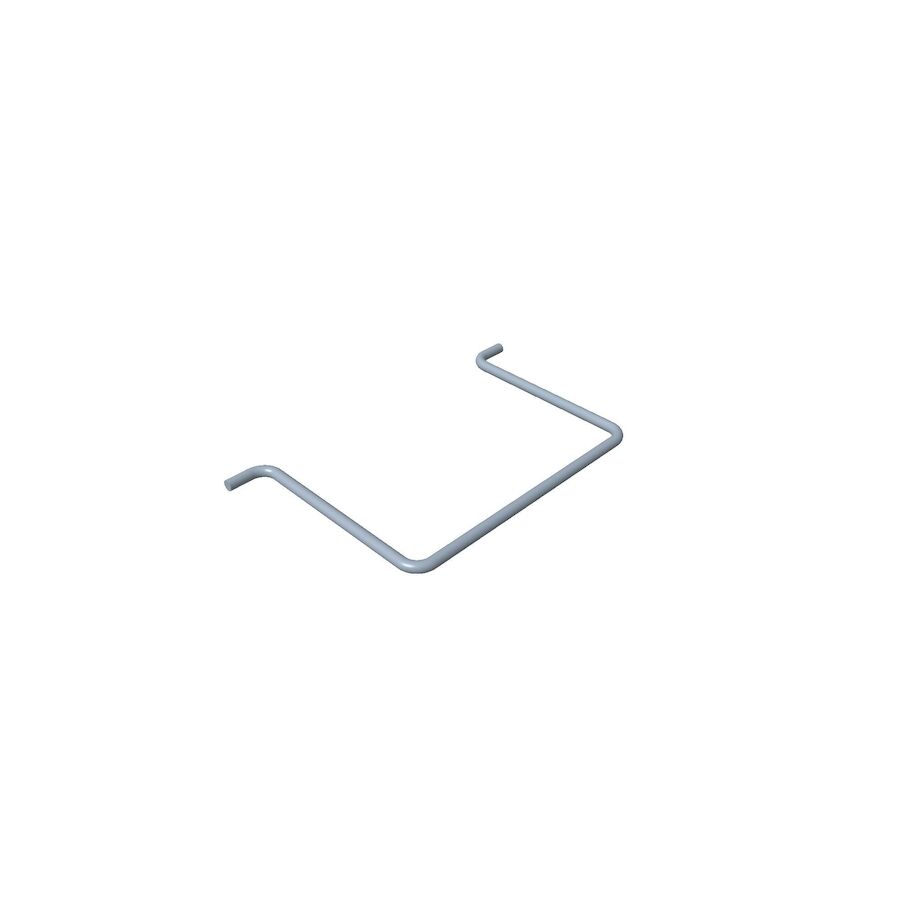

Toro OEM 138-7234 Mower Deck Rear Lift Arm Fits Toro Early 50" Timecutter Z - Late/Early 42" Timecutter MX, SS, SW, SWX, Z, ZS - Late/Early 34" Timecutter MX - Late/Early 32" Timecutter SS, SW, ZS Models.

The Toro OEM 138-7234 Mower Deck Rear Lift Arm serves dual functions: supporting the mower deck and facilitating elevation adjustments. This component features a specialized design that enables straightforward connection and disconnection via the hooks on mower deck brackets, simplifying removal and reinstallation procedures. The arm's pivoting capability allows the deck to float freely over uneven terrain, while providing precise height control during operation. Due to continuous friction from deck movement, this part may experience natural wear and may require periodic replacement to maintain optimal performance. 138-7234 is specifically Designed for Toro Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, SWX, Z, ZS) and 50" (Z) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 108-7839 Supersede to Part Number 138-7234.

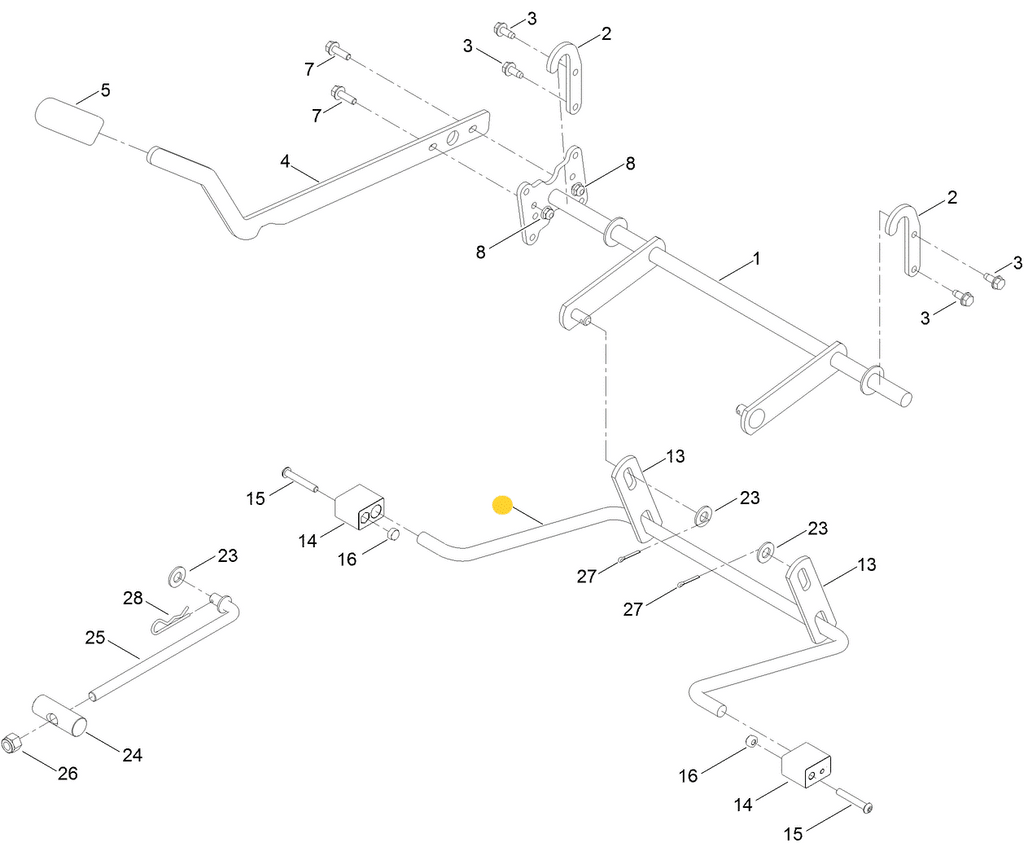

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7234 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7235 - DECK LIFT LINK (Deck Lift Links Retain Mower Deck Lift Arm)
2. 108-7845 - PIVOT BLOCK (Pivot Block Retains and Allows Mower Deck Lift Arm Pivot)







Specification

Product Number:	1087839, 1387234
Brand:	Toro
Length:	20.500 IN (52.070 CM)
Width:	12.000 IN (30.480 CM)
Height:	0.630 IN (1.600 CM)
Weight:	3.791 LB (1.720 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766



TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398





G4000 Series (MOWER DECK)– Model Numbers - 94360, 94370, 94372, 94375, 725058056, 725058066, 725058086, 725058046
