Toro OEM 138-7233 Retaining Lift Bracket Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, SWX, Z, ZS - 50" MX, SS, SW, SWX, Z, ZS - 54" SS, SW Models.

Toro

Price:
Sale price$5.39

Pickup available, Usually ready in 24 hours

Description

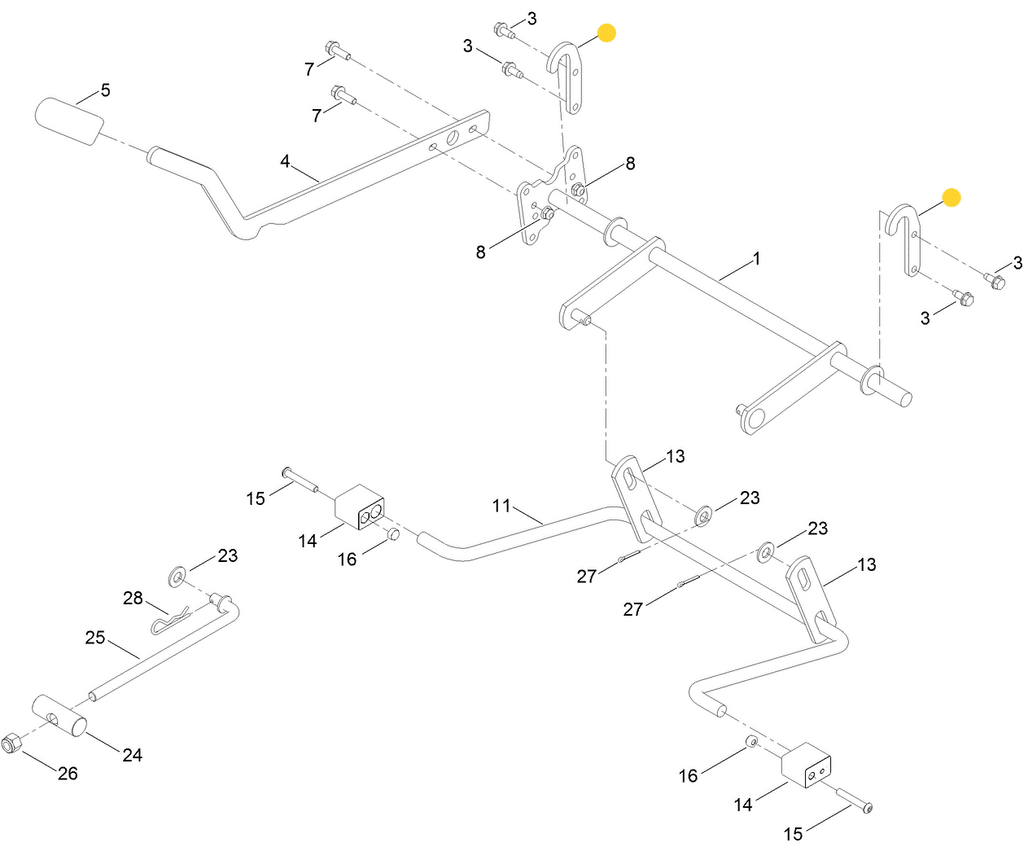

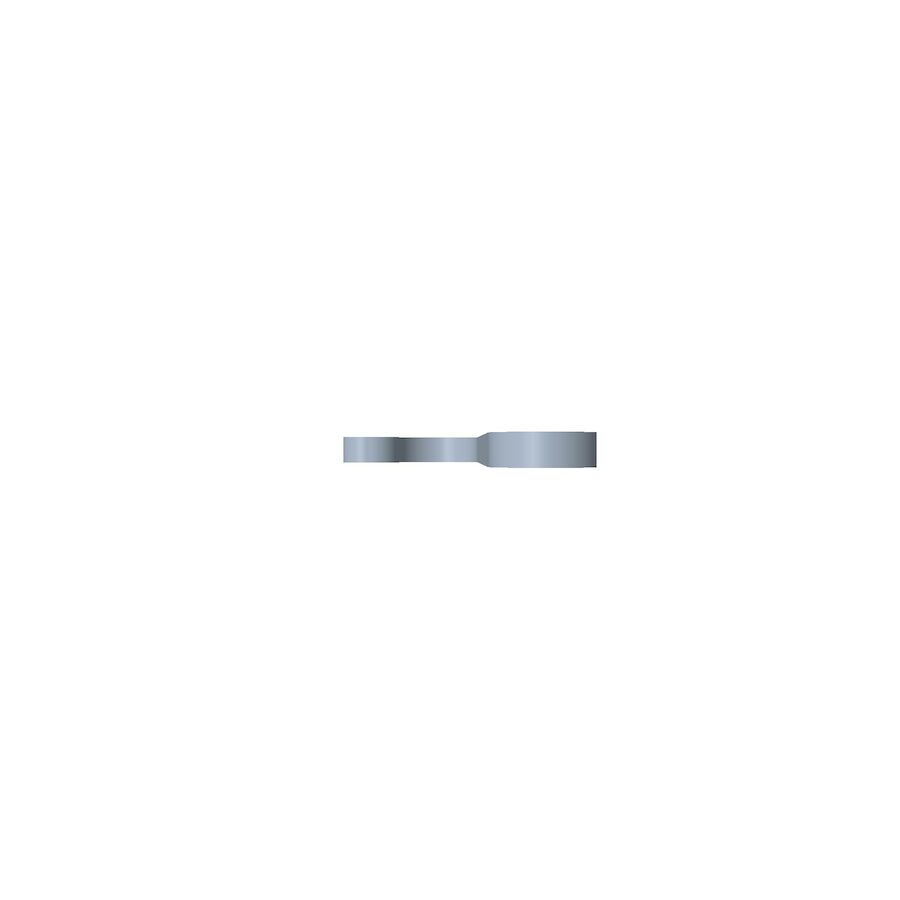

Toro OEM 138 7233 Retaining Lift Bracket Is Designed to Serve the Purpose of Retaining the Mower Deck Lift/Leverage Arm to the Frame as well as Allowing it to Pivot. Toro 138 7233 Is Designed for Late/Early Select Toro 32" (SW, SS, ZS), 34" (MX), 42" (SW, SWX, SS, ZS, MX), 50" (MX, SS, SW, SWX, Z, ZS), 54" (SS, SW) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 119-8875 Supersede to Part Number 138-7233.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7233 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 32144-70 - WASHER HEAD BOLT - (Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets) x2 Per Bracket
  2. 132-6872-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 32", 34", 42" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
  3. 132-6878-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 50", 54" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit







Specification

Product Number:

1198875, 1387233

Brand:

Toro

Length:



4.375 IN (11.113 CM)

Width:



2.125 IN (5.398 CM)

Height:



0.250 IN (0.635 CM)

Weight:



0.261 LB (0.118 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793
