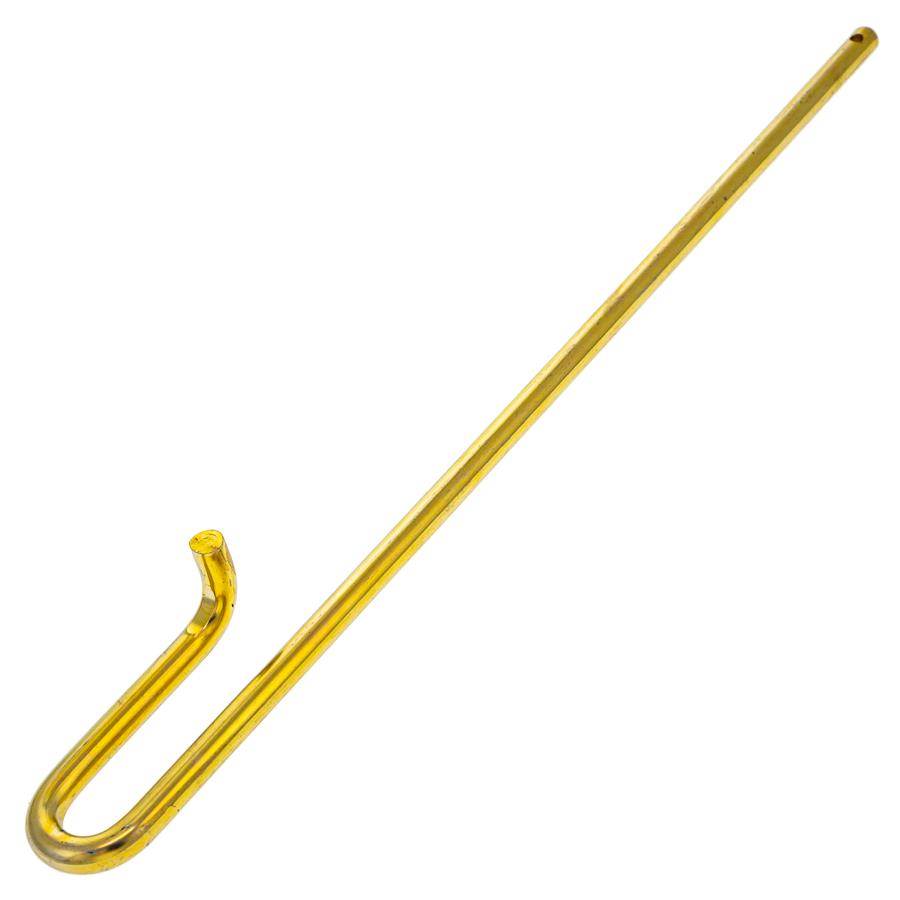

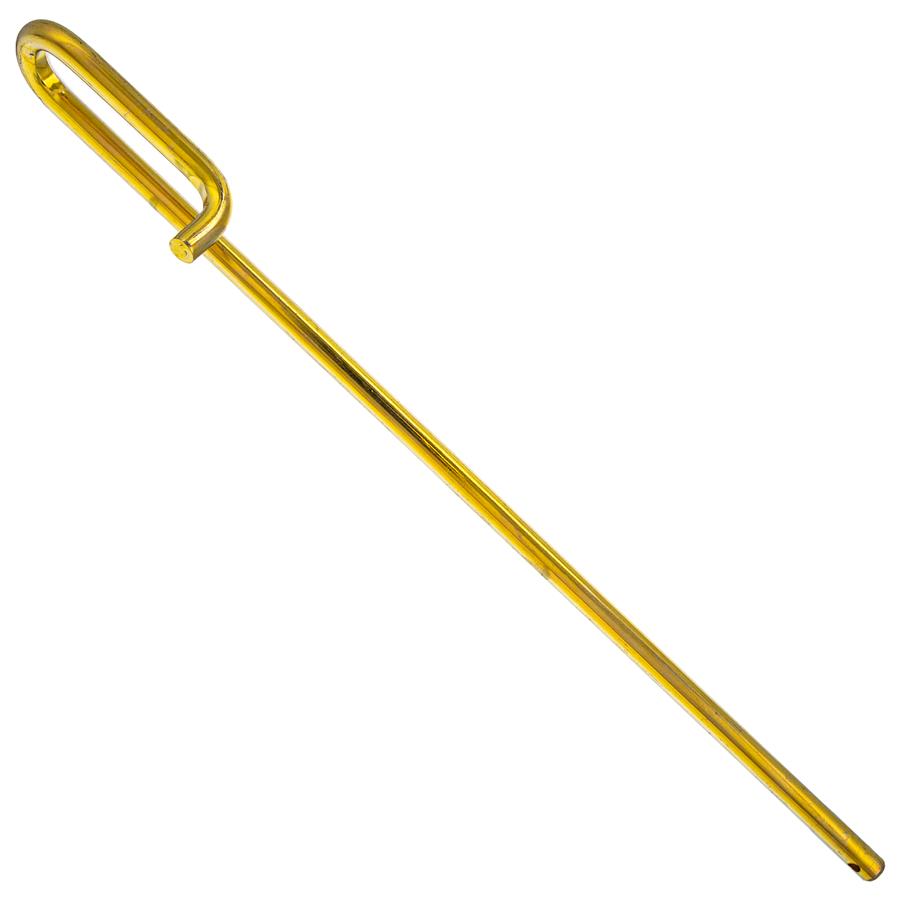

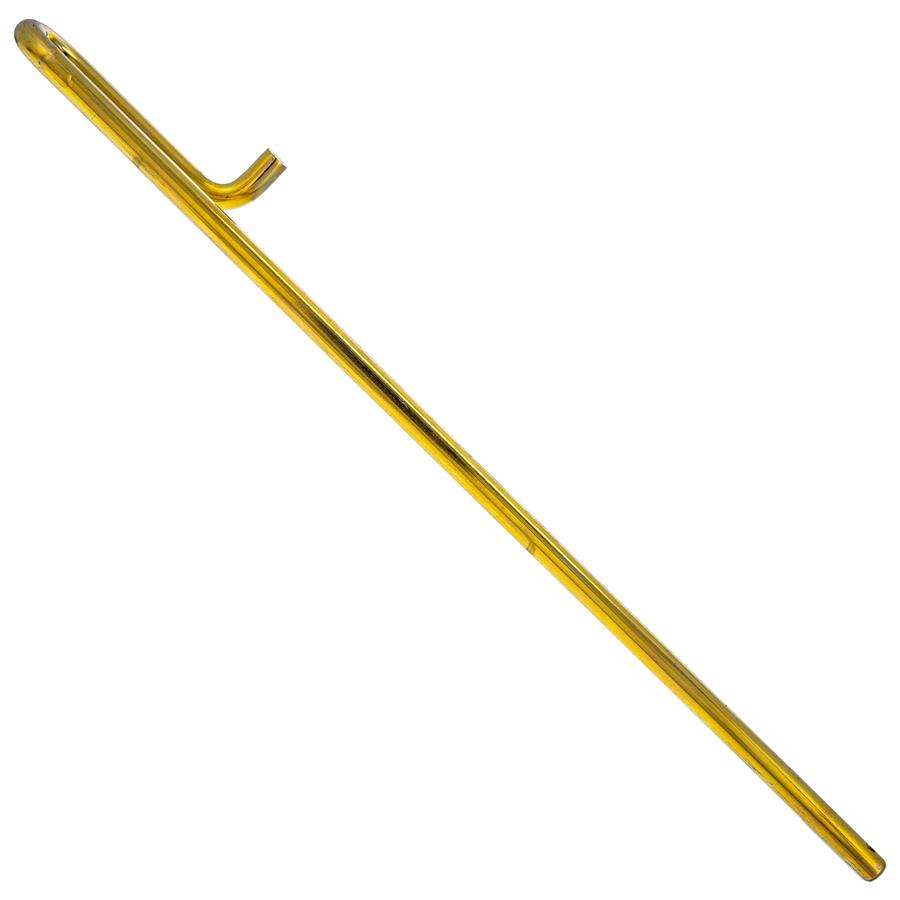

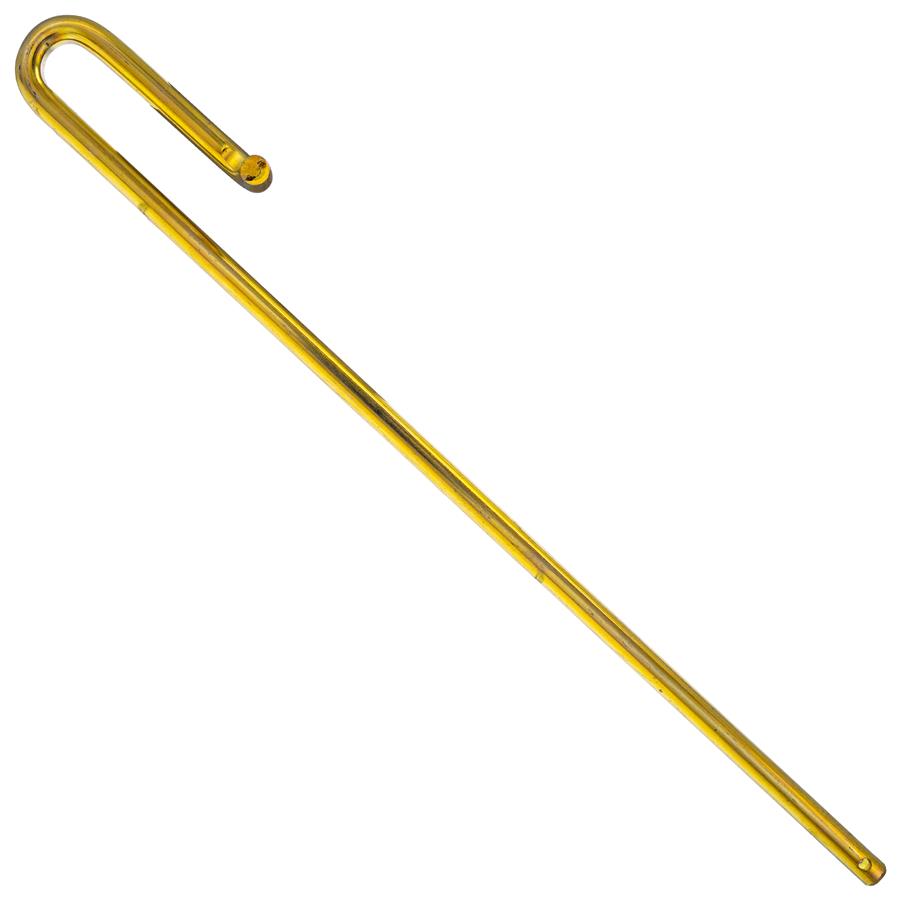

Toro OEM 138-7231 Discharge Chute Pivot Rod Fits Fits Late Timecutter HD Models - Late/Current 34" Timecutter Models - Late/Current 36", 48", 54", 60" PROLINE Models - Late/Current 48", 54", 60", TITAN and TITAN MAX Models.

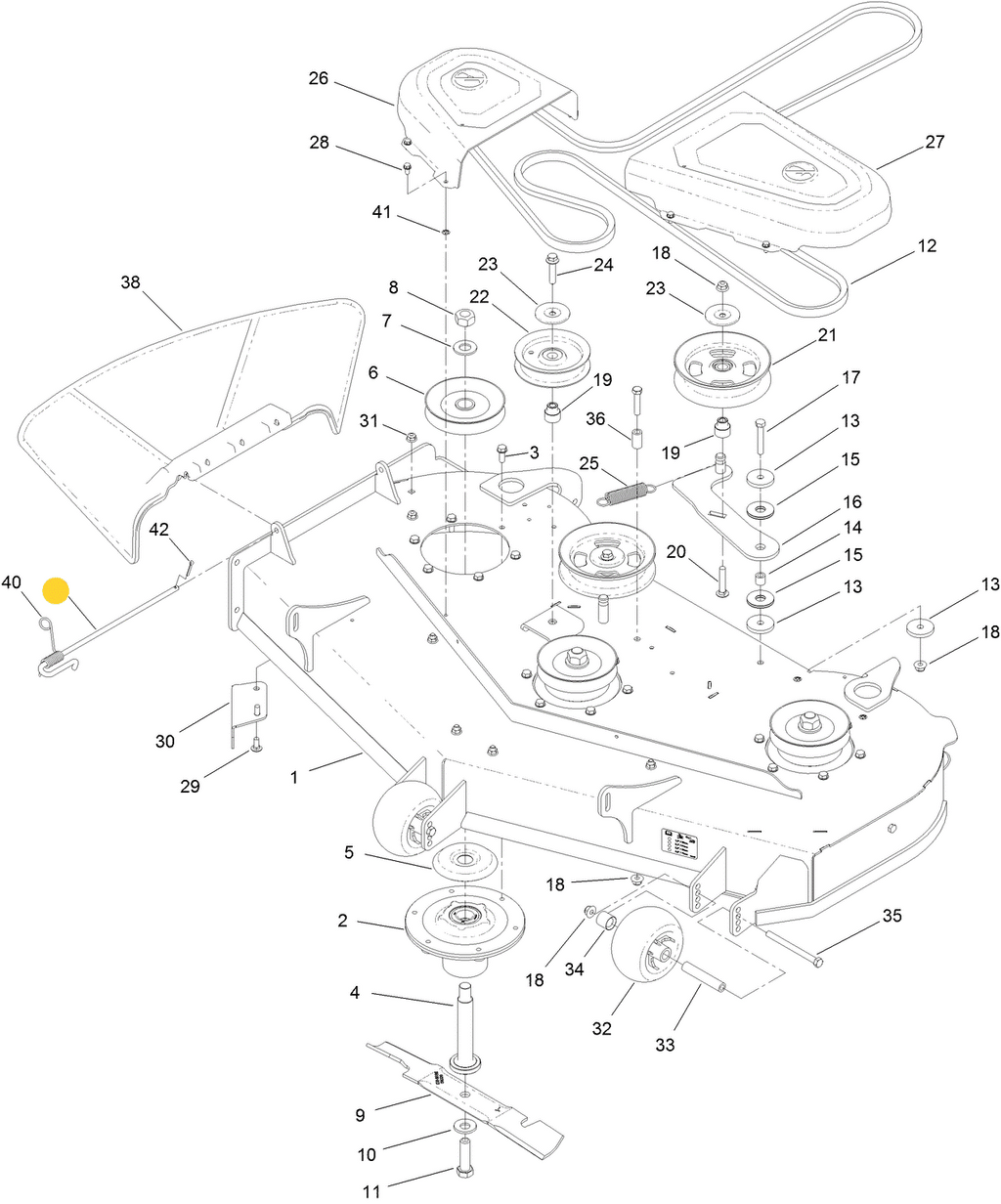

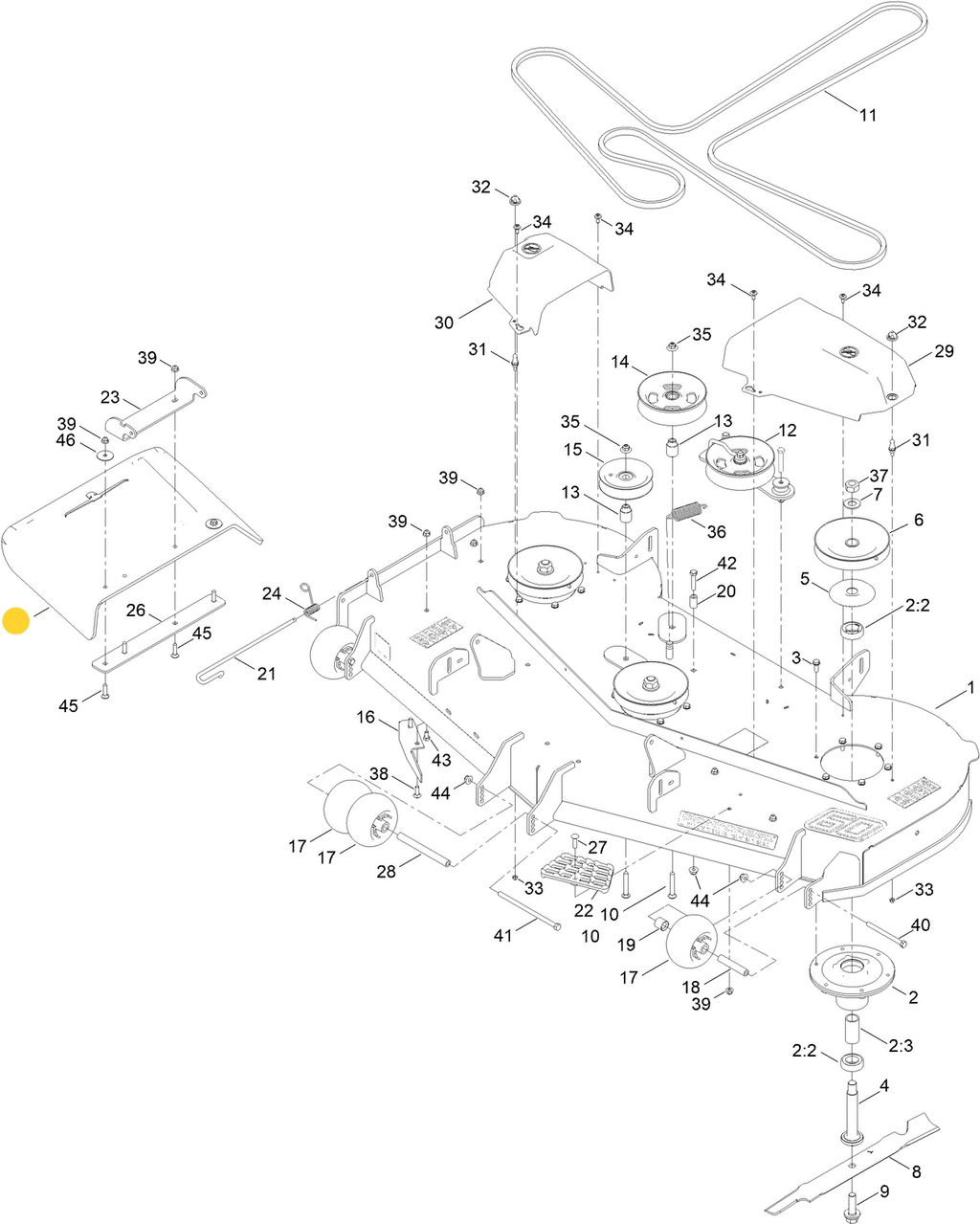

Toro OEM 138 7231 Discharge Chute Pivot Pin is Designed for Toro Discharge Chute. 138 7231 is the Rod that allows You to Fasten your Discharge Chute, Retain the Torsion Spring that Keeps Constant Downward Pressure - as well as do what it Sounds like it should (Allow you to Pivot Your Discharge Chute Up and Down). 138-7231 is Factory Designed and Made to Fit Toro Late Timecutter HD Models - Late/Current 34" Timecutter Models - Late/Current 48", 54", and 60" TITAN and TITAN MAX Models - Late/Current 36", 48", 54", 60", PROLINE Models. For an Accurate Model/Series Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7231 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-2614 - COTTER PIN (Retains Deck Pivot Rod)
2. 138-7232 - TORSION SPRING (Attaches over Pivot Rod)
3. 140-3548 - DISCHARGE CHUTE (Select Late/Current 34" Timecutter Models - Review Part Number Model Fit Chart to Ensure Correct Fit)
4. 121-0739 - DISCHARGE CHUTE (Late 34" MX Timecutter Models - Review Part Number Model Fit Chart to Ensure Correct Fit)
5. 133-1212 - DISCHARGE CHUTE (Late 60" MX - 48", 54", 60" HD Timecutter - Select Late/Current (Standard) PROLINE Models - Models Review Part Number Model Fit Chart to Ensure Correct Fit)
6. 117-1270 - DISCHARGE CHUTE (Early/Late 48", 54" 60" TITAN MAX, Standard, MyRide, MX, 4800, 5400, 6000, X, XS, ZX Models and Late/Current PROLINE HDX Models - Review Part Number Model Fit Chart to Ensure Correct Fit)
7. 147-3015 - DISCHARGE CHUTE (Late/Current 48", 54", 60" TITAN Standard, My-Ride, MAX and ZXM Models - WITH I-BEAM FRAMING - Review Part Number Model Fit Chart to Ensure Correct Fit)







Specification

Product Number:	1387231
Brand:	Toro
Length:	12.800 IN (32.512 CM)
Width:	1.200 IN (3.048 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.361 LB (0.164 KG)





Model Fit:



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 48” HD Series – Model Numbers – 75210, 74886

TITAN 48” Standard, My-Ride, ZXM Series (Current Models With I-Beam Framing) Series – Model Numbers – 76401, 76411, 76420, 76425, 76448

TITAN 48” Standard, My-Ride, X, XS, 4800, ZX (Late Model – Tube Framing) Series – Model Numbers – 74874, 74875, 74887, 74890, 75301, 75304, 75311, 75314, 76420



TIMECUTTER 54” HD Series – Model Numbers – 74876, 74888

TITAN 54” Standard, My-Ride, ZXM (Current Models With I-Beam Framing) Series – Model Numbers – 76501, 76511, 76530, 76554

TITAN 54” Standard, My-Ride, X, XS, 5400 (Late Model – Tube Framing) Series – Model Numbers – 74877, 74889, 74898, 75302, 75305, 75310, 75312, 75315



TITAN 60” Standard, My-Ride, ZXM (Current Models With I-Beam Framing) Series – Model Numbers – 76604, 76605, 76614, 76635, 76660

TITAN 60” Standard, My-Ride, 6000 Series (Late Model – Tube Framing) Series – Model Numbers – 75303, 75306, 75313, 75316

TITAN 60” MAX (Current Models With I-Beam Framing) Series – Model Numbers – 76606, 76607, 76608, 76609, 76610

TITAN 60” MAX (Late Model – Tube Framing) Series – Model Numbers – 76601, 76602



PROLINE  36”, 48”, 54”, 60”, Series – Model Numbers – 44409, 44410, 44423, 44424, 44427, 44430, 44436, 44448, 44454, 44460
