Toro OEM 138-7229 Anti-Scalp Spanner Tube Fits Late Timecutter HD Models - Current Titan and Titan MAX Models - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models - Current PROLINE Models.

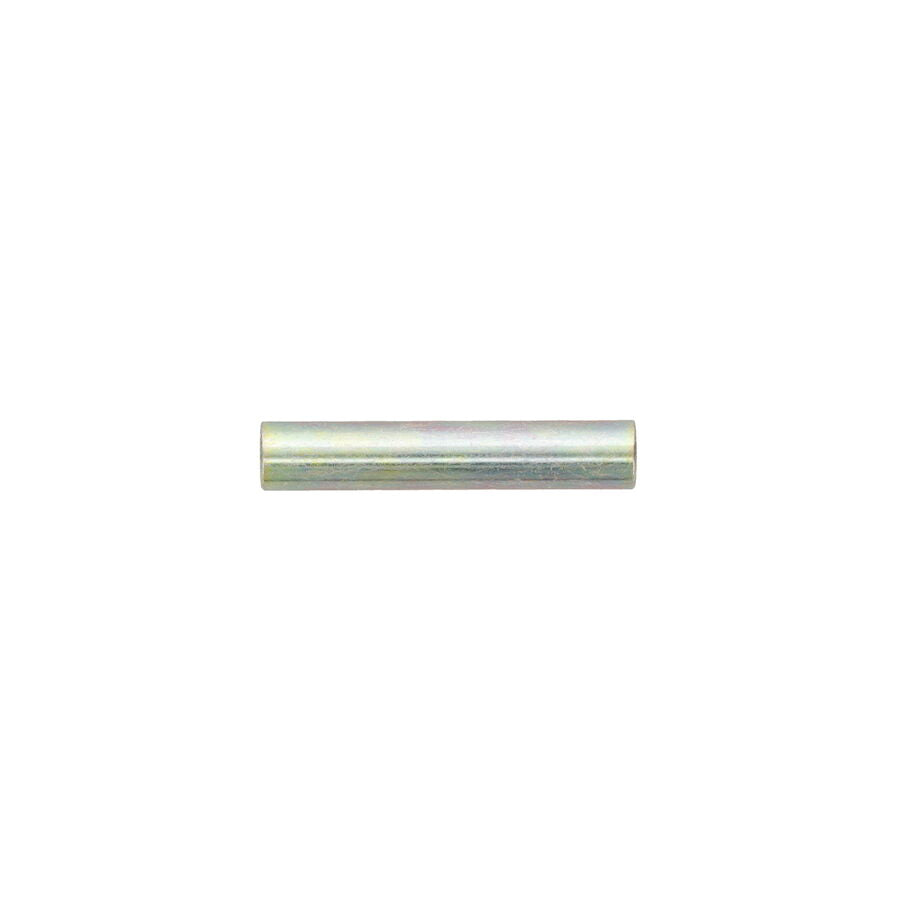

• TYPE: TORO OEM Anti-Scalp Wheel Spanner Tube
• SIZE: NA
• APPLICATIONS: Primarily Used in Anti-Scalp Wheel Application - Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel and Anti-Scalp Wheel Spacer Hindering the Anti-Scalp Wheel Rotation. Note: 138 7229 Is only used in Applications with One Anti-Scalp Wheel per Spanner Bracket.
• COMMON SERIES APPLICATIONS: Select Late Timecutter HD Models - Current TITAN Standard, My-Ride Models (Models with I-Beam Framing) - Current TITAN MAX Models (Models with I-Beam Framing) - Late TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Models with Tube Framing) - Current PROLINE Models.







*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







SERIAL NUMBER BREAK: * Models that require 138-7229 May Also Overlap in Part Requirement with Part Number 98-7912 However to Unsure a Correct Fit Review the Model Fit Chart for Each Part Number. Model Numbers That Do overlap with Part Number 98-7912 will Have Serial Number Breaks - any Serial Number 400000000 and Higher Except Model 75210 Which Would be 40431400 and Higher Refer to Part Number 138-7229 - Any Model Number with Overlapping Part Number Requirement Under Those Serial Numbers Would Require Part Number 98-7912.

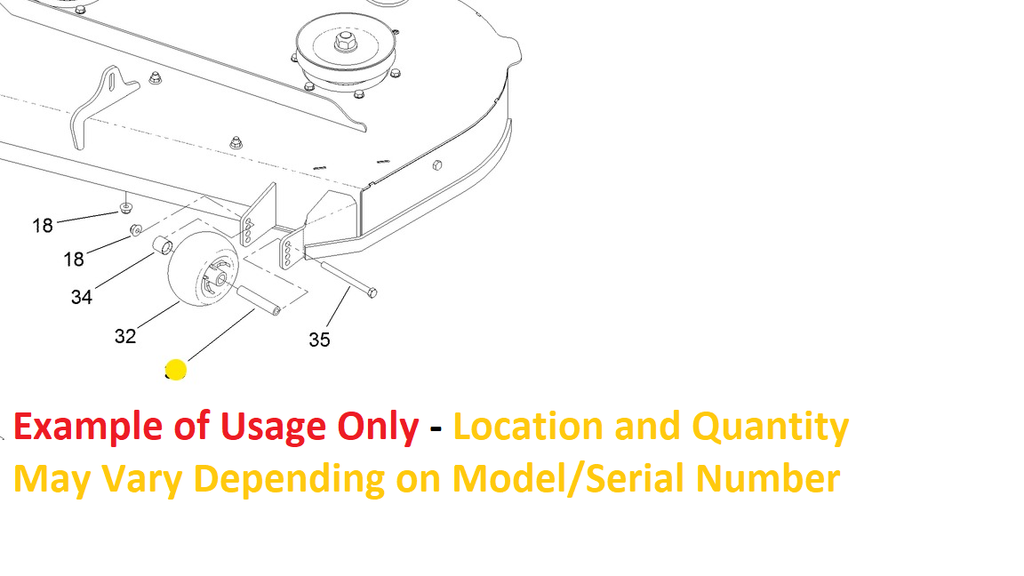

NOTE: * 138-7229 Anti-Scalp Wheel Spanner May be Used in Different Locations and in Different Quantities Per Mower, Depending on the Mower and Series Deck Size Ect. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.







ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 138-7229 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-23 or 139-2592 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel *Bolt Size is the Same - 2 Different Part Numbers for the Same Size Bolt - 139-2592 Part Number Used on Current I-Beam Titan Models
2. 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
3. 104-0892 - ANTI-SCALP WHEEL SPACER (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel
4. 138-7229 - ANTI-SCALP WHEEL SPANNER TUBE (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel
5. 104-8301 or 119-4042 - FLANGE LOCK NUT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel *Nut Size is the Same - 2 Different Part Numbers for the Same Size Nut - 119-4042 Part Number Used on Current I-Beam Titan Models







Product Number:

1387229





Model Fit:



TIMECUTTER



TIMECUTTER 48” HD Series – Model Numbers – (* Model Numbers 74886, 75210)



TIMECUTTER 54” HD Series – Model Numbers – (* Model Numbers 74876, 74888)





TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)

60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)





PROLINE



48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)



54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)



60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
