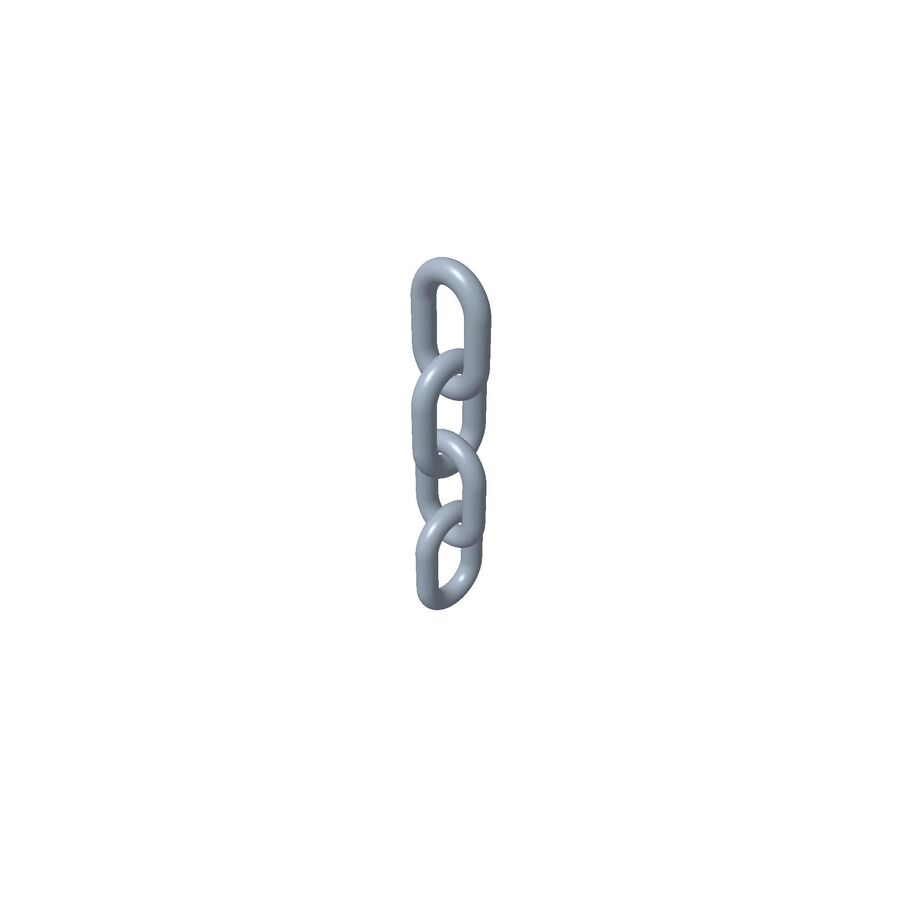

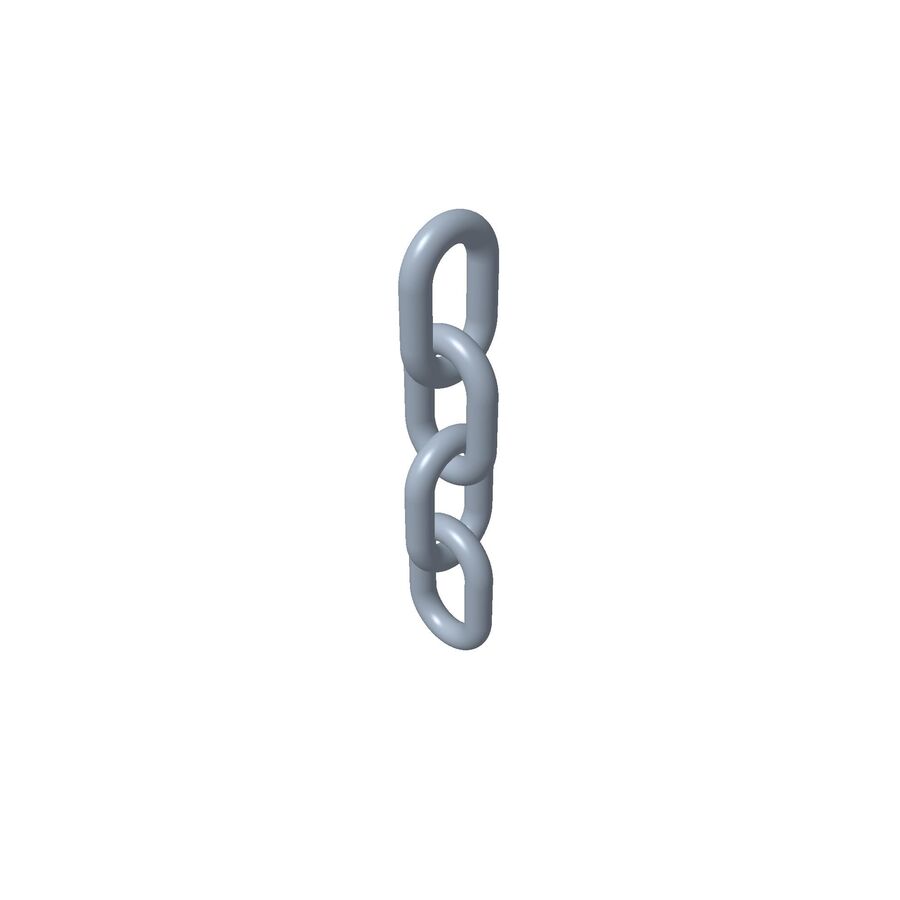

Toro OEM 138-7205 Mower Deck Lift Link Chain Fits Toro Current Timecutter MAX - Select Late Timecutter HD - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride (Tube Framing) - Current PROLINE Models.

Toro OEM 138 7205 Mower Deck Lift Chain Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck. 138 7205 Lift Link Chains Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the Hook on the Pivot Lift Arm. Toro OEM 138-7205 Mower Deck Lift Chains Enable the Mower Deck to Free Float (with the Help of the Anti Scalp wheels) while Traversing Rough Terrain as well as allowing more Forgiveness if the Mower Deck Was to Come into Come Contact with any Obstruction. Toro OEM 138-7205 Fits Toro Current Timecutter MAX Models - Select Late Timecutter HD Models - Late TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Models with Tube Framing) - Current Proline Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

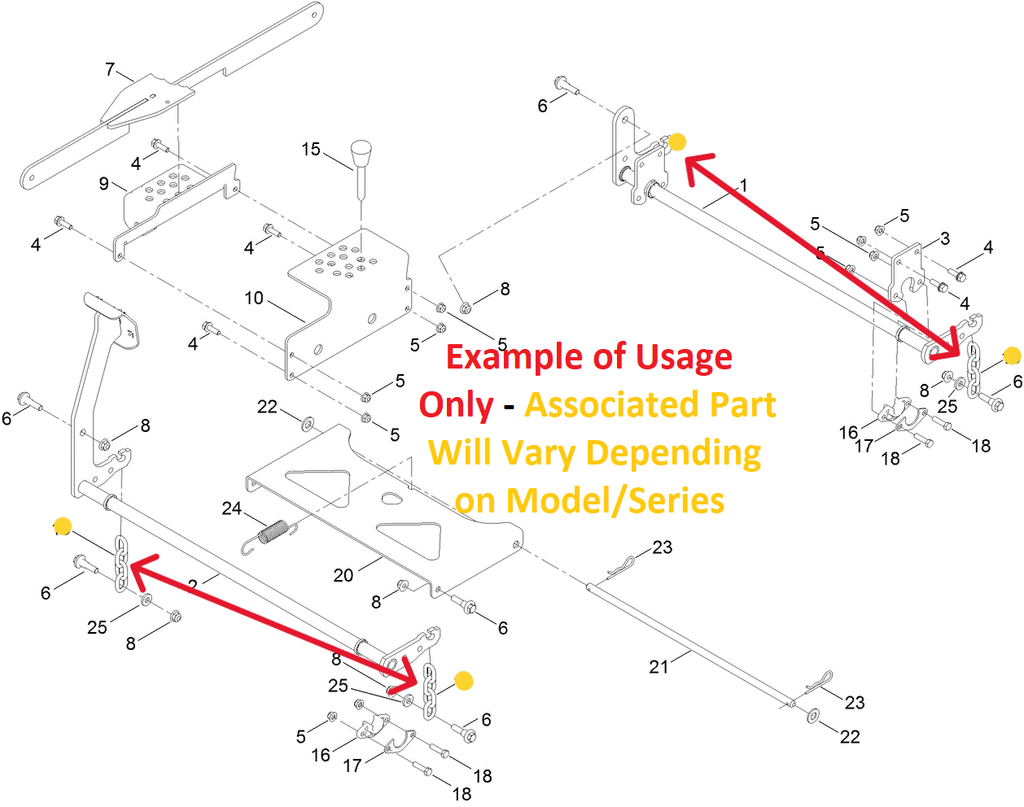

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7205 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





TITAN, TIMECUTTER MAX, TIMECUTTER HD & PROLINE MODELS ONLY



1. 138-7205 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the The Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
2. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck as well as Retaining the Height of Cut Link to the Front Mower Deck Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link Chain
3. 138-7207 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
4. 104-8301 or 119-4042 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain *Same Size Flange Lock Nut with Two Different Part Number - 119-4042 Used on TIMECUTTER MAX Models.





PIVOT ARMS - (Standard Red) TIMECUTTER MAX MODELS ONLY



1. 145-4645-01 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT & REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x2 Per Unit





PIVOT ARMS - (Havoc Black) TIMECUTTER MAX MODELS ONLY



1. 145-4645-05 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT & REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x2 Per Unit





PIVOT ARMS - TIMECUTTER HD & TITAN MODELS ONLY



1. 133-4430-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 137-2020-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit





PIVOT ARMS - 48", 54", 60" PROLINE MODELS ONLY



1. 138-6869 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Mower Deck Lift Handle) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 138-5861 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit





PIVOT ARMS - 36" PROLINE MODELS ONLY



1. 138-6868 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Mower Deck Lift Handle) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 138-5864 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit







Specification

Product Number:	1387205
Brand:	Toro
Length:	4.000 IN (10.160 CM)
Width:	1.000 IN (2.540 CM)
Height:	0.500 IN (1.270 CM)
Weight:	0.218 LB (0.099 KG)





Model Fit:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



TIMECUTTER HD



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74886, 75210)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74876, 74888)



TITAN



48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)



54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)



PROLINE



36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)



48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)



54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)



60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
