ToroSKU: 1387204
Price:
$2.39

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

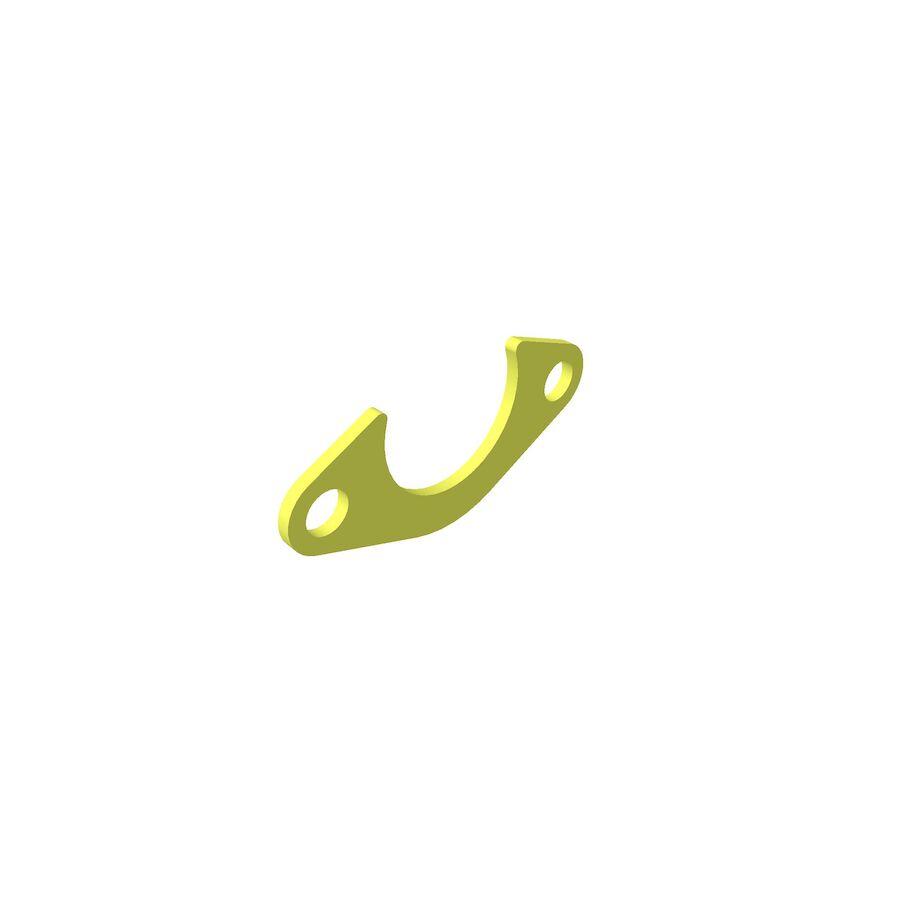

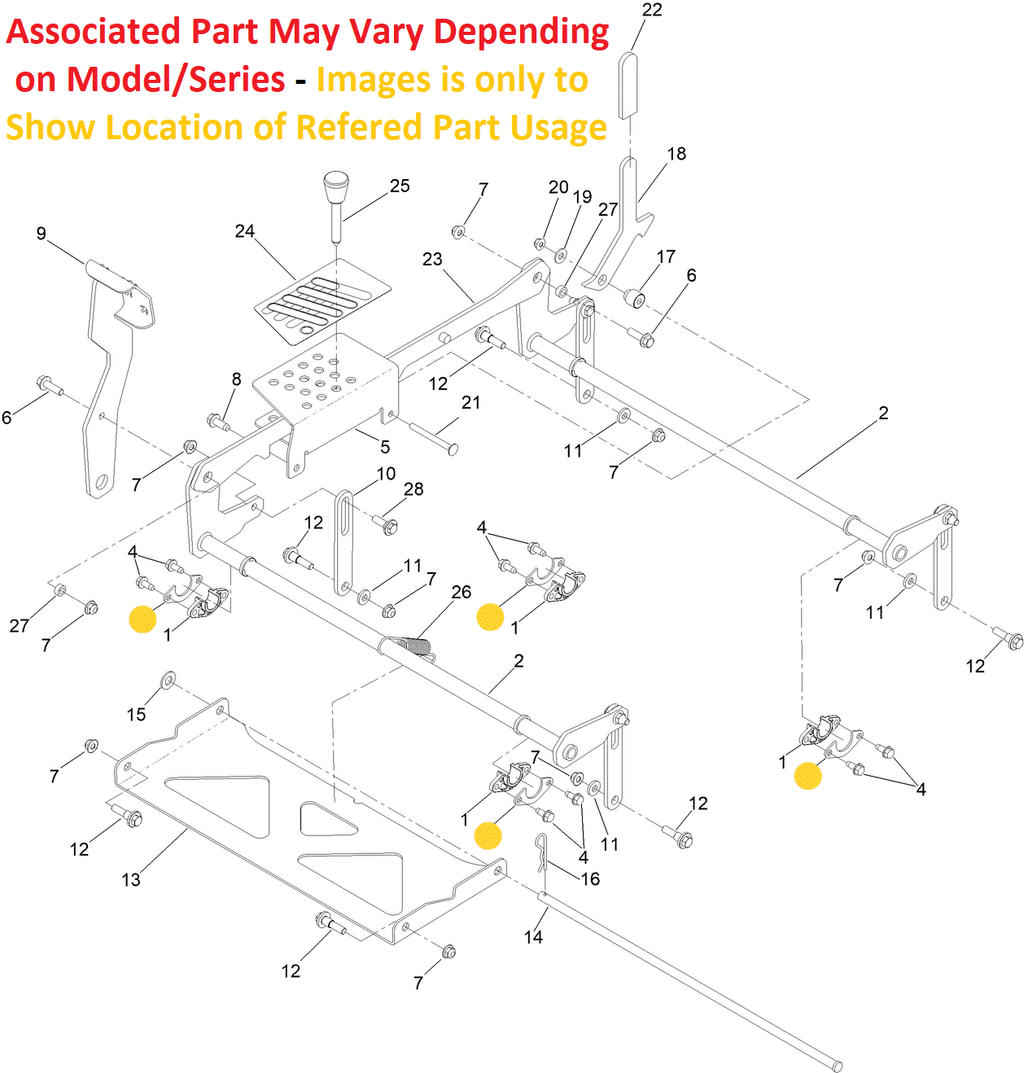

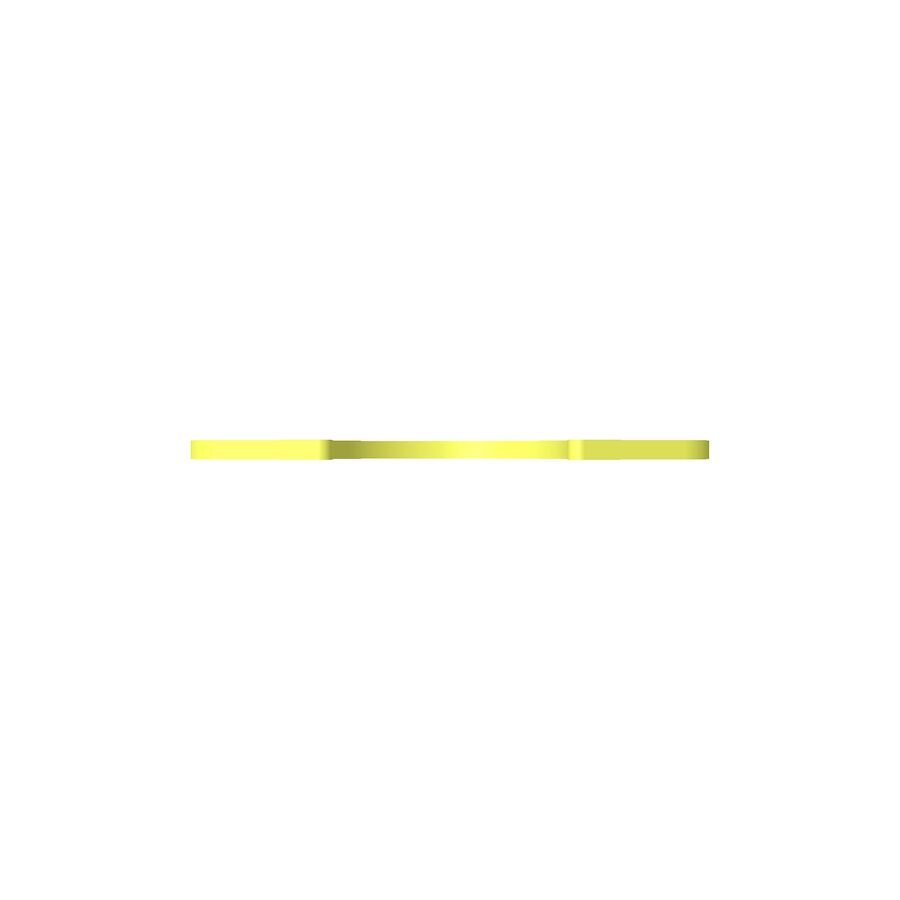

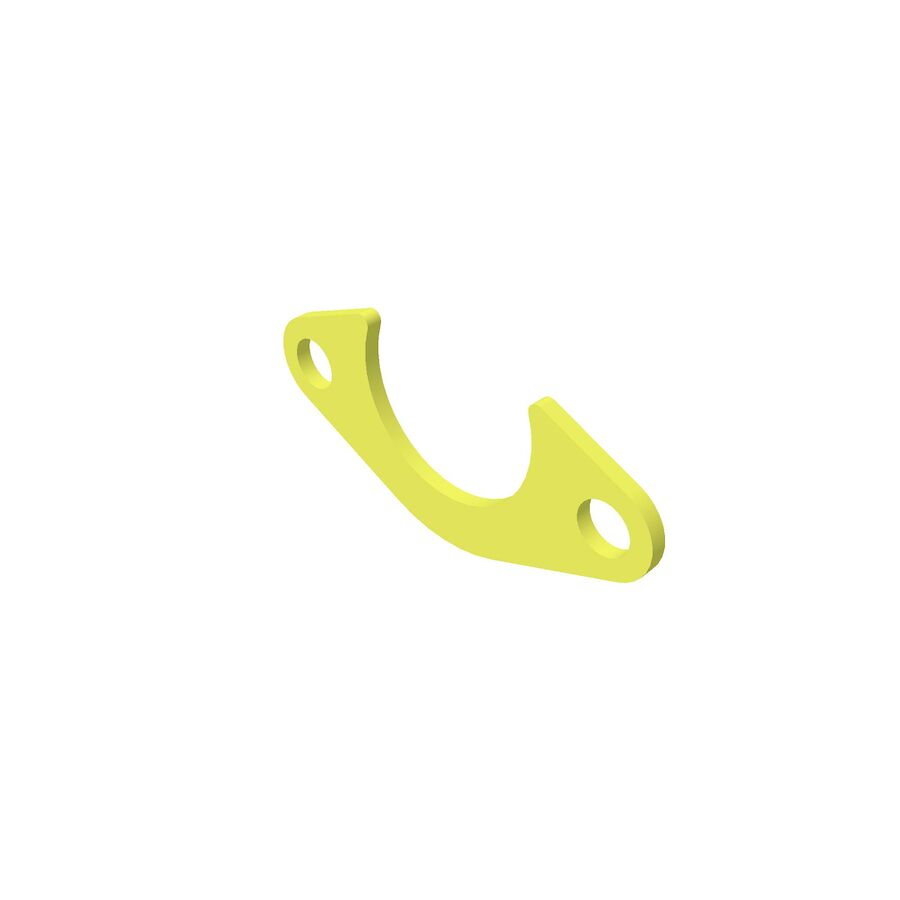

Toro OEM 138 7204 Gusset or Lower Cross Support Bracket Attaches with a Bearing/Bushing to the Upper Mower Deck Pivot/Lift Arm Bracket or Upper Cross Support Weldment Bracket/Frame and Assists in retaining the Mower Deck Pivot/Lift Arm as well as allowing it to freely rotate against the Surface of a Replaceable Bearing/Bushing. Toro OEM 138 7204 Gusset is Designed to fits Toro Current/Late 48", 54", 60" PROLINE Models - Current 42", 50", 54", 60" Timecutter MAX (Standard, My-ride) Models - Late 48", 54", 60" Timecutter (Timecutter HD, 60" Standard and My-Ride - Models with Replaceable Cast Aluminum Axle's) Models - Current 48", 54", 60" TITAN and TITAN MAX (I-Beam Framing) Models - Late 48", 54", 60" TITAN  4800, 5400, 6000, X, XS, Standard, My-Ride, (Tube Framing) Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage.







NOTE: Some Model Numbers May Overlap in Part Number Requirement. If you Experience A Part Number Overlap Within Models Number Feel Free to Contact us Here @ Hilly Ridge and we will Try to Assist you with your Questions







Specification

Product Number:

1387204

Brand:

Toro

Length:

2.900 IN (7.366 CM)

Width:

1.500 IN (3.810 CM)

Height:



0.200 IN (0.508 CM)

Weight:




0.046 LB (0.021 KG)





Model Fit:





TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)

60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



TIMECUTTER HD



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74886, 75210)

54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74888)



TITAN



48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411)



54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74876, 74877, 74889, 74898)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)

60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)



PROLINE



36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)



48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)



54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)



60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
