Description

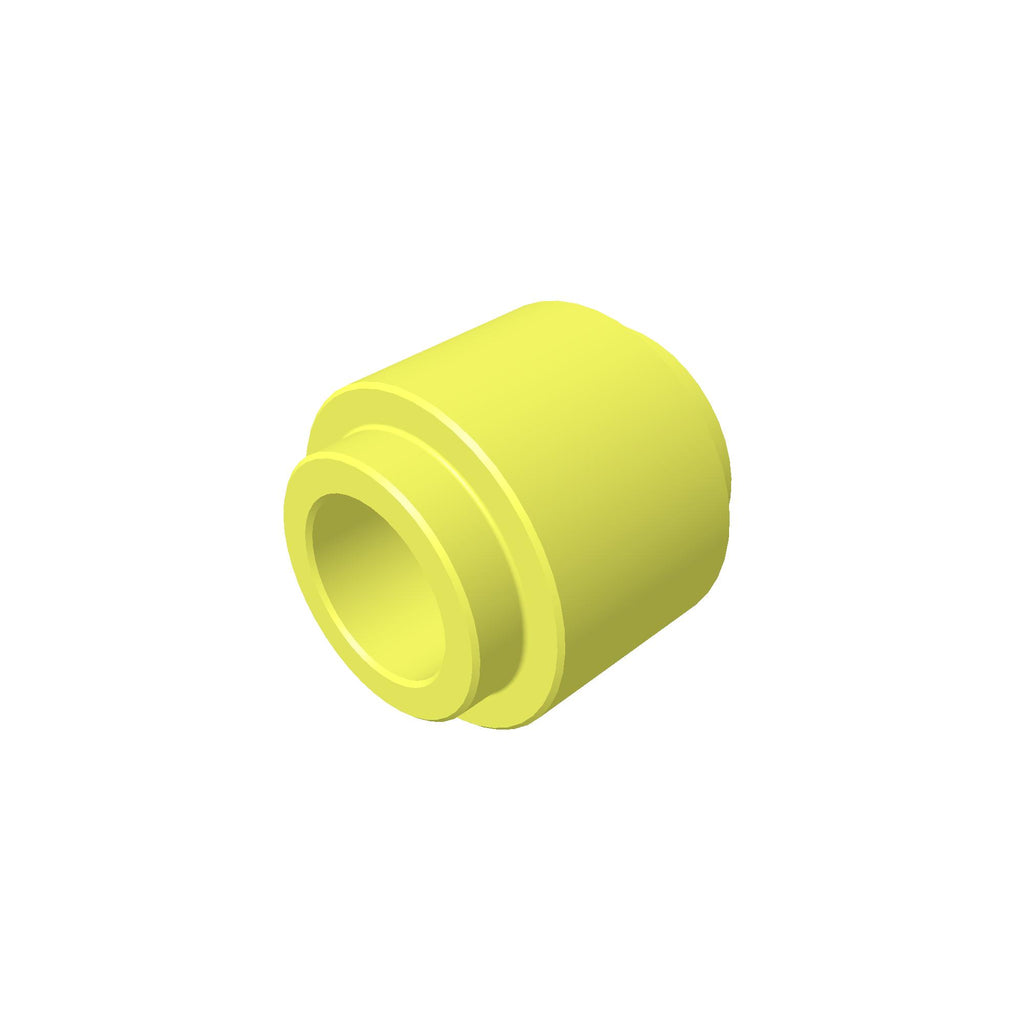

- TYPE: TORO OEM Step Spacer
- SIZE: NA

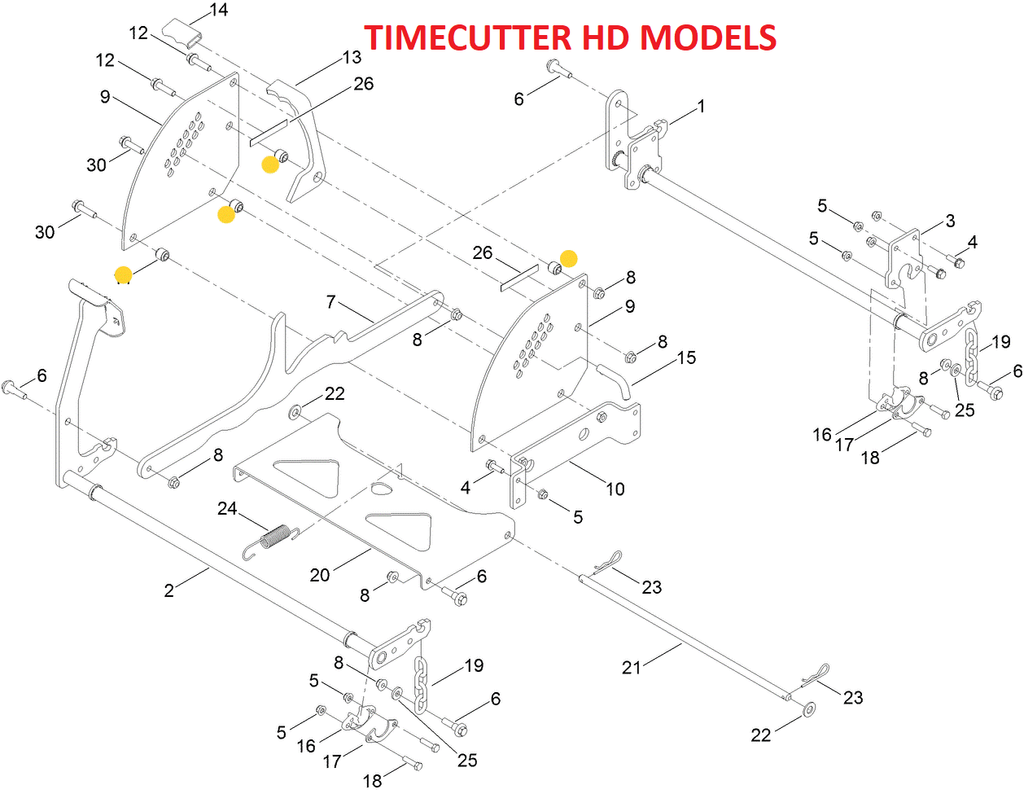

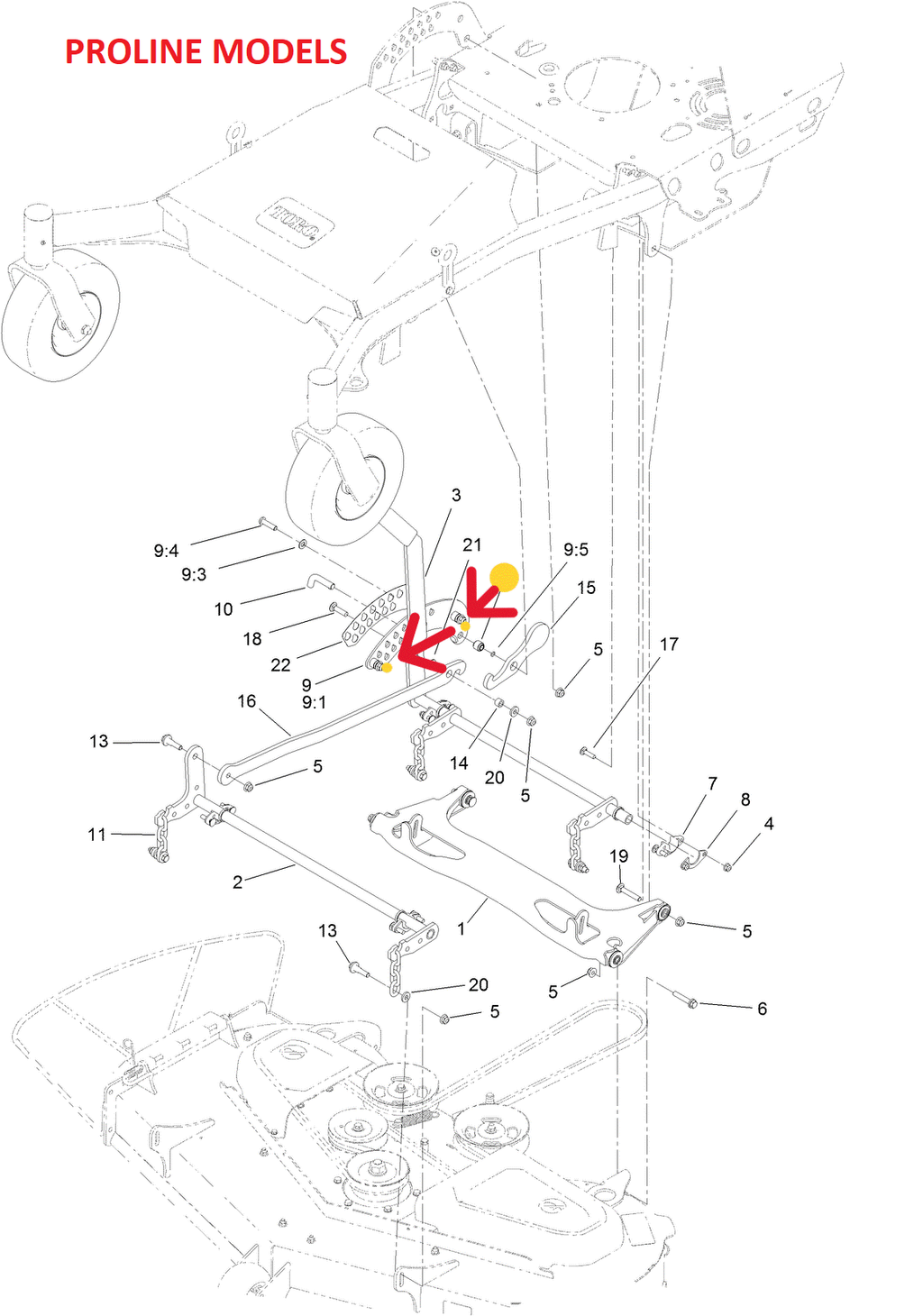

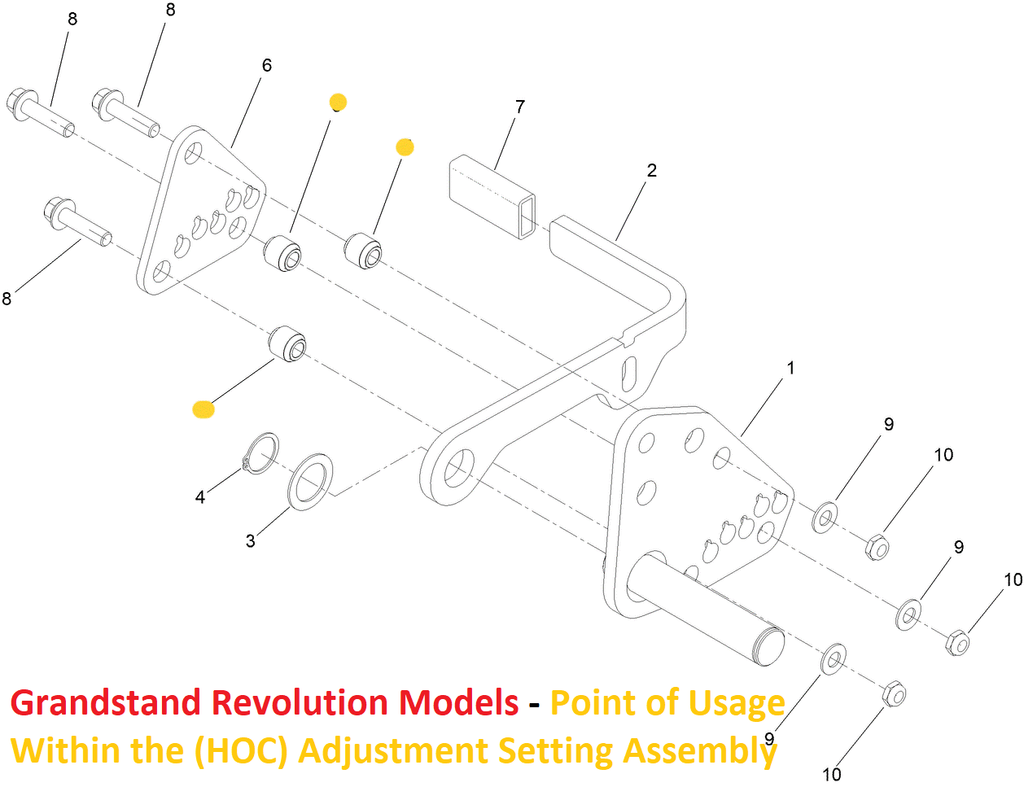

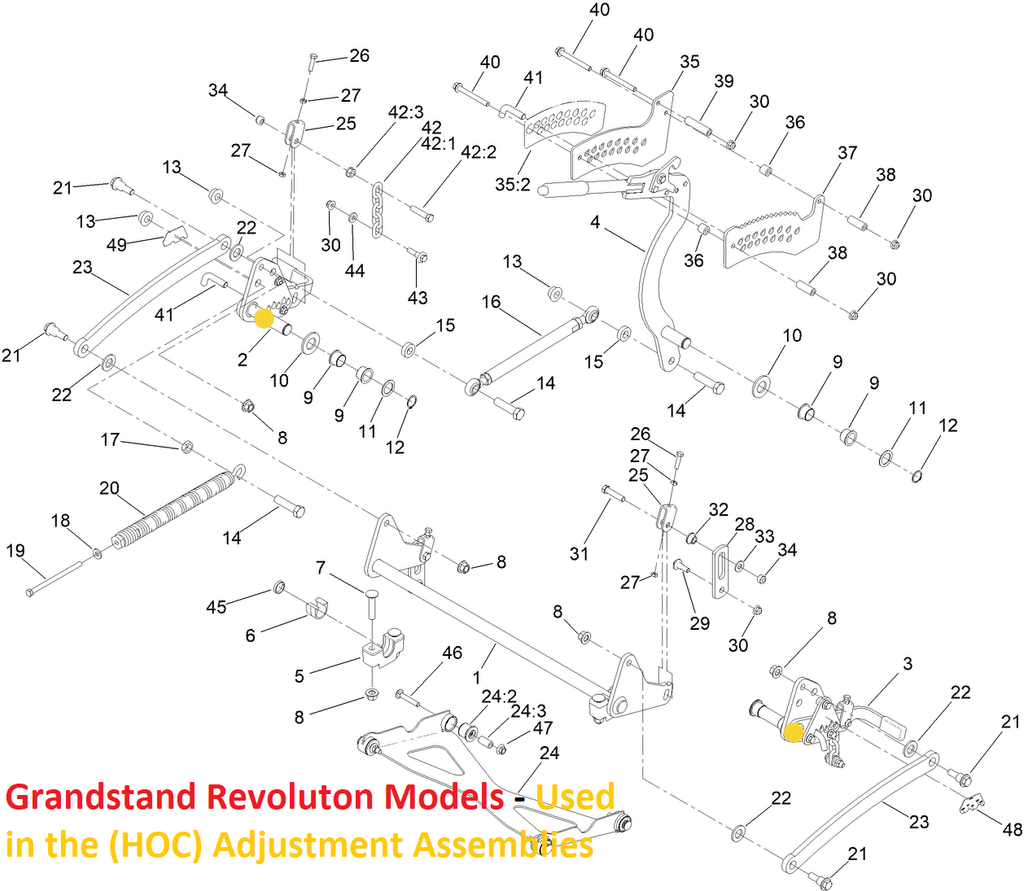

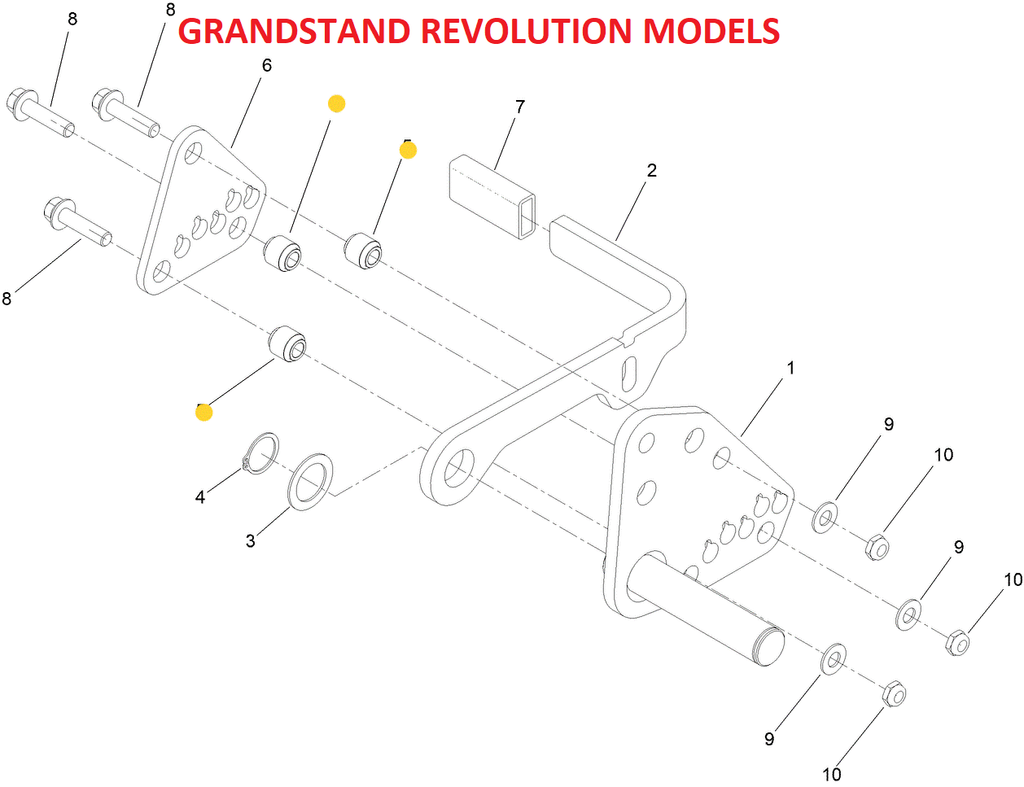

- APPLICATIONS: Timecutter HD Models (Spacers are stepped to Fit into the Lift Plate or (HOC) Selection Plate at the same time Allowing Correct spacing for (HOC) Link - One of the Spacers is Required to Insert Through and Retain the Transport Latch Handle) - Pro-Line Models (Spacers are Stepped to Fit into the Height of Cut (HOC) Standoff Assembly or (HOC) Selection Plate Acting as a Stop in Both Raising and Lowering the Mower Deck For the Mower Deck Lever One of the three Require will also Fit Between the (HOC) Selection Plate and Mower Deck Transport Lock Lever and Space the Latch away from the (HOC) Selection Plate Allowing it to Move Freely and Latch as it should) - Grandstand Revolution Models (Installed on the Multi (HOC) Setting Adjustment Assembly Witch Are Connected to the Mower Deck Lift Link Arms And Enable Quick Easy Adjustment By using the Numerous Whole Selection on the (HOC) Adjustment Setting Assembly. 138-7201 Spaces the Inner and Outer Selection Plate Away from the Adjustment Handles on (HOC) Adjustment Setting Assembly Allowing the (HOC) Handle and Adjustment Setting Plates on the Assembly to Move Up and Down in order to Make the Proper Adjustment Setting Needed To level your Mower Deck.
- COMMON SERIES APPLICATIONS: Select Late Timecutter HD Models - Current/Late Proline Models - Current Grandstand Revolution Models.
*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
Specification
|
Product Number: |
1387201, 138 7201 |
|
Brand: |
Toro |
|
Length: |
0.600 IN (1.524 CM) |
|
Width: |
0.600 IN (1.524 CM) |
|
Height: |
0.600 IN (1.524 CM) |
|
Weight: |
0.055 LB (0.025 KG) |
Model Fit:
TIMECUTTER
48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74886, 75210)
54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74876, 74888)
PROLINE
36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)
48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)
54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)
60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
GRANDSTAND
48” E - GRANDSTAND – (Revolution) – (* Model Numbers 18562)
52” E - GRANDSTAND – (Revolution) – (* Model Numbers 18560)
60” E - GRANDSTAND – (Revolution) – (* Model Numbers 18564)
